Asus GeForce4 MX460 (DVI)

Published: (last update )

GPU
GPU type NV17
Manufacturing process150 nm
Transistors29 million
Die size- mm2
Density-
ROPs2
TMUs4
Pixel shaders-
Vertex shaders-
Unified shaders-
Clock300 MHz
Pixel fillrate600 MP/s
Texel fillrate1 200 MT/s
SP gigaflops-
DP gigaflops-
DirectX7
OpenGL1.2
OpenCL / Compute ver.-
Memory
Capacity64 MB
TypeDDR
Clock550 MHz
Bus width128 bit
Bandwith8 800 MB/s
Rated speed550 MHz
BrandSamsung
The card
ManufacturerAsus
InterfaceAGP 4x
Interface bandwith1 066 MB/s
TDP25 W
Analog I/O ports1 × VGA, 1 × S-Video out, 1 × DVI-I
Digital I/O ports1 × DVI-I
Independent screens2
Manufacture date-
Release date2002

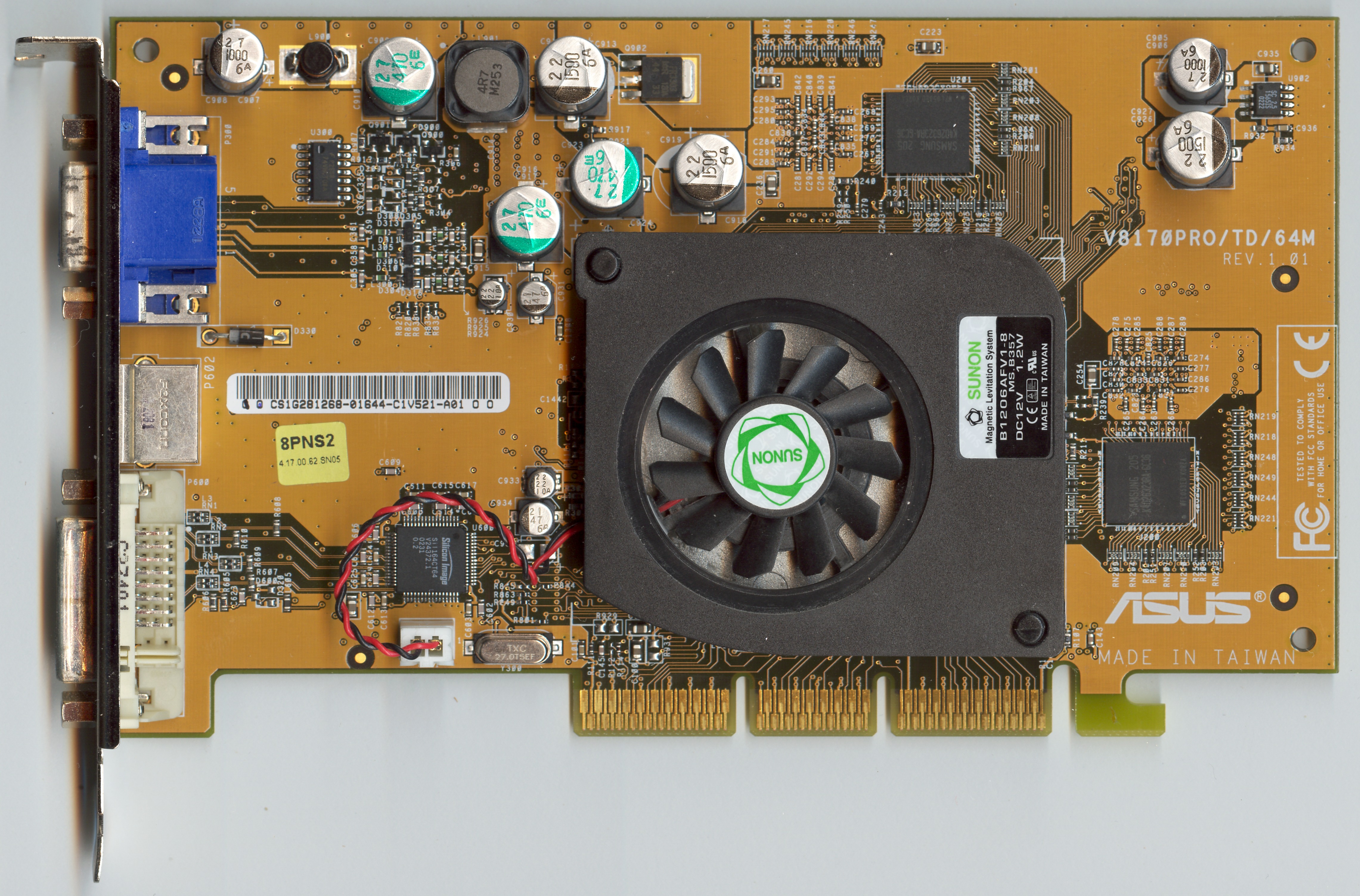

Asus GeForce4 MX460 (DVI) (front side)

Asus GeForce4 MX460 (DVI) (front side)

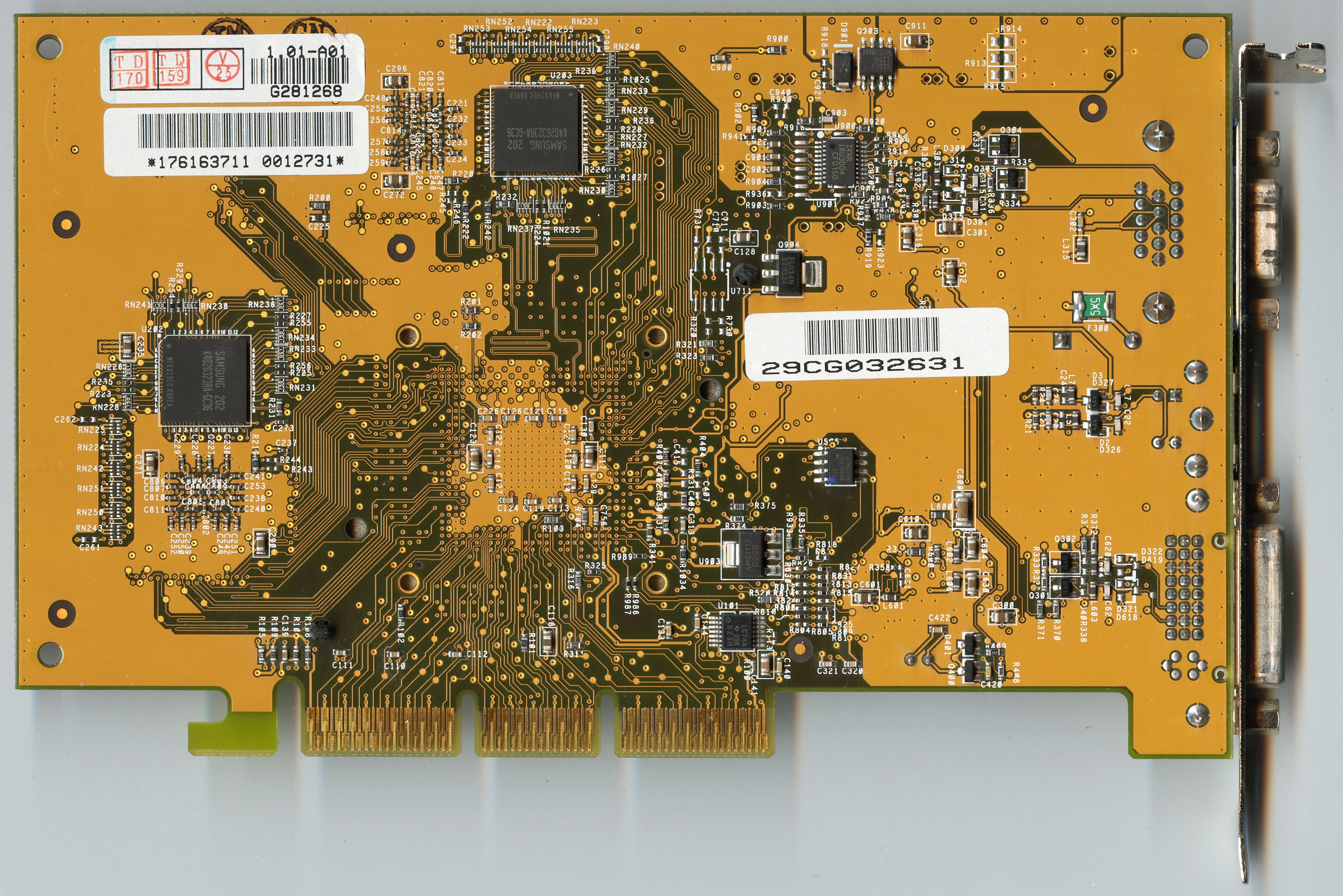

Asus GeForce4 MX460 (DVI) (back side)

Asus GeForce4 MX460 (DVI) (back side)
