Manli GeForce2 GTS 64 MB

Published: (last update )

GPU
GPU type NV15
Manufacturing process180 nm
Transistors25 million
Die size89 mm2
Density0.28 M / mm2
ROPs4
TMUs8
Pixel shaders-
Vertex shaders-
Unified shaders-
Clock200 MHz
Pixel fillrate800 MP/s
Texel fillrate1 600 MT/s
SP gigaflops-
DP gigaflops-
DirectX7
OpenGL1.2
OpenCL / Compute ver.-
Memory
Capacity64 MB
TypeDDR
Clock333 MHz
Bus width128 bit
Bandwith5 328 MB/s
Rated speed366 MHz
BrandHynix
The card
ManufacturerManli
InterfaceAGP 4x
Interface bandwith1 066 MB/s
TDP33 W
Analog I/O ports1 × VGA
Digital I/O ports-
Independent screens1
Manufacture date29th week of 2000
Release date2000

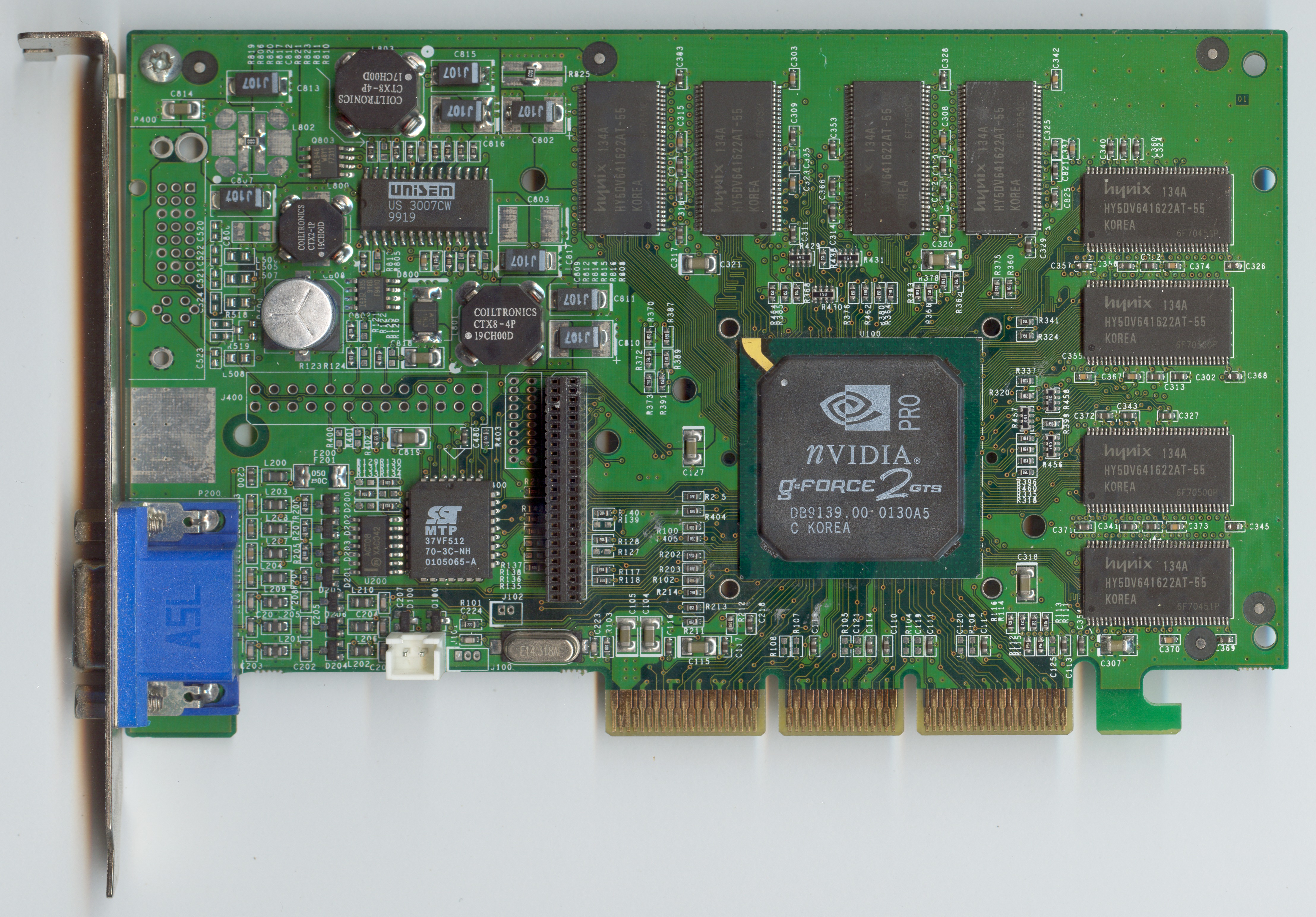

Manli GeForce2 GTS 64 MB (front side)

Manli GeForce2 GTS 64 MB (front side)

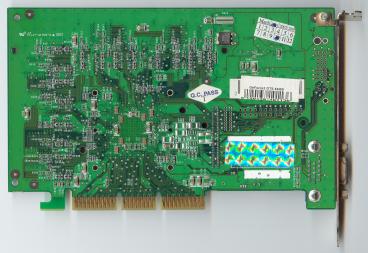

Manli GeForce2 GTS 64 MB (back side)

Manli GeForce2 GTS 64 MB (back side)
