Asus GeForce2 GTS TV

Published: (last update )

GPU
GPU type NV15
Manufacturing process180 nm
Transistors25 million
Die size89 mm2
ROPs4
TMUs8
Pixel shaders-
Vertex shaders-
Unified shaders-
Clock200 MHz
Pixel fillrate800 MP/s
Texel fillrate1600 MT/s
SP gigaflops-
DP gigaflops-
DirectX7
OpenGL1.2
OpenCL / Compute ver.-
Memory
Capacity32 MB
TypeDDR
Clock333 MHz
Bus width128 bit
Bandwith5328 MB/s
Rated speed333 MHz
BrandSamsung
The card
ManufacturerAsus
InterfaceAGP 4x
Interface bandwith1066 MB/s
TDP33 W
Analog I/O ports1 × VGA, 1 × Composite out, 1 × S-Video out
Digital I/O ports-
Independent screens1
Manufacture date1st week of 2001
Release date2000

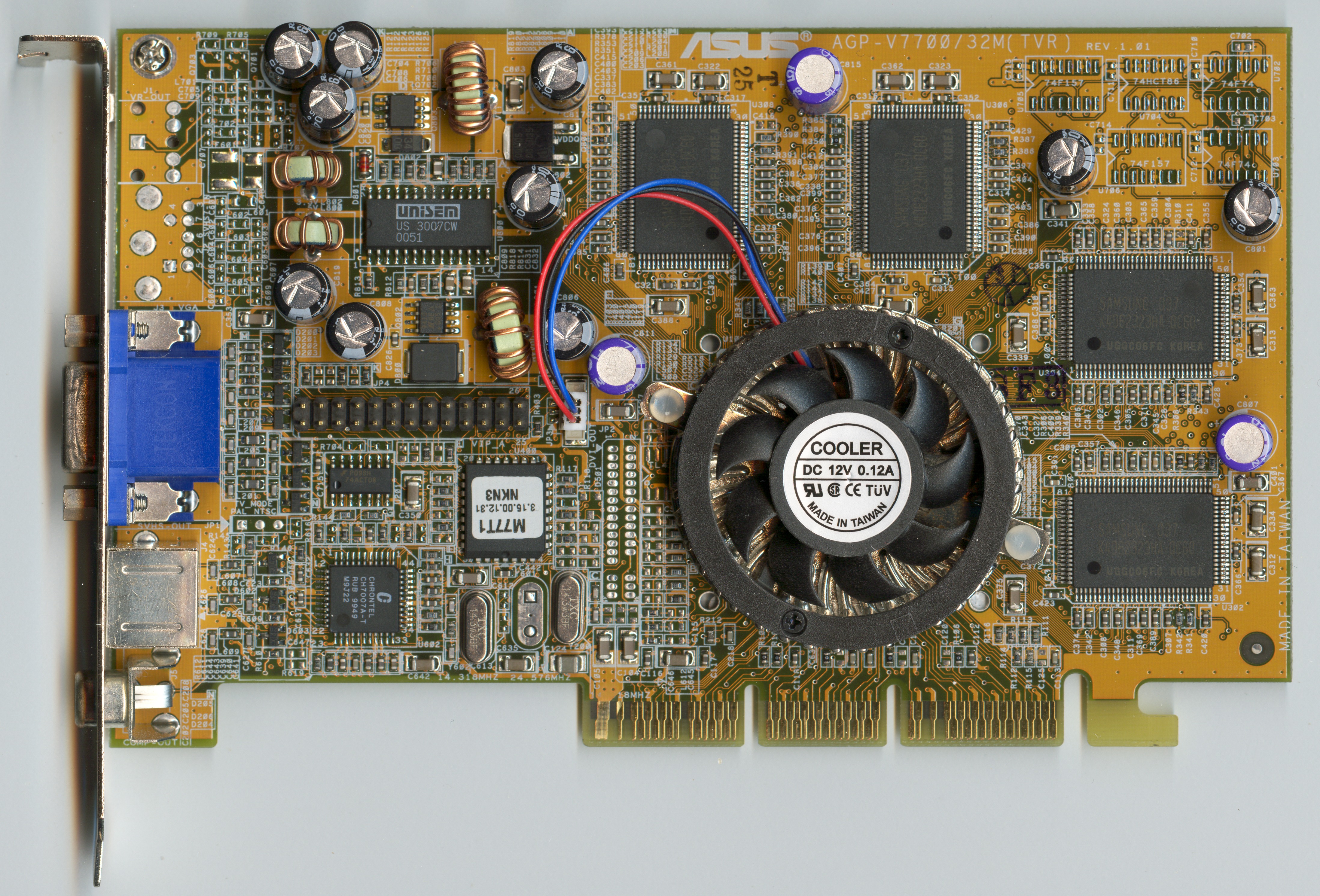

Asus GeForce2 GTS TV (front side)

Asus GeForce2 GTS TV (front side)

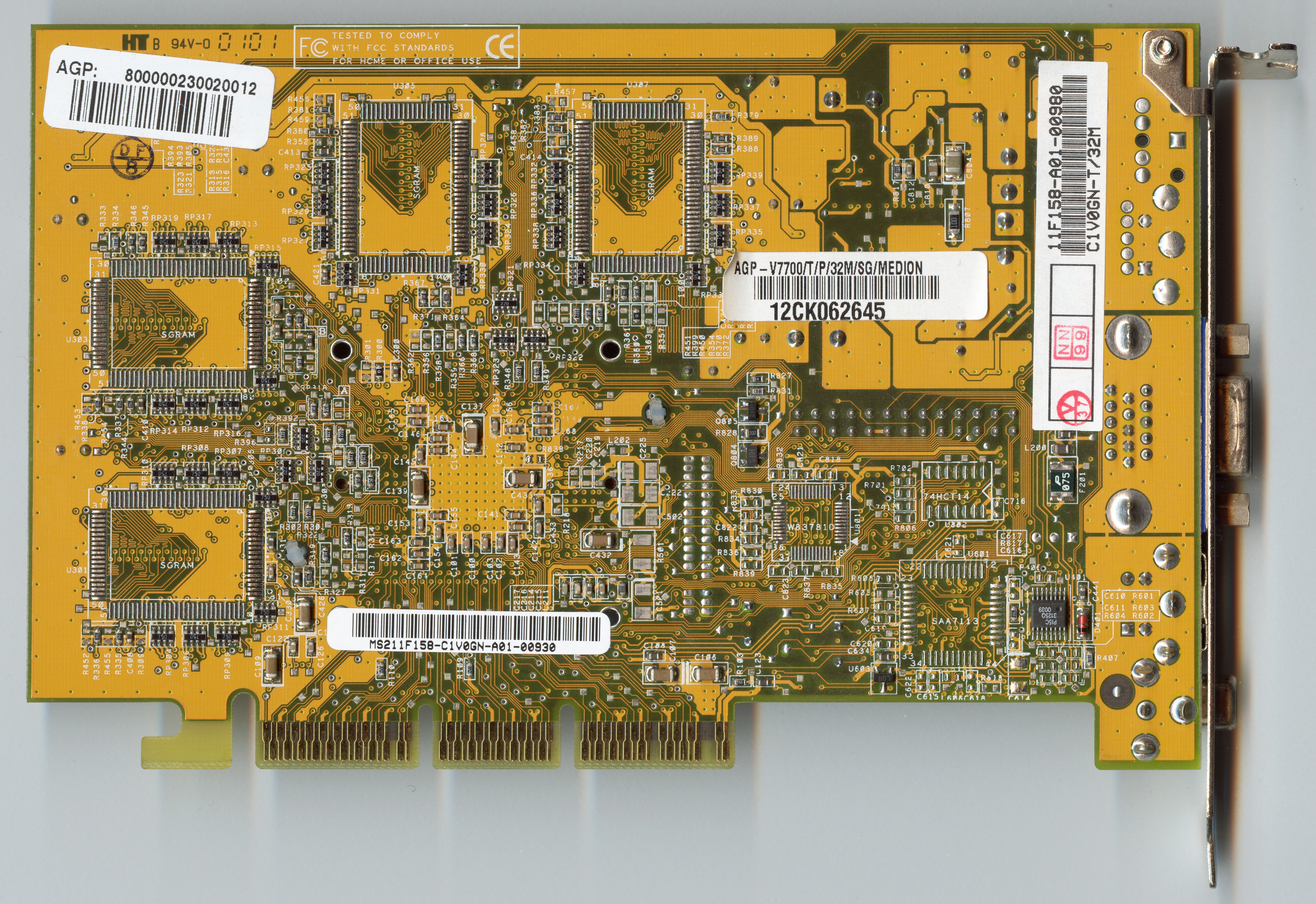

Asus GeForce2 GTS TV (back side)

Asus GeForce2 GTS TV (back side)
