Prolink GeForce2 Ti

Published: (last update )

GPU
GPU type NV15 (150 nm)
Manufacturing process150 nm
Transistors25 milion
Die size81 mm2
ROPs4
TMUs8
Pixel shaders-
Vertex shaders-
Unified shaders-
Clock250 MHz
Pixel fillrate1000 MP/s
Texel fillrate2000 MT/s
SP gigaflops-
DP gigaflops-
DirectX7
OpenGL1.2
OpenCL / Compute ver.-
Memory
Capacity64 MB
TypeDDR
Clock400 MHz
Bus width128 bit
Bandwith6400 MB/s
Rated speed500 MHz
BrandSamsung
The card
ManufacturerProlink
InterfaceAGP 4x
Interface bandwith1066 MB/s
TDP-
Analog I/O ports1 × VGA, 1 × S-Video out
Digital I/O ports-
Independent screens1
Rev4301
Release date2001

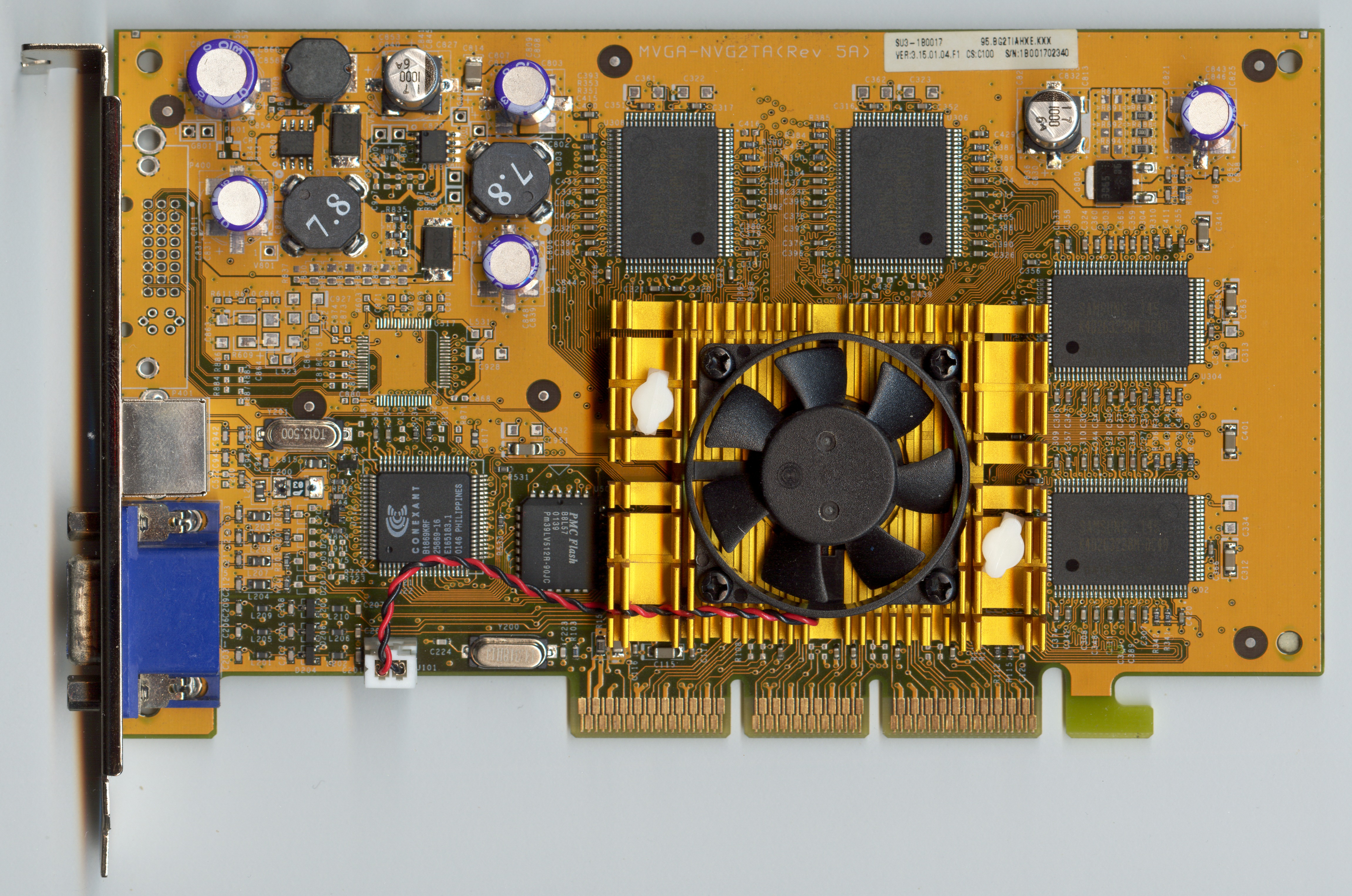

Prolink GeForce2 Ti (front side)

Prolink GeForce2 Ti (front side)

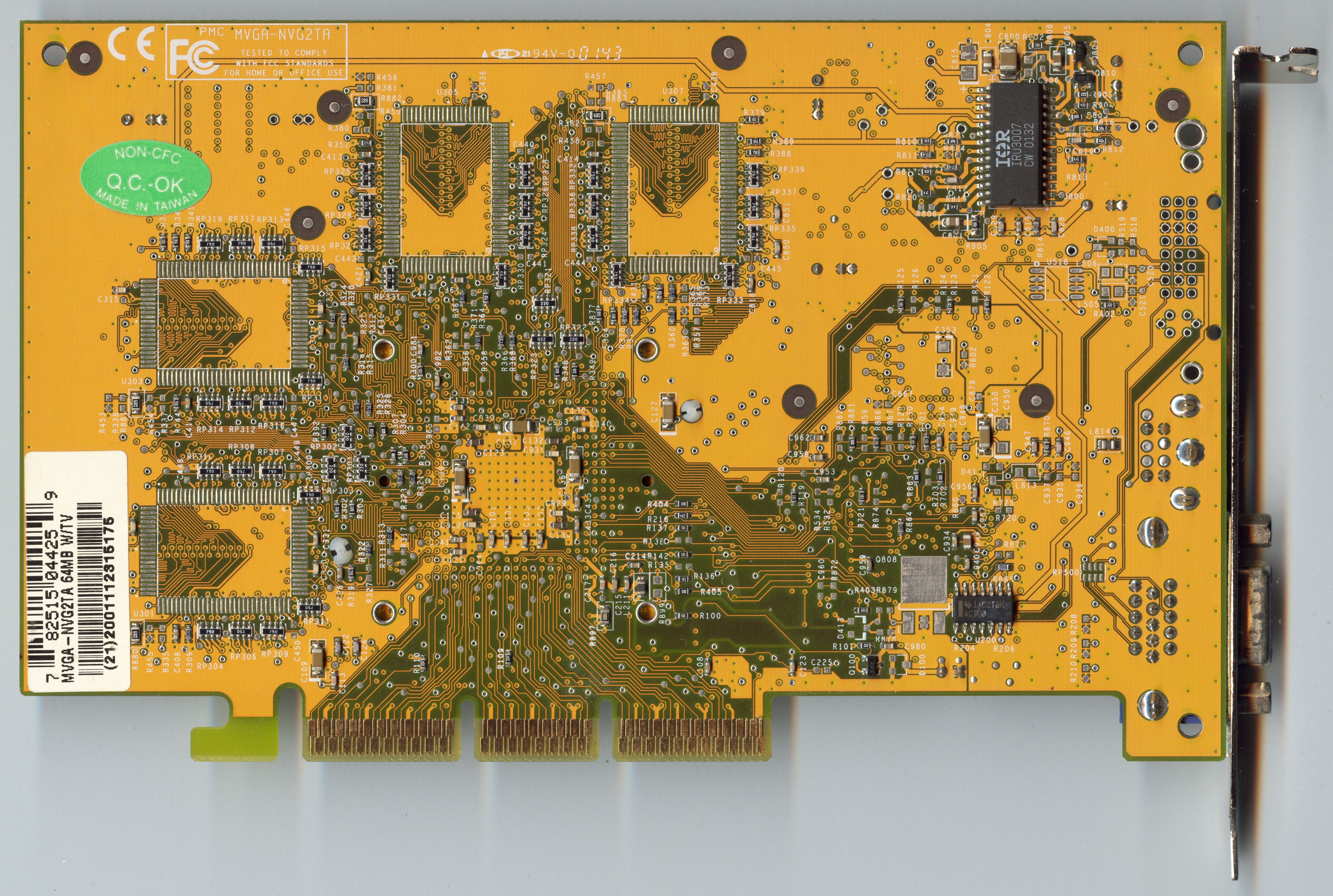

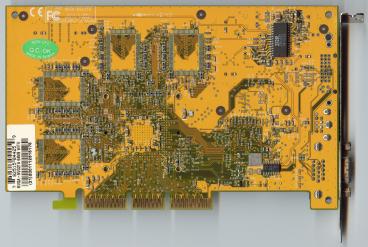

Prolink GeForce2 Ti (back side)

Prolink GeForce2 Ti (back side)
