ELSA GeForce 256 SDR

Published: (last update )

GPU
GPU type NV10
Manufacturing process220 nm
Transistors23 million
Die size139 mm2
Density0.17 M / mm2
ROPs4
TMUs4
Pixel shaders-
Vertex shaders-
Unified shaders-
Clock120 MHz
Pixel fillrate480 MP/s
Texel fillrate480 MT/s
SP gigaflops-
DP gigaflops-
DirectX7
OpenGL1.2
OpenCL / Compute ver.-
Memory
Capacity32 MB
TypeSDRAM
Clock166 MHz
Bus width128 bit
Bandwith2 656 MB/s
Rated speed166 MHz
BrandSamsung
The card
ManufacturerELSA
InterfaceAGP 4x
Interface bandwith1 066 MB/s
TDP20 W
Analog I/O ports1 × VGA
Digital I/O ports-
Independent screens1
Manufacture date47th week of 1999
Release date1999

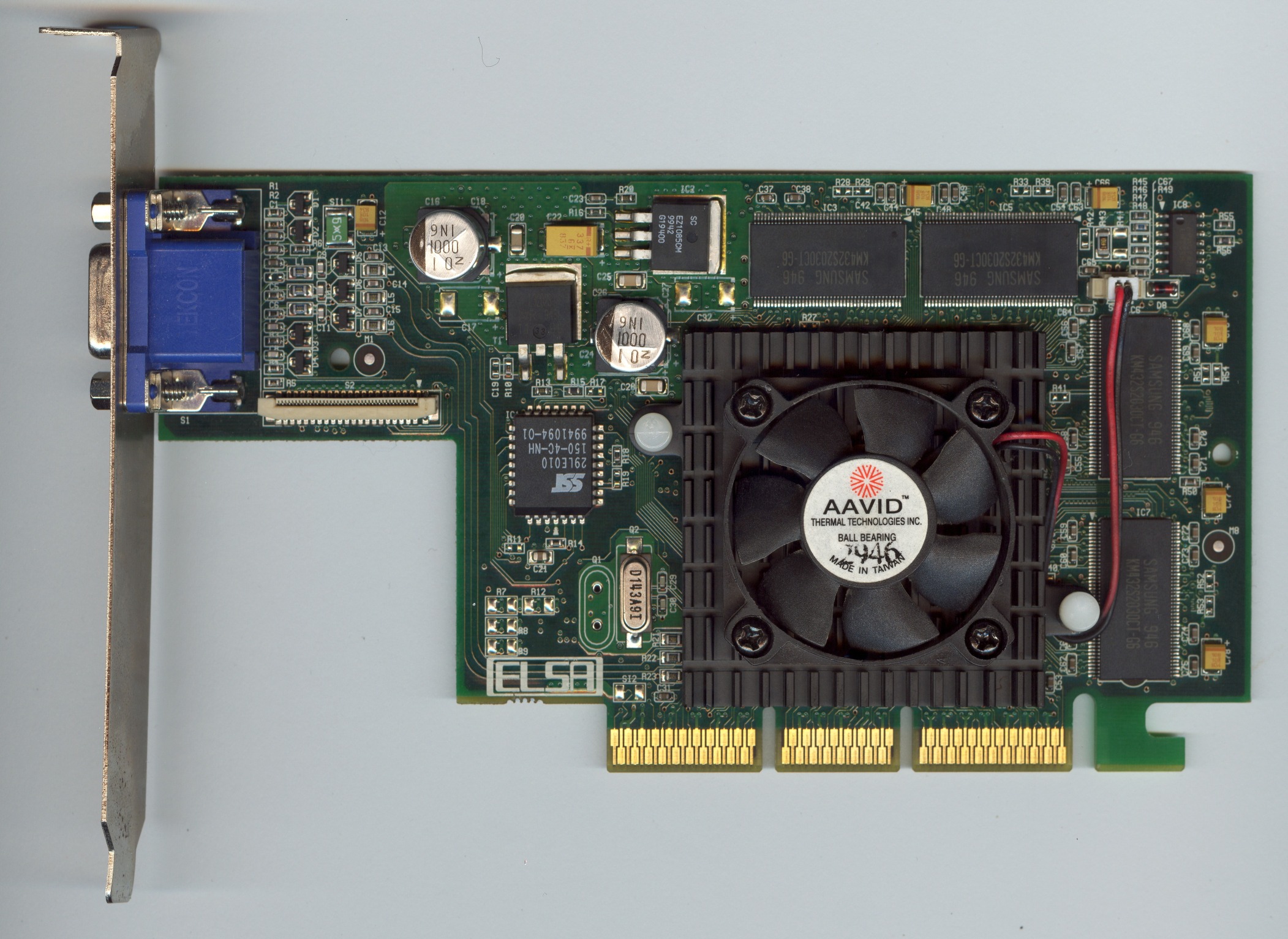

ELSA GeForce 256 SDR (front side)

ELSA GeForce 256 SDR (front side)

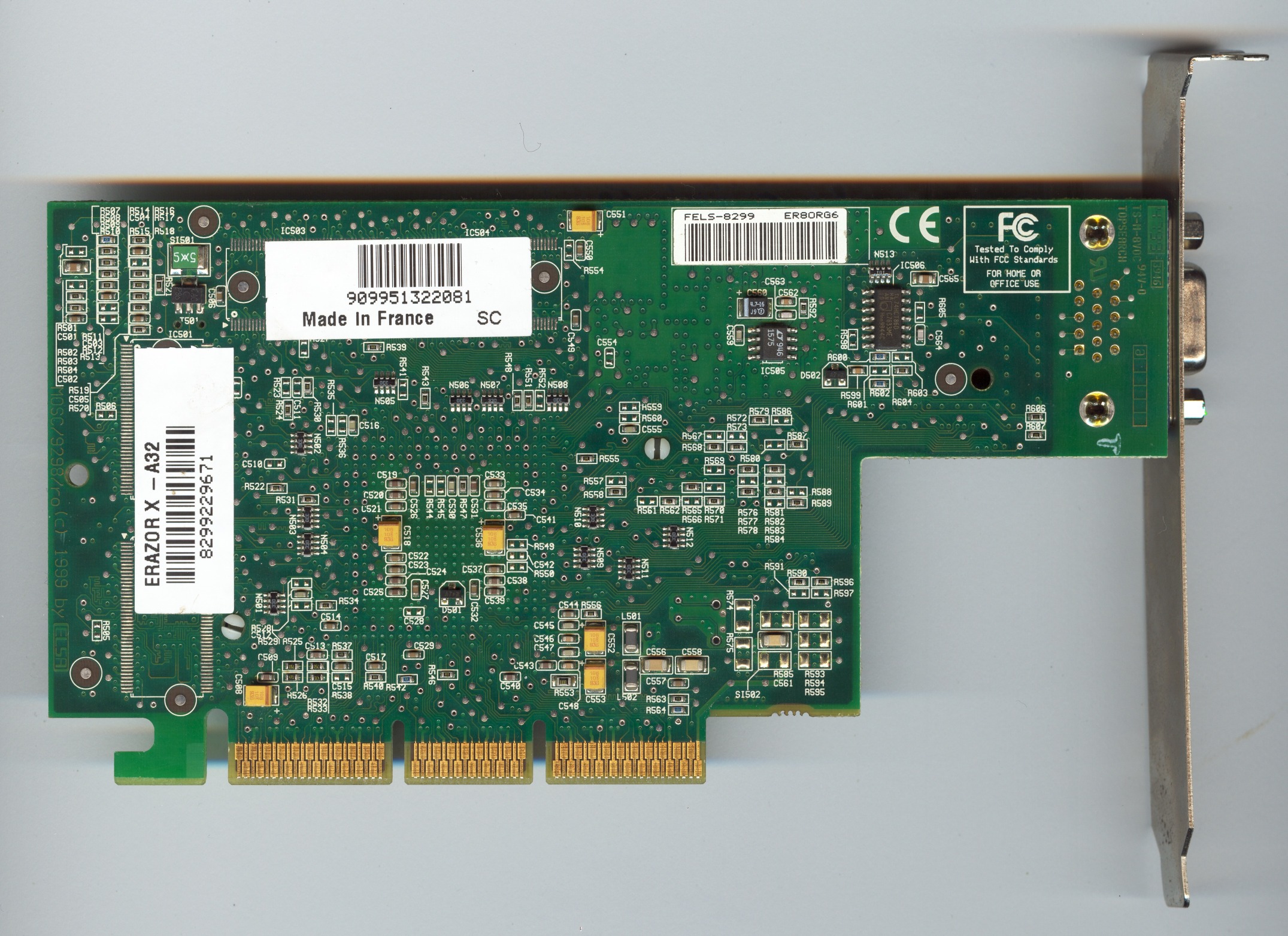

ELSA GeForce 256 SDR (back side)

ELSA GeForce 256 SDR (back side)
