ELSA Quadro SDR

Published: (last update )

GPU
GPU type NV10
Manufacturing process220 nm
Transistors23 milion
Die size139 mm2
ROPs4
TMUs4
Pixel shaders-
Vertex shaders-
Unified shaders-
Clock135 MHz
Pixel fillrate540 MP/s
Texel fillrate540 MT/s
SP gigaflops-
DP gigaflops-
DirectX7
OpenGL1.2
OpenCL / Compute ver.-
Memory
Capacity64 MB
TypeSDRAM
Clock166 MHz
Bus width128 bit
Bandwith2656 MB/s
Rated speed166 MHz
BrandSamsung
The card
ManufacturerELSA
InterfaceAGP 4x
Interface bandwith1066 MB/s
TDP25 W
Analog I/O ports1 × VGA
Digital I/O ports-
Independent screens1
Rev0700
Release date1999

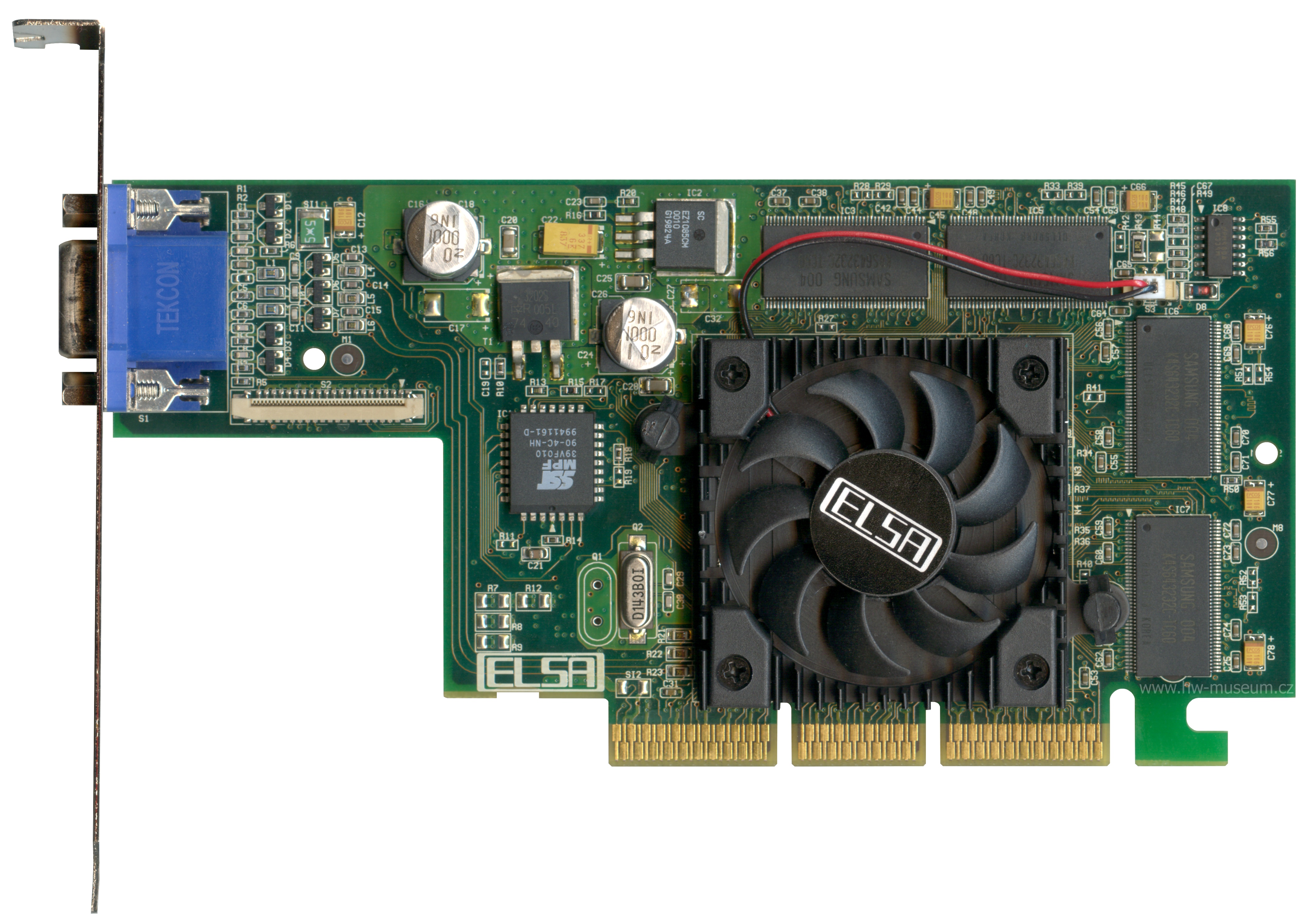

ELSA Quadro SDR (front side)

ELSA Quadro SDR (front side)

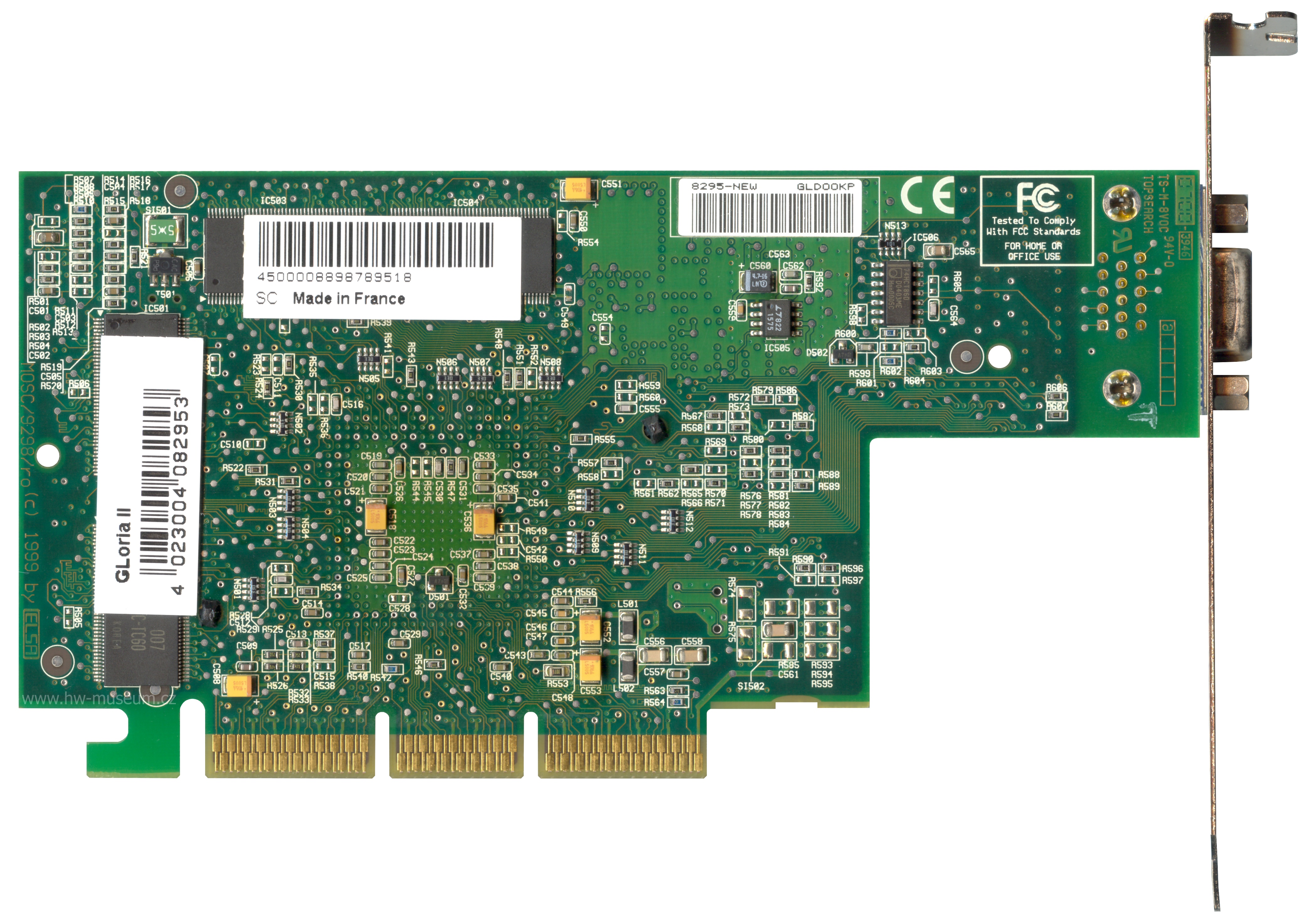

ELSA Quadro SDR (back side)

ELSA Quadro SDR (back side)
