Asus GeForce 256 DDR

Published: (last update )

GPU
GPU type NV10
Manufacturing process220 nm
Transistors23 million
Die size139 mm2
Density0.17 M / mm2
ROPs4
TMUs4
Pixel shaders-
Vertex shaders-
Unified shaders-
Clock120 MHz
Pixel fillrate480 MP/s
Texel fillrate480 MT/s
SP gigaflops-
DP gigaflops-
DirectX7
OpenGL1.2
OpenCL / Compute ver.-
Memory
Capacity32 MB
TypeDDR
Clock300 MHz
Bus width128 bit
Bandwith4 800 MB/s
Rated speed333 MHz
BrandInfineon
The card
ManufacturerAsus
InterfaceAGP 4x
Interface bandwith1 066 MB/s
TDP20 W
Analog I/O ports1 × VGA, 1 × Composite out, 1 × S-Video in, 1 × S-Video out
Digital I/O ports-
Independent screens1
Manufacture date7th week of 2000
Release date2000

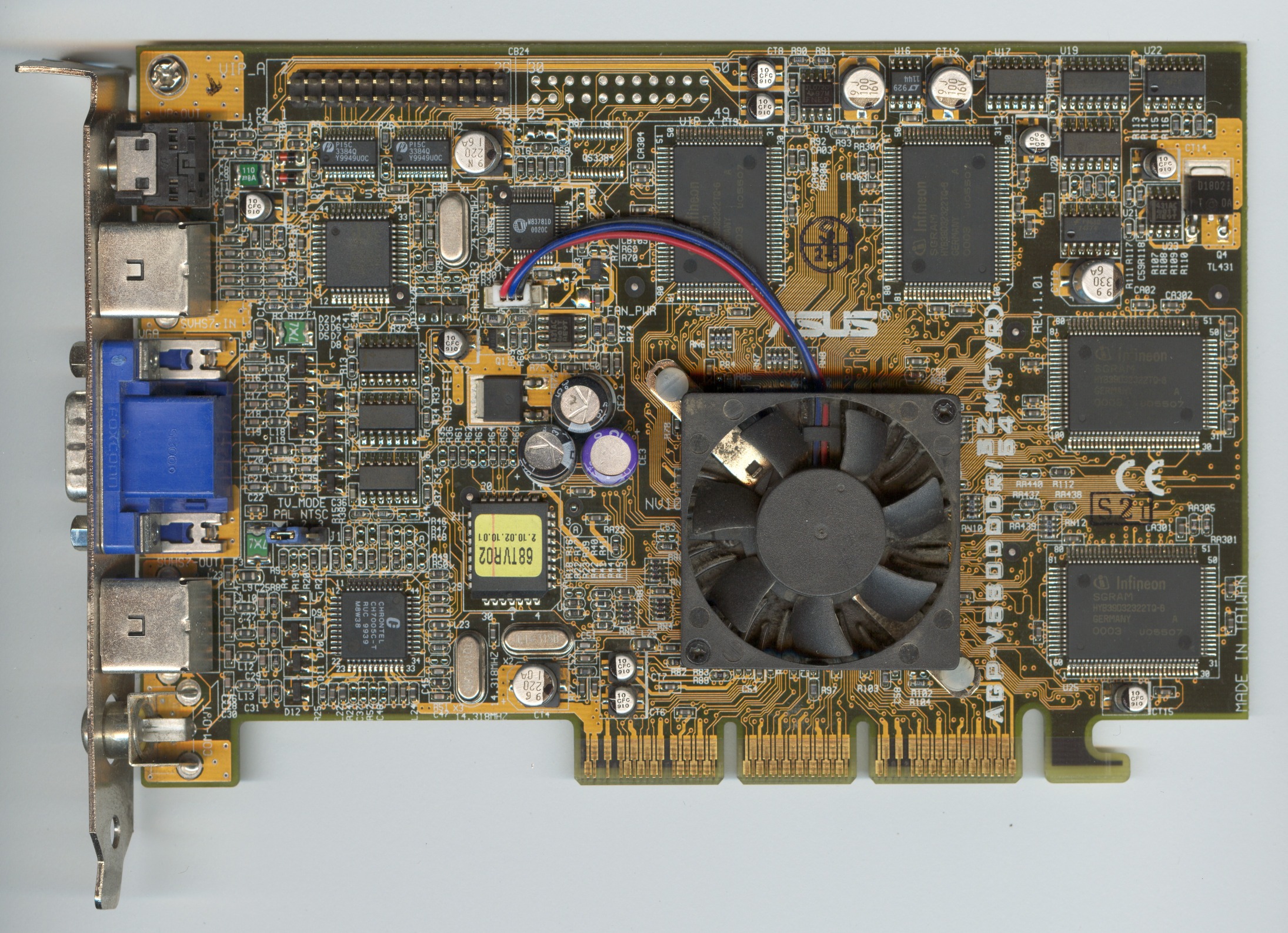

Asus GeForce 256 DDR (front side)

Asus GeForce 256 DDR (front side)

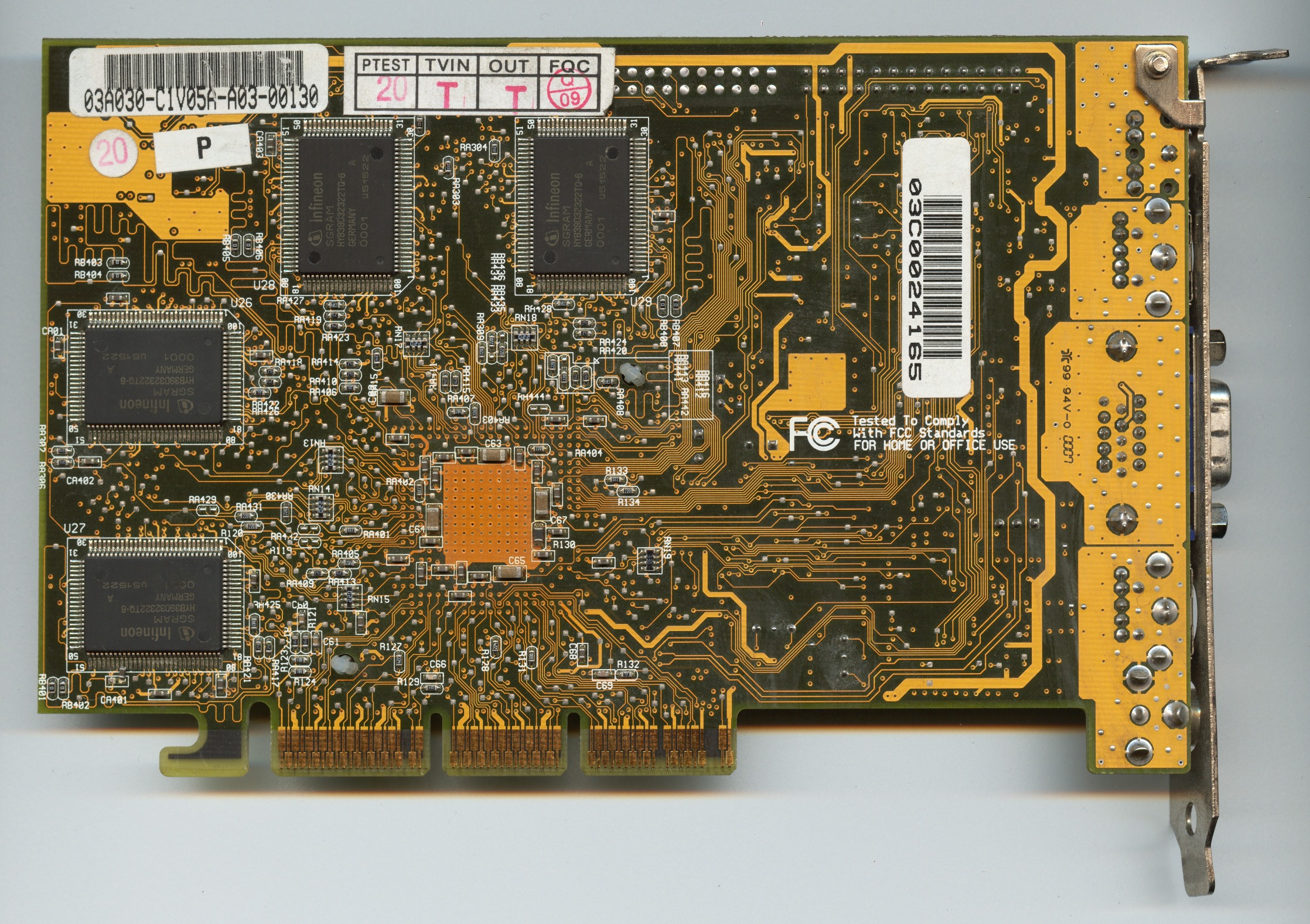

Asus GeForce 256 DDR (back side)

Asus GeForce 256 DDR (back side)
