Asus GeForce2 MX (DVI PCB)

Published: (last update )

GPU
GPU type NV11
Manufacturing process180 nm
Transistors19 million
Die size65 mm2
Density0.29 M / mm2
ROPs2
TMUs4
Pixel shaders-
Vertex shaders-
Unified shaders-
Clock175 MHz
Pixel fillrate350 MP/s
Texel fillrate700 MT/s
SP gigaflops-
DP gigaflops-
DirectX7
OpenGL1.2
OpenCL / Compute ver.-
Memory
Capacity32 MB
TypeSDRAM
Clock166 MHz
Bus width128 bit
Bandwith2 656 MB/s
Rated speed200 MHz
BrandSamsung
The card
ManufacturerAsus
InterfaceAGP 4x
Interface bandwith1 066 MB/s
TDP18 W
Analog I/O ports1 × VGA
Digital I/O ports-
Independent screens1
Manufacture date30th week of 2001
Release date2000

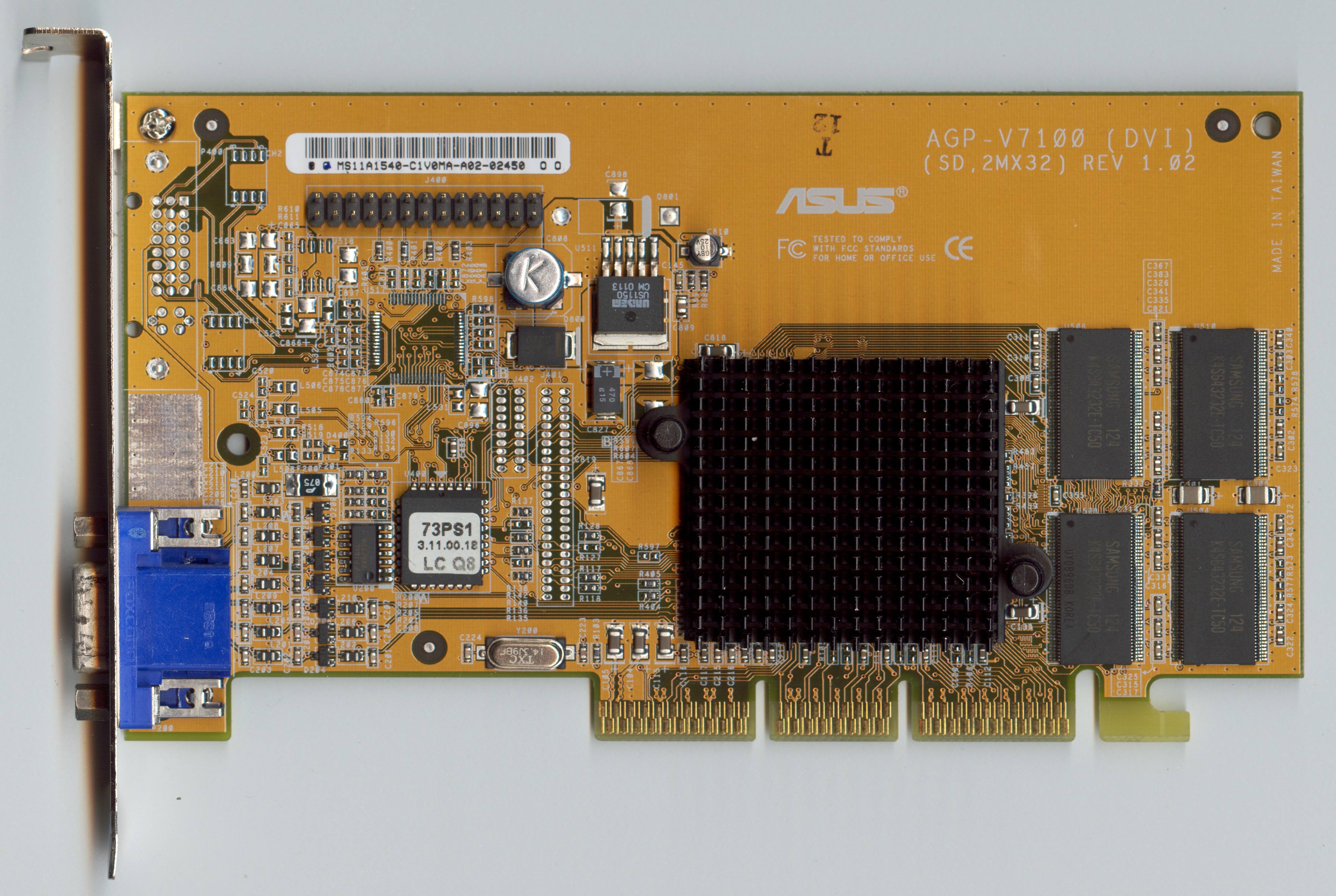

Asus GeForce2 MX (DVI PCB) (front side)

Asus GeForce2 MX (DVI PCB) (front side)

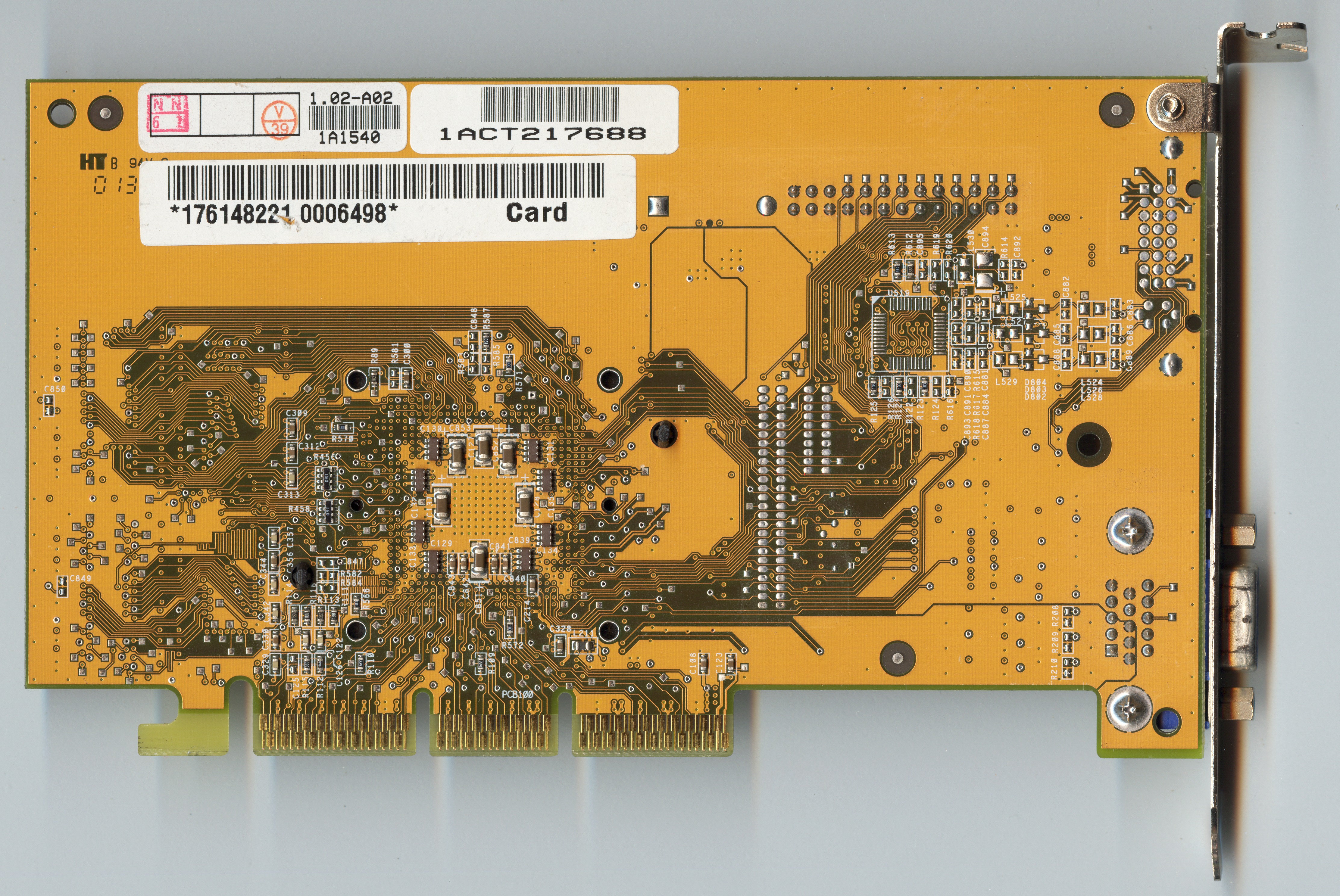

Asus GeForce2 MX (DVI PCB) (back side)

Asus GeForce2 MX (DVI PCB) (back side)
