Asus GeForce2 MX400 64 MB

Published: (last update )

GPU
GPU type NV11
Manufacturing process180 nm
Transistors19 million
Die size65 mm2
Density0.29 M / mm2
ROPs2
TMUs4
Pixel shaders-
Vertex shaders-
Unified shaders-
Clock200 MHz
Pixel fillrate400 MP/s
Texel fillrate800 MT/s
SP gigaflops-
DP gigaflops-
DirectX7
OpenGL1.2
OpenCL / Compute ver.-
Memory
Capacity64 MB
TypeSDRAM
Clock200 MHz
Bus width128 bit
Bandwith3 200 MB/s
Rated speed250 MHz
BrandEtron Tech.
The card
ManufacturerAsus
InterfaceAGP 4x
Interface bandwith1 066 MB/s
TDP20 W
Analog I/O ports1 × VGA, 1 × Composite out, 1 × S-Video out
Digital I/O ports-
Independent screens2
Manufacture date40th week of 2001
Release date2001

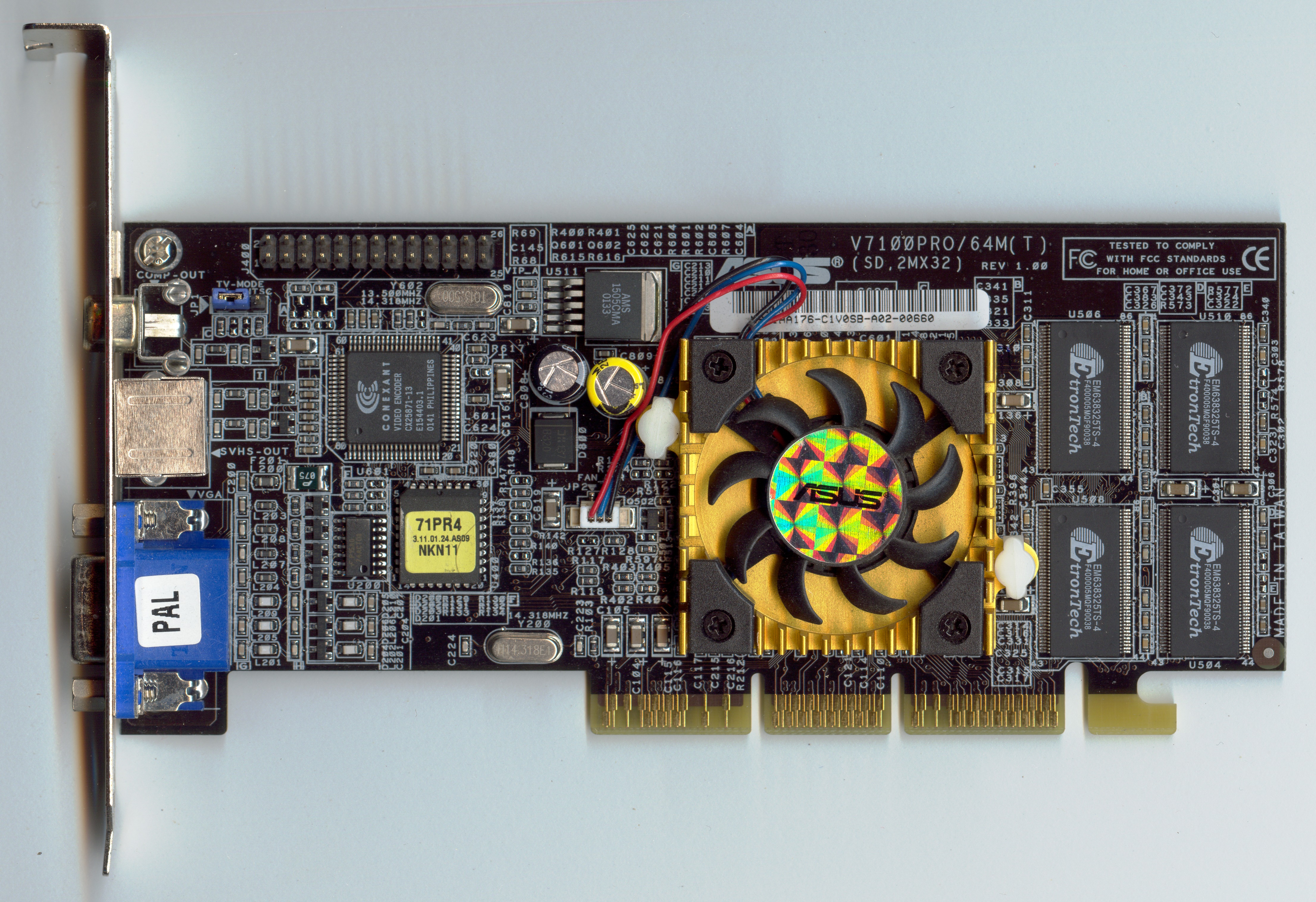

Asus GeForce2 MX400 64 MB (front side)

Asus GeForce2 MX400 64 MB (front side)

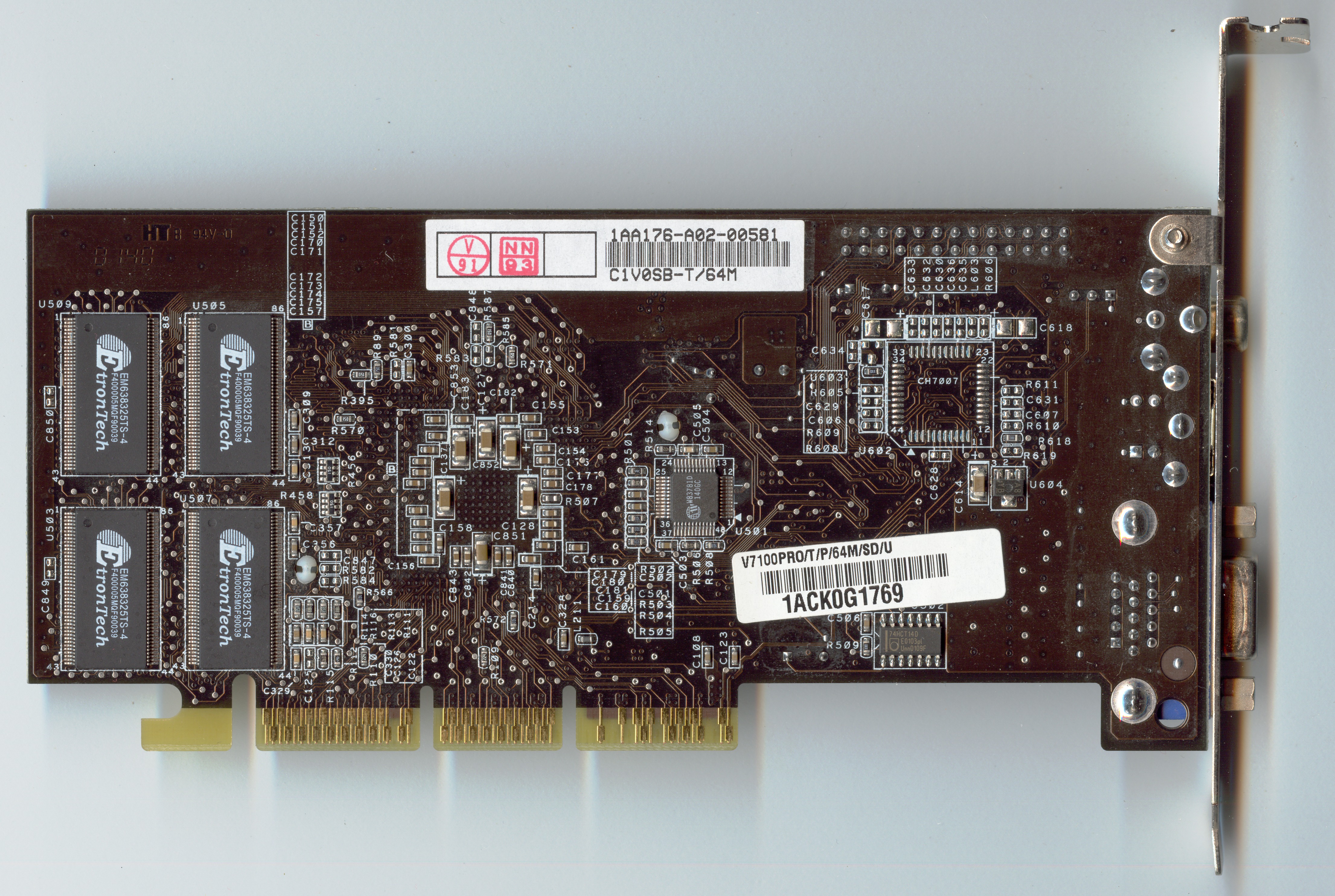

Asus GeForce2 MX400 64 MB (back side)

Asus GeForce2 MX400 64 MB (back side)
