ATi Radeon 7000

Published: (last update )

GPU
GPU type RV100
Manufacturing process180 nm
Transistors- million
Die size80 mm2
Density-
ROPs1
TMUs3
Pixel shaders-
Vertex shaders-
Unified shaders-
Clock183 MHz
Pixel fillrate183 MP/s
Texel fillrate549 MT/s
SP gigaflops-
DP gigaflops-
DirectX7
OpenGL1.3
OpenCL / Compute ver.-
Memory
Capacity32 MB
TypeDDR
Clock366 MHz
Bus width64 bit
Bandwith2 928 MB/s
Rated speed366 MHz
BrandHyundai
The card
ManufacturerATi
InterfaceAGP 4x
Interface bandwith1 066 MB/s
TDP-
Analog I/O ports1 × VGA, 1 × S-Video out, 1 × DVI-I
Digital I/O ports1 × DVI-I
Independent screens2
Manufacture date32nd week of 2002
Release date2001

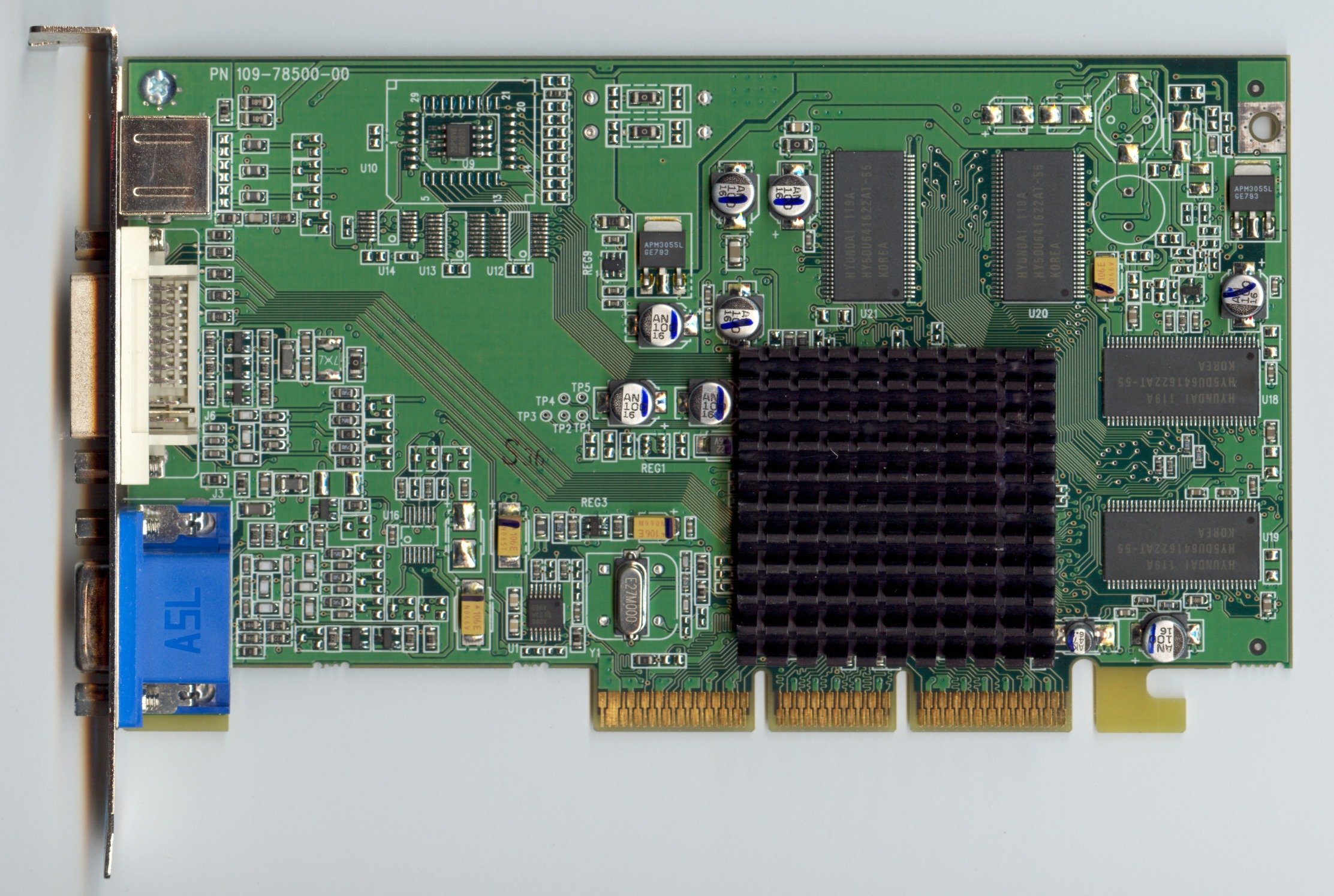

ATi Radeon 7000 (front side)

ATi Radeon 7000 (front side)

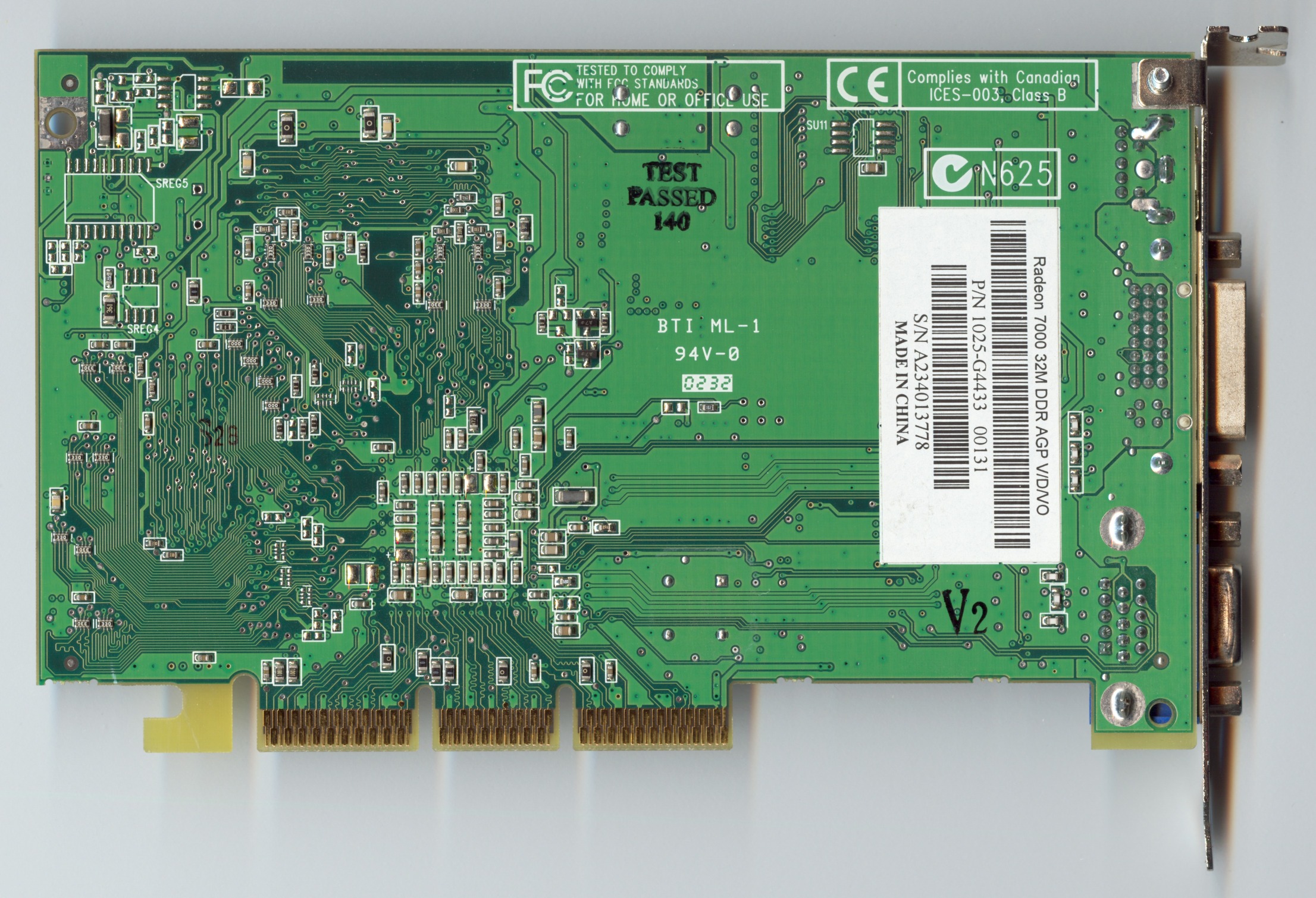

ATi Radeon 7000 (back side)

ATi Radeon 7000 (back side)
