ATi Radeon 256 DDR

Published: (last update )

GPU
GPU type R100
Manufacturing process180 nm
Transistors30 million
Die size114 mm2
Density0.26 M / mm2
ROPs2
TMUs6
Pixel shaders-
Vertex shaders-
Unified shaders-
Clock166 MHz
Pixel fillrate332 MP/s
Texel fillrate996 MT/s
SP gigaflops-
DP gigaflops-
DirectX7
OpenGL1.3
OpenCL / Compute ver.-
Memory
Capacity32 MB
TypeDDR
Clock333 MHz
Bus width128 bit
Bandwith5 328 MB/s
Rated speed333 MHz
BrandSamsung
The card
ManufacturerATi
InterfaceAGP 4x
Interface bandwith1 066 MB/s
TDP30 W
Analog I/O ports1 × VGA
Digital I/O ports-
Independent screens1
Manufacture date27th week of 2000
Release date2000

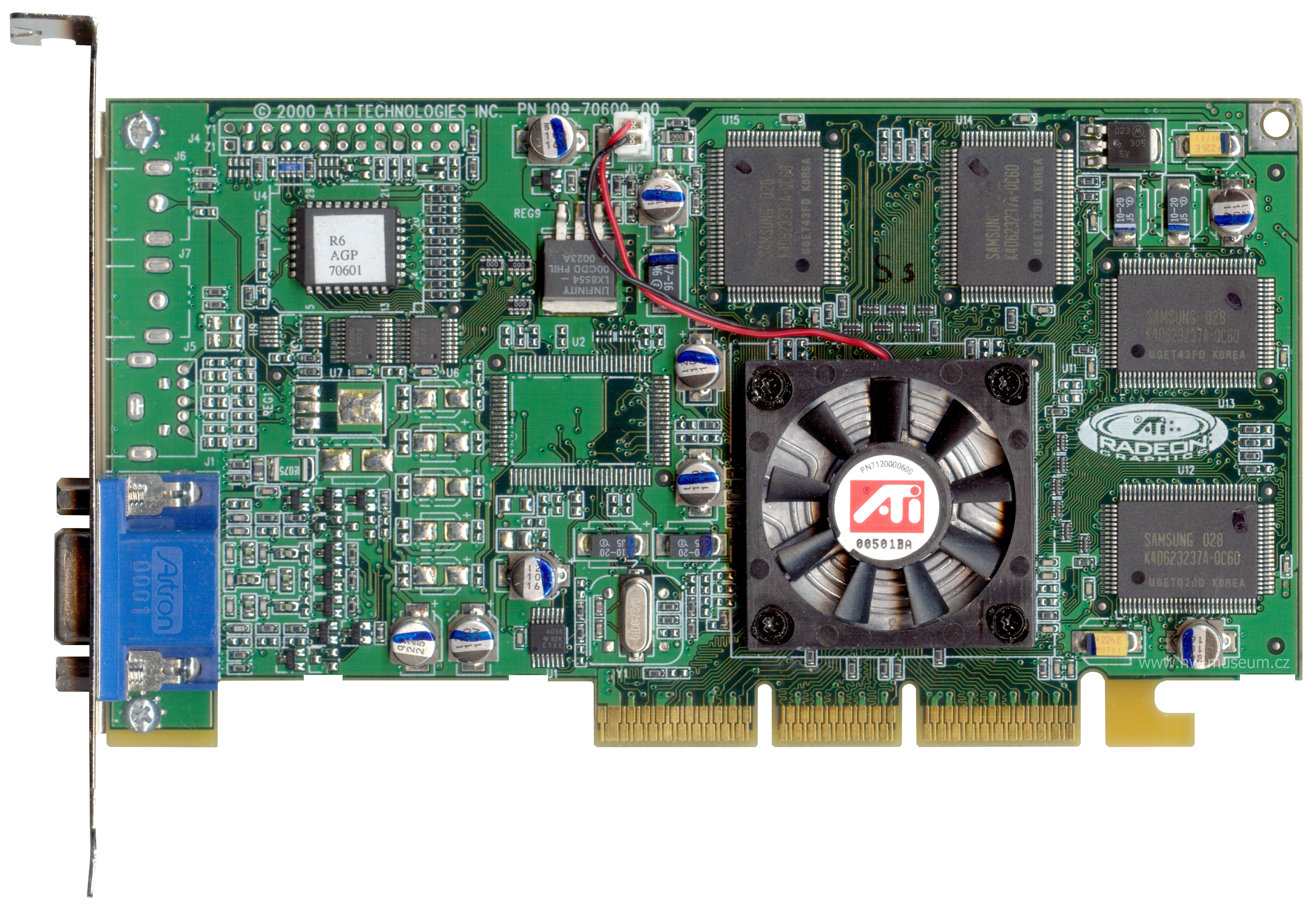

ATi Radeon 256 DDR (front side)

ATi Radeon 256 DDR (front side)

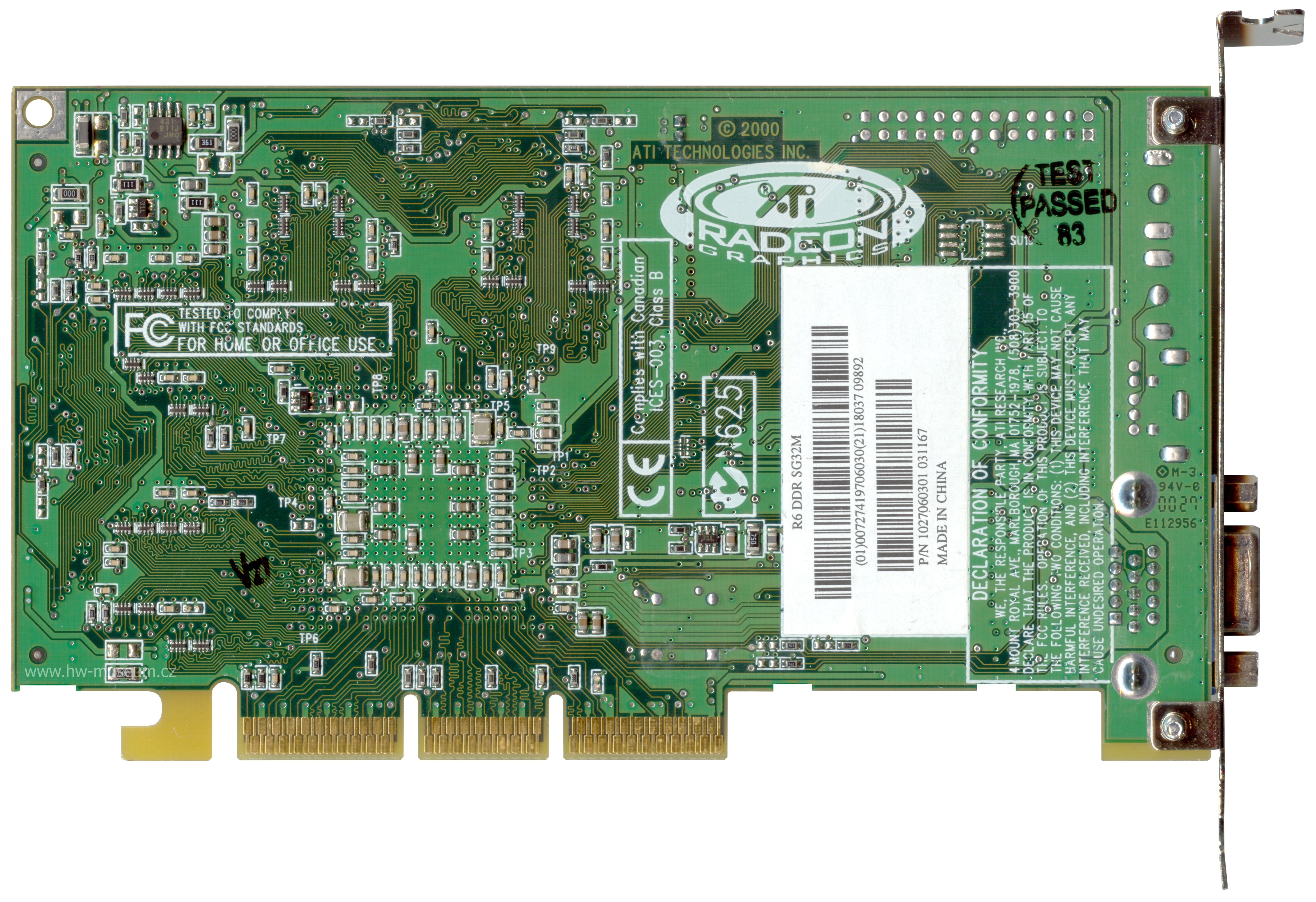

ATi Radeon 256 DDR (back side)

ATi Radeon 256 DDR (back side)
