ATi Radeon 7500 (reference)

Published: (last update )

GPU
GPU type RV200
Manufacturing process150 nm
Transistors30 milion
Die size84 mm2
ROPs2
TMUs6
Pixel shaders-
Vertex shaders-
Unified shaders-
Clock290 MHz
Pixel fillrate580 MP/s
Texel fillrate1740 MT/s
SP gigaflops-
DP gigaflops-
DirectX7
OpenGL1.3
OpenCL / Compute ver.-
Memory
Capacity64 MB
TypeDDR
Clock460 MHz
Bus width128 bit
Bandwith7360 MB/s
Rated speed500 MHz
BrandHynix
The card
ManufacturerATi
InterfaceAGP 4x
Interface bandwith1066 MB/s
TDP-
Analog I/O ports1 × VGA, 1 × S-Video out, 1 × DVI-I
Digital I/O ports1 × DVI-I
Independent screens2
Manufacture date46th week of 2001
Release date2001

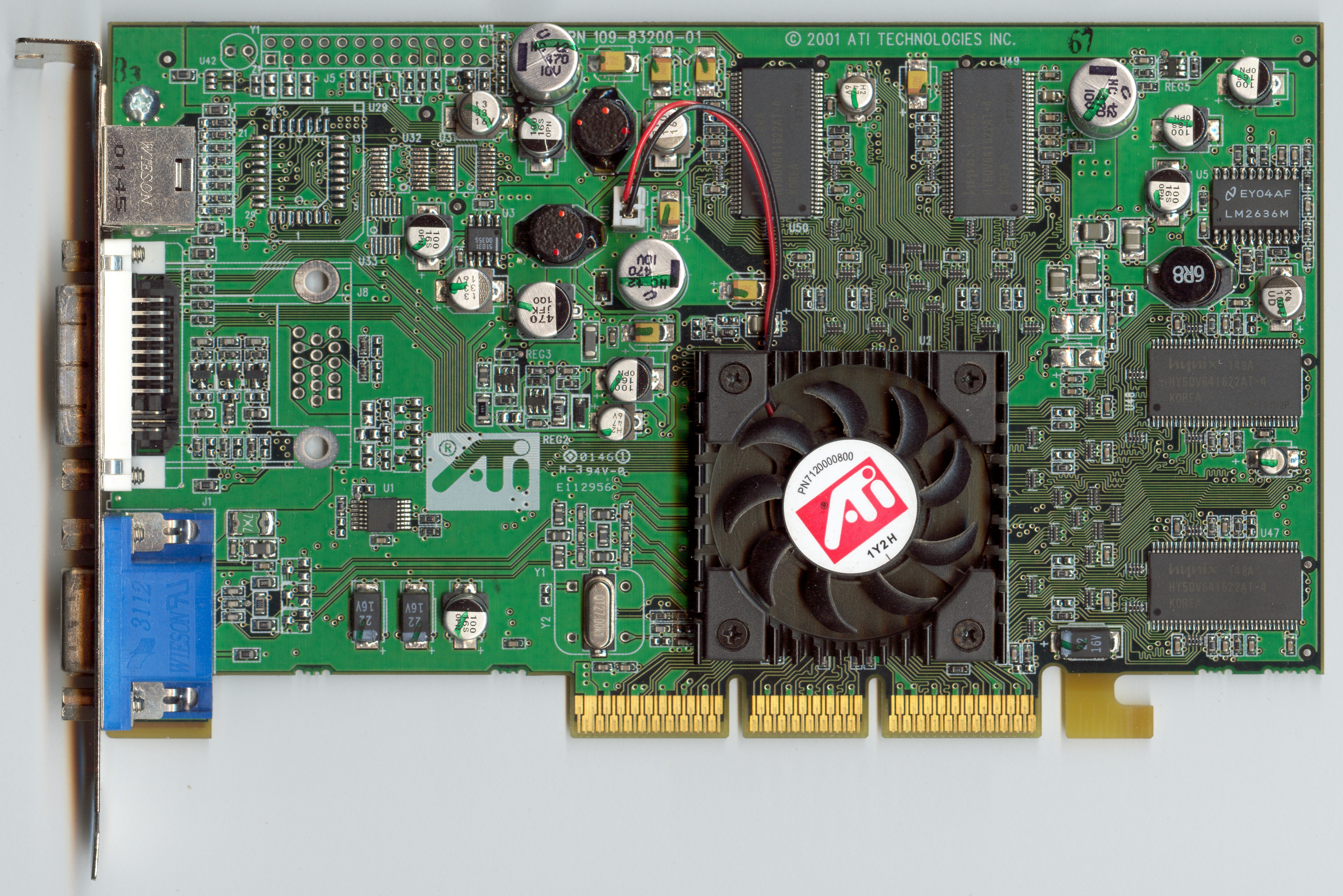

ATi Radeon 7500 (reference) (front side)

ATi Radeon 7500 (reference) (front side)

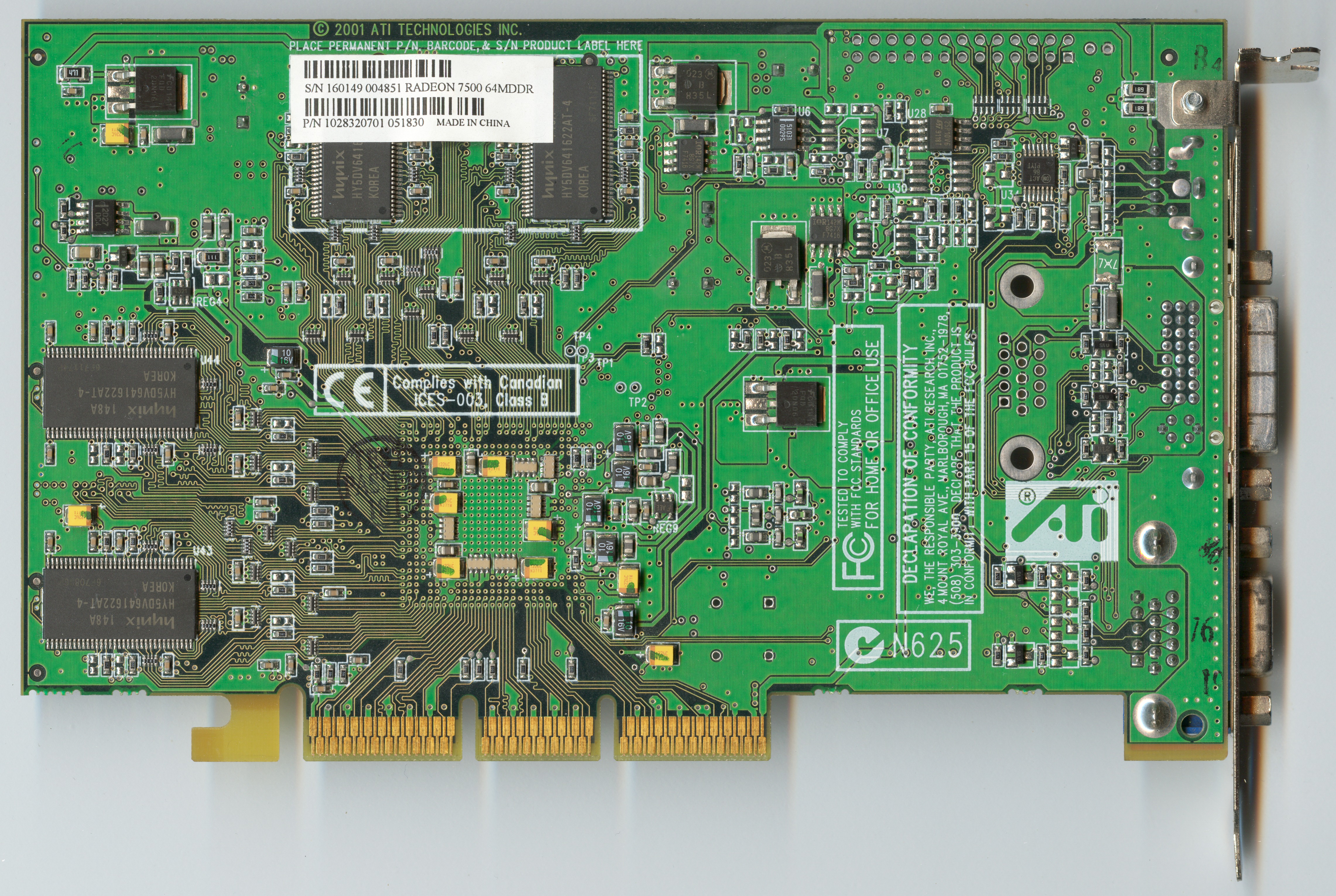

ATi Radeon 7500 (reference) (back side)

ATi Radeon 7500 (reference) (back side)
