ATi Radeon 256 DDR VIVO

Published: (last update )

GPU
GPU type R100
Manufacturing process180 nm
Transistors30 million
Die size114 mm2
Density0.26 M / mm2
ROPs2
TMUs6
Pixel shaders-
Vertex shaders-
Unified shaders-
Clock183 MHz
Pixel fillrate366 MP/s
Texel fillrate1 098 MT/s
SP gigaflops-
DP gigaflops-
DirectX7
OpenGL1.3
OpenCL / Compute ver.-
Memory
Capacity64 MB
TypeDDR
Clock366 MHz
Bus width128 bit
Bandwith5 856 MB/s
Rated speed366 MHz
BrandHyundai
The card
ManufacturerATi
InterfaceAGP 4x
Interface bandwith1 066 MB/s
TDP30 W
Analog I/O ports1 × VGA, 1 × Composite in, 1 × Composite out, 1 × S-Video in, 1 × S-Video out
Digital I/O ports-
Independent screens1
Manufacture date28th week of 2000
Release date2000

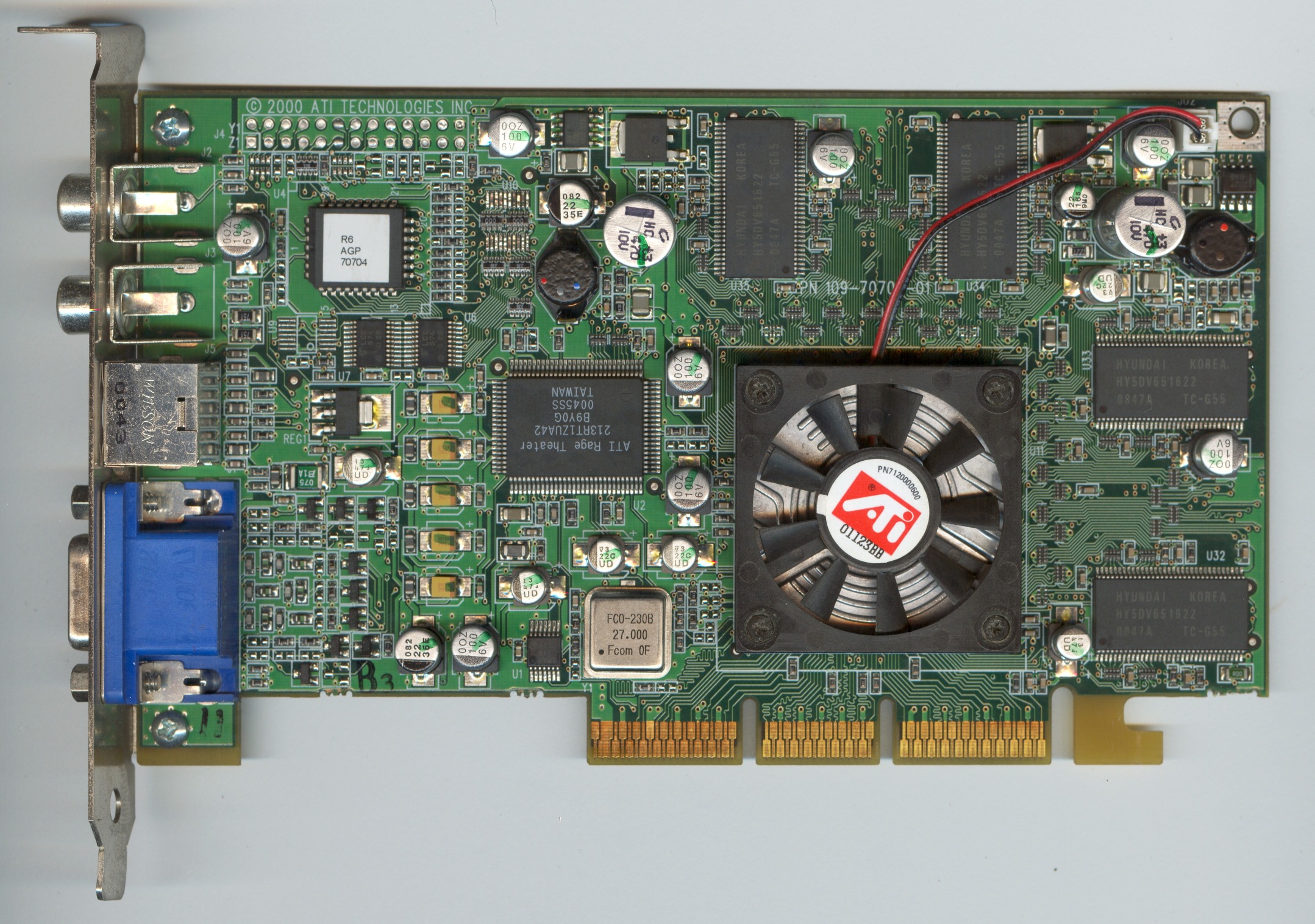

ATi Radeon 256 DDR VIVO (front side)

ATi Radeon 256 DDR VIVO (front side)

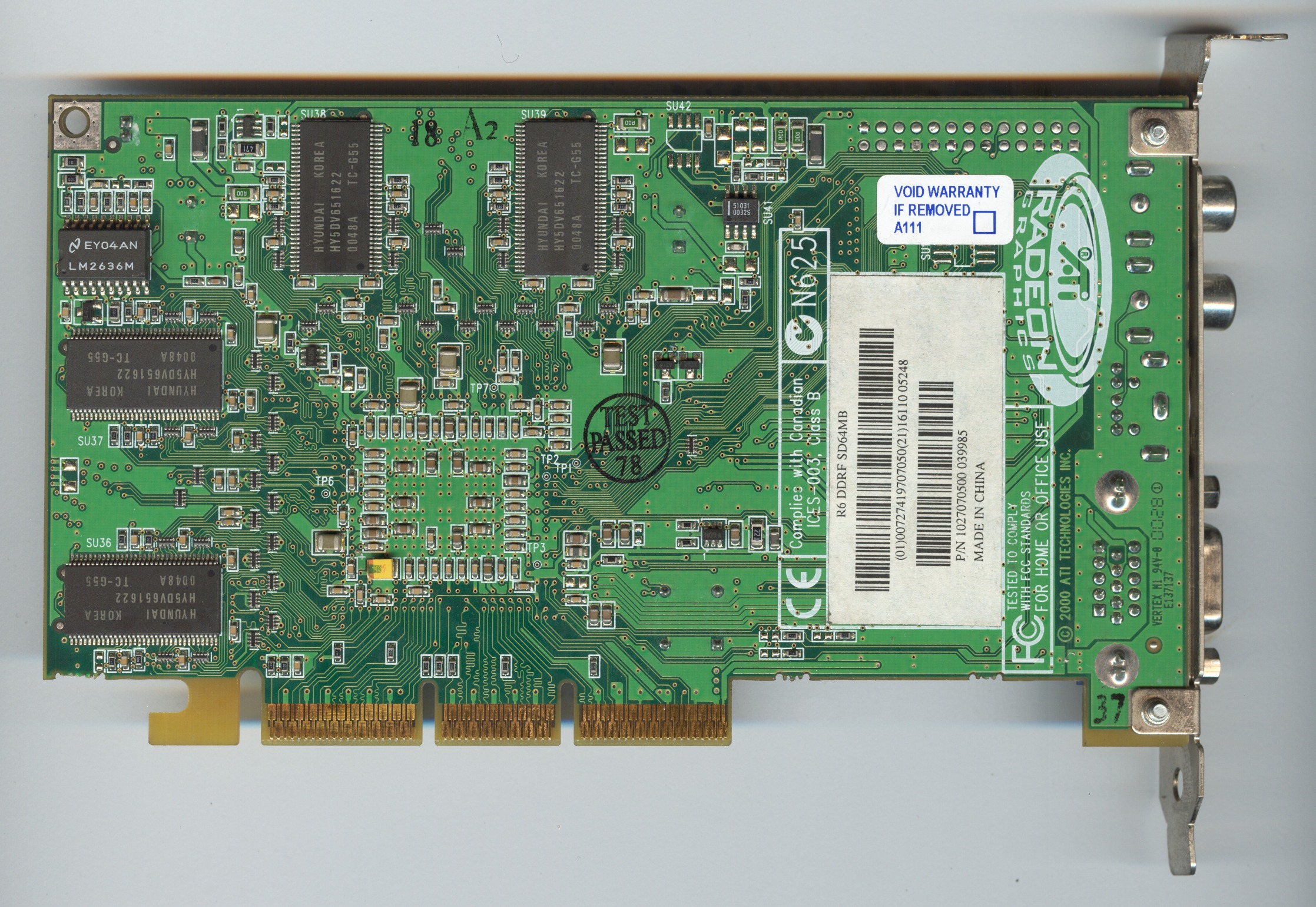

ATi Radeon 256 DDR VIVO (back side)

ATi Radeon 256 DDR VIVO (back side)
