ATi All-in-Wonder Radeon 256 DDR

Published: (last update )

GPU
GPU type R100
Manufacturing process180 nm
Transistors30 million
Die size114 mm2
Density0.26 M / mm2
ROPs2
TMUs6
Pixel shaders-
Vertex shaders-
Unified shaders-
Clock166 MHz
Pixel fillrate332 MP/s
Texel fillrate996 MT/s
SP gigaflops-
DP gigaflops-
DirectX7
OpenGL1.3
OpenCL / Compute ver.-
Memory
Capacity32 MB
TypeDDR
Clock333 MHz
Bus width128 bit
Bandwith5 328 MB/s
Rated speed333 MHz
BrandSamsung
The card
ManufacturerATi
InterfaceAGP 4x
Interface bandwith1 066 MB/s
TDP30 W
Analog I/O ports1 × Composite in, 1 × Composite out, 1 × S-Video in, 1 × S-Video out, 1 × DVI-I
Digital I/O ports1 × DVI-I
Independent screens1
Manufacture date34th week of 2001
Release date2000

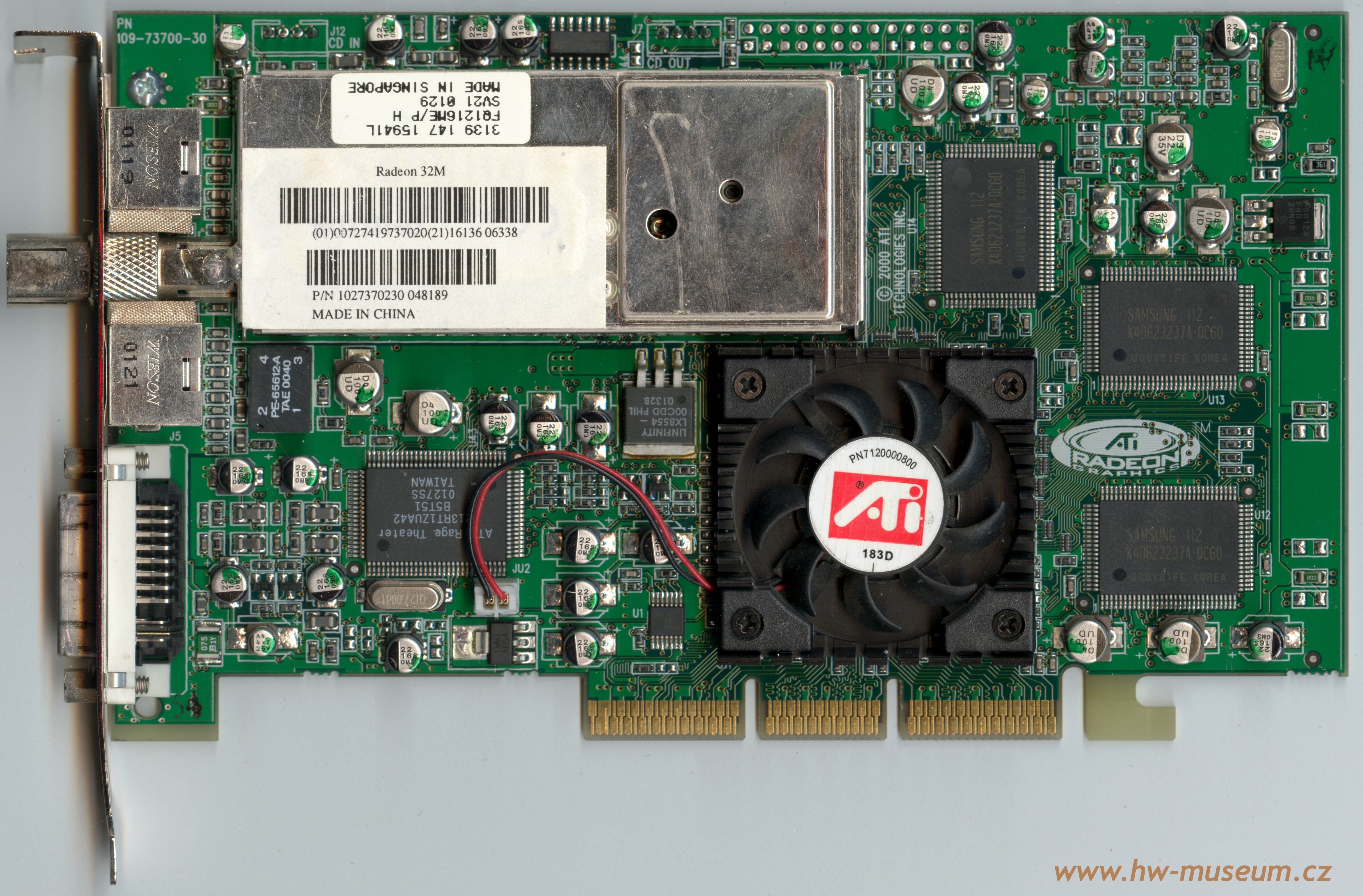

ATi All-in-Wonder Radeon 256 DDR (front side)

ATi All-in-Wonder Radeon 256 DDR (front side)

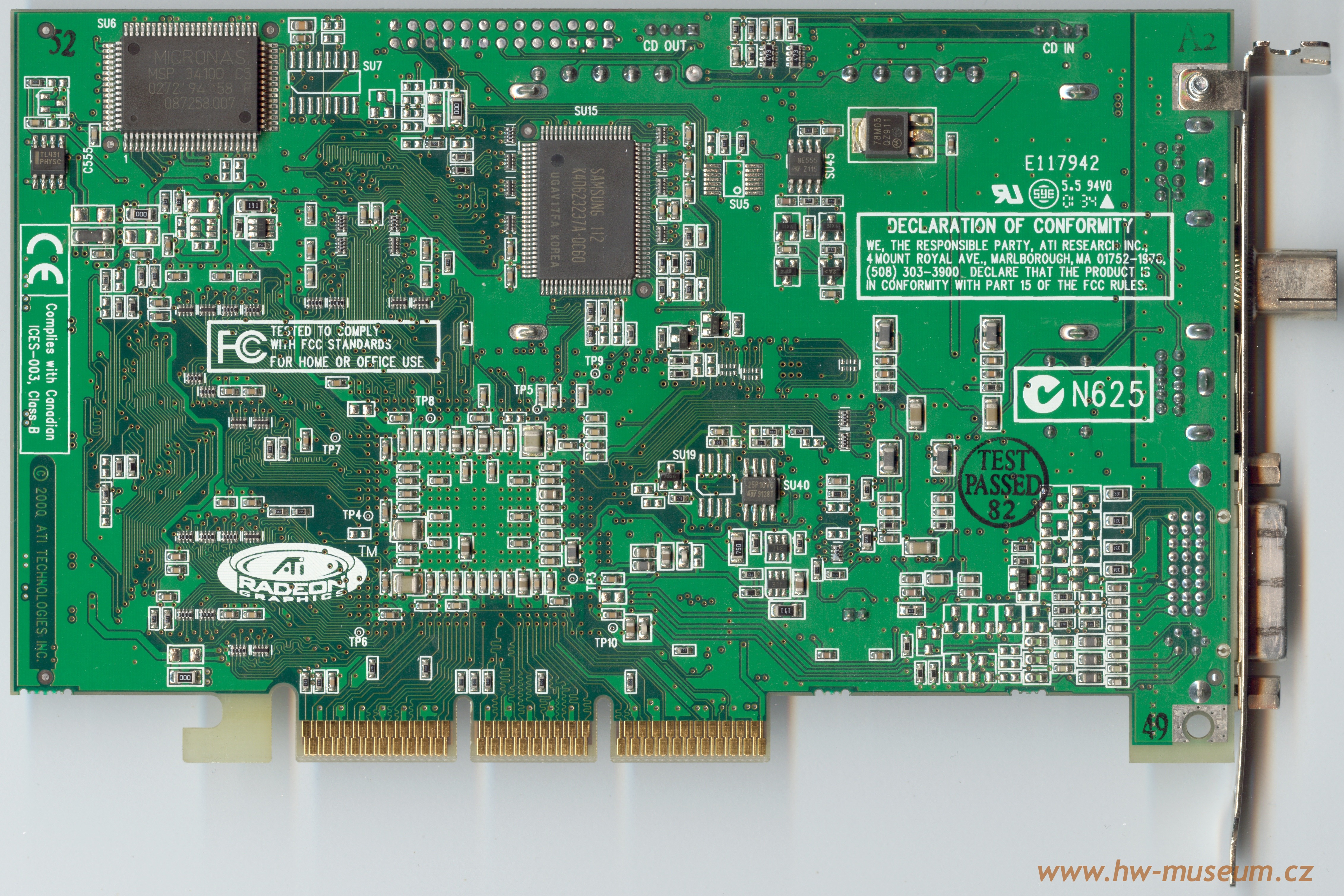

ATi All-in-Wonder Radeon 256 DDR (back side)

ATi All-in-Wonder Radeon 256 DDR (back side)
