ATi Radeon 256 SDR

Published: (last update )

GPU
GPU type R100
Manufacturing process180 nm
Transistors30 milion
Die size114 mm2
ROPs2
TMUs6
Pixel shaders-
Vertex shaders-
Unified shaders-
Clock160 MHz
Pixel fillrate320 MP/s
Texel fillrate960 MT/s
SP gigaflops-
DP gigaflops-
DirectX7
OpenGL1.3
OpenCL / Compute ver.-
Memory
Capacity32 MB
TypeSDRAM
Clock160 MHz
Bus width128 bit
Bandwith2560 MB/s
Rated speed166 MHz
BrandMicron Tech.
The card
ManufacturerATi
InterfaceAGP 4x
Interface bandwith1066 MB/s
TDP30 W
Analog I/O ports1 × VGA
Digital I/O ports-
Independent screens1
Rev3700
Release date2000

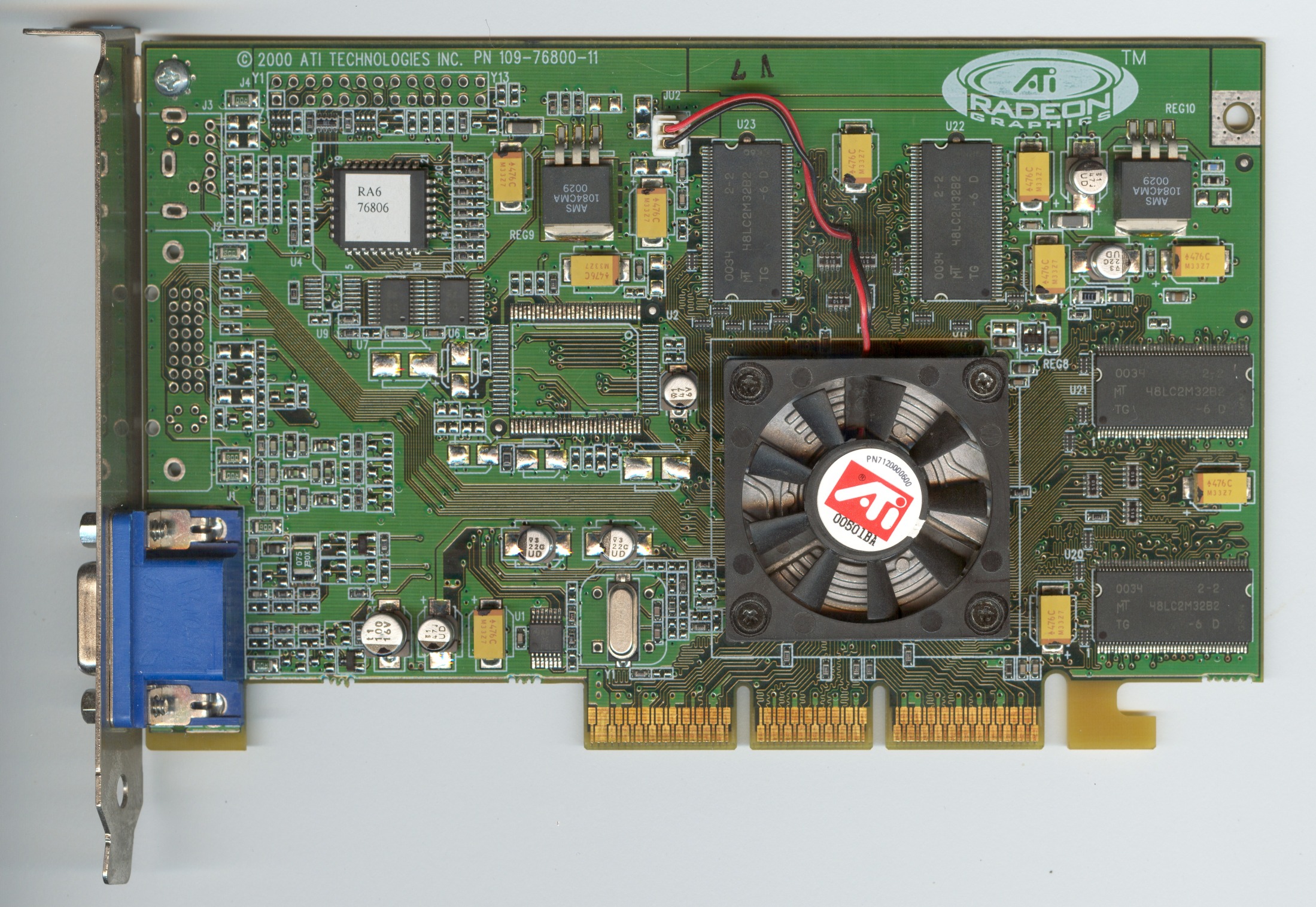

ATi Radeon 256 SDR (front side)

ATi Radeon 256 SDR (front side)

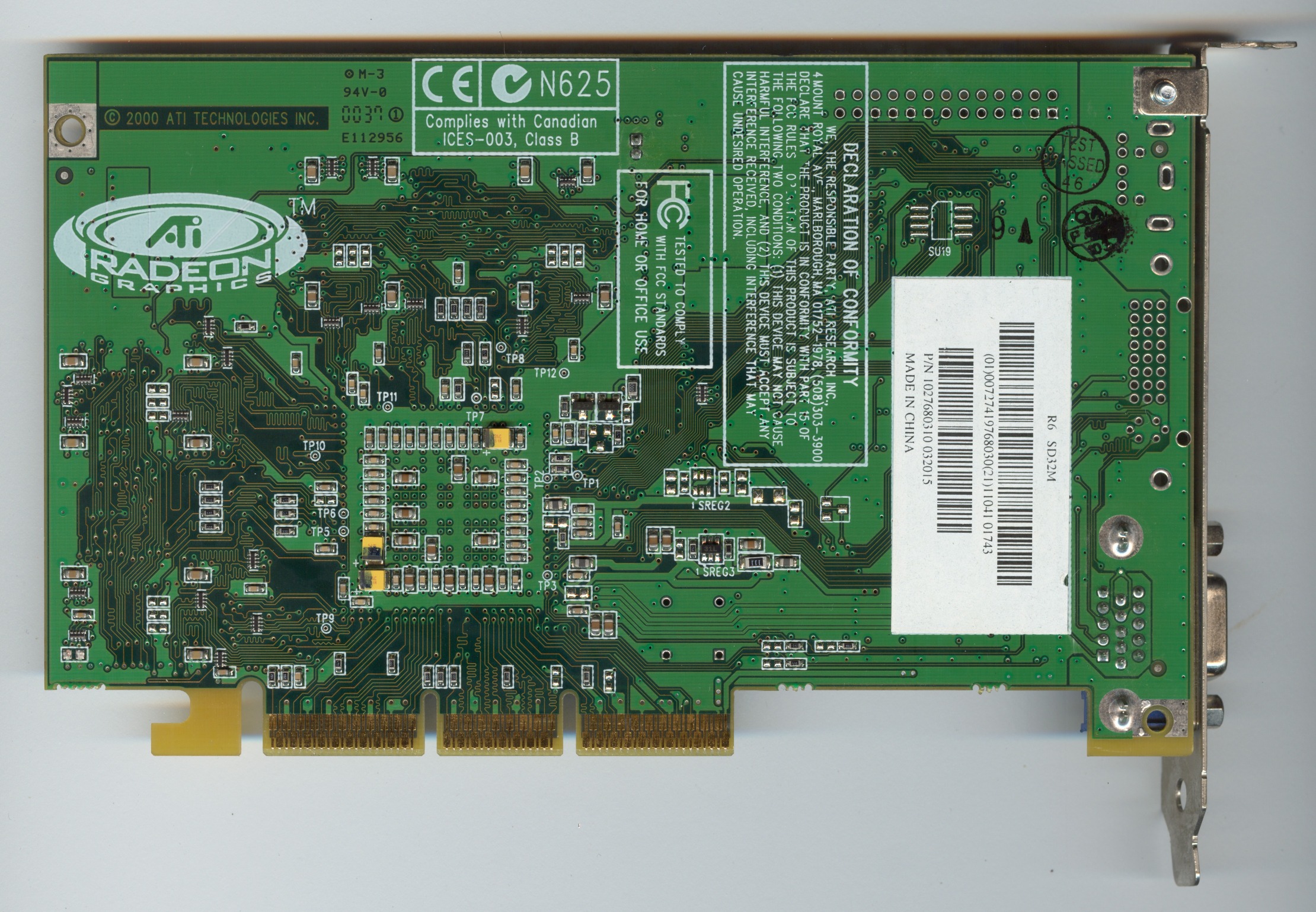

ATi Radeon 256 SDR (back side)

ATi Radeon 256 SDR (back side)
