ATi Radeon 256 SDR TV

Published: (last update )

GPU
GPU type R100
Manufacturing process180 nm
Transistors30 million
Die size114 mm2
Density0.26 M / mm2
ROPs2
TMUs6
Pixel shaders-
Vertex shaders-
Unified shaders-
Clock160 MHz
Pixel fillrate320 MP/s
Texel fillrate960 MT/s
SP gigaflops-
DP gigaflops-
DirectX7
OpenGL1.3
OpenCL / Compute ver.-
Memory
Capacity32 MB
TypeSDRAM
Clock160 MHz
Bus width128 bit
Bandwith2 560 MB/s
Rated speed166 MHz
BrandMicron Tech.
The card
ManufacturerATi
InterfaceAGP 4x
Interface bandwith1 066 MB/s
TDP30 W
Analog I/O ports1 × VGA, 1 × S-Video out
Digital I/O ports-
Independent screens1
Manufacture date45th week of 2000
Release date2000

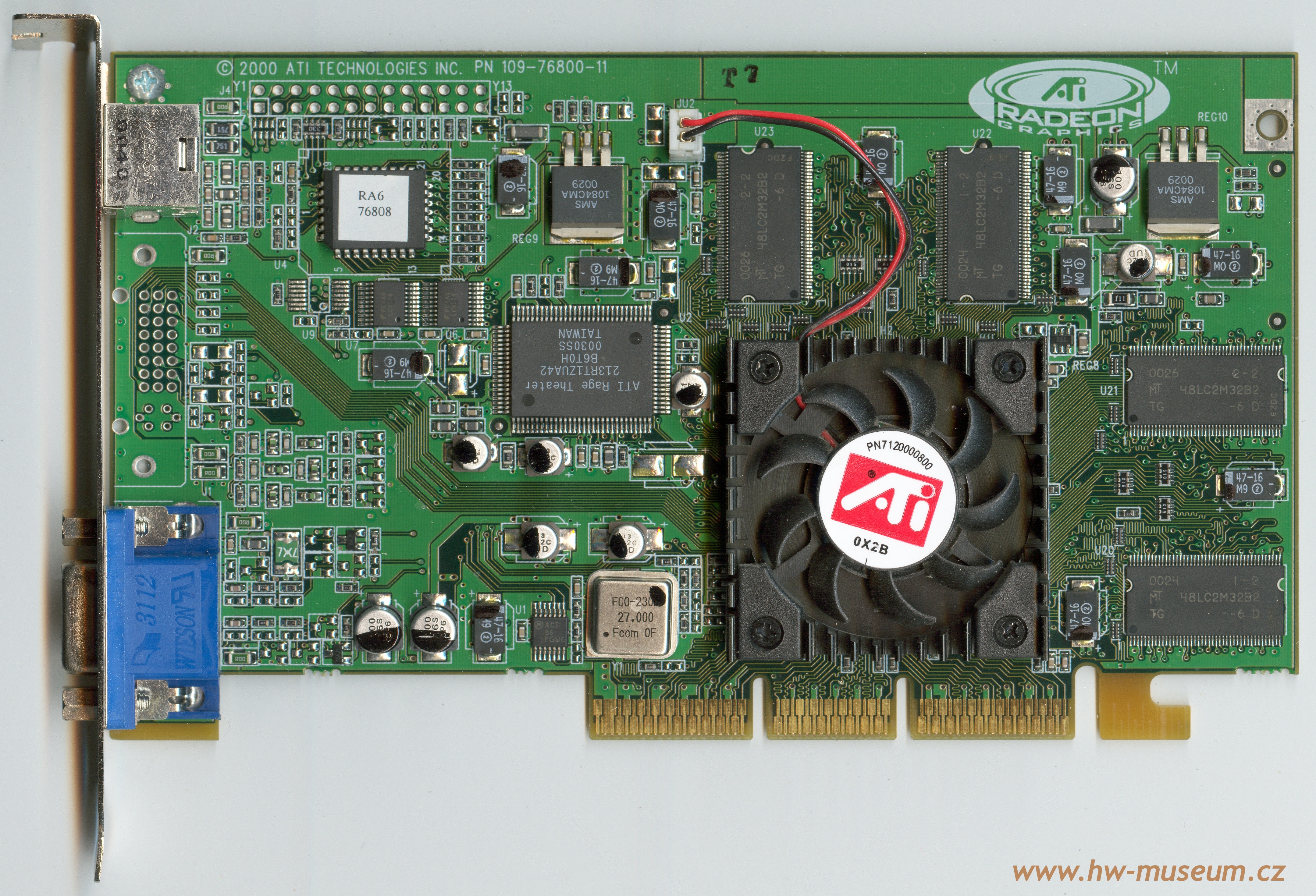

ATi Radeon 256 SDR TV (front side)

ATi Radeon 256 SDR TV (front side)

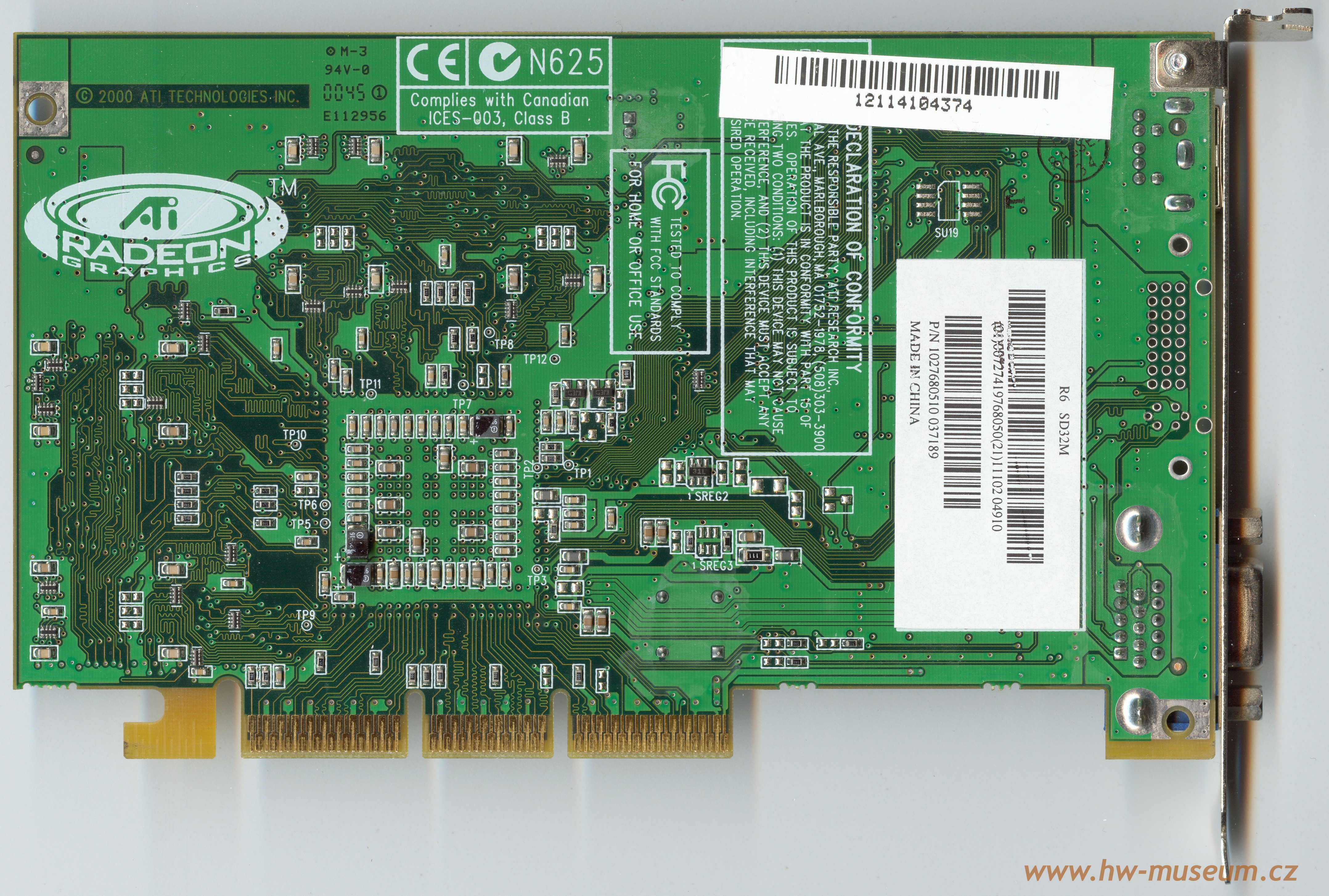

ATi Radeon 256 SDR TV (back side)

ATi Radeon 256 SDR TV (back side)
