ELSA Quadro2 MXR

Published: (last update )

GPU
GPU type NV11
Manufacturing process180 nm
Transistors19 million
Die size65 mm2
Density0.29 M / mm2
ROPs2
TMUs4
Pixel shaders-
Vertex shaders-
Unified shaders-
Clock200 MHz
Pixel fillrate400 MP/s
Texel fillrate800 MT/s
SP gigaflops-
DP gigaflops-
DirectX7
OpenGL1.2
OpenCL / Compute ver.-
Memory
Capacity32 MB
TypeSDRAM
Clock183 MHz
Bus width128 bit
Bandwith2 928 MB/s
Rated speed183 MHz
BrandHyundai
The card
ManufacturerELSA
InterfaceAGP 4x
Interface bandwith1 066 MB/s
TDP20 W
Analog I/O ports1 × VGA, 1 × DVI-I
Digital I/O ports1 × DVI-I
Independent screens2
Manufacture date39th week of 2000
Release date2000

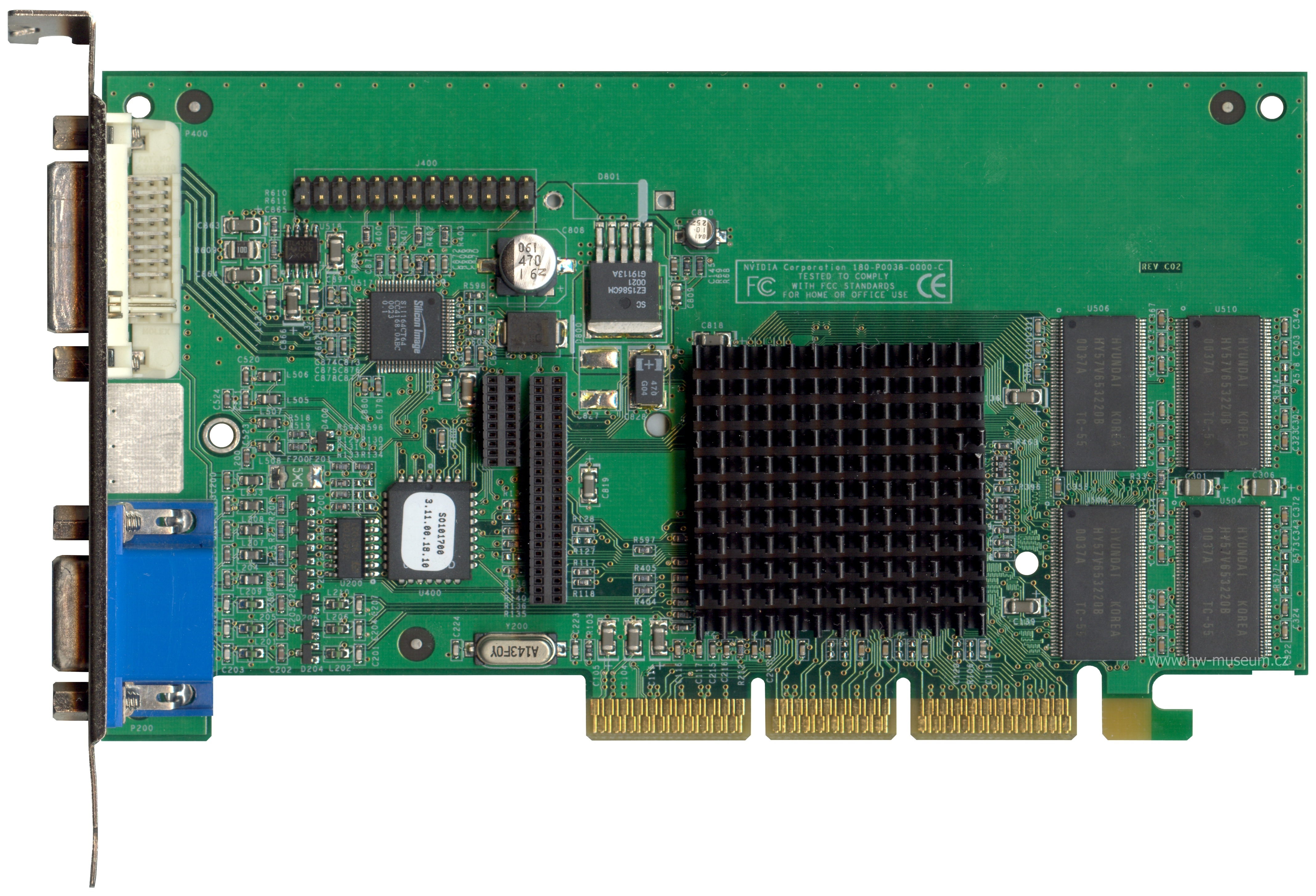

ELSA Quadro2 MXR (front side)

ELSA Quadro2 MXR (front side)

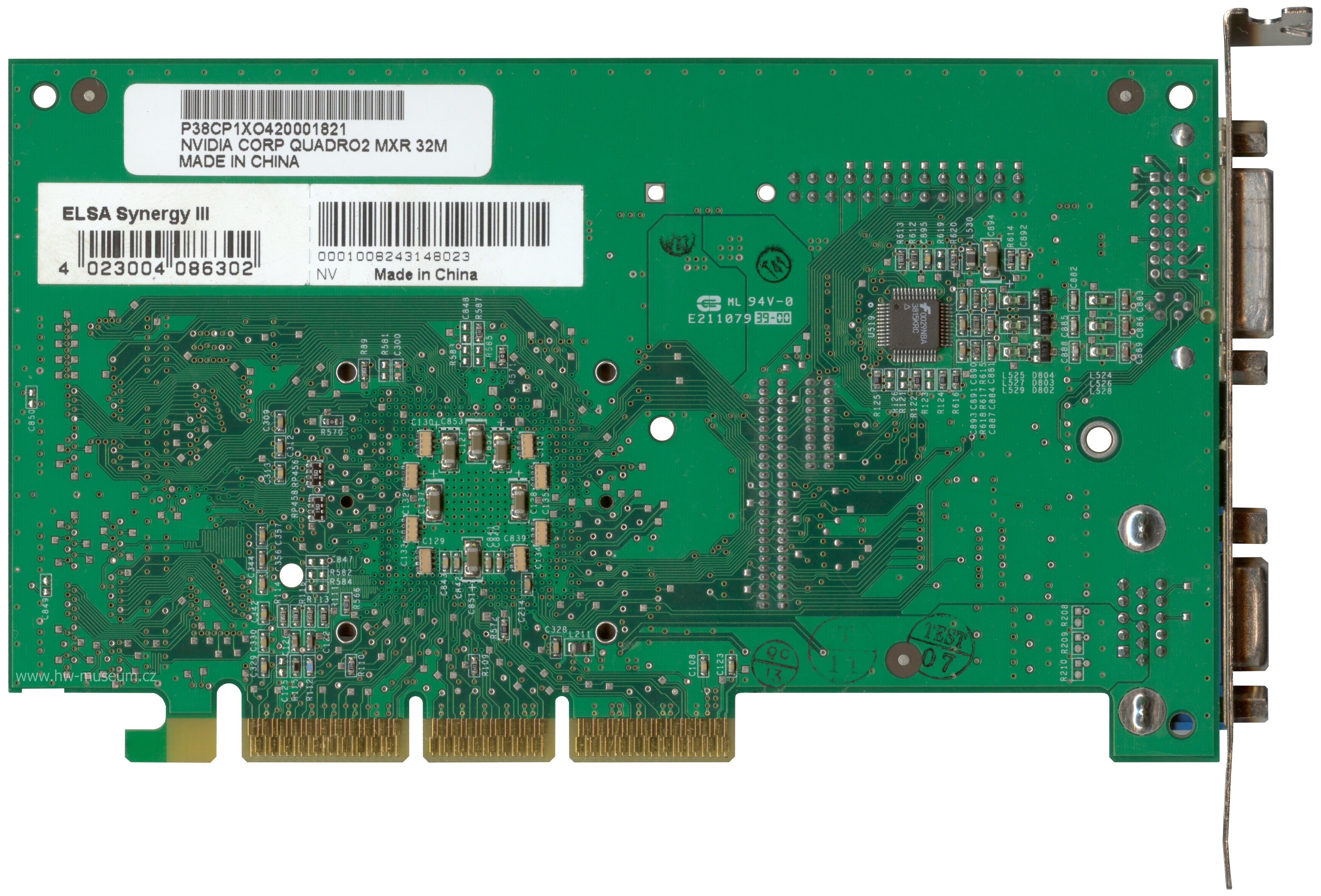

ELSA Quadro2 MXR (back side)

ELSA Quadro2 MXR (back side)
