HIS Radeon X1900 CrossFire Edition

Published: (last update )

GPU
GPU type R580
Manufacturing process90 nm
Transistors384 milion
Die size352 mm2
ROPs16
TMUs16
Pixel shaders48
Vertex shaders8
Unified shaders-
Clock625 MHz
Pixel fillrate10000 MP/s
Texel fillrate10000 MT/s
SP gigaflops-
DP gigaflops-
DirectX9c
OpenGL2.0
OpenCL / Compute ver.-
Memory
Capacity512 MB
TypeGDDR3
Clock1450 MHz
Bus width256 bit
Bandwith46400 MB/s
Rated speed1600 MHz
BrandSamsung
The card
ManufacturerHIS
InterfacePCI-E x16
Interface bandwith4096 MB/s
TDP135 W
Analog I/O ports2 × DVI-I
Digital I/O ports2 × DVI-I
Independent screens2
Rev
Release date2006

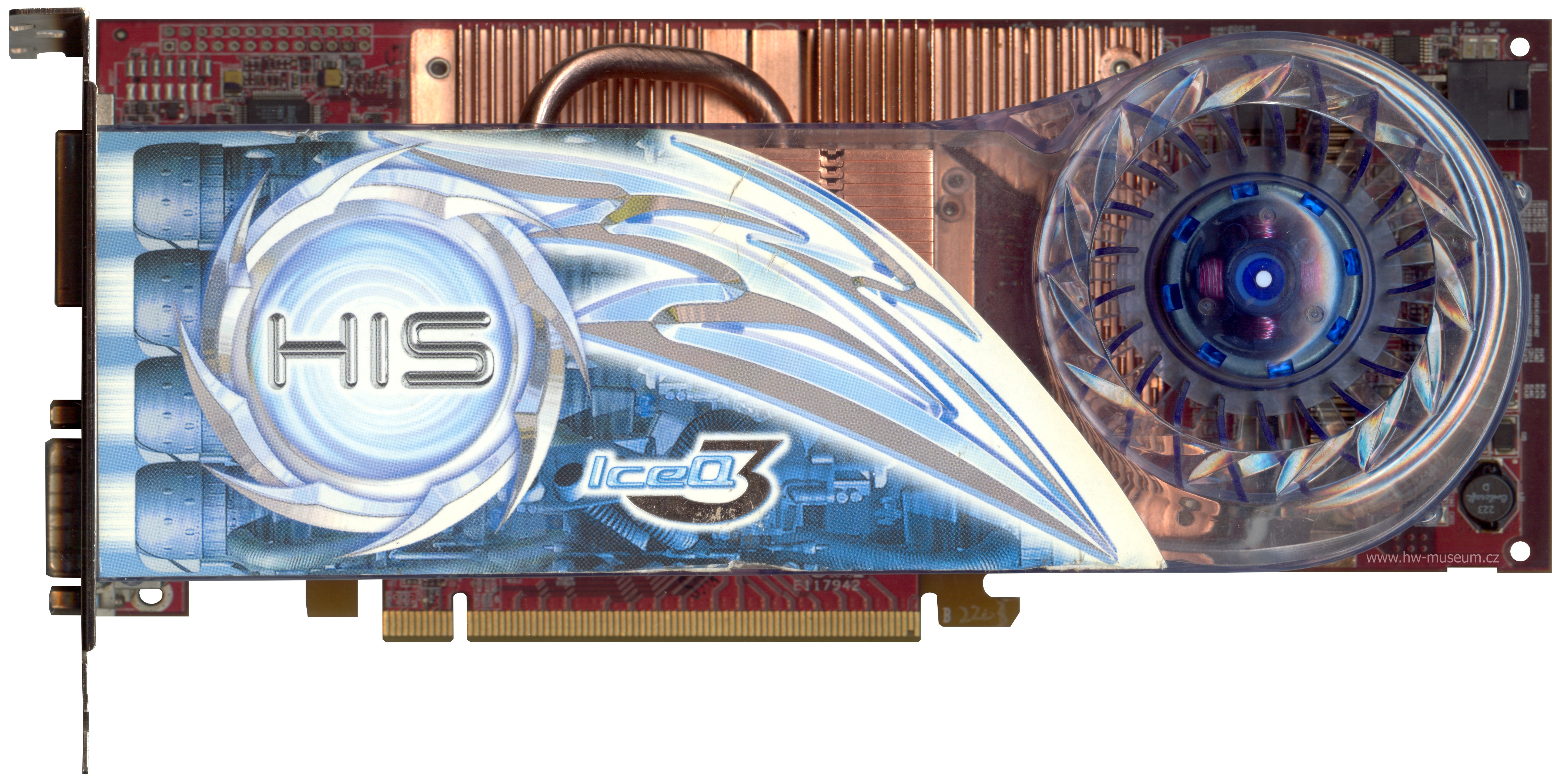

HIS Radeon X1900 CrossFire Edition (front side)

HIS Radeon X1900 CrossFire Edition (front side)

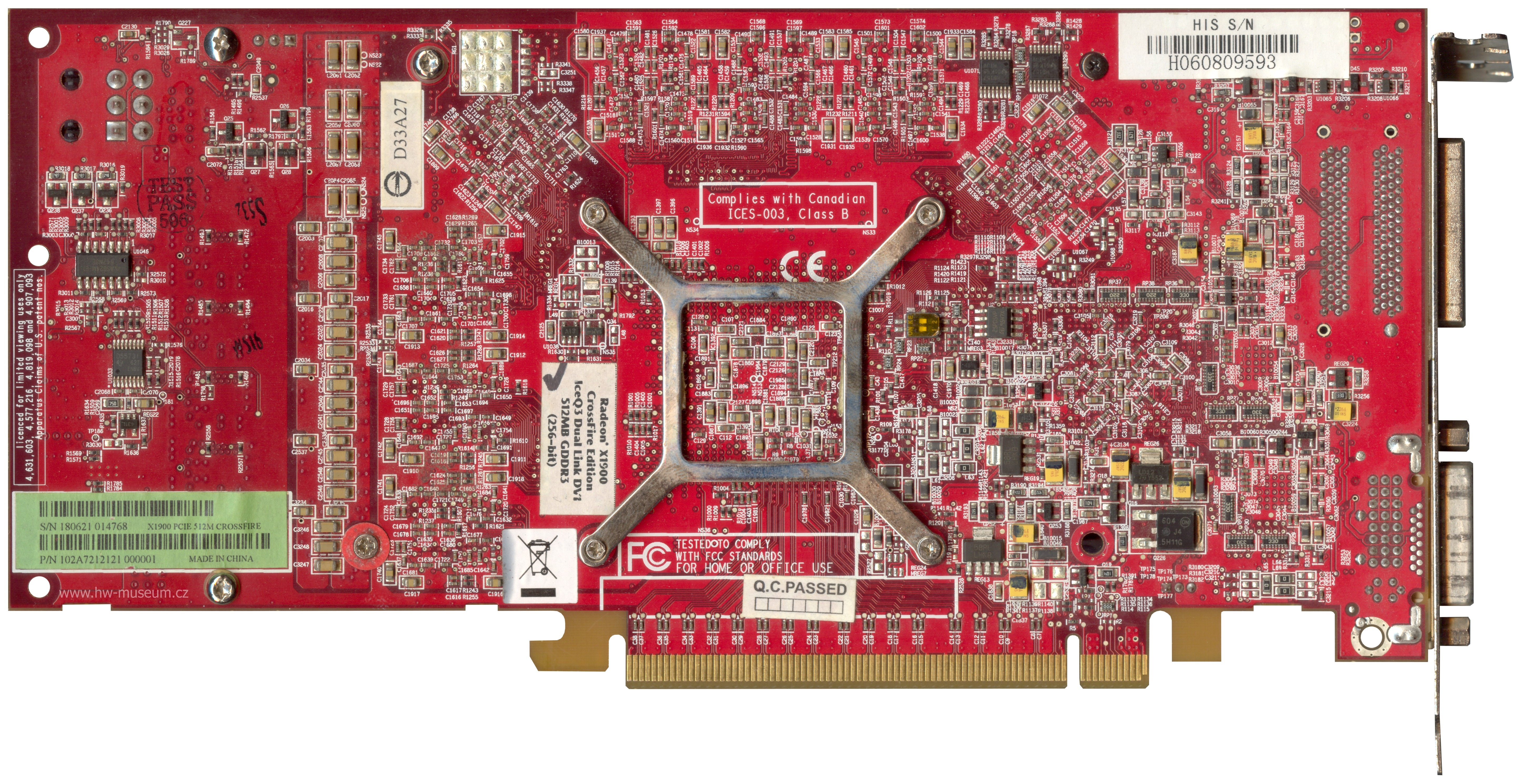

HIS Radeon X1900 CrossFire Edition (back side)

HIS Radeon X1900 CrossFire Edition (back side)

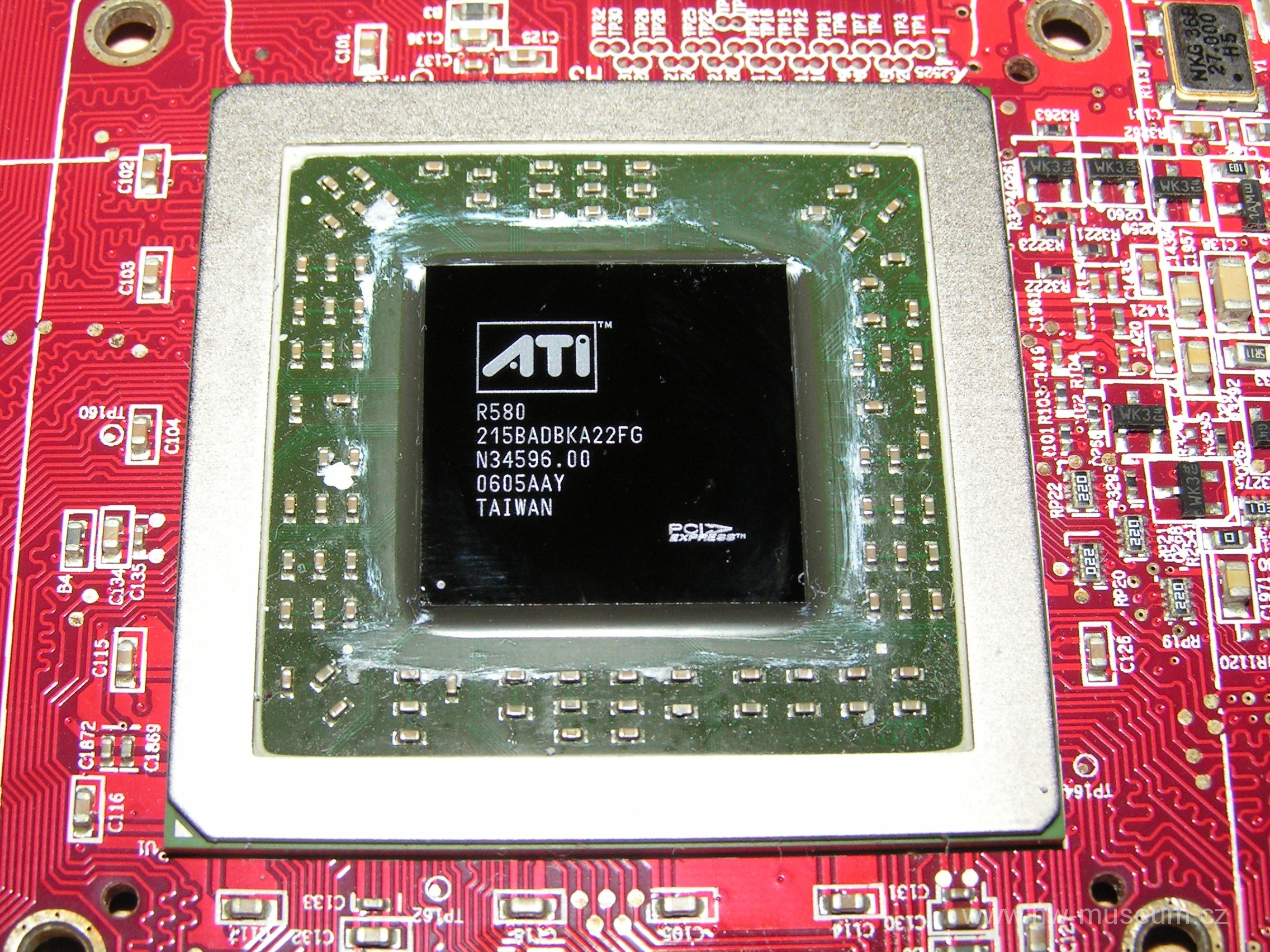

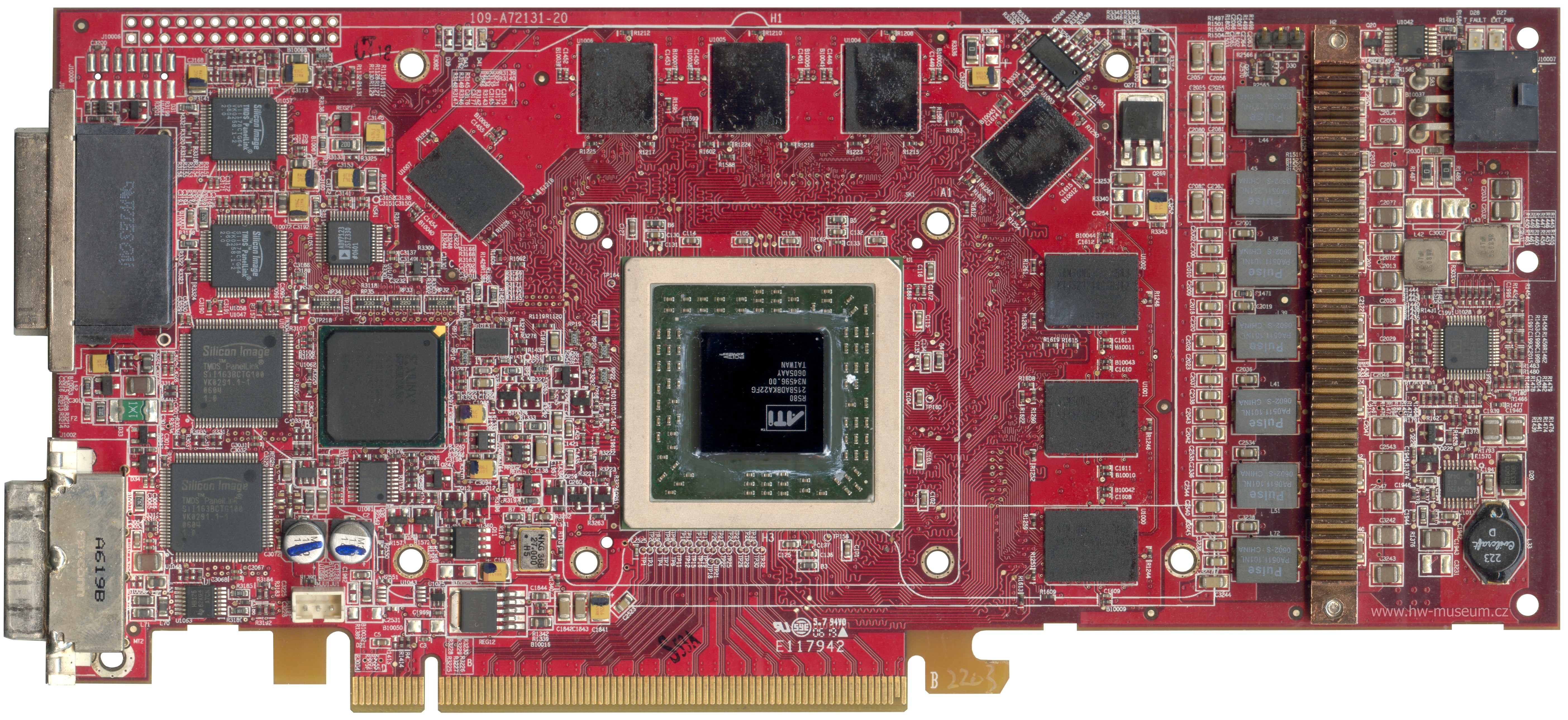

HIS Radeon X1900 CrossFire Edition gallery
HIS Radeon X1900 CrossFire Edition gallery
HIS Radeon X1900 CrossFire Edition gallery
HIS Radeon X1900 CrossFire Edition gallery
