Sapphire Radeon X1800 XL

Published: (last update )

GPU
GPU type R520
Manufacturing process90 nm
Transistors321 milion
Die size288 mm2
ROPs16
TMUs16
Pixel shaders16
Vertex shaders8
Unified shaders-
Clock500 MHz
Pixel fillrate8000 MP/s
Texel fillrate8000 MT/s
SP gigaflops-
DP gigaflops-
DirectX9c
OpenGL2.0
OpenCL / Compute ver.-
Memory
Capacity256 MB
TypeGDDR3
Clock1000 MHz
Bus width256 bit
Bandwith32000 MB/s
Rated speed-
Brand-
The card
ManufacturerSapphire
InterfacePCI-E x16
Interface bandwith4096 MB/s
TDP70 W
Analog I/O ports1 × S-Video in, 1 × S-Video out, 2 × DVI-I
Digital I/O ports2 × DVI-I
Independent screens2
Rev4705
Release date2005

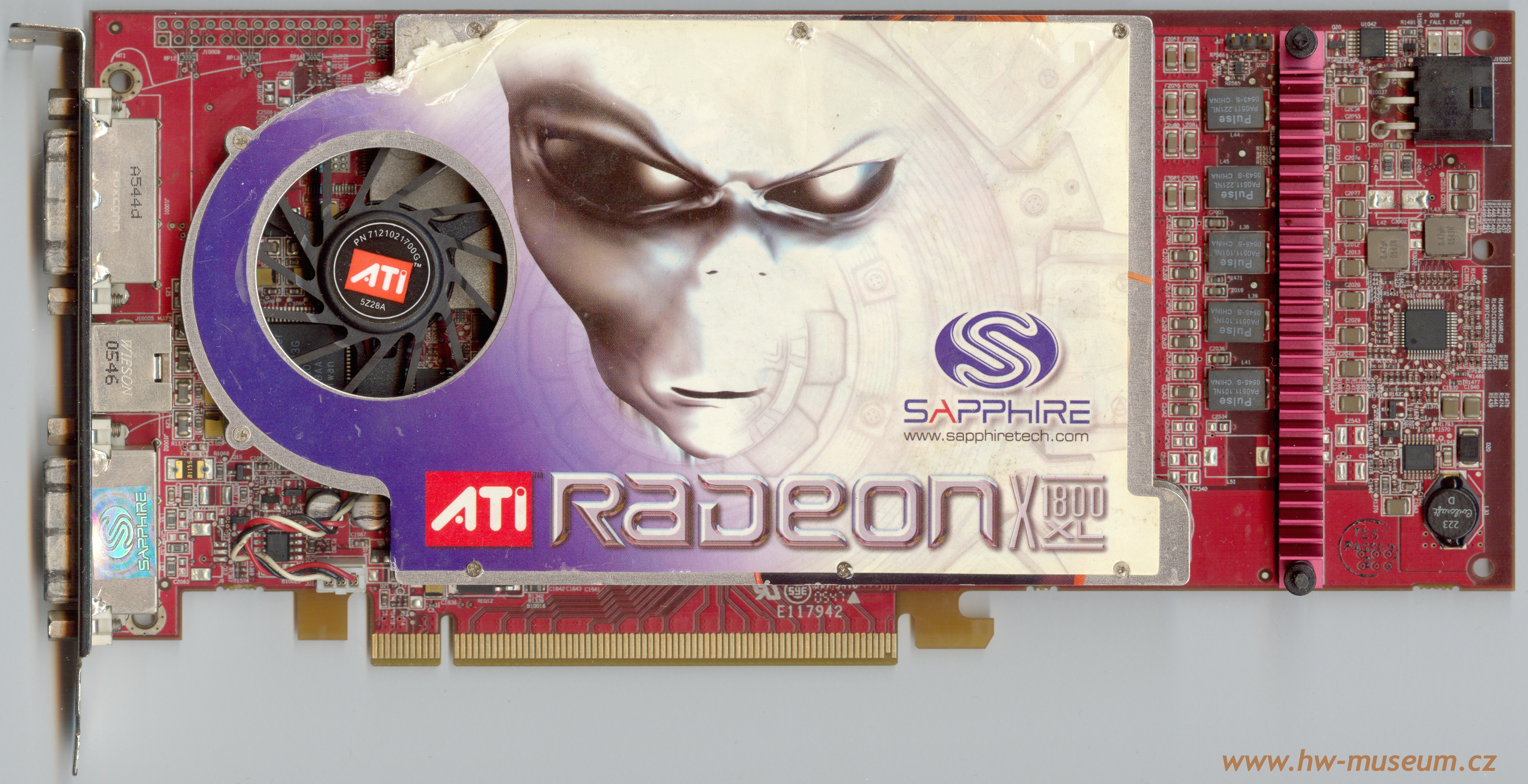

Sapphire Radeon X1800 XL (front side)

Sapphire Radeon X1800 XL (front side)

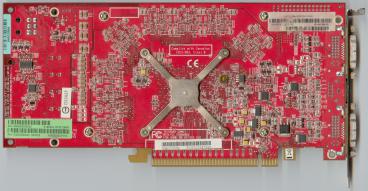

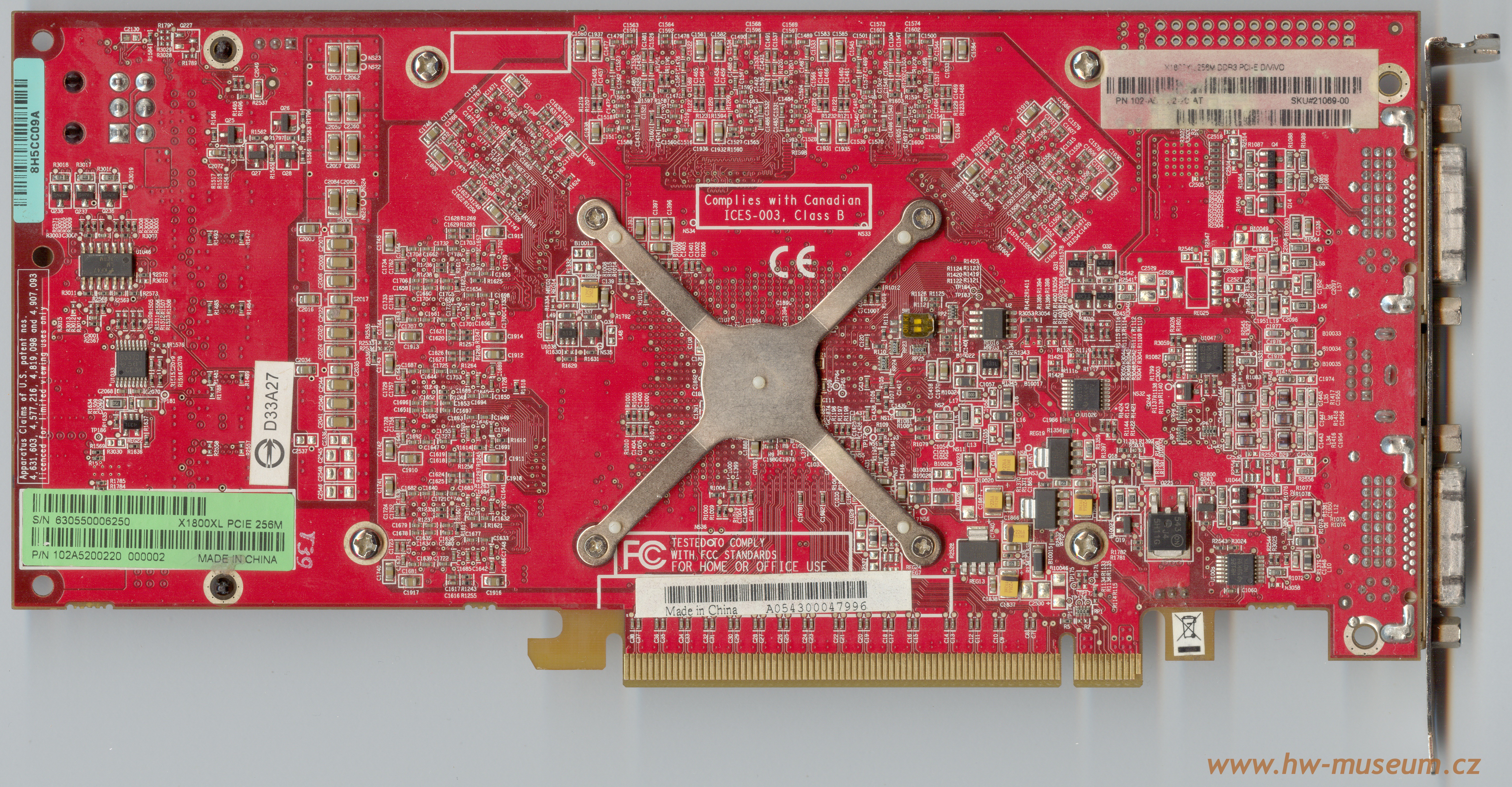

Sapphire Radeon X1800 XL (back side)

Sapphire Radeon X1800 XL (back side)

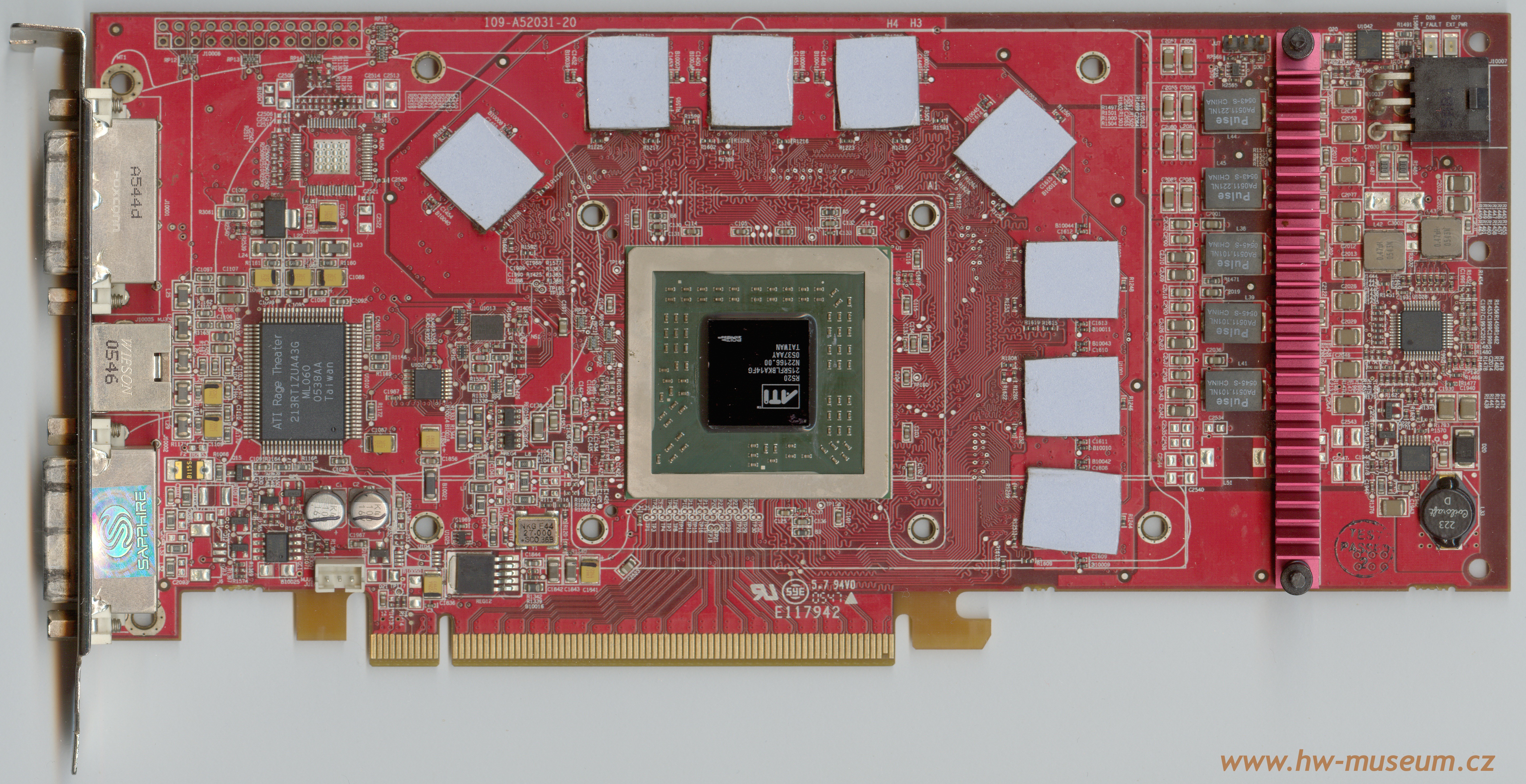

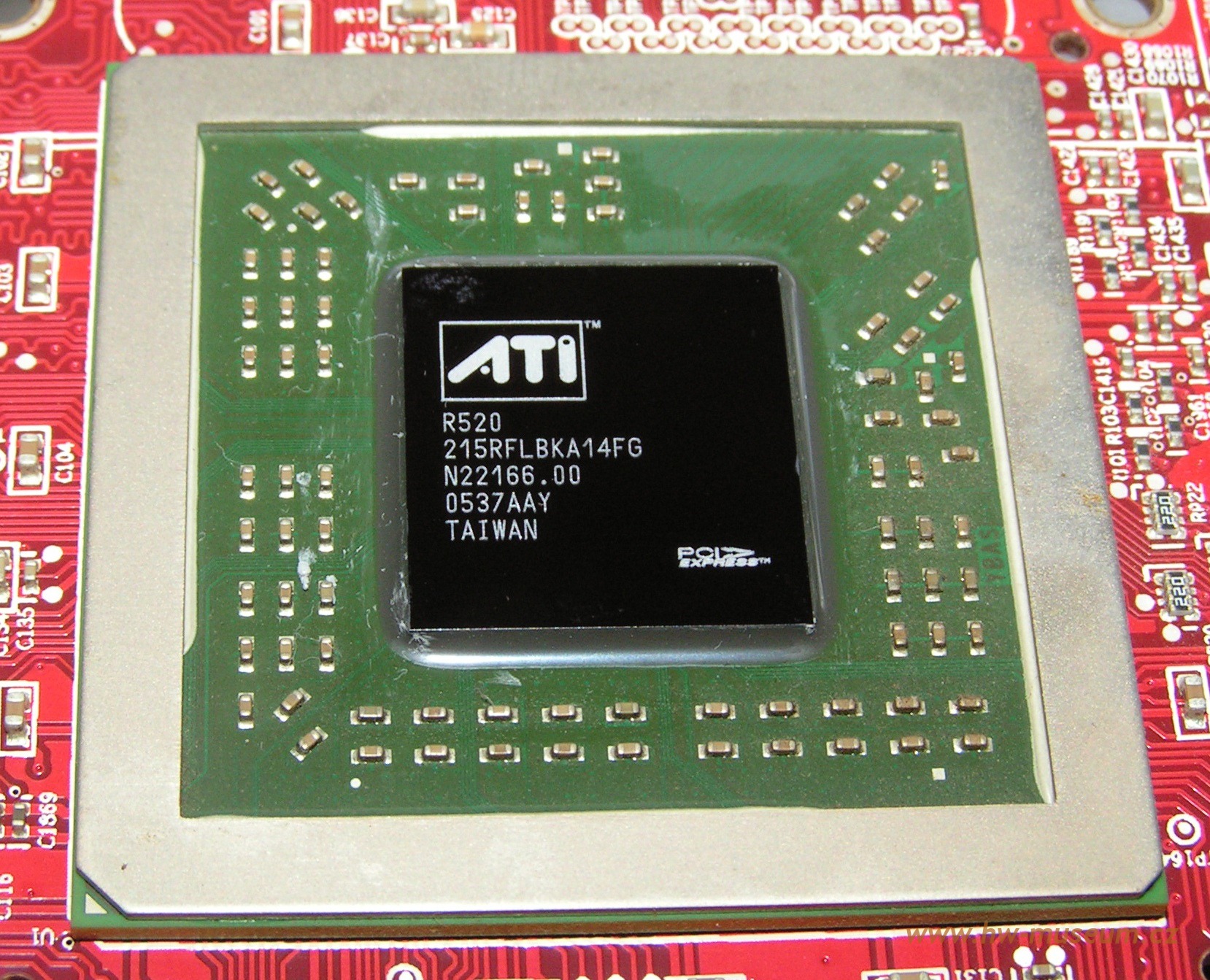

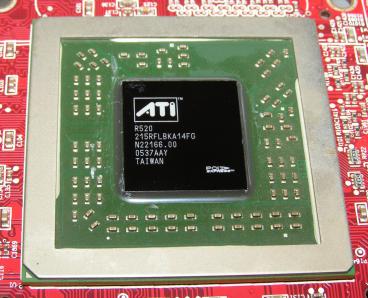

Sapphire Radeon X1800 XL gallery
Sapphire Radeon X1800 XL gallery
Sapphire Radeon X1800 XL gallery
Sapphire Radeon X1800 XL gallery
