Asus Radeon X1900 XTX

Published: (last update )

GPU
GPU type R580
Manufacturing process90 nm
Transistors384 million
Die size352 mm2
Density1.09 M / mm2
ROPs16
TMUs16
Pixel shaders48
Vertex shaders8
Unified shaders-
Clock650 MHz
Pixel fillrate10 400 MP/s
Texel fillrate10 400 MT/s
SP gigaflops-
DP gigaflops-
DirectX9c
OpenGL2.0
OpenCL / Compute ver.-
Memory
Capacity512 MB
TypeGDDR3
Clock1 550 MHz
Bus width256 bit
Bandwith49 600 MB/s
Rated speed-
Brand-
The card
ManufacturerAsus
InterfacePCI-E x16
Interface bandwith4 096 MB/s
TDP135 W
Analog I/O ports1 × S-Video in, 1 × S-Video out, 2 × DVI-I
Digital I/O ports2 × DVI-I
Independent screens2
Manufacture date-
Release date2006
Asus Radeon X1900 XTX (front side)

Asus Radeon X1900 XTX (front side)

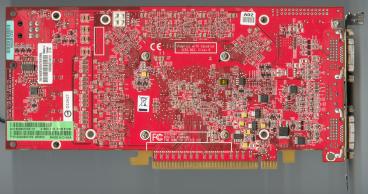

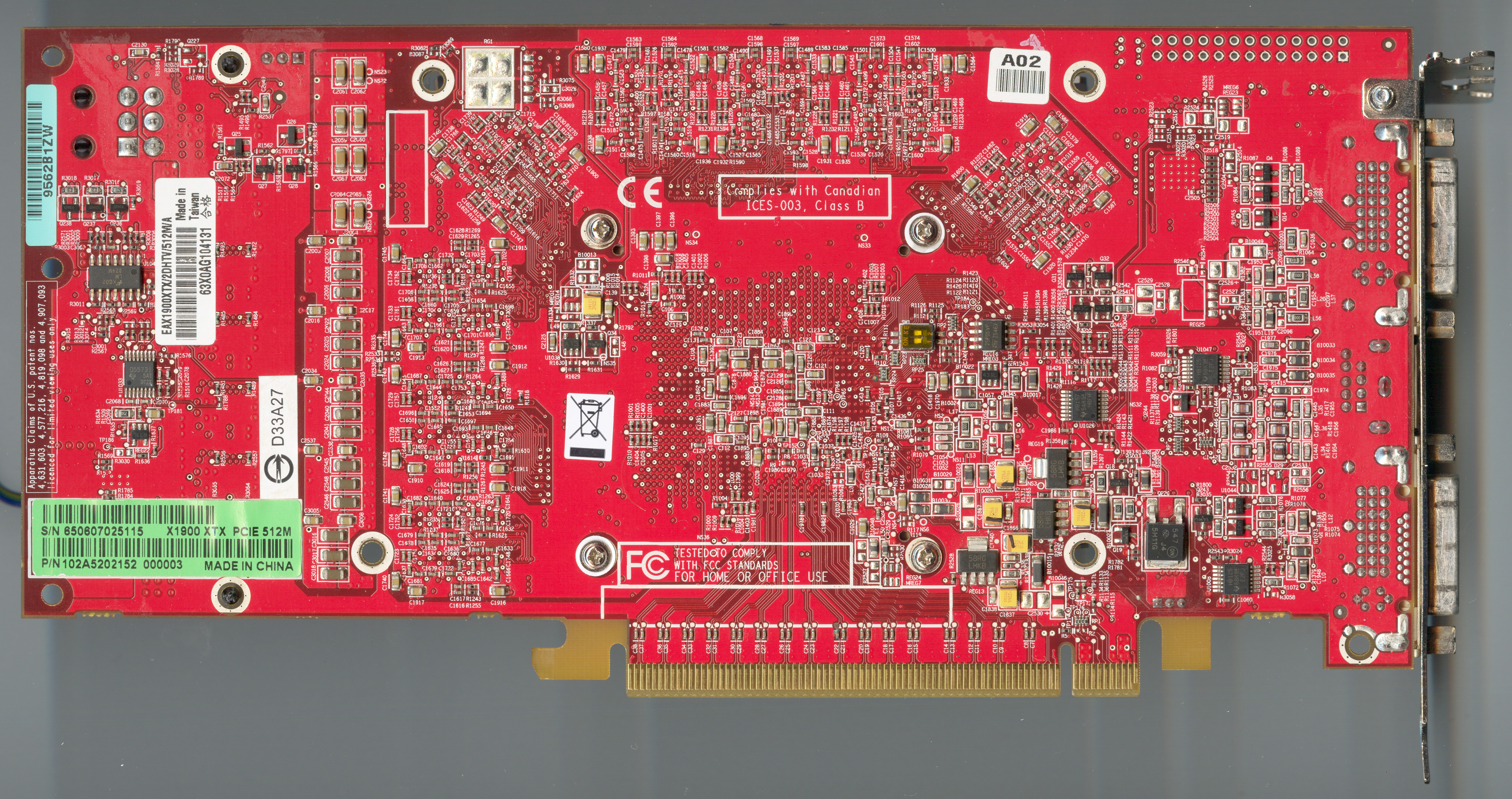

Asus Radeon X1900 XTX (back side)

Asus Radeon X1900 XTX (back side)
