ATi FireGL V7350

Published: (last update )

GPU
GPU type R520
Manufacturing process90 nm
Transistors321 million
Die size288 mm2
Density1.11 M / mm2
ROPs16
TMUs16
Pixel shaders16
Vertex shaders8
Unified shaders-
Clock600 MHz
Pixel fillrate9 600 MP/s
Texel fillrate9 600 MT/s
SP gigaflops-
DP gigaflops-
DirectX9c
OpenGL2.0
OpenCL / Compute ver.-
Memory
Capacity1 024 MB
TypeGDDR3
Clock1 300 MHz
Bus width256 bit
Bandwith41 600 MB/s
Rated speed1 600 MHz
BrandSamsung
The card
ManufacturerATi
InterfacePCI-E x16
Interface bandwith4 096 MB/s
TDP111 W
Analog I/O ports2 × DVI-I
Digital I/O ports2 × DVI-I
Independent screens2
Manufacture date31st week of 2007
Release date2005

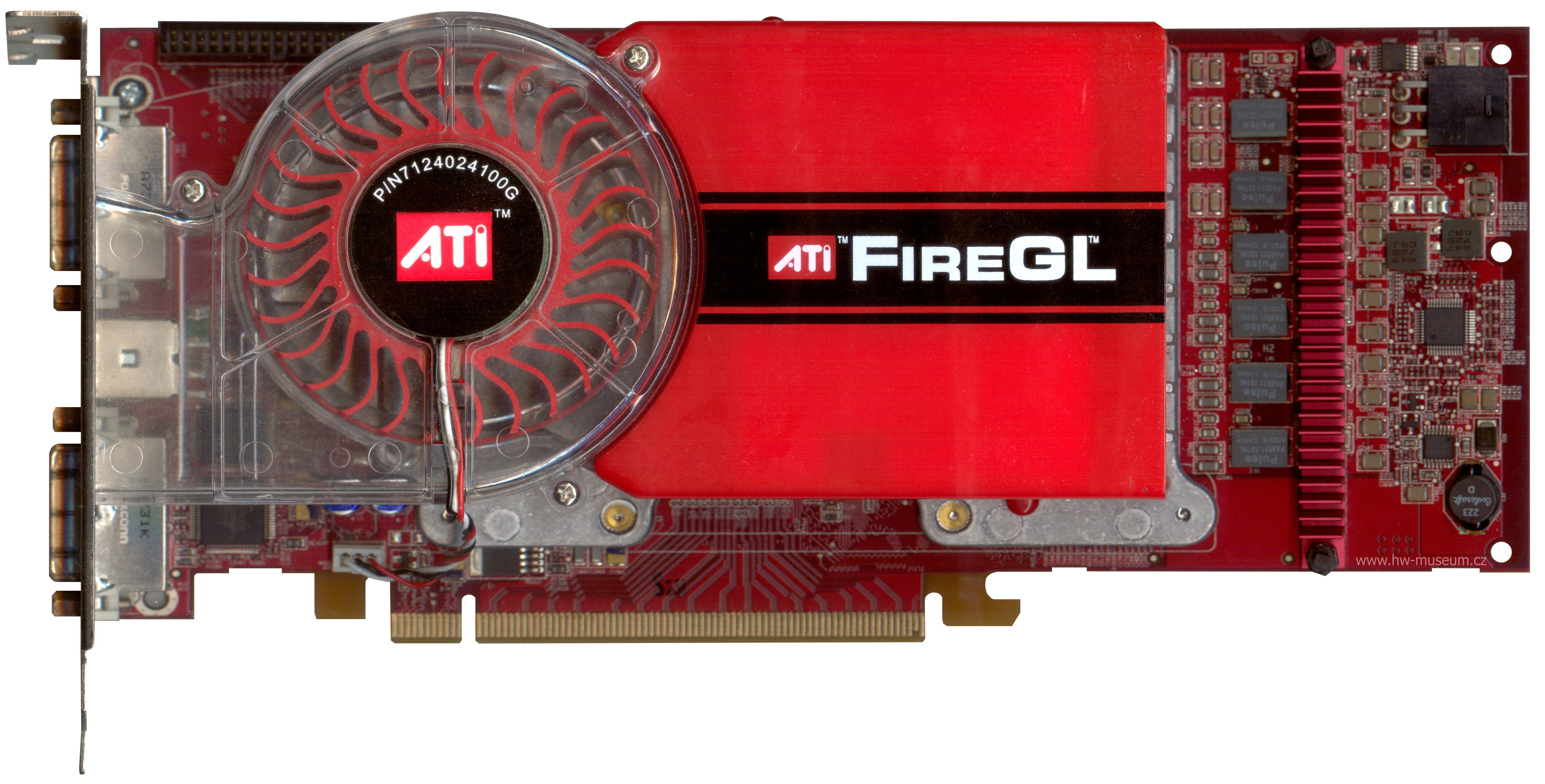

ATi FireGL V7350 (front side)

ATi FireGL V7350 (front side)

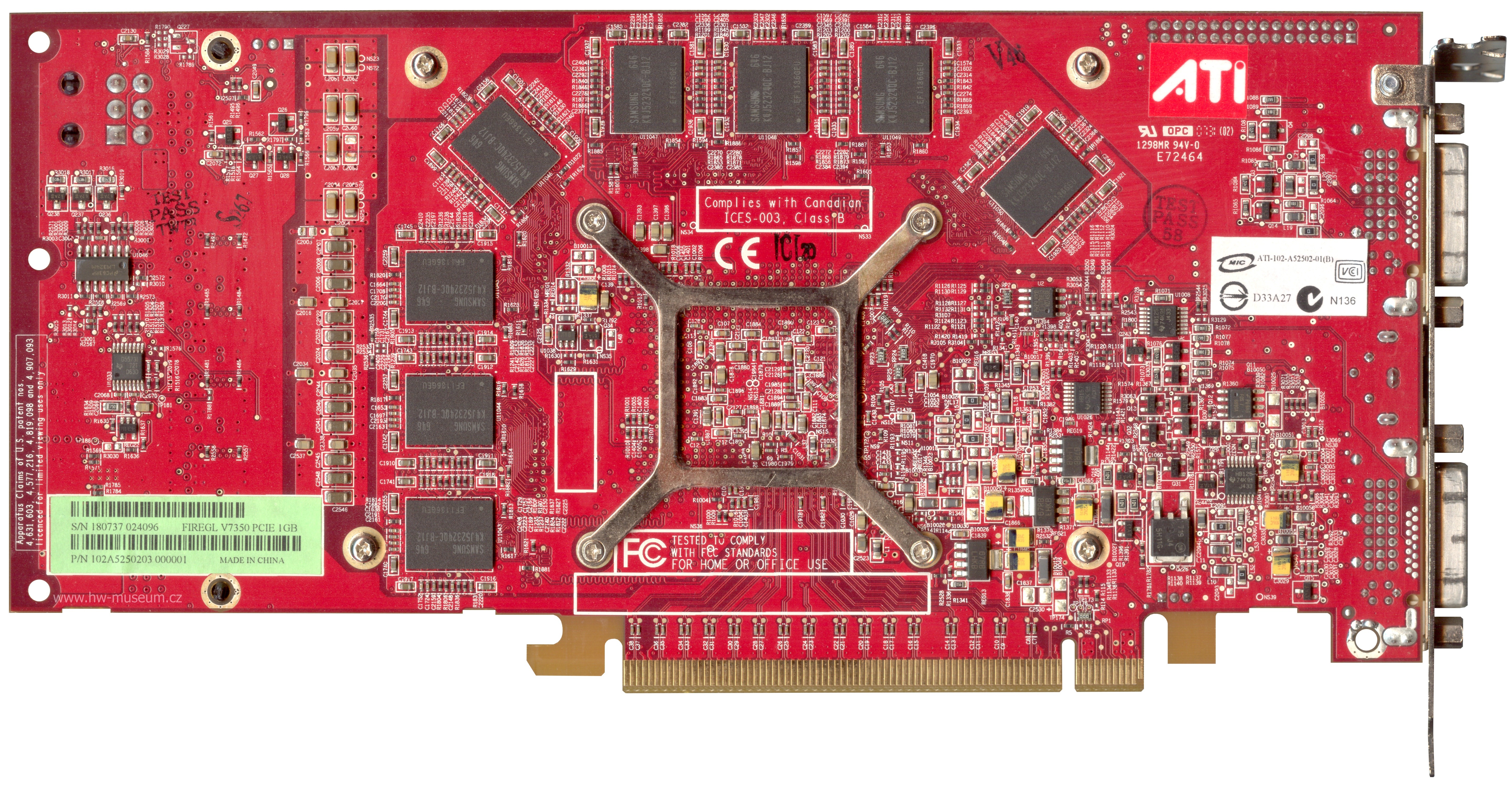

ATi FireGL V7350 (back side)

ATi FireGL V7350 (back side)
