Leadtek GeForce 6200 AGP

Published: (last update )

GPU
GPU type NV43
Manufacturing process110 nm
Transistors143 million
Die size150 mm2
Density0.95 M / mm2
ROPs2
TMUs4
Pixel shaders4
Vertex shaders3
Unified shaders-
Clock300 MHz
Pixel fillrate600 MP/s
Texel fillrate1 200 MT/s
SP gigaflops-
DP gigaflops-
DirectX9c
OpenGL2.1
OpenCL / Compute ver.-
Memory
Capacity128 MB
TypeDDR
Clock550 MHz
Bus width128 bit
Bandwith8 800 MB/s
Rated speed550 MHz
BrandHynix
The card
ManufacturerLeadtek
InterfaceAGP 8x
Interface bandwith2 133 MB/s
TDP35 W
Analog I/O ports1 × VGA, 1 × S-Video out, 1 × DVI-I
Digital I/O ports1 × DVI-I
Independent screens2
Manufacture date9th week of 2005
Release date2005

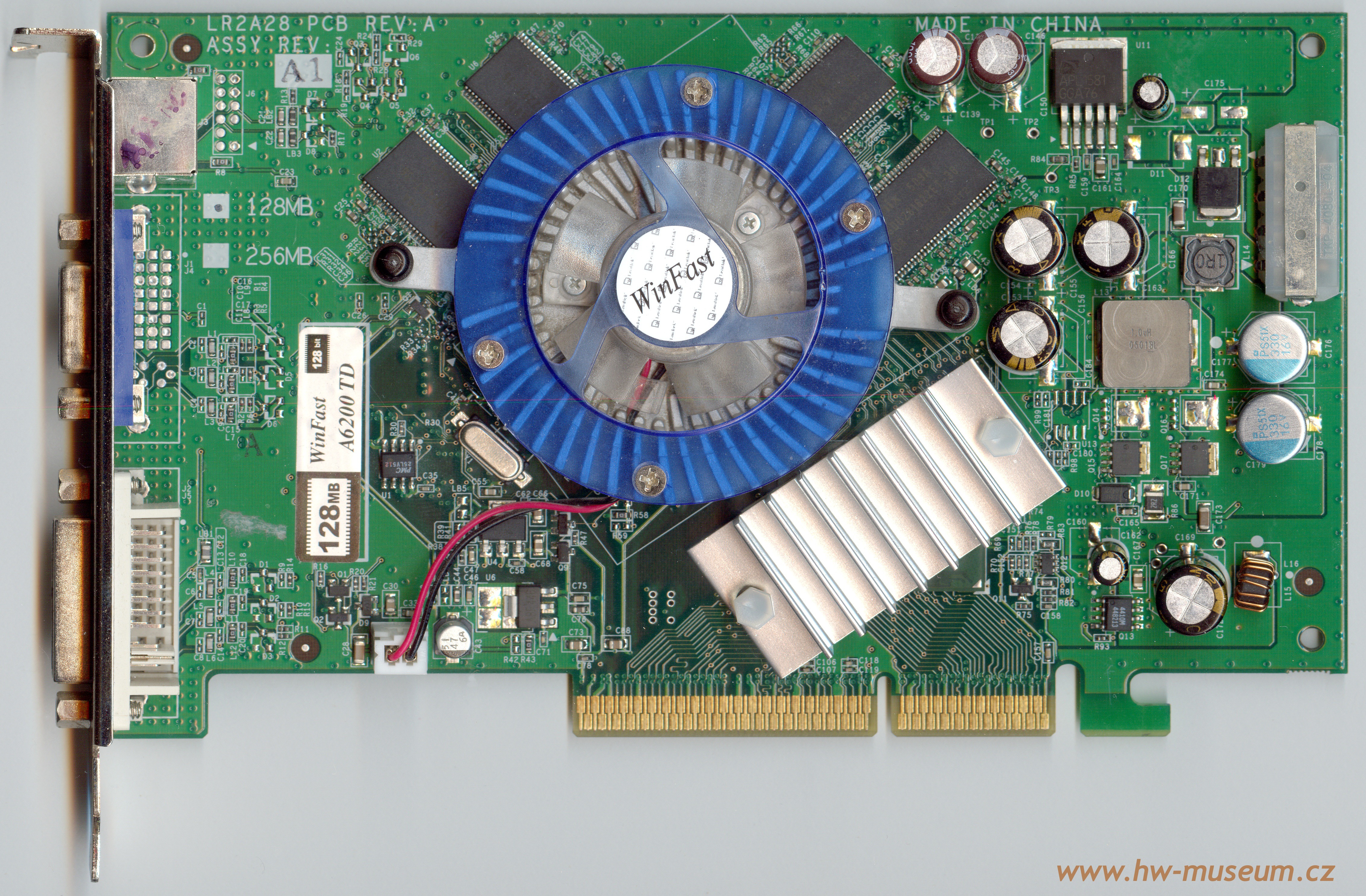

Leadtek GeForce 6200 AGP (front side)

Leadtek GeForce 6200 AGP (front side)

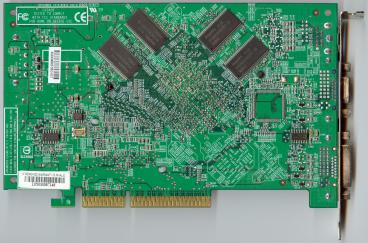

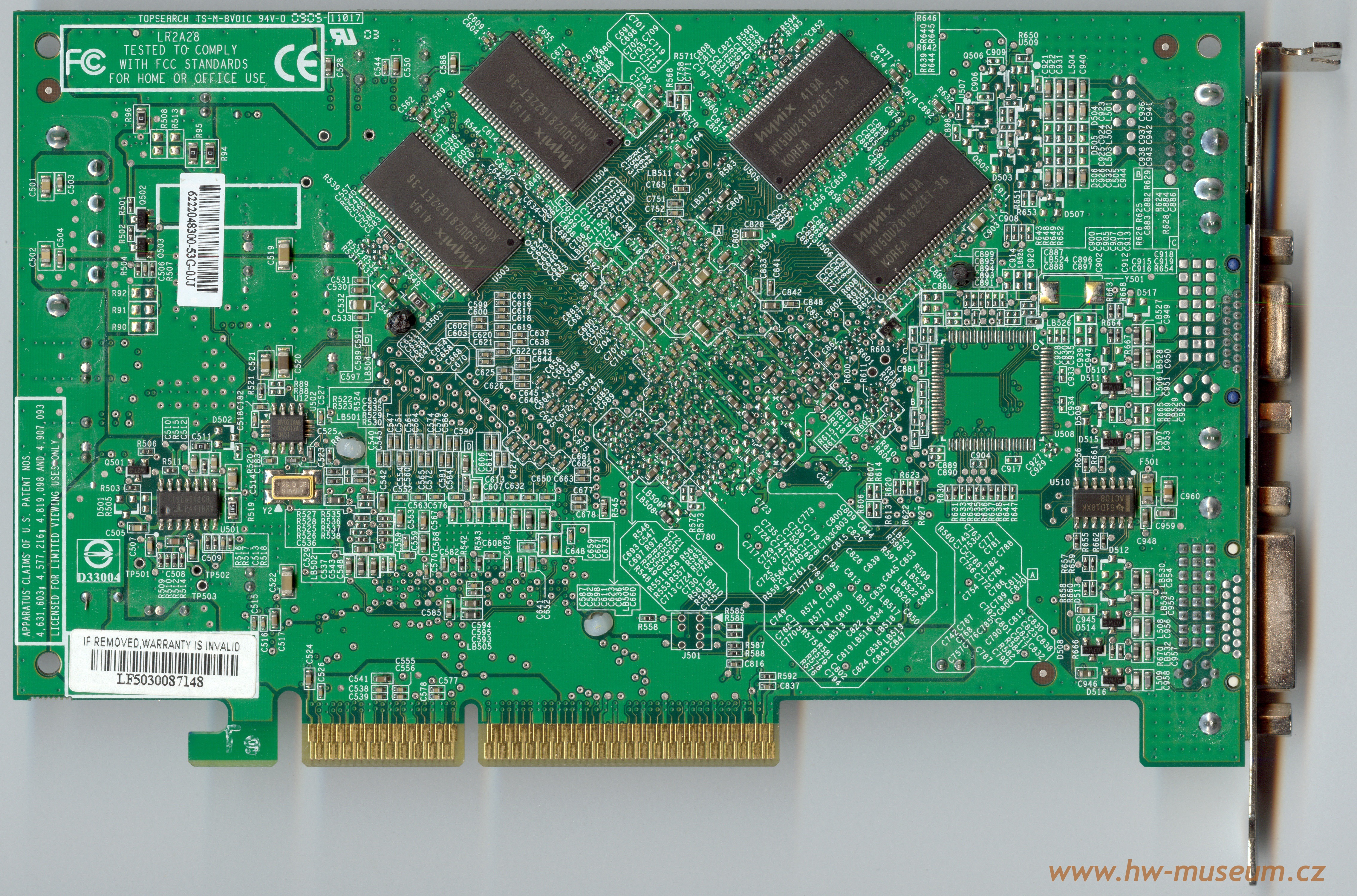

Leadtek GeForce 6200 AGP (back side)

Leadtek GeForce 6200 AGP (back side)
