Gainward GeForce 6800 GT

Published: (last update )

GPU
GPU type NV40
Manufacturing process130 nm
Transistors222 million
Die size287 mm2
Density0.77 M / mm2
ROPs16
TMUs16
Pixel shaders16
Vertex shaders6
Unified shaders-
Clock350 MHz
Pixel fillrate5 600 MP/s
Texel fillrate5 600 MT/s
SP gigaflops-
DP gigaflops-
DirectX9c
OpenGL2.1
OpenCL / Compute ver.-
Memory
Capacity256 MB
TypeGDDR3
Clock1 000 MHz
Bus width256 bit
Bandwith32 000 MB/s
Rated speed-
Brand-
The card
ManufacturerGainward
InterfaceAGP 8x
Interface bandwith2 133 MB/s
TDP65 W
Analog I/O ports1 × S-Video out, 2 × DVI-I
Digital I/O ports2 × DVI-I
Independent screens2
Manufacture date-
Release date2004

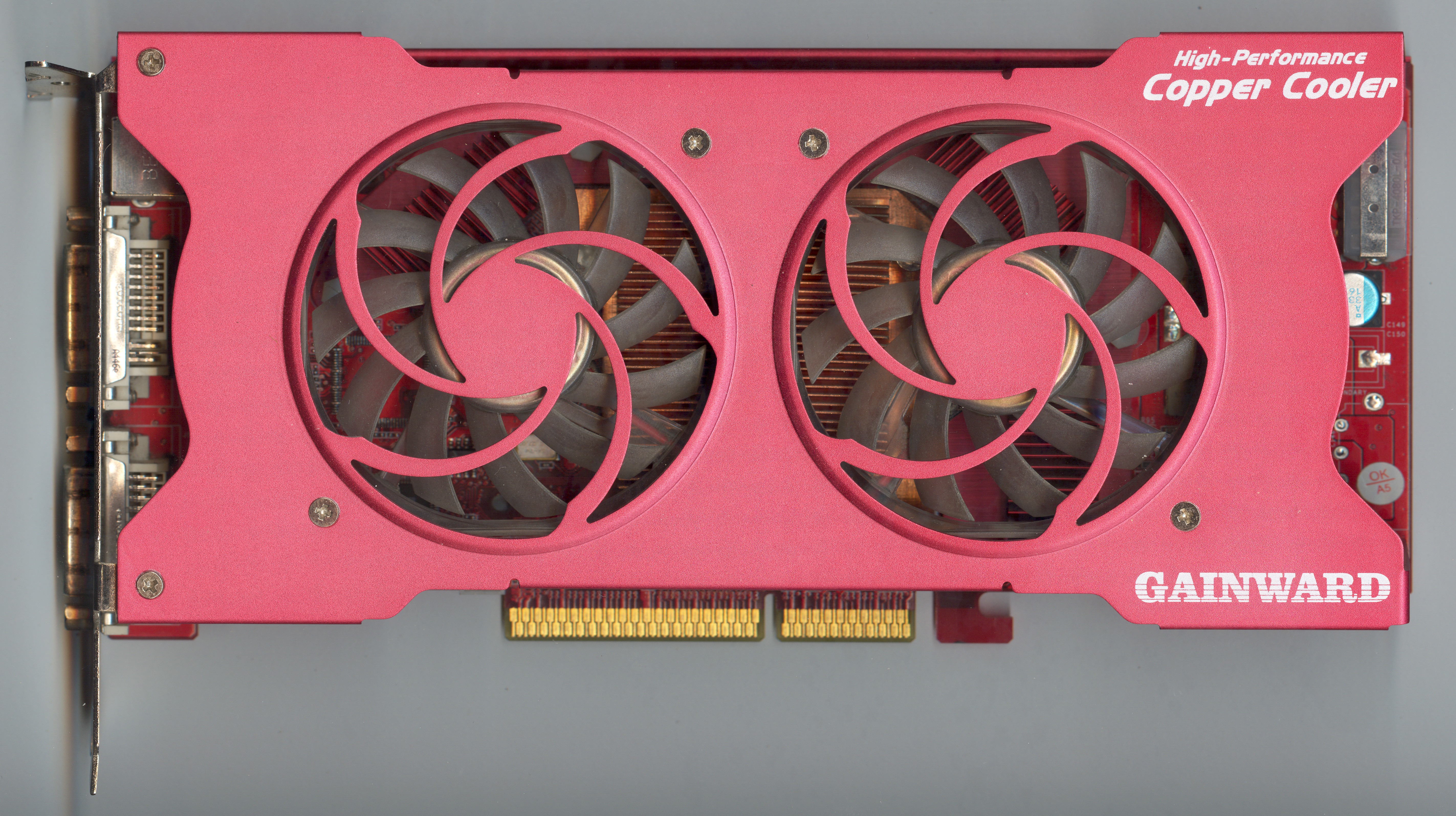

Gainward GeForce 6800 GT (front side)

Gainward GeForce 6800 GT (front side)

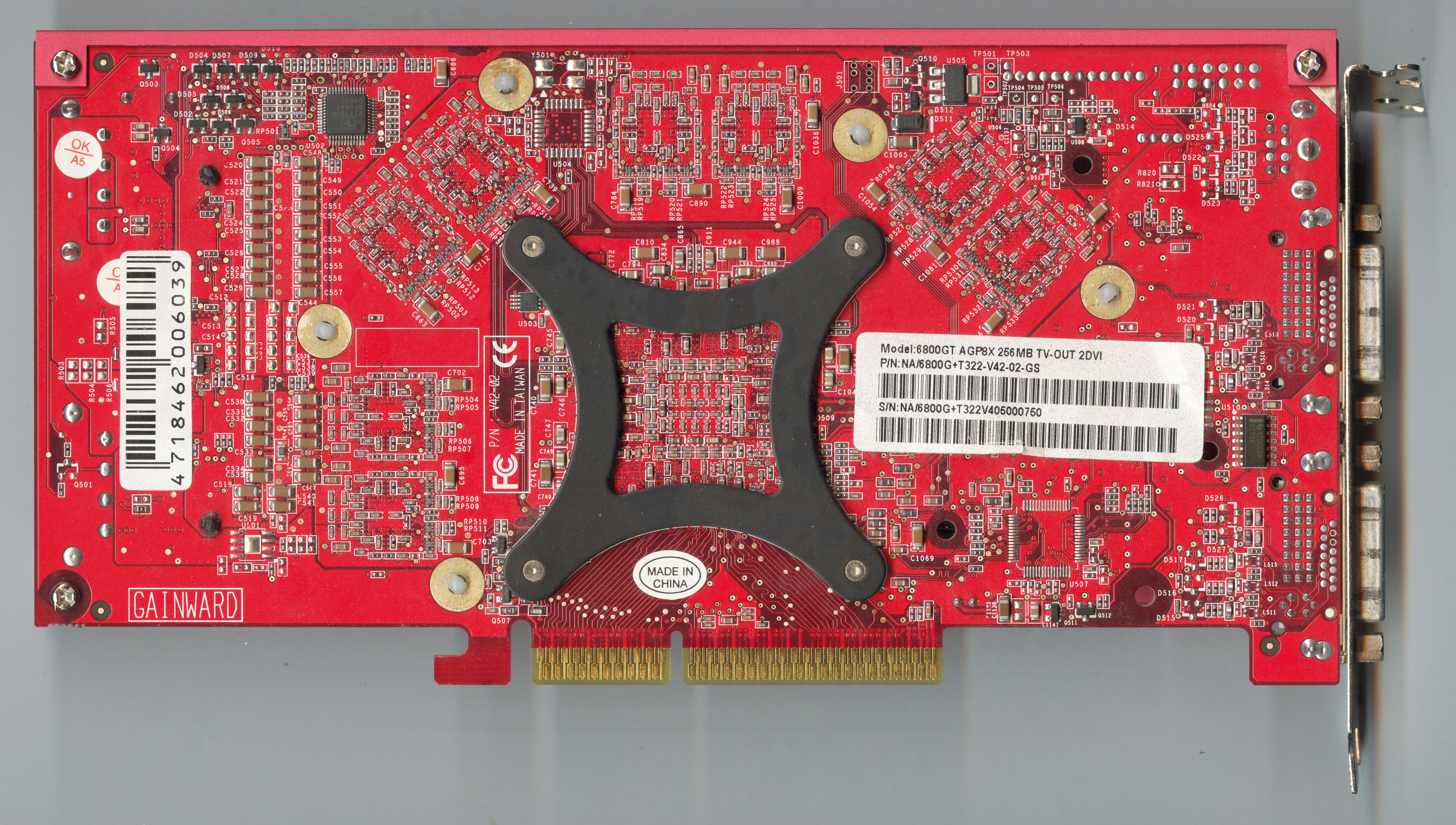

Gainward GeForce 6800 GT (back side)

Gainward GeForce 6800 GT (back side)
