Gainward GeForce 6800 GS AGP (NV41)

Published: (last update )

GPU
GPU type NV41
Manufacturing process130 nm
Transistors190 million
Die size225 mm2
Density0.84 M / mm2
ROPs12
TMUs12
Pixel shaders12
Vertex shaders5
Unified shaders-
Clock450 MHz
Pixel fillrate5 400 MP/s
Texel fillrate5 400 MT/s
SP gigaflops-
DP gigaflops-
DirectX9c
OpenGL2.1
OpenCL / Compute ver.-
Memory
Capacity256 MB
TypeGDDR3
Clock1 200 MHz
Bus width256 bit
Bandwith38 400 MB/s
Rated speed-
Brand-
The card
ManufacturerGainward
InterfaceAGP 8x
Interface bandwith2 133 MB/s
TDP60 W
Analog I/O ports1 × VGA, 1 × S-Video out, 1 × DVI-I
Digital I/O ports1 × DVI-I
Independent screens2
Manufacture date14th week of 2006
Release date2005

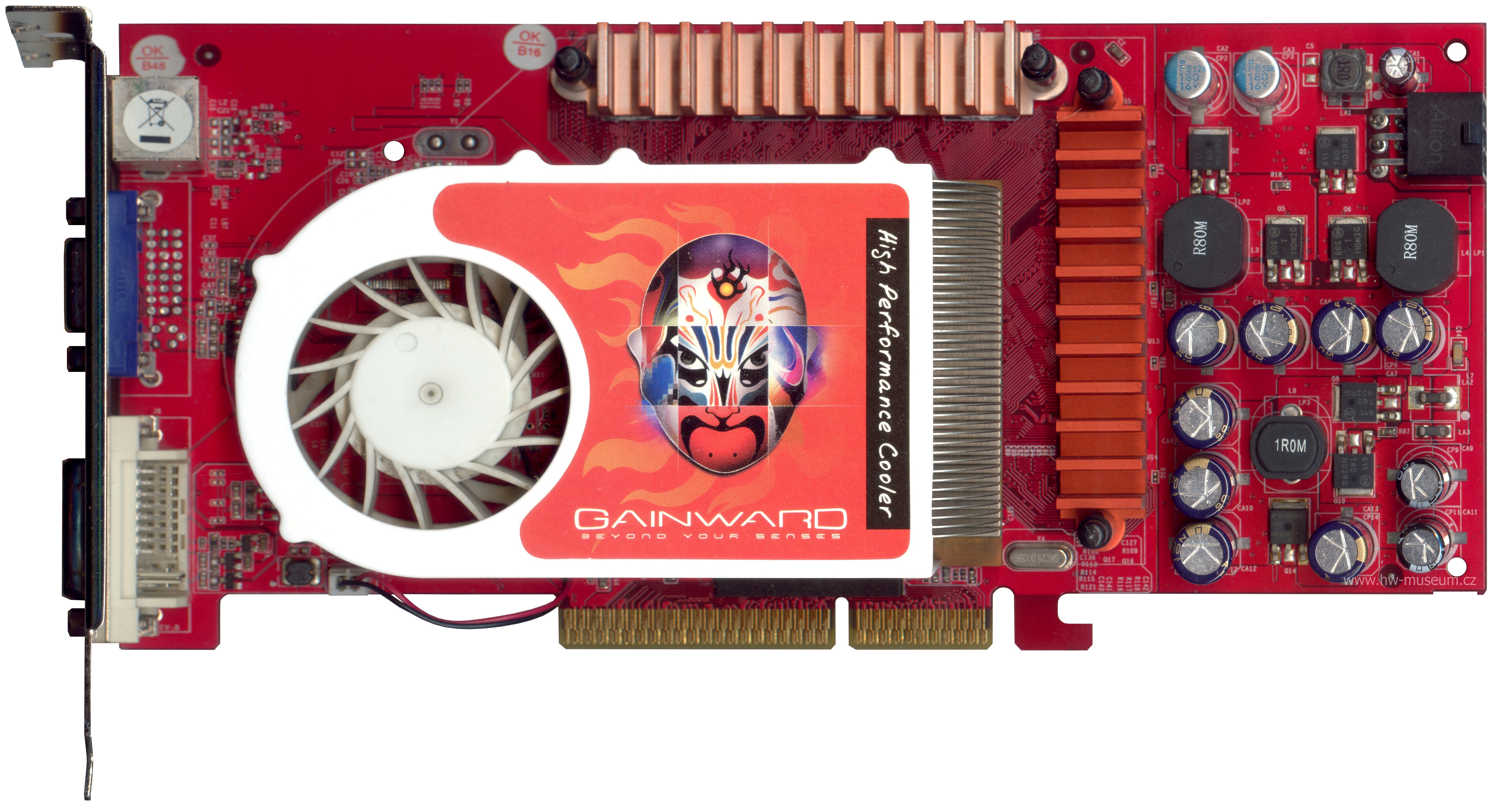

Gainward GeForce 6800 GS AGP (NV41) (front side)

Gainward GeForce 6800 GS AGP (NV41) (front side)

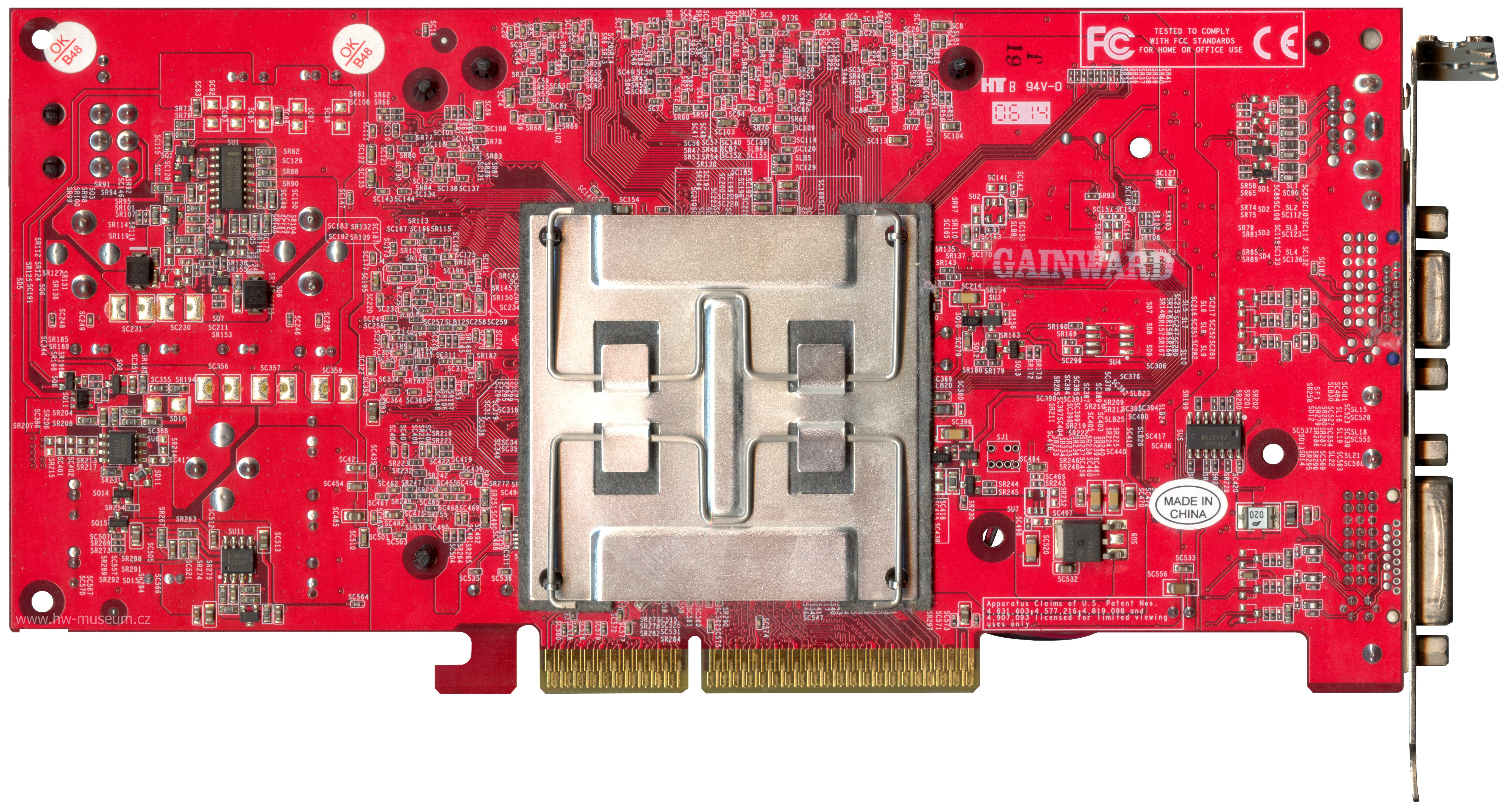

Gainward GeForce 6800 GS AGP (NV41) (back side)

Gainward GeForce 6800 GS AGP (NV41) (back side)

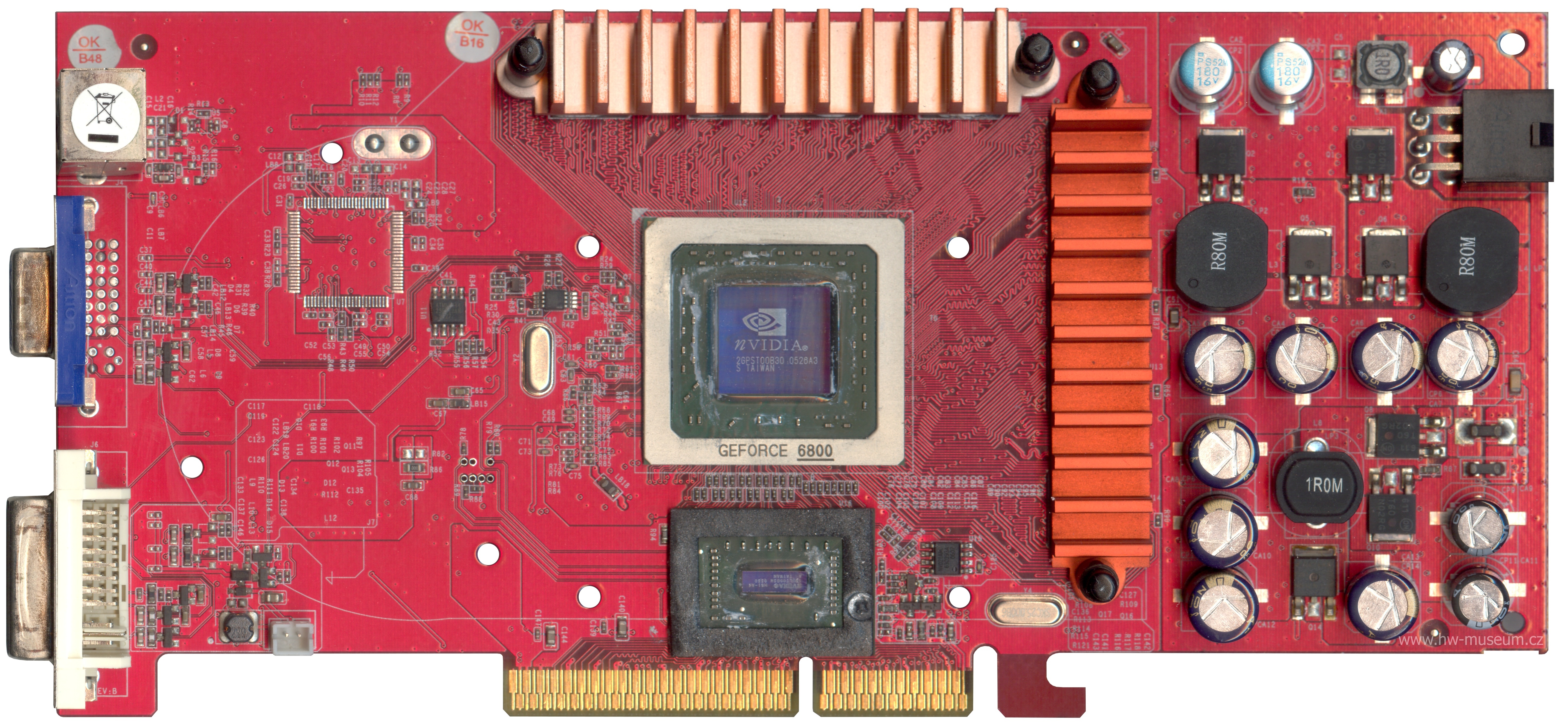

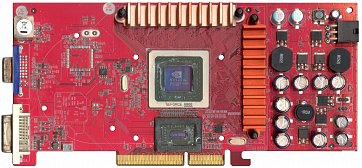

Gainward GeForce 6800 GS AGP (NV41) gallery
Gainward GeForce 6800 GS AGP (NV41) gallery
