Asus GeForce 6600 AGP

Published: (last update )

GPU
GPU type NV43
Manufacturing process110 nm
Transistors143 million
Die size150 mm2
Density0.95 M / mm2
ROPs4
TMUs8
Pixel shaders8
Vertex shaders3
Unified shaders-
Clock300 MHz
Pixel fillrate1 200 MP/s
Texel fillrate2 400 MT/s
SP gigaflops-
DP gigaflops-
DirectX9c
OpenGL2.1
OpenCL / Compute ver.-
Memory
Capacity128 MB
TypeDDR
Clock550 MHz
Bus width128 bit
Bandwith8 800 MB/s
Rated speed550 MHz
BrandHynix
The card
ManufacturerAsus
InterfaceAGP 8x
Interface bandwith2 133 MB/s
TDP40 W
Analog I/O ports1 × VGA, 1 × S-Video out, 1 × DVI-I
Digital I/O ports1 × DVI-I
Independent screens2
Manufacture date42nd week of 2005
Release date2004

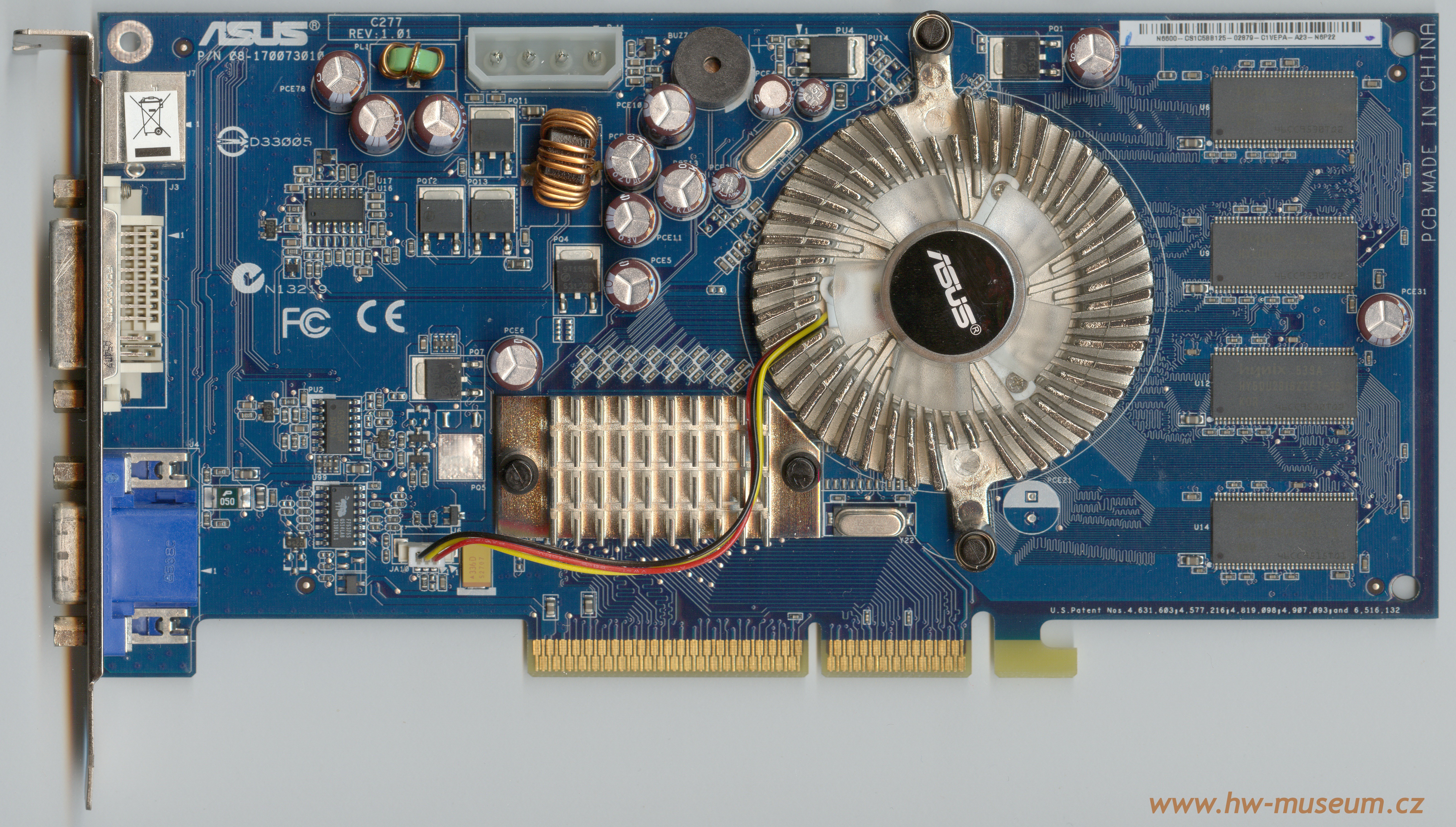

Asus GeForce 6600 AGP (front side)

Asus GeForce 6600 AGP (front side)

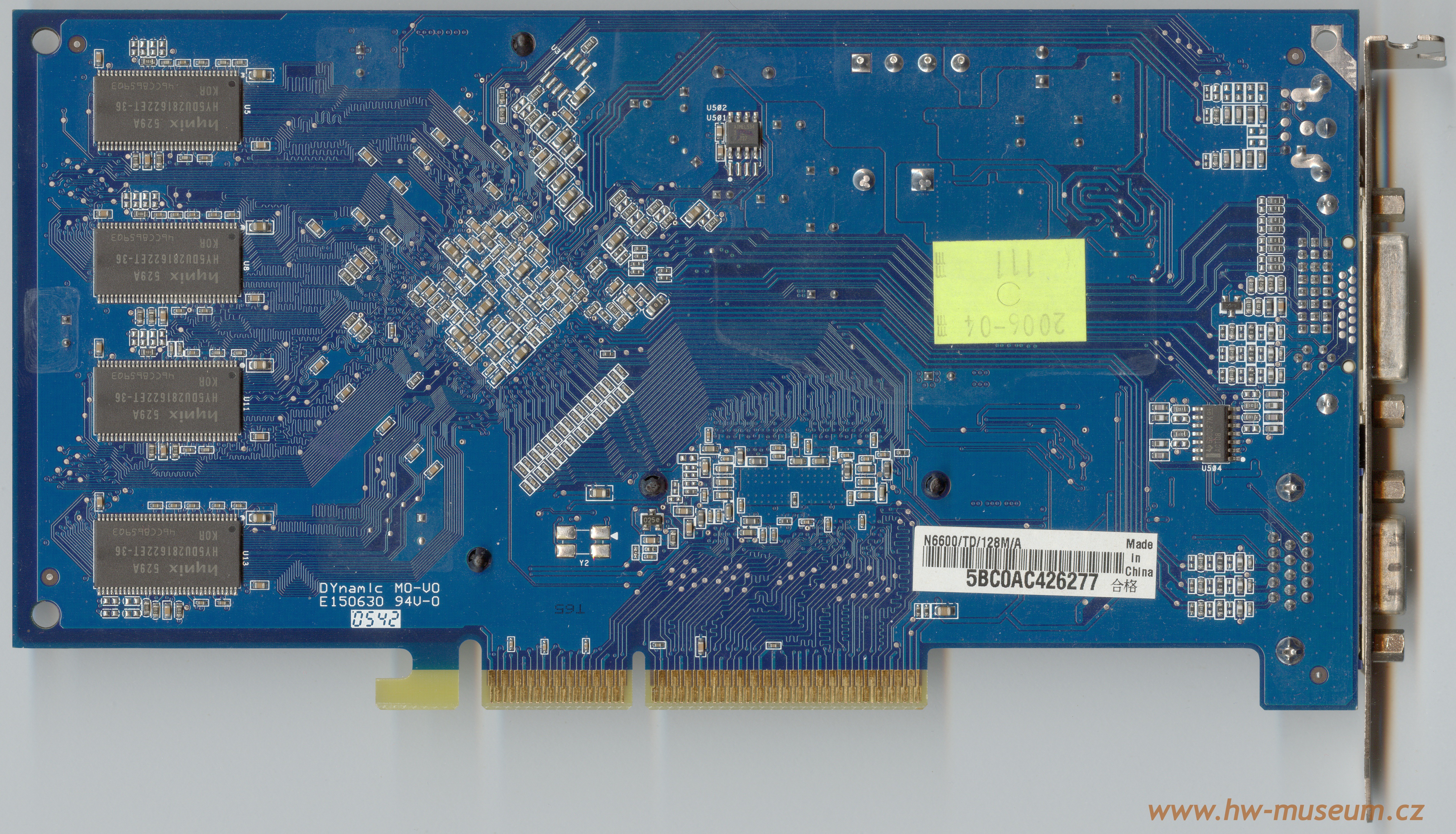

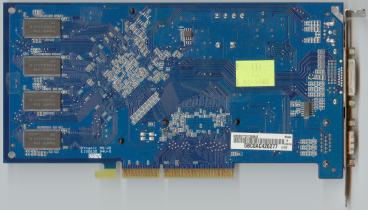

Asus GeForce 6600 AGP (back side)

Asus GeForce 6600 AGP (back side)
