nVidia Quadro FX 500

Published: (last update )

GPU
GPU type NV34
Manufacturing process150 nm
Transistors47 milion
Die size91 mm2
ROPs4
TMUs4
Pixel shaders4
Vertex shaders2
Unified shaders-
Clock270 MHz
Pixel fillrate1080 MP/s
Texel fillrate1080 MT/s
SP gigaflops-
DP gigaflops-
DirectX9
OpenGL1.5
OpenCL / Compute ver.-
Memory
Capacity128 MB
TypeDDR
Clock480 MHz
Bus width128 bit
Bandwith7680 MB/s
Rated speed550 MHz
BrandSamsung
The card
ManufacturernVidia
InterfaceAGP 8x
Interface bandwith2133 MB/s
TDP25 W
Analog I/O ports1 × VGA, 1 × DVI-I
Digital I/O ports1 × DVI-I
Independent screens2
Rev
Release date2003

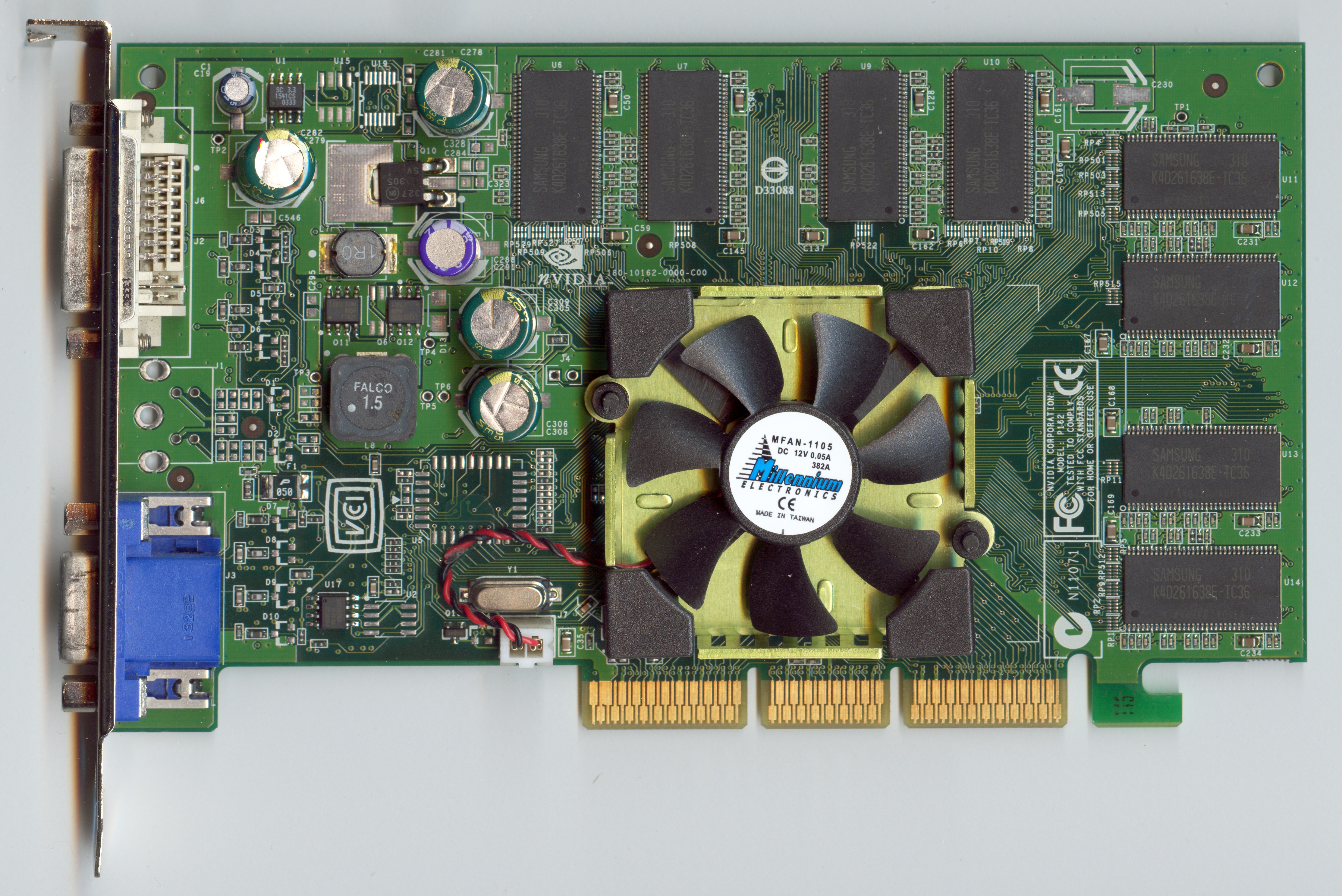

nVidia Quadro FX 500 (front side)

nVidia Quadro FX 500 (front side)

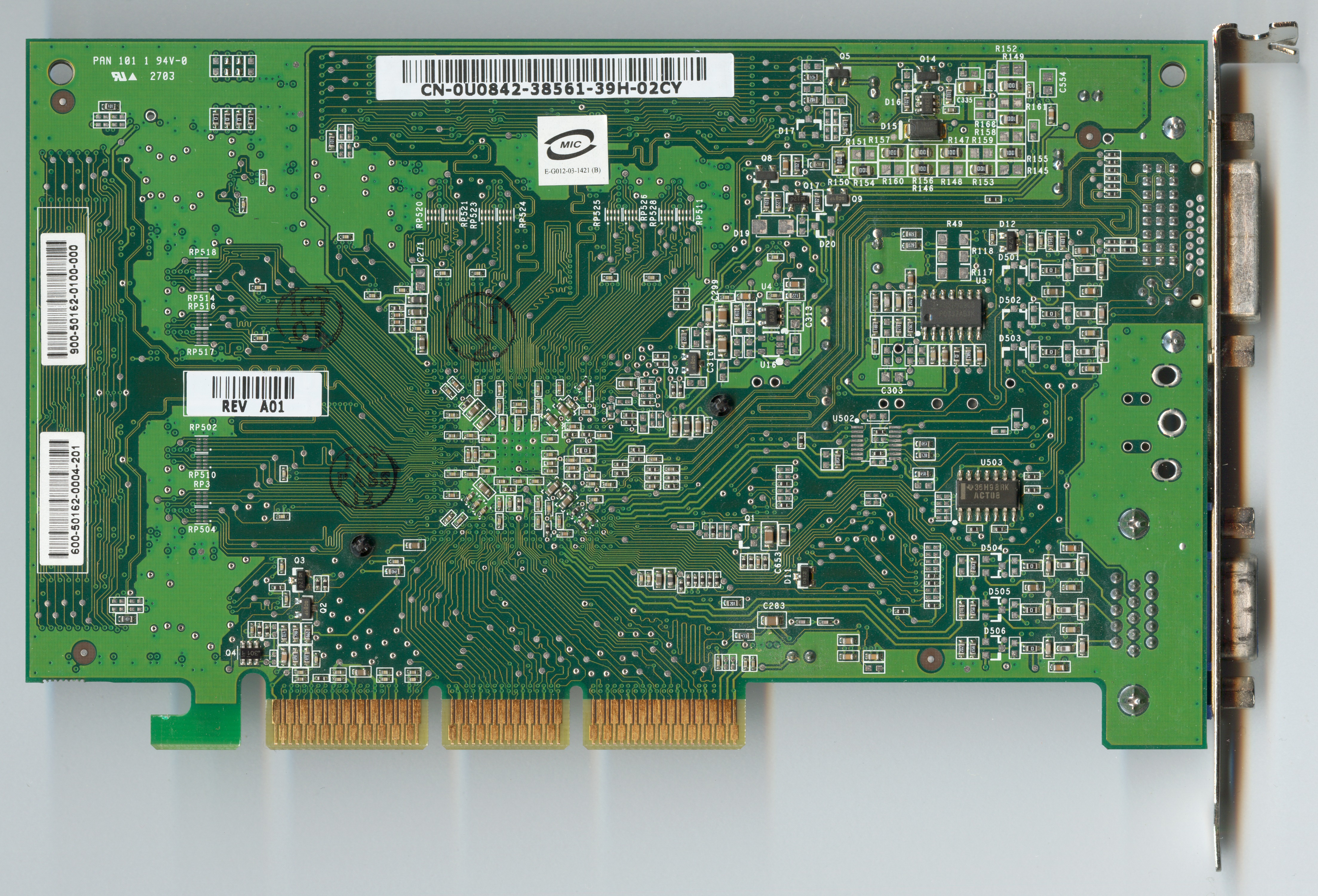

nVidia Quadro FX 500 (back side)

nVidia Quadro FX 500 (back side)
