Gigabyte GeForce PCX 5900

Published: (last update )

GPU
GPU type NV35
Manufacturing process130 nm
Transistors135 milion
Die size207 mm2
ROPs4
TMUs8
Pixel shaders4
Vertex shaders3
Unified shaders-
Clock350 MHz
Pixel fillrate1400 MP/s
Texel fillrate2800 MT/s
SP gigaflops-
DP gigaflops-
DirectX9
OpenGL1.5
OpenCL / Compute ver.-
Memory
Capacity128 MB
TypeDDR
Clock550 MHz
Bus width256 bit
Bandwith17600 MB/s
Rated speed-
Brand-
The card
ManufacturerGigabyte
InterfacePCI-E x16
Interface bandwith4096 MB/s
TDP40 W
Analog I/O ports1 × VGA, 1 × S-Video out, 1 × DVI-I
Digital I/O ports1 × DVI-I
Independent screens2
Rev3204
Release date2004

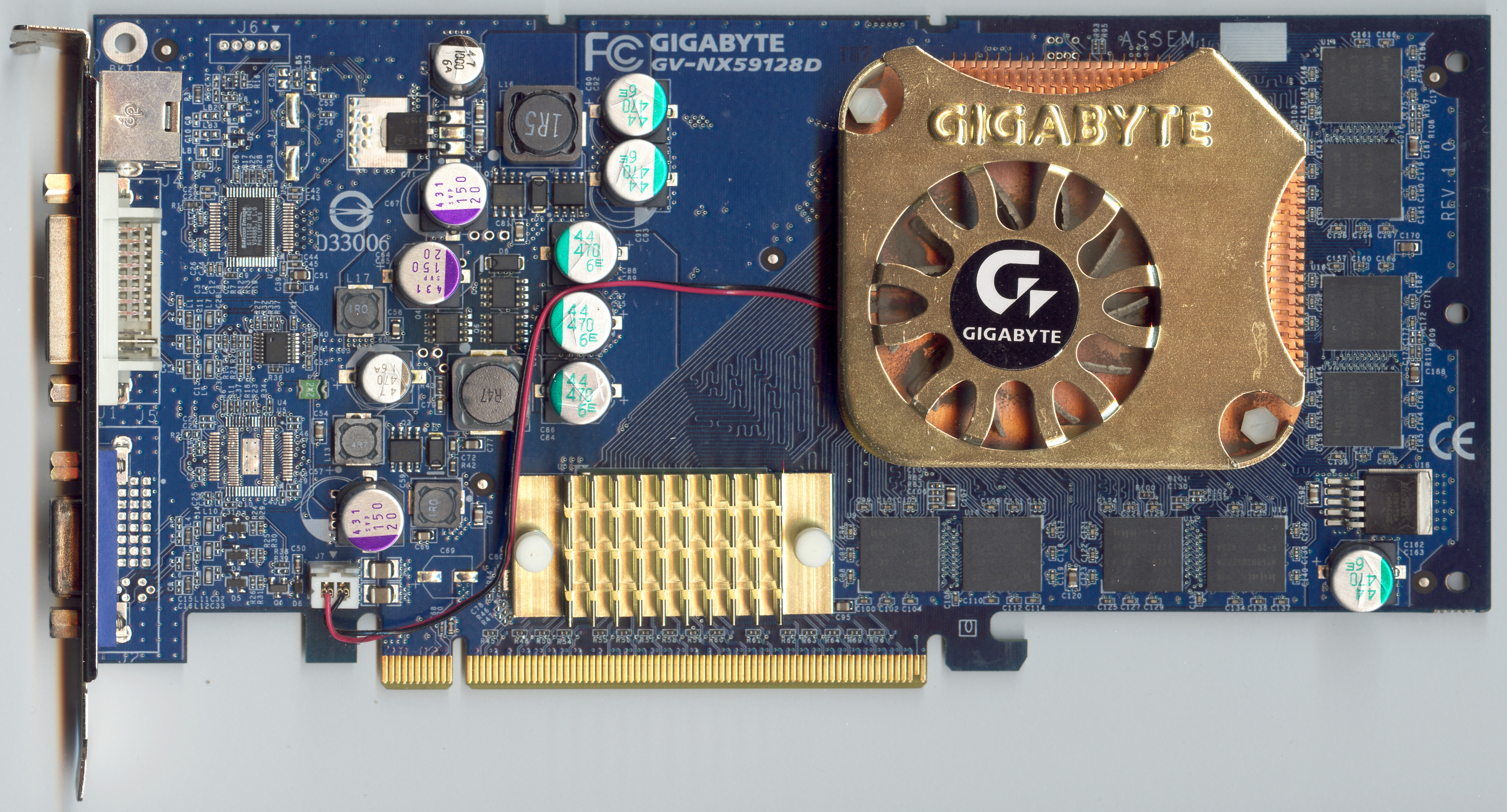

Gigabyte GeForce PCX 5900 (front side)

Gigabyte GeForce PCX 5900 (front side)

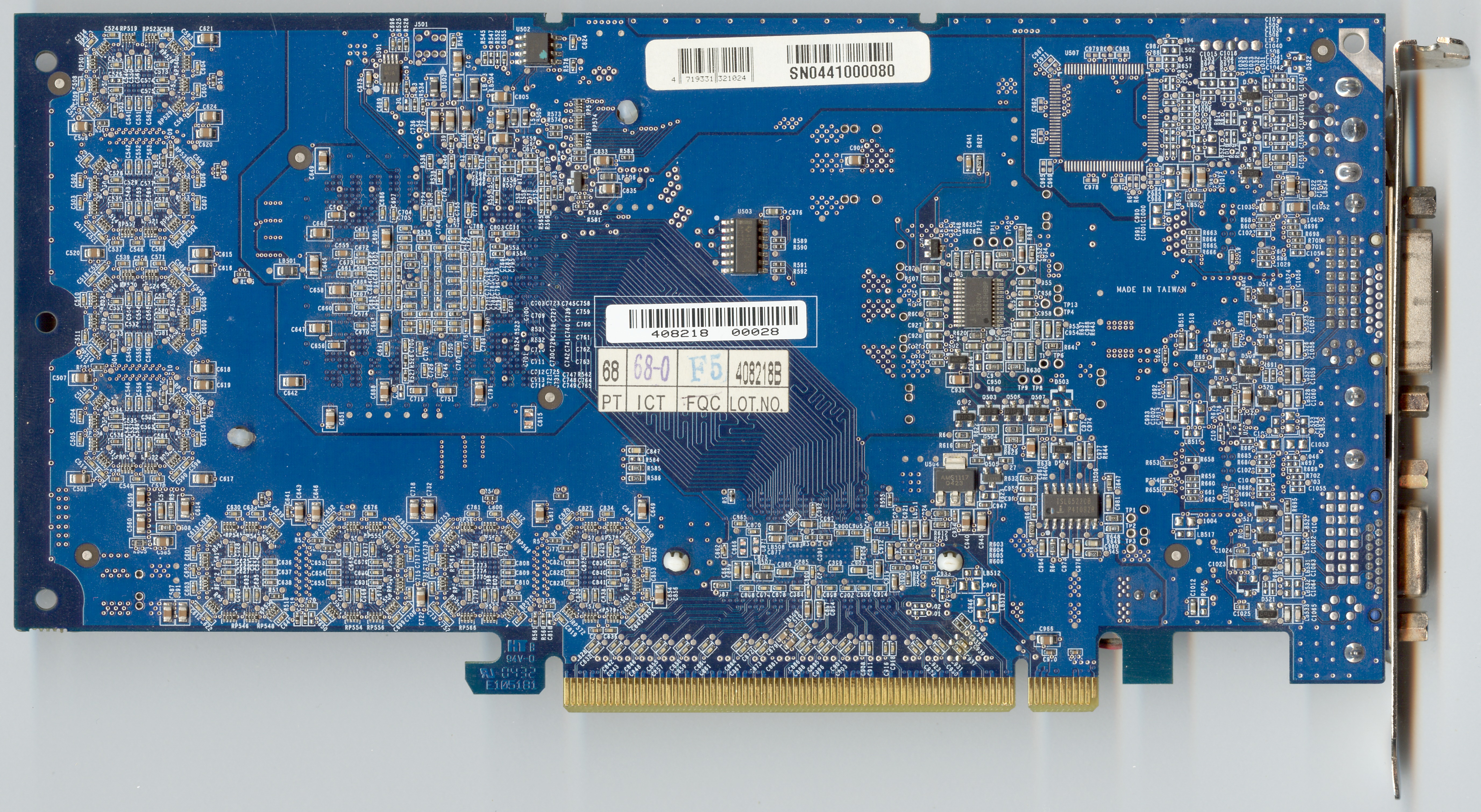

Gigabyte GeForce PCX 5900 (back side)

Gigabyte GeForce PCX 5900 (back side)
