nVidia Quadro FX 1100

Published: (last update )

GPU
GPU type NV36
Manufacturing process130 nm
Transistors82 million
Die size138 mm2
Density0.59 M / mm2
ROPs4
TMUs4
Pixel shaders4
Vertex shaders3
Unified shaders-
Clock425 MHz
Pixel fillrate1 700 MP/s
Texel fillrate1 700 MT/s
SP gigaflops-
DP gigaflops-
DirectX9
OpenGL1.5
OpenCL / Compute ver.-
Memory
Capacity128 MB
TypeDDR
Clock650 MHz
Bus width128 bit
Bandwith10 400 MB/s
Rated speed700 MHz
BrandSamsung
The card
ManufacturernVidia
InterfaceAGP 8x
Interface bandwith2 133 MB/s
TDP-
Analog I/O ports2 × DVI-I
Digital I/O ports2 × DVI-I
Independent screens2
Manufacture date-
Release date2004

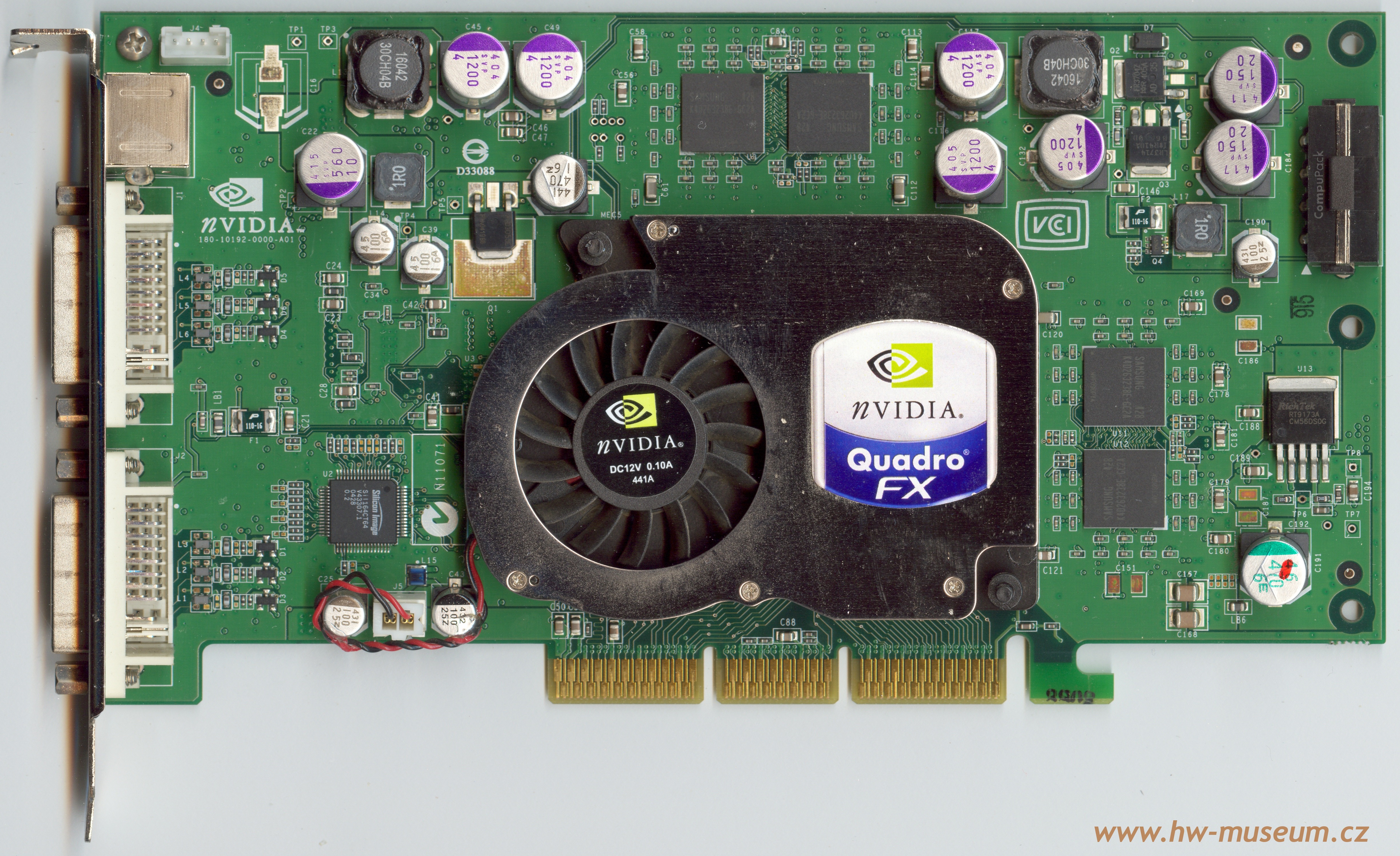

nVidia Quadro FX 1100 (front side)

nVidia Quadro FX 1100 (front side)

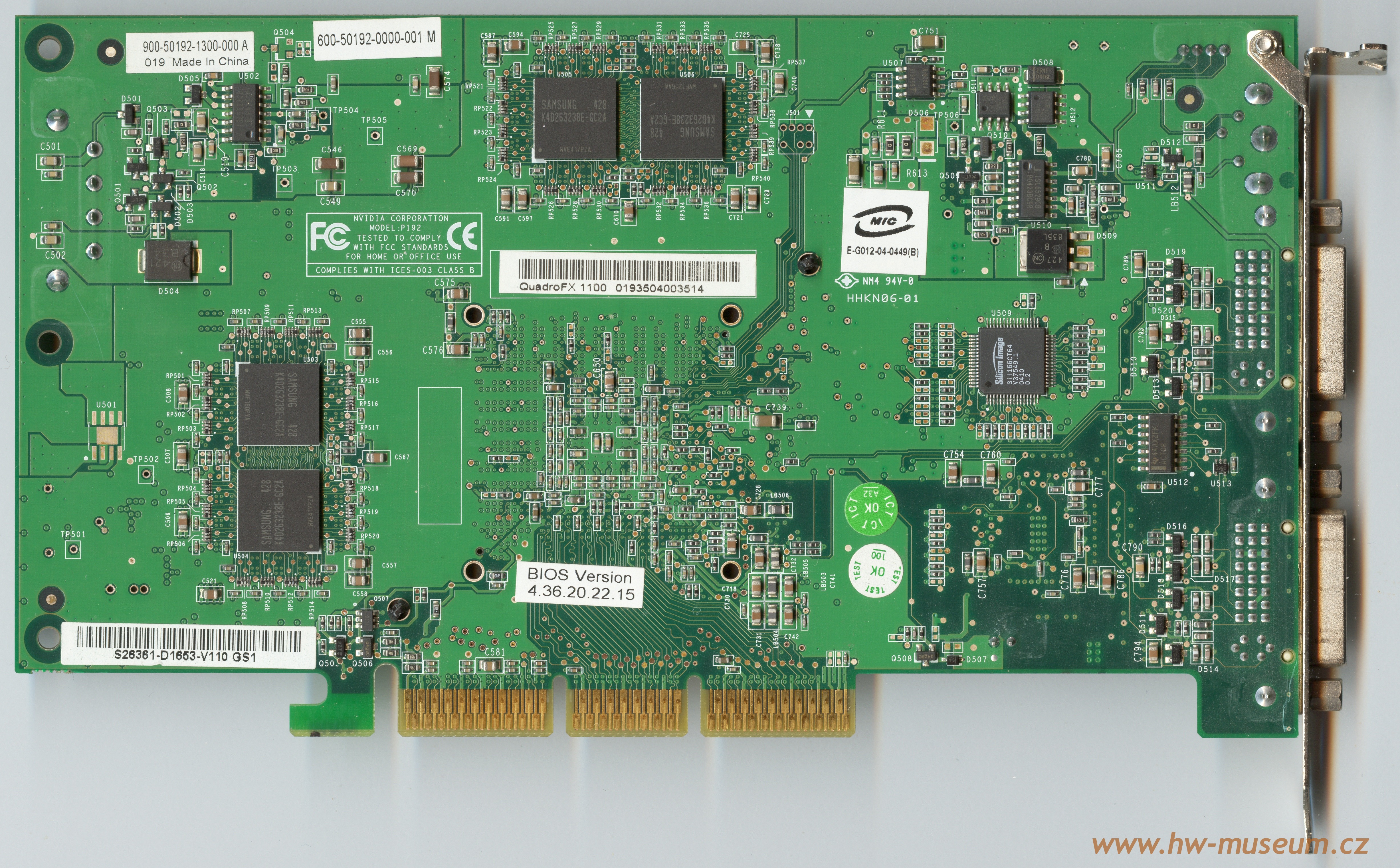

nVidia Quadro FX 1100 (back side)

nVidia Quadro FX 1100 (back side)
