nVidia GeForce FX 5600

Published: (last update )

GPU
GPU type NV31
Manufacturing process150 nm
Transistors80 million
Die size135 mm2
Density0.59 M / mm2
ROPs4
TMUs4
Pixel shaders4
Vertex shaders1
Unified shaders-
Clock325 MHz
Pixel fillrate1 300 MP/s
Texel fillrate1 300 MT/s
SP gigaflops-
DP gigaflops-
DirectX9
OpenGL1.5
OpenCL / Compute ver.-
Memory
Capacity128 MB
TypeDDR
Clock550 MHz
Bus width128 bit
Bandwith8 800 MB/s
Rated speed550 MHz
BrandSamsung
The card
ManufacturernVidia
InterfaceAGP 8x
Interface bandwith2 133 MB/s
TDP37 W
Analog I/O ports1 × VGA, 1 × S-Video out, 1 × DVI-I
Digital I/O ports1 × DVI-I
Independent screens2
Manufacture date-
Release date2003

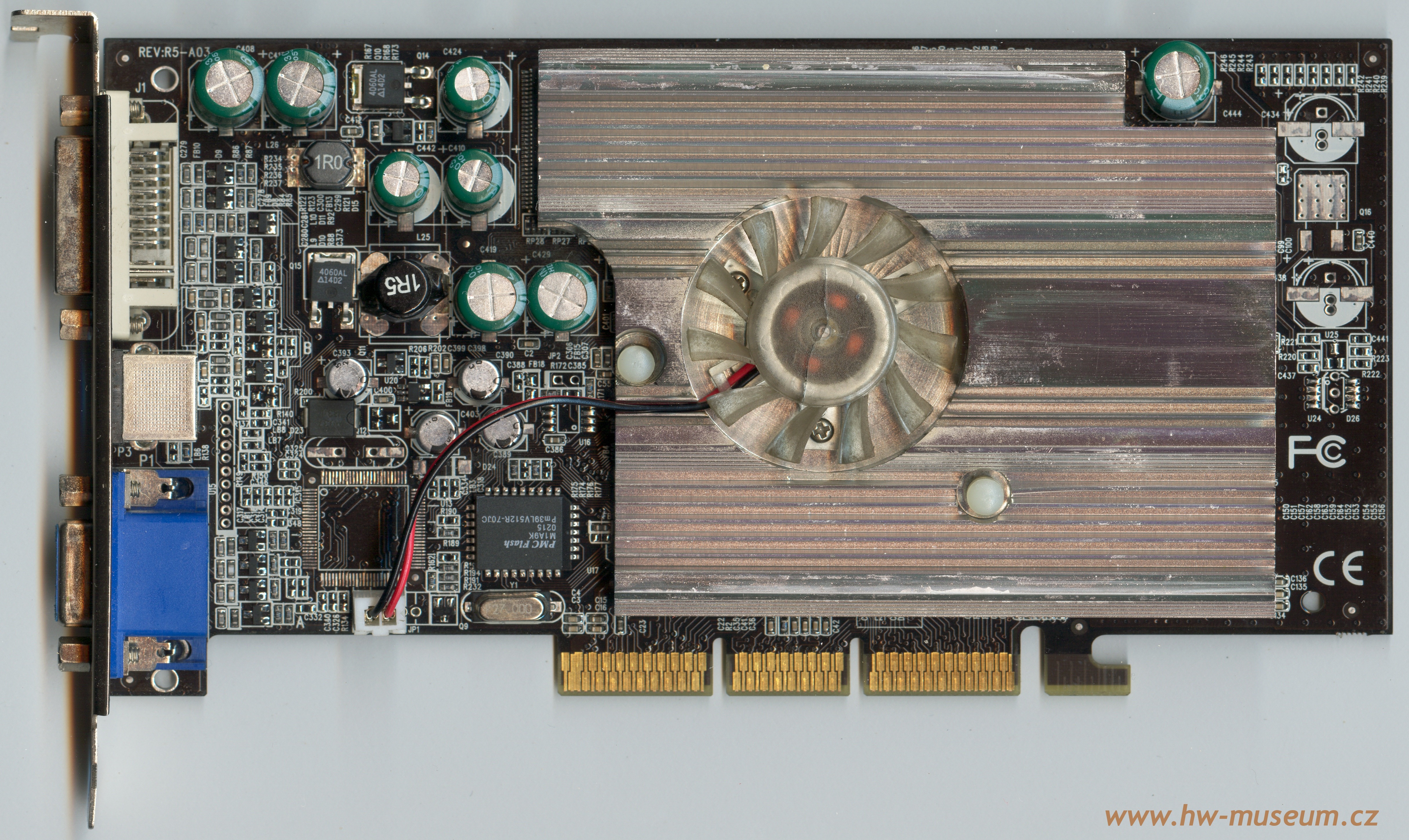

nVidia GeForce FX 5600 (front side)

nVidia GeForce FX 5600 (front side)

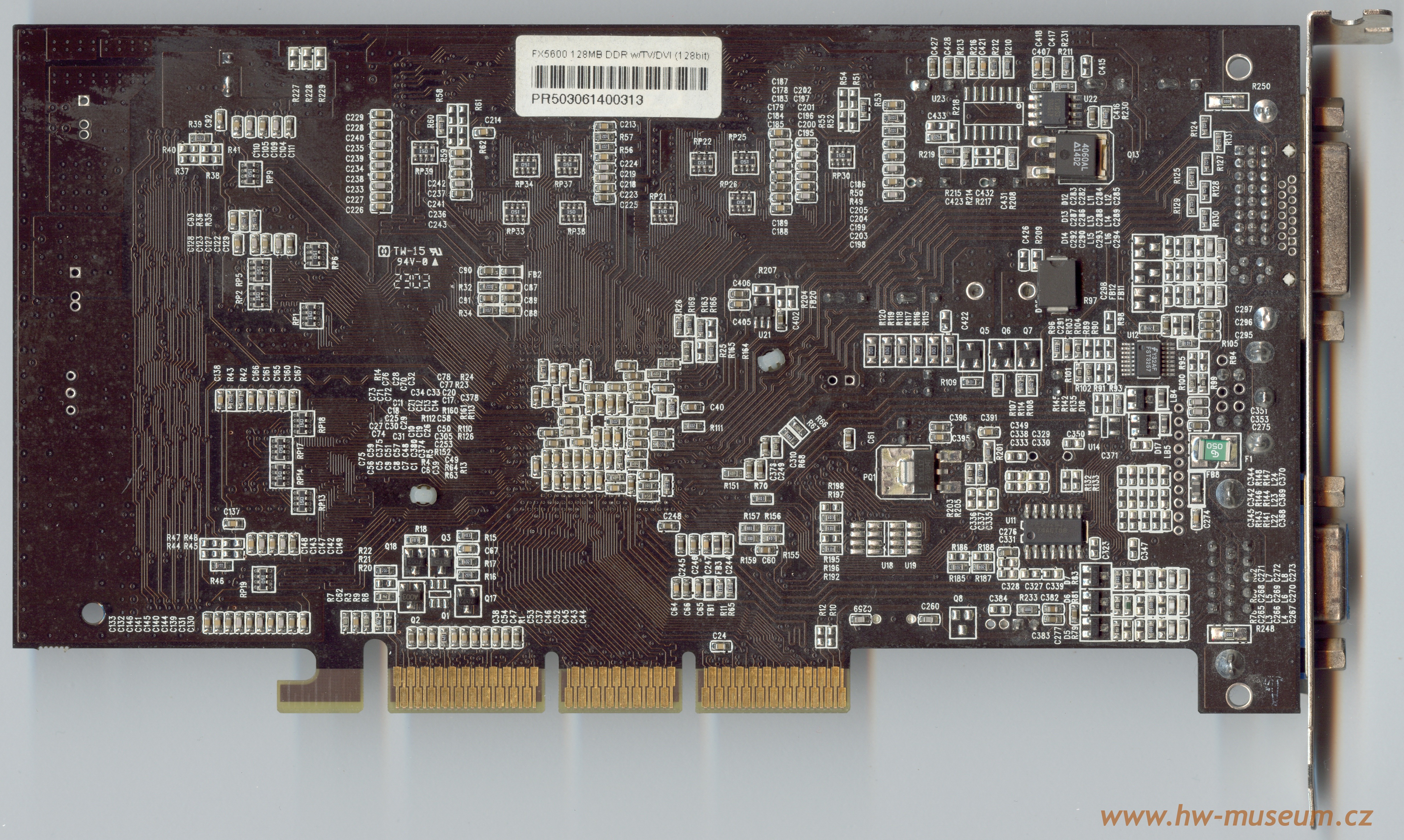

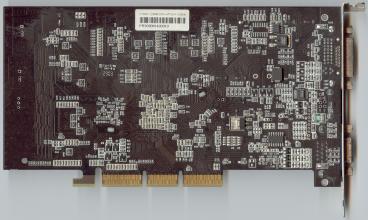

nVidia GeForce FX 5600 (back side)

nVidia GeForce FX 5600 (back side)

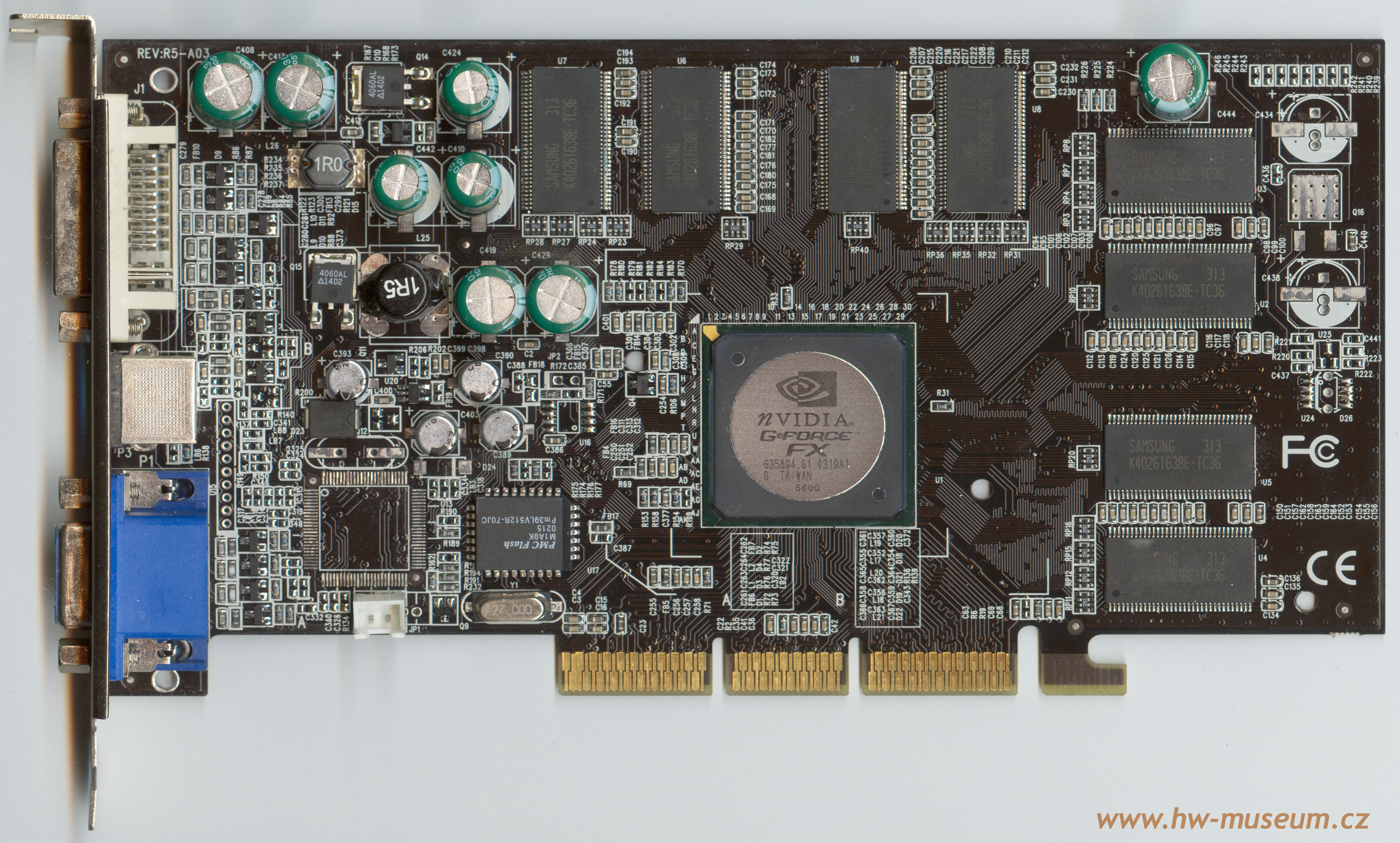

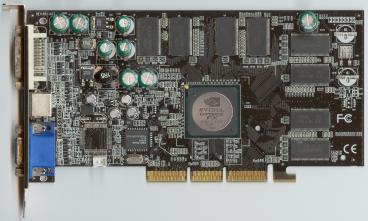

nVidia GeForce FX 5600 gallery
nVidia GeForce FX 5600 gallery
