Asus GeForce FX 5800 Ultra

Published: (last update )

GPU
GPU type NV30
Manufacturing process150 nm
Transistors125 milion
Die size200 mm2
ROPs4
TMUs8
Pixel shaders4
Vertex shaders2
Unified shaders-
Clock500 MHz
Pixel fillrate2000 MP/s
Texel fillrate4000 MT/s
SP gigaflops-
DP gigaflops-
DirectX9
OpenGL1.5
OpenCL / Compute ver.-
Memory
Capacity128 MB
TypeGDDR2
Clock1000 MHz
Bus width128 bit
Bandwith16000 MB/s
Rated speed-
Brand-
The card
ManufacturerAsus
InterfaceAGP 8x
Interface bandwith2133 MB/s
TDP75 W
Analog I/O ports1 × VGA, 1 × S-Video out, 1 × DVI-I
Digital I/O ports1 × DVI-I
Independent screens2
Rev0403
Release date2003

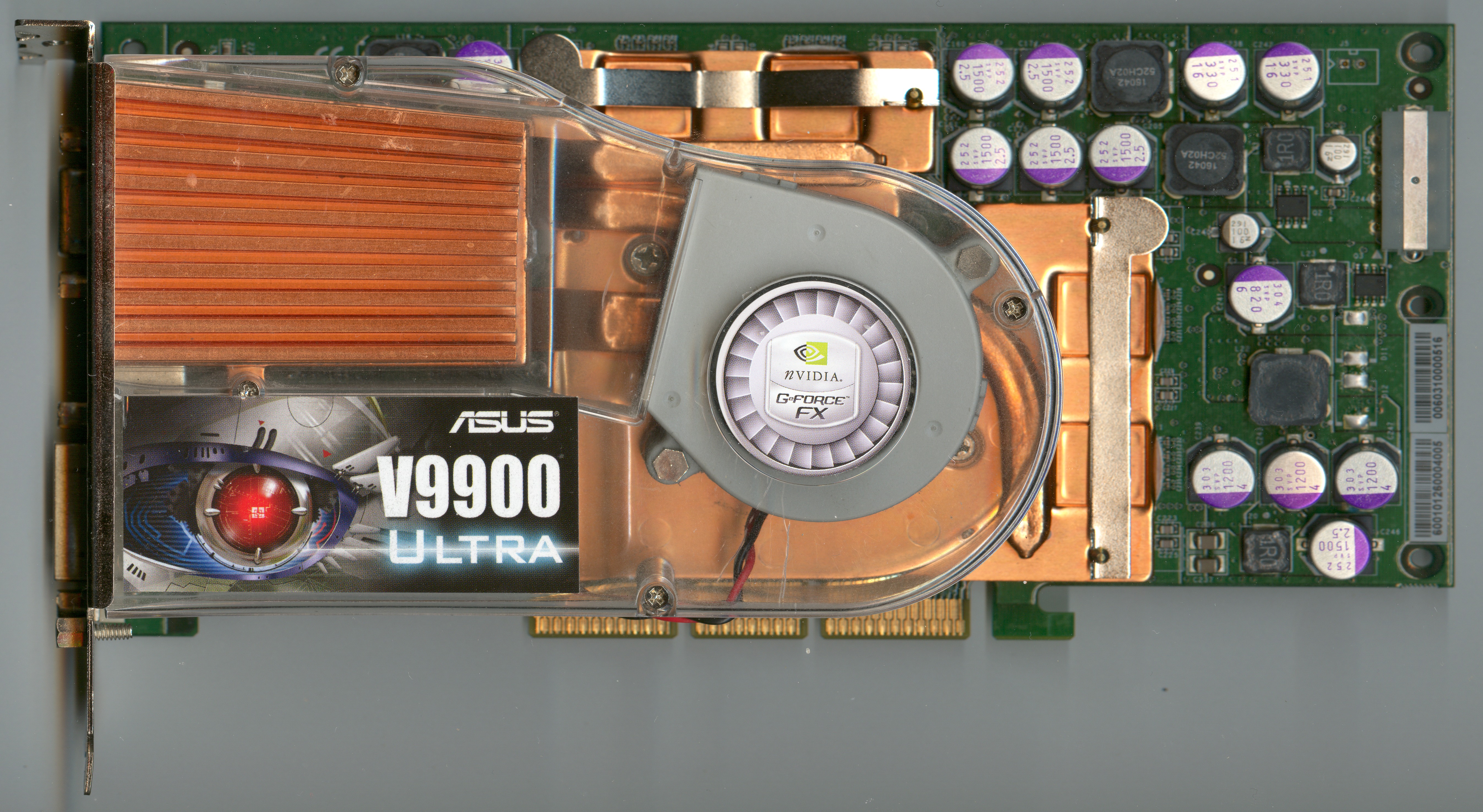

Asus GeForce FX 5800 Ultra (front side)

Asus GeForce FX 5800 Ultra (front side)

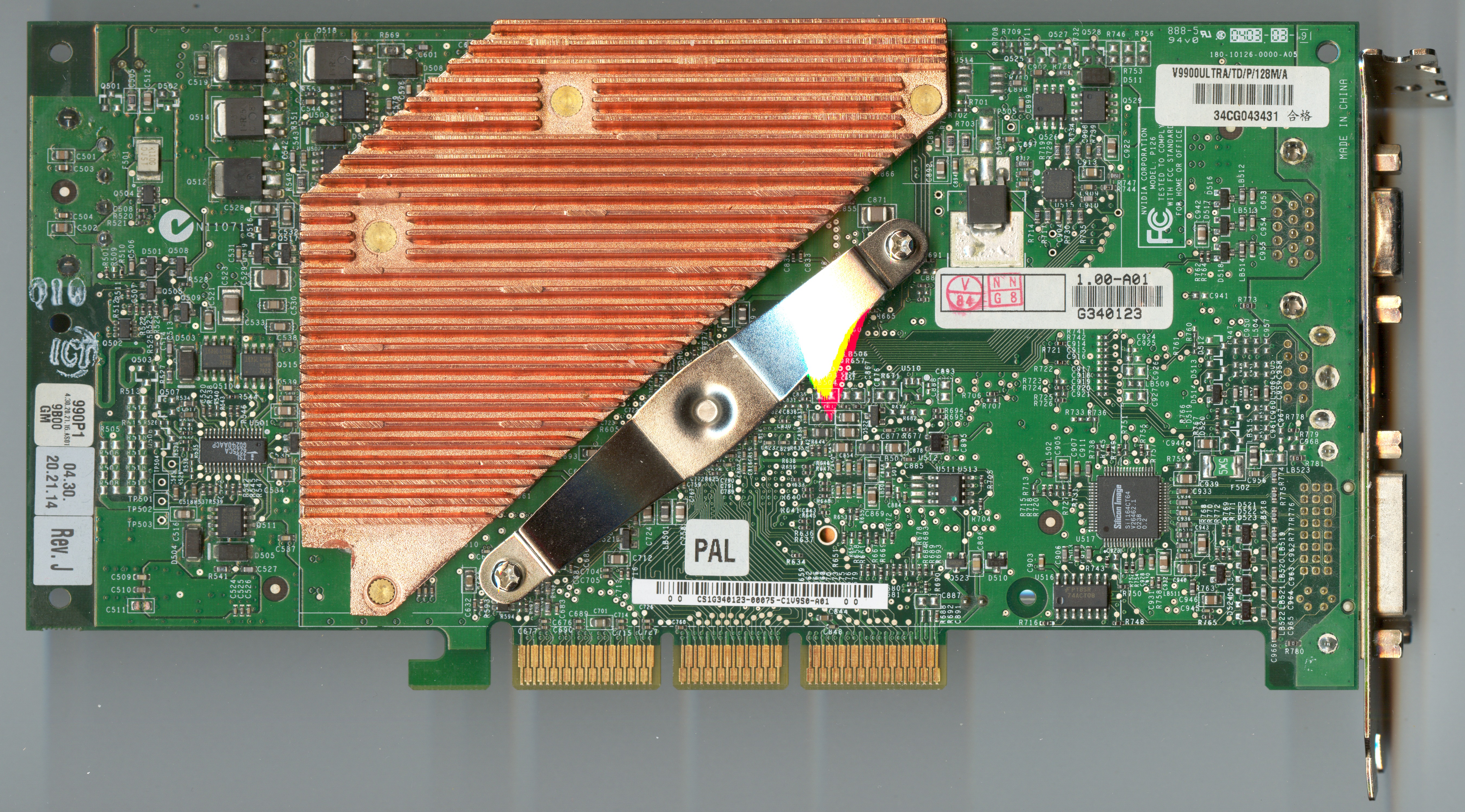

Asus GeForce FX 5800 Ultra (back side)

Asus GeForce FX 5800 Ultra (back side)
