Asus GeForce FX 5500

Published: (last update )

GPU
GPU type NV34B
Manufacturing process150 nm
Transistors47 million
Die size91 mm2
Density0.52 M / mm2
ROPs4
TMUs4
Pixel shaders4
Vertex shaders2
Unified shaders-
Clock270 MHz
Pixel fillrate1 080 MP/s
Texel fillrate1 080 MT/s
SP gigaflops-
DP gigaflops-
DirectX9
OpenGL1.5
OpenCL / Compute ver.-
Memory
Capacity256 MB
TypeDDR
Clock400 MHz
Bus width128 bit
Bandwith6 400 MB/s
Rated speed400 MHz
BrandHynix
The card
ManufacturerAsus
InterfaceAGP 8x
Interface bandwith2 133 MB/s
TDP25 W
Analog I/O ports1 × VGA, 1 × S-Video out, 1 × DVI-I
Digital I/O ports1 × DVI-I
Independent screens2
Manufacture date-
Release date2004

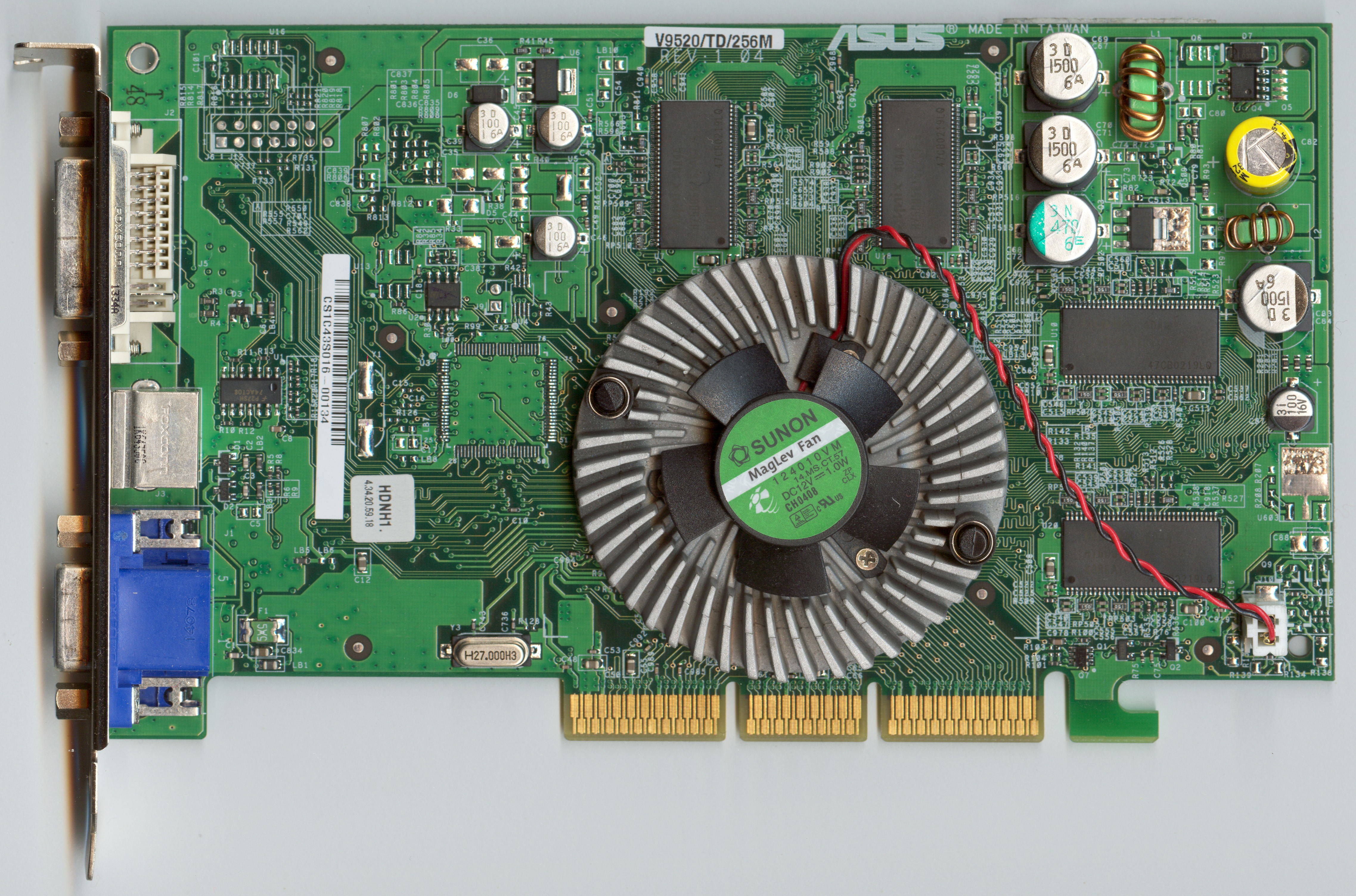

Asus GeForce FX 5500 (front side)

Asus GeForce FX 5500 (front side)

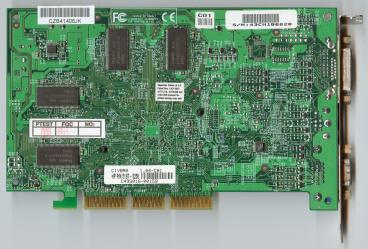

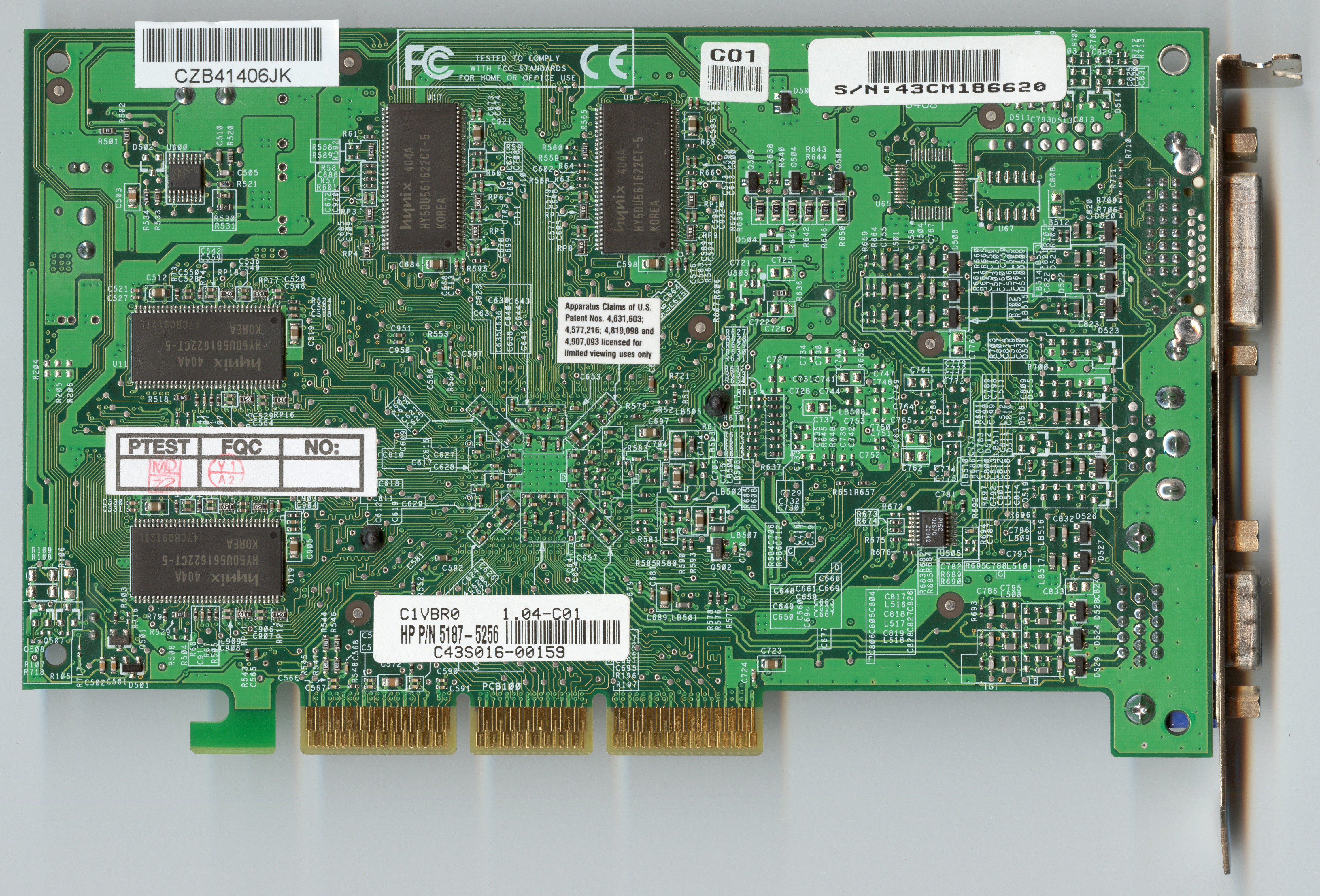

Asus GeForce FX 5500 (back side)

Asus GeForce FX 5500 (back side)
