ATi Radeon X800 XT Platinum Edition

Published: (last update )

GPU
GPU type R420
Manufacturing process130 nm
Transistors160 milion
Die size281 mm2
ROPs16
TMUs16
Pixel shaders16
Vertex shaders6
Unified shaders-
Clock520 MHz
Pixel fillrate8320 MP/s
Texel fillrate8320 MT/s
SP gigaflops-
DP gigaflops-
DirectX9
OpenGL2.0
OpenCL / Compute ver.-
Memory
Capacity256 MB
TypeGDDR3
Clock1120 MHz
Bus width256 bit
Bandwith35840 MB/s
Rated speed-
Brand-
The card
ManufacturerATi
InterfaceAGP 8x
Interface bandwith2133 MB/s
TDP63 W
Analog I/O ports1 × VGA, 1 × S-Video in, 1 × S-Video out, 1 × DVI-I
Digital I/O ports1 × DVI-I
Independent screens2
Rev
Release date2004

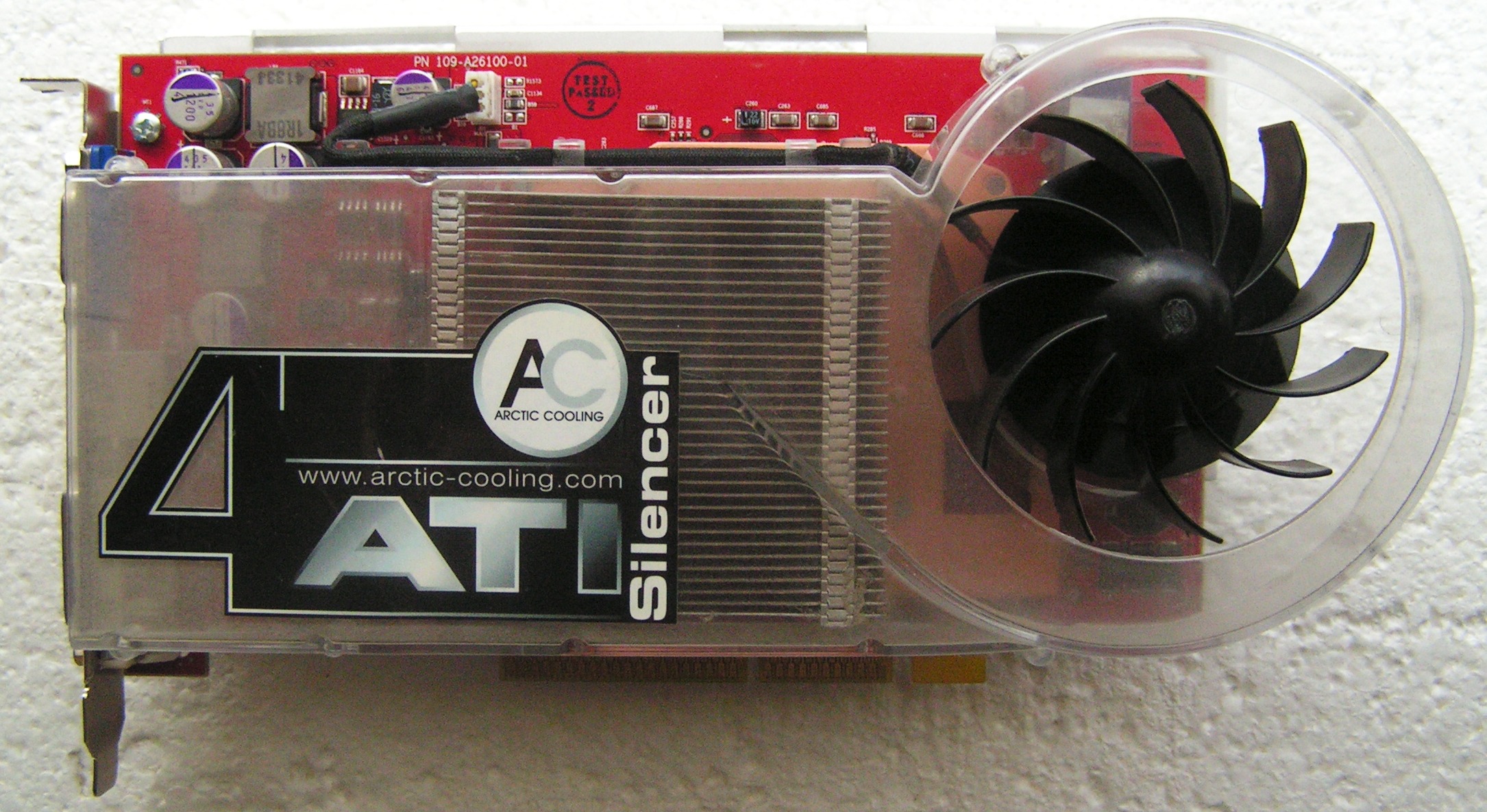

ATi Radeon X800 XT Platinum Edition (front side)

ATi Radeon X800 XT Platinum Edition (front side)

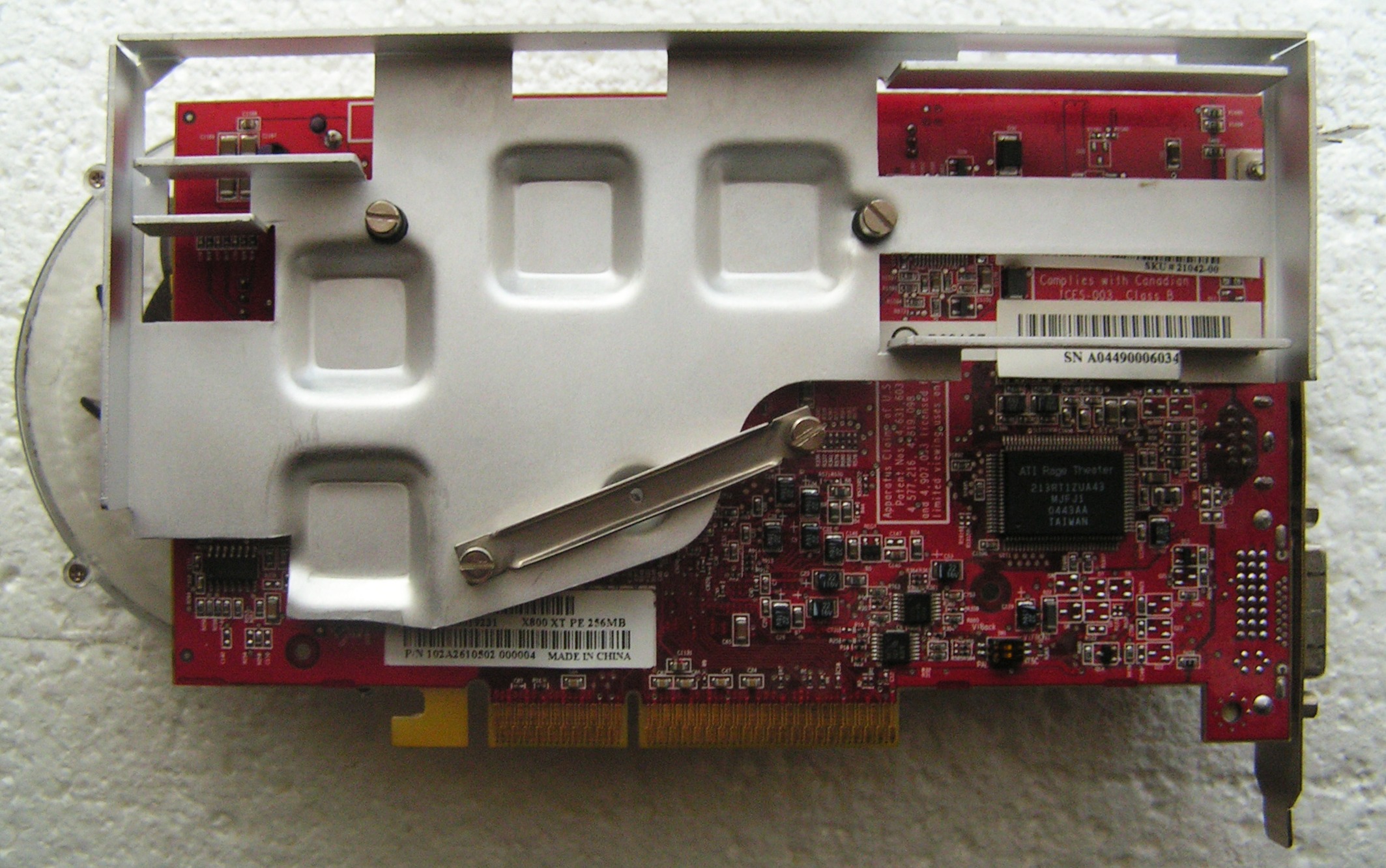

ATi Radeon X800 XT Platinum Edition (back side)

ATi Radeon X800 XT Platinum Edition (back side)
