Sapphire Radeon 9600 XT

Published: (last update )

GPU
GPU type RV350
Manufacturing process130 nm
Transistors76 milion
Die size92 mm2
ROPs4
TMUs4
Pixel shaders4
Vertex shaders2
Unified shaders-
Clock500 MHz
Pixel fillrate2000 MP/s
Texel fillrate2000 MT/s
SP gigaflops-
DP gigaflops-
DirectX9
OpenGL2.0
OpenCL / Compute ver.-
Memory
Capacity128 MB
TypeDDR
Clock600 MHz
Bus width128 bit
Bandwith9600 MB/s
Rated speed600 MHz
BrandHynix
The card
ManufacturerSapphire
InterfaceAGP 8x
Interface bandwith2133 MB/s
TDP22 W
Analog I/O ports1 × VGA, 1 × S-Video out, 1 × DVI-I
Digital I/O ports1 × DVI-I
Independent screens2
Manufacture date1st week of 2005
Release date2003

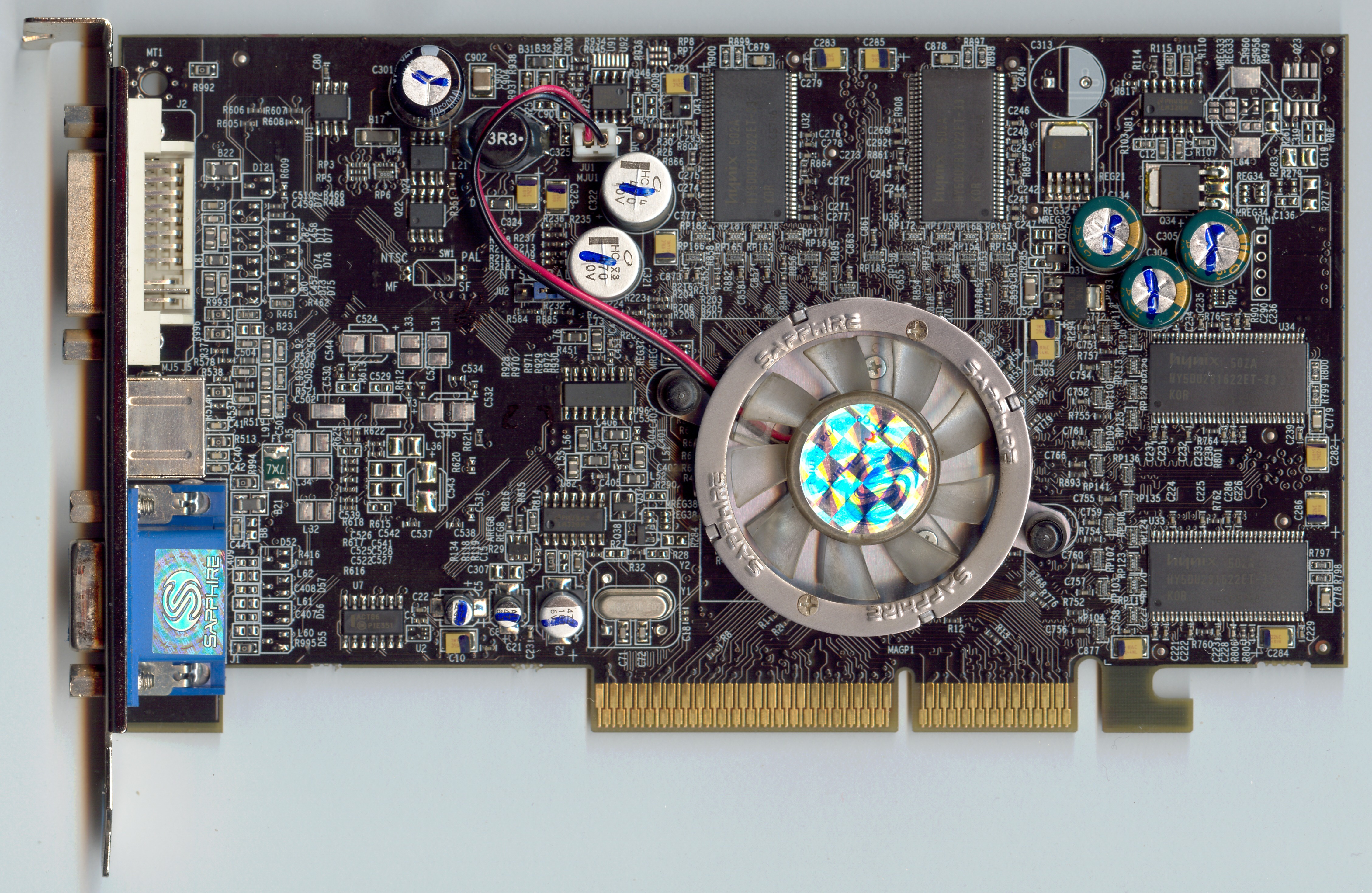

Sapphire Radeon 9600 XT (front side)

Sapphire Radeon 9600 XT (front side)

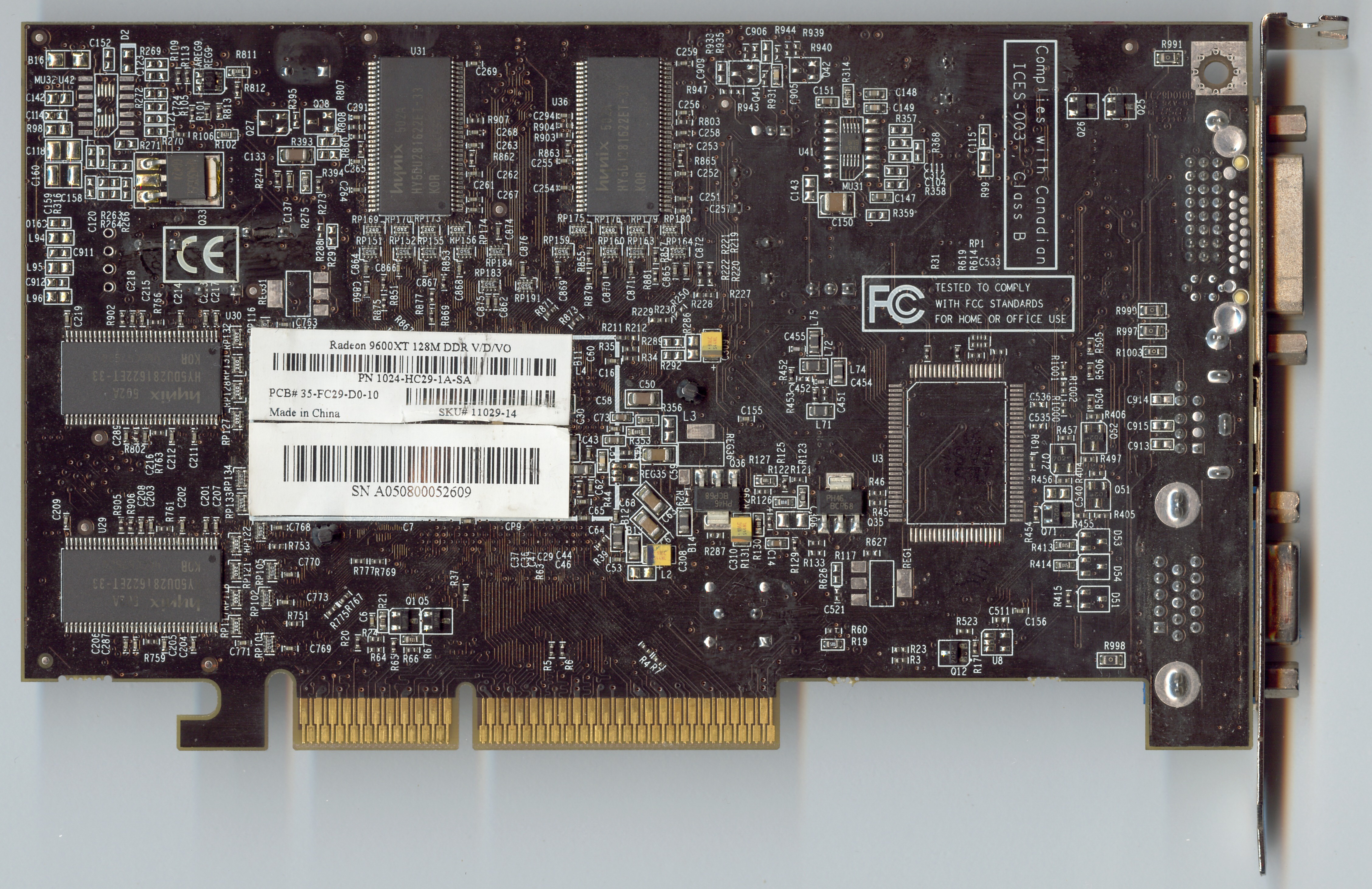

Sapphire Radeon 9600 XT (back side)

Sapphire Radeon 9600 XT (back side)
