ATi Radeon X850 Pro AGP

Published: (last update )

GPU
GPU type R481
Manufacturing process130 nm
Transistors160 million
Die size297 mm2
Density0.54 M / mm2
ROPs12
TMUs12
Pixel shaders12
Vertex shaders6
Unified shaders-
Clock500 MHz
Pixel fillrate6 000 MP/s
Texel fillrate6 000 MT/s
SP gigaflops-
DP gigaflops-
DirectX9
OpenGL2.0
OpenCL / Compute ver.-
Memory
Capacity256 MB
TypeGDDR3
Clock1 000 MHz
Bus width256 bit
Bandwith32 000 MB/s
Rated speed1 250 MHz
BrandSamsung
The card
ManufacturerATi
InterfaceAGP 8x
Interface bandwith2 133 MB/s
TDP50 W
Analog I/O ports1 × VGA, 1 × S-Video in, 1 × S-Video out, 1 × DVI-I
Digital I/O ports1 × DVI-I
Independent screens2
Manufacture date43rd week of 2005
Release date2005

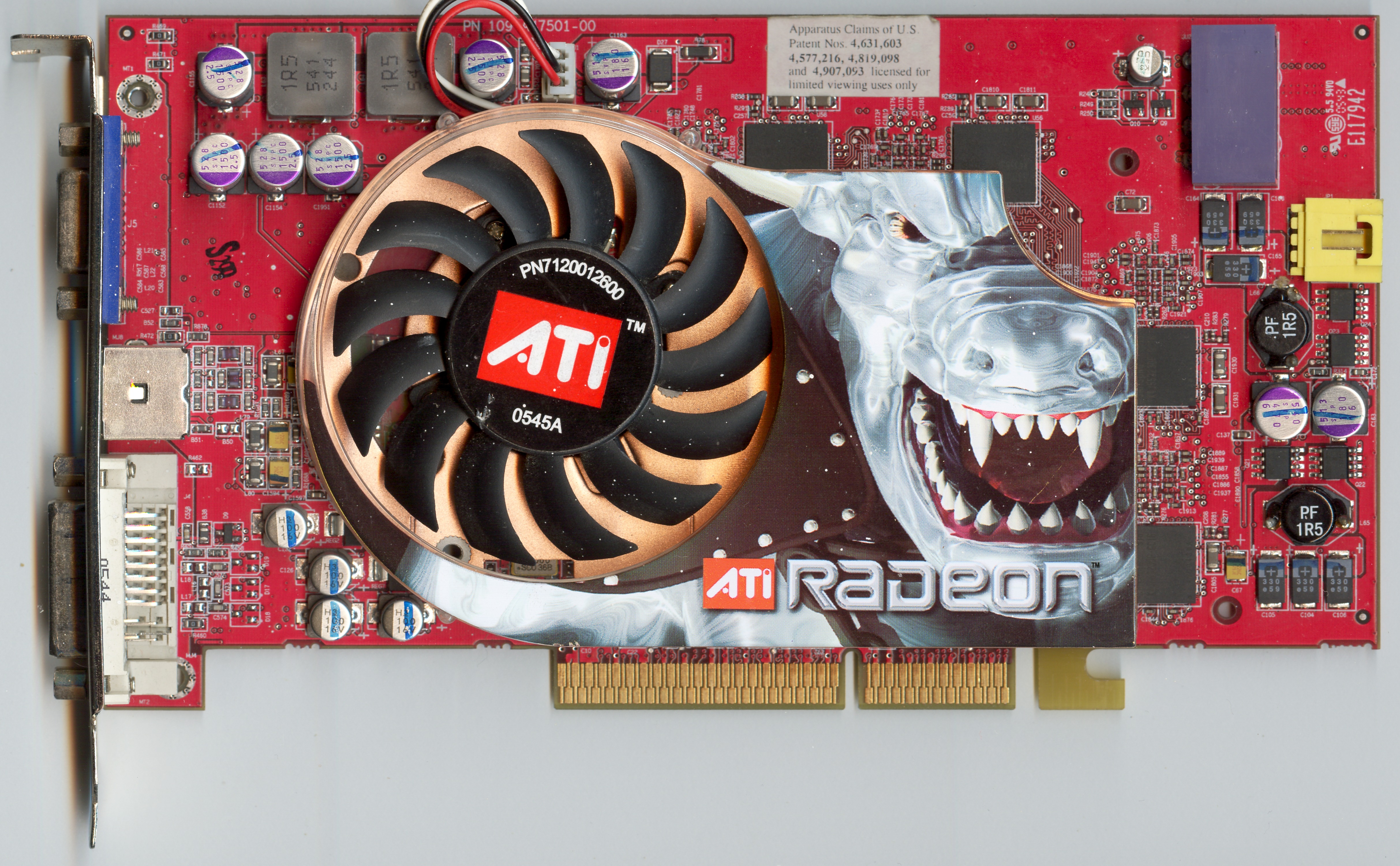

ATi Radeon X850 Pro AGP (front side)

ATi Radeon X850 Pro AGP (front side)

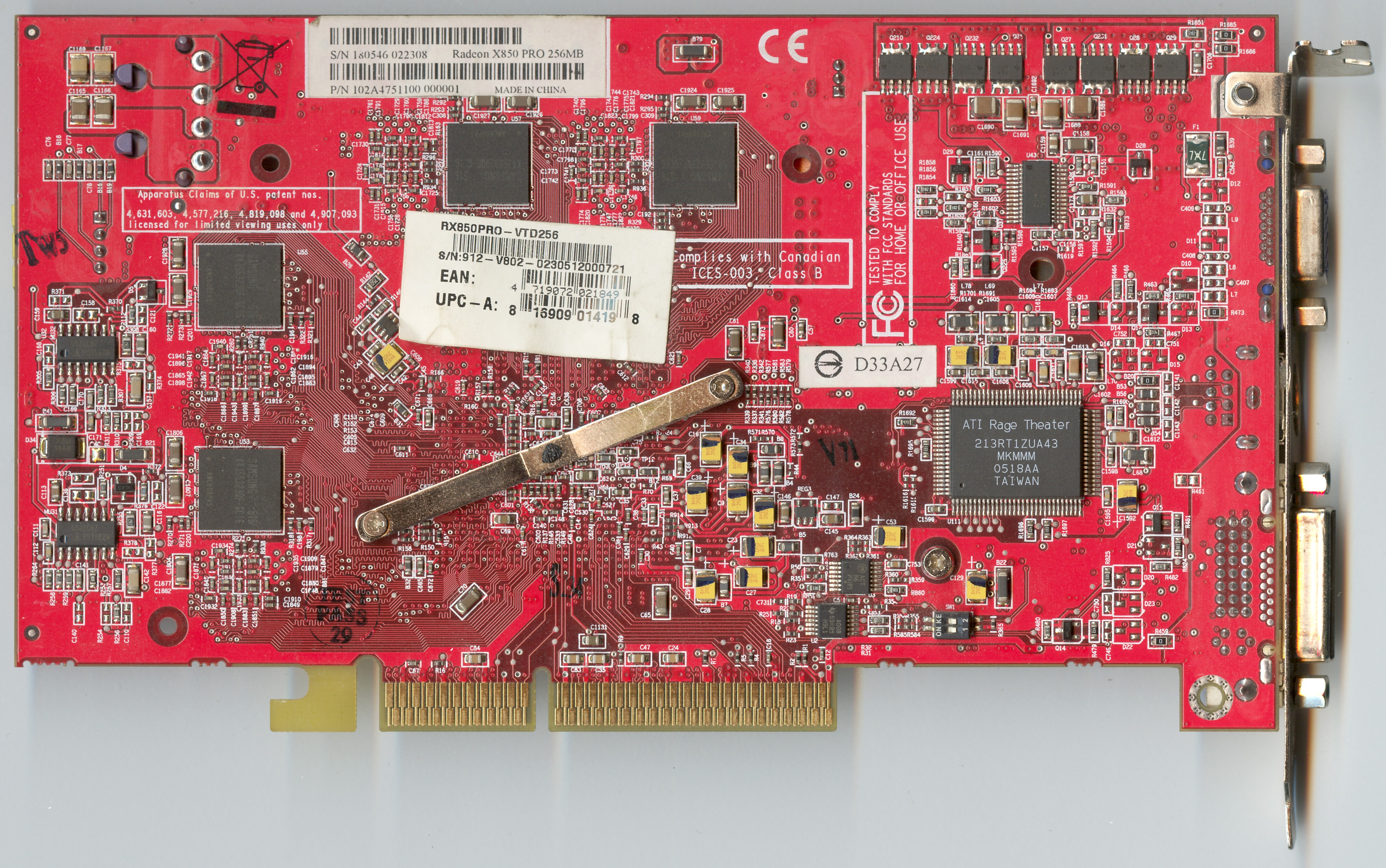

ATi Radeon X850 Pro AGP (back side)

ATi Radeon X850 Pro AGP (back side)

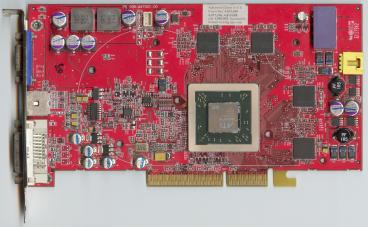

ATi Radeon X850 Pro AGP gallery
ATi Radeon X850 Pro AGP gallery
