HIS Radeon 9600

Published: (last update )

GPU
GPU type RV350
Manufacturing process130 nm
Transistors76 million
Die size92 mm2
Density0.83 M / mm2
ROPs4
TMUs4
Pixel shaders4
Vertex shaders2
Unified shaders-
Clock325 MHz
Pixel fillrate1 300 MP/s
Texel fillrate1 300 MT/s
SP gigaflops-
DP gigaflops-
DirectX9
OpenGL2.0
OpenCL / Compute ver.-
Memory
Capacity256 MB
TypeDDR
Clock400 MHz
Bus width128 bit
Bandwith6 400 MB/s
Rated speed400 MHz
BrandSamsung
The card
ManufacturerHIS
InterfaceAGP 8x
Interface bandwith2 133 MB/s
TDP12 W
Analog I/O ports1 × S-Video out, 2 × DVI-I
Digital I/O ports2 × DVI-I
Independent screens2
Manufacture date2nd week of 2005
Release date2003

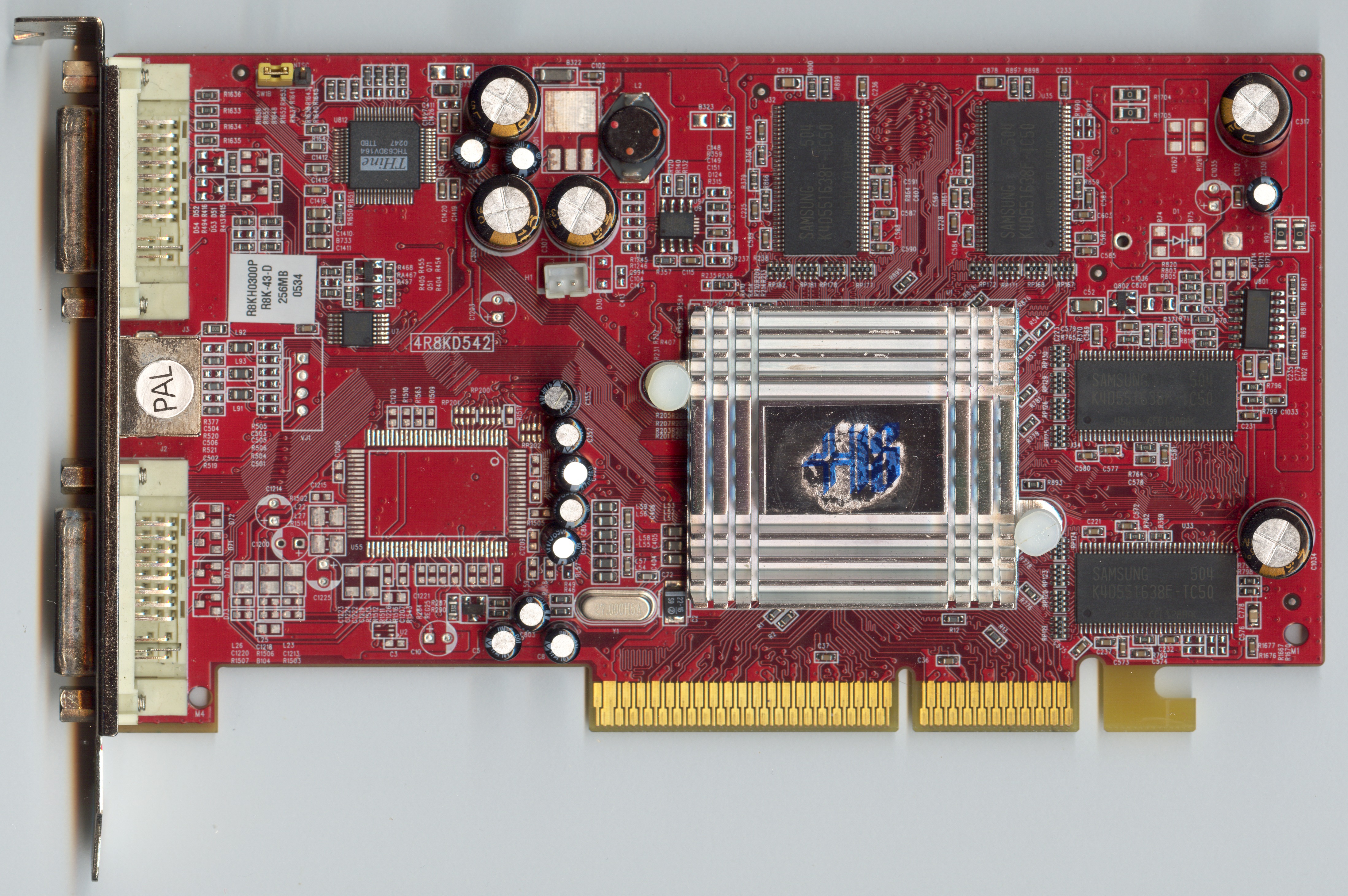

HIS Radeon 9600 (front side)

HIS Radeon 9600 (front side)

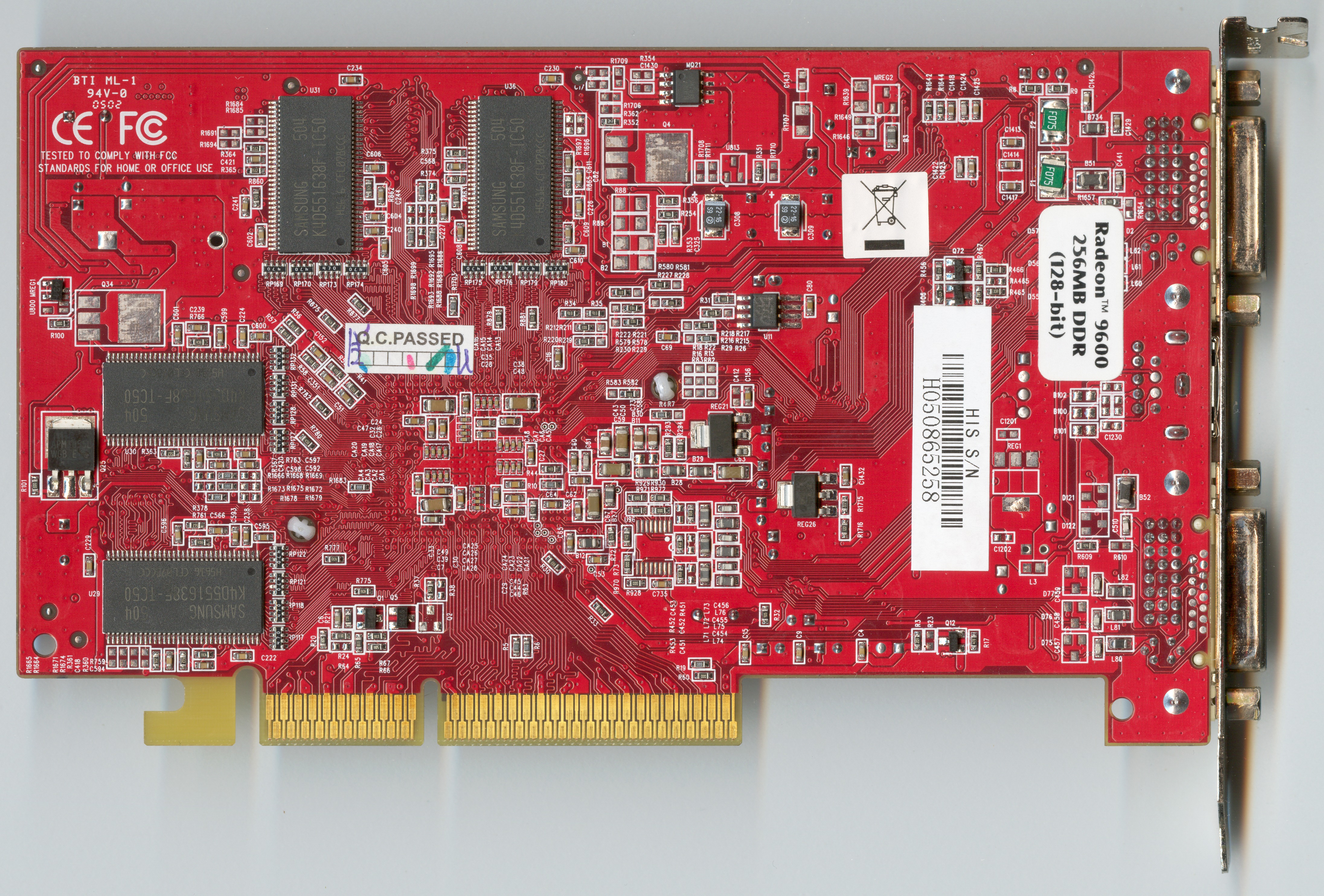

HIS Radeon 9600 (back side)

HIS Radeon 9600 (back side)
