ATi FireGL X1-256

Published: (last update )

GPU
GPU type R300
Manufacturing process150 nm
Transistors107 milion
Die size218 mm2
ROPs8
TMUs8
Pixel shaders8
Vertex shaders4
Unified shaders-
Clock325 MHz
Pixel fillrate2600 MP/s
Texel fillrate2600 MT/s
SP gigaflops-
DP gigaflops-
DirectX9
OpenGL2.0
OpenCL / Compute ver.-
Memory
Capacity256 MB
TypeDDR
Clock550 MHz
Bus width256 bit
Bandwith17600 MB/s
Rated speed700 MHz
BrandSamsung
The card
ManufacturerATi
InterfaceAGP Pro 8x
Interface bandwith2133 MB/s
TDP-
Analog I/O ports2 × DVI-I
Digital I/O ports2 × DVI-I
Independent screens2
Rev4102
Release date2002

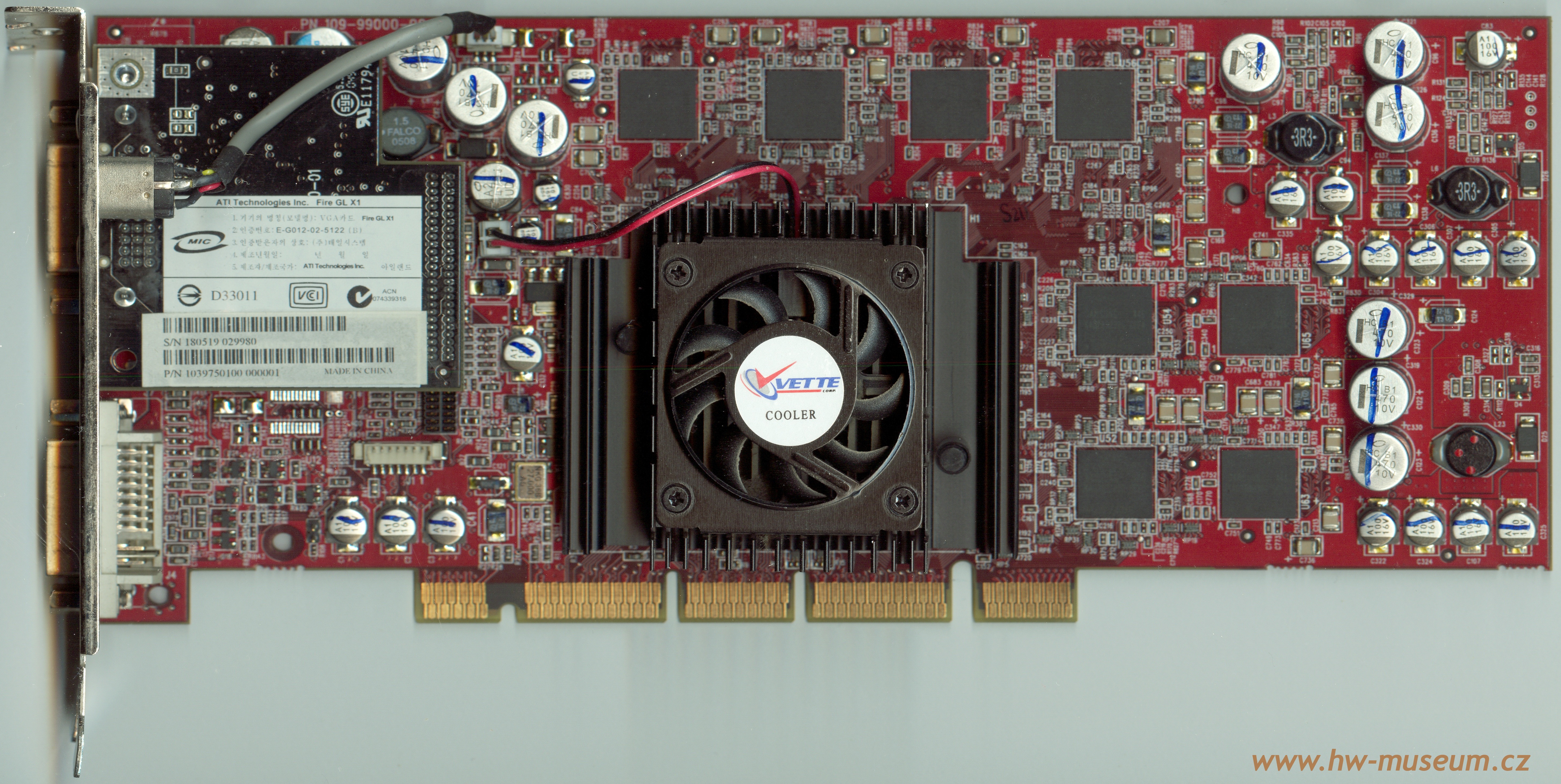

ATi FireGL X1-256 (front side)

ATi FireGL X1-256 (front side)

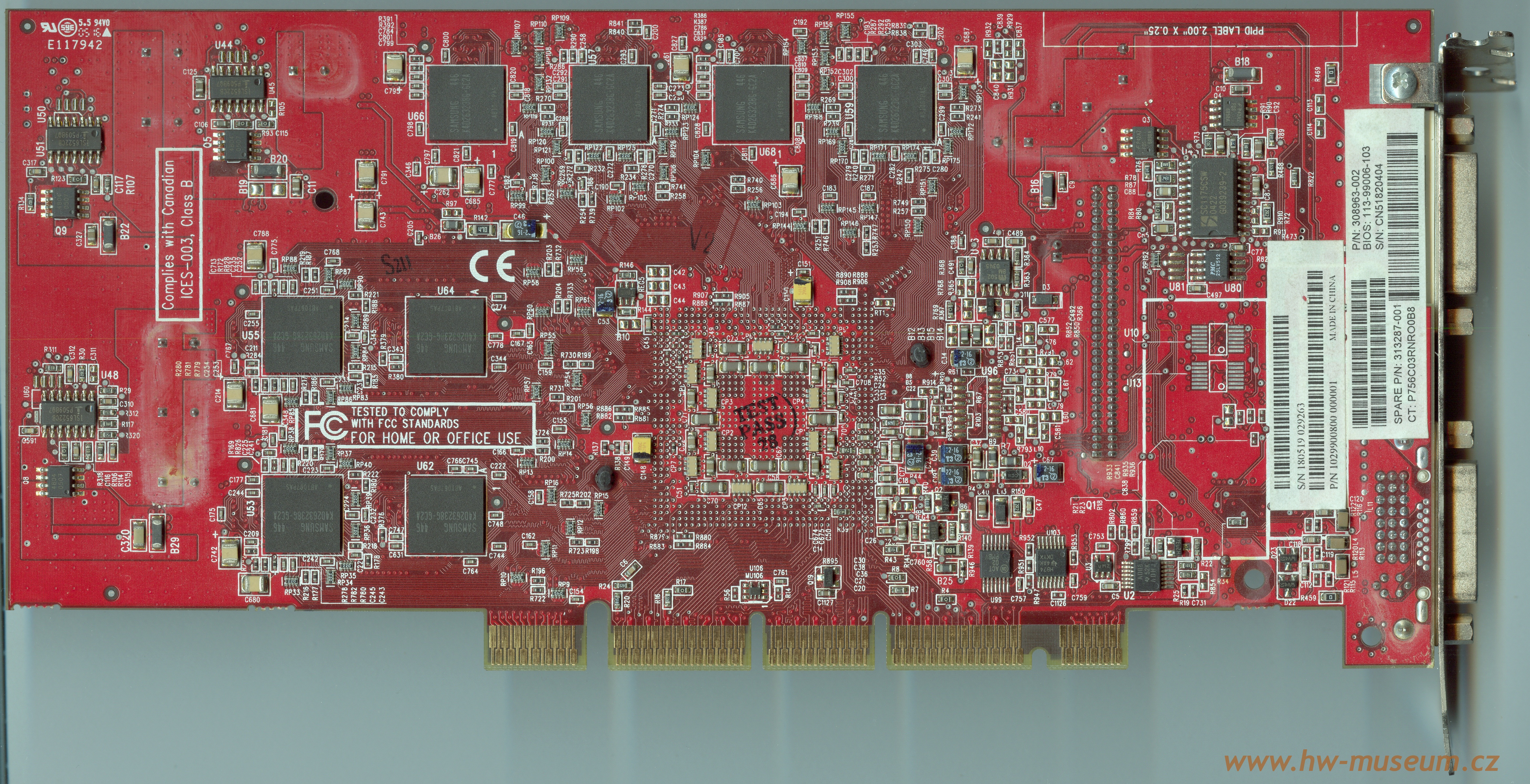

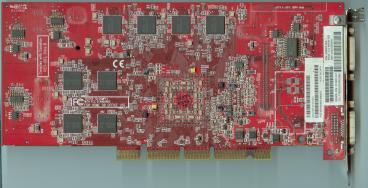

ATi FireGL X1-256 (back side)

ATi FireGL X1-256 (back side)
