Asus Radeon X800 GTO (256 MB GDDR3)

Published: (last update )

GPU
GPU type R430
Manufacturing process110 nm
Transistors160 milion
Die size240 mm2
ROPs12
TMUs12
Pixel shaders12
Vertex shaders6
Unified shaders-
Clock400 MHz
Pixel fillrate4800 MP/s
Texel fillrate4800 MT/s
SP gigaflops-
DP gigaflops-
DirectX9
OpenGL2.0
OpenCL / Compute ver.-
Memory
Capacity256 MB
TypeGDDR3
Clock980 MHz
Bus width256 bit
Bandwith31360 MB/s
Rated speed1000 MHz
BrandSamsung
The card
ManufacturerAsus
InterfacePCI-E x16
Interface bandwith4096 MB/s
TDP49 W
Analog I/O ports1 × S-Video in, 1 × S-Video out, 2 × DVI-I
Digital I/O ports2 × DVI-I
Independent screens2
Rev0205
Release date2005

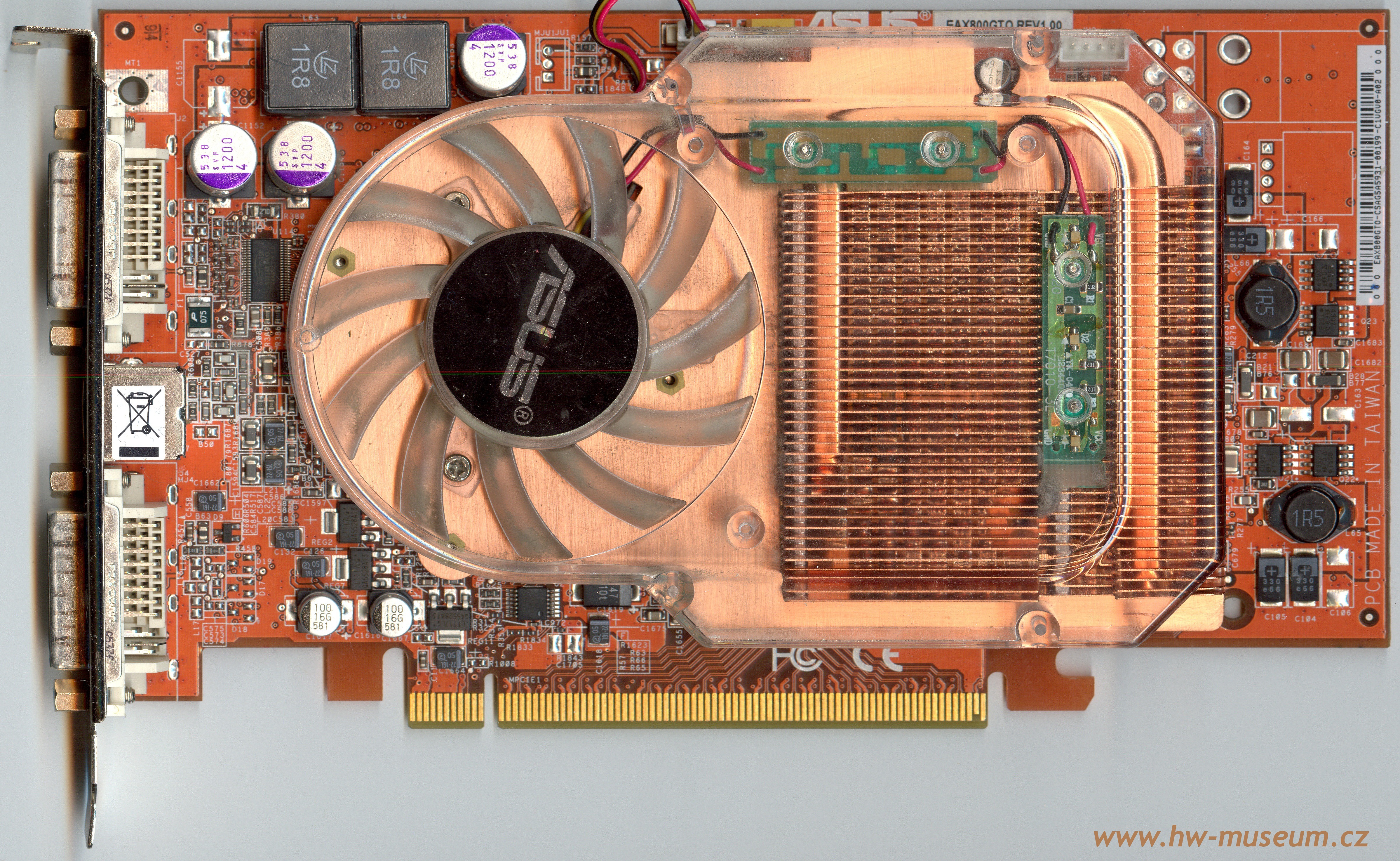

Asus Radeon X800 GTO (256 MB GDDR3) (front side)

Asus Radeon X800 GTO (256 MB GDDR3) (front side)

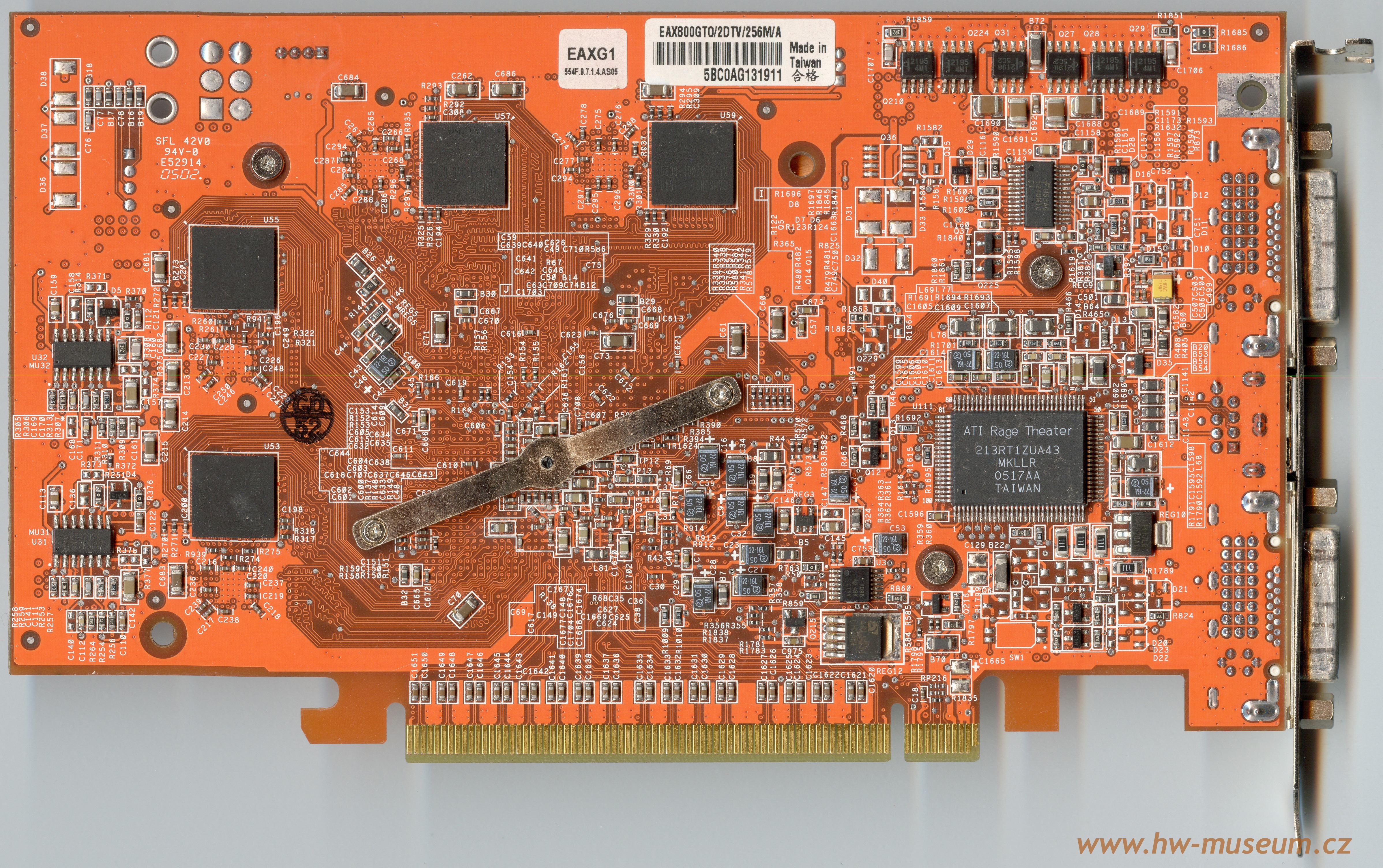

Asus Radeon X800 GTO (256 MB GDDR3) (back side)

Asus Radeon X800 GTO (256 MB GDDR3) (back side)
