Medion Radeon 9600 TX

Published: (last update )

GPU
GPU type R300
Manufacturing process150 nm
Transistors107 million
Die size218 mm2
ROPs8
TMUs8
Pixel shaders8
Vertex shaders4
Unified shaders-
Clock300 MHz
Pixel fillrate2400 MP/s
Texel fillrate2400 MT/s
SP gigaflops-
DP gigaflops-
DirectX9
OpenGL2.0
OpenCL / Compute ver.-
Memory
Capacity128 MB
TypeDDR
Clock540 MHz
Bus width128 bit
Bandwith8640 MB/s
Rated speed550 MHz
BrandSamsung
The card
ManufacturerMedion
InterfaceAGP 8x
Interface bandwith2133 MB/s
TDP-
Analog I/O ports2 × VGA, 1 × Composite out, 1 × S-Video out
Digital I/O ports-
Independent screens2
Manufacture date4th week of 2003
Release date2002

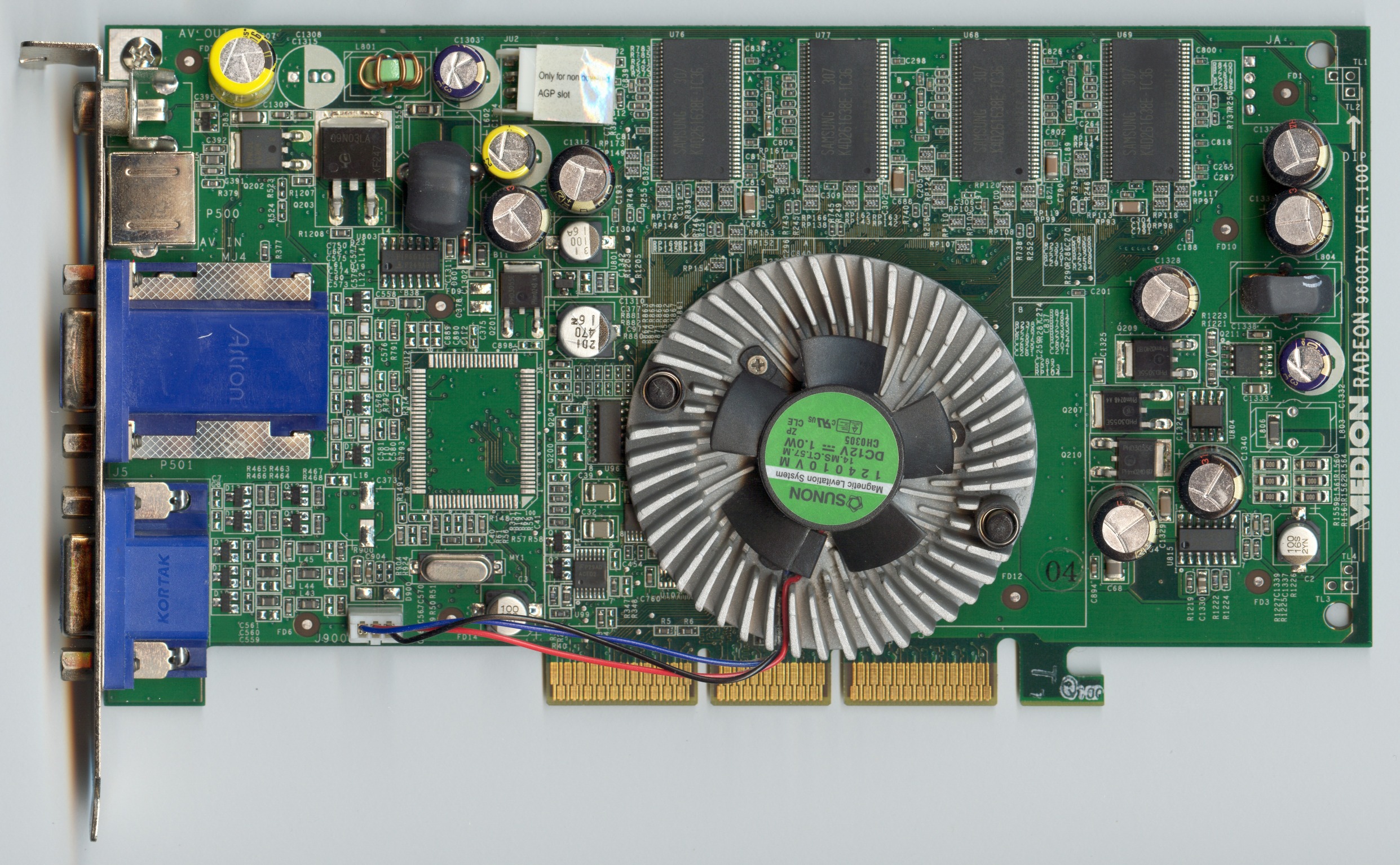

Medion Radeon 9600 TX (front side)

Medion Radeon 9600 TX (front side)

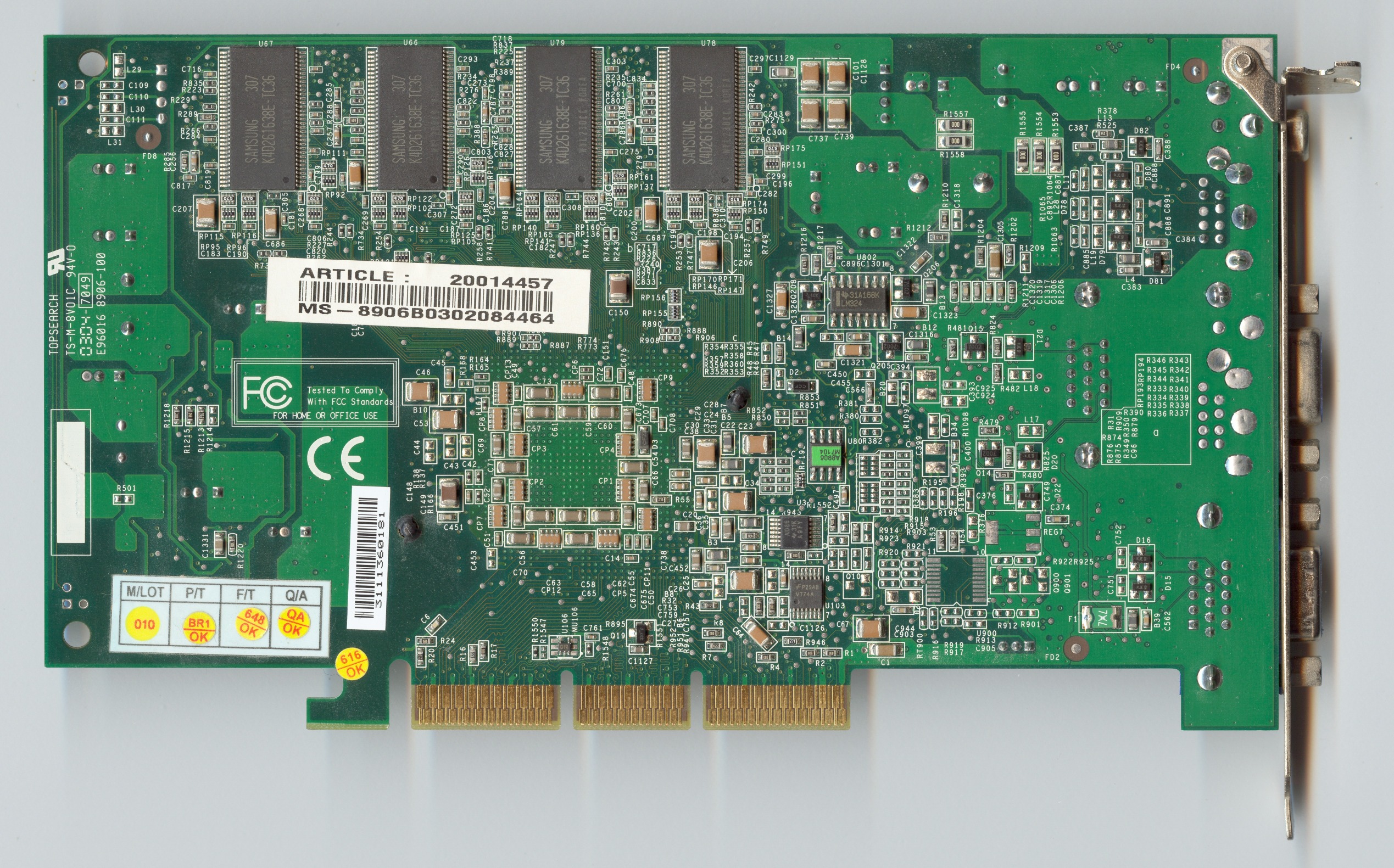

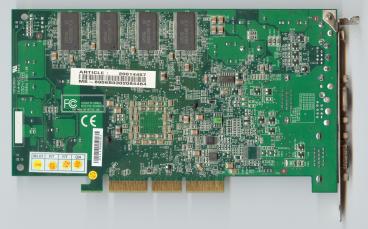

Medion Radeon 9600 TX (back side)

Medion Radeon 9600 TX (back side)
