ATi Rage XL

Published: (last update )

GPU
GPU type Rage XL
Manufacturing process350 nm
Transistors- million
Die size47 mm2
Density-
ROPs1
TMUs1
Pixel shaders-
Vertex shaders-
Unified shaders-
Clock83 MHz
Pixel fillrate83 MP/s
Texel fillrate83 MT/s
SP gigaflops-
DP gigaflops-
DirectX6
OpenGL1.1
OpenCL / Compute ver.-
Memory
Capacity8 MB
TypeSDRAM
Clock83 MHz
Bus width64 bit
Bandwith664 MB/s
Rated speed143 MHz
BrandNanya
The card
ManufacturerATi
InterfaceAGP 2x
Interface bandwith533 MB/s
TDP2 W
Analog I/O ports1 × VGA
Digital I/O ports-
Independent screens1
Manufacture date44th week of 1999
Release date1997

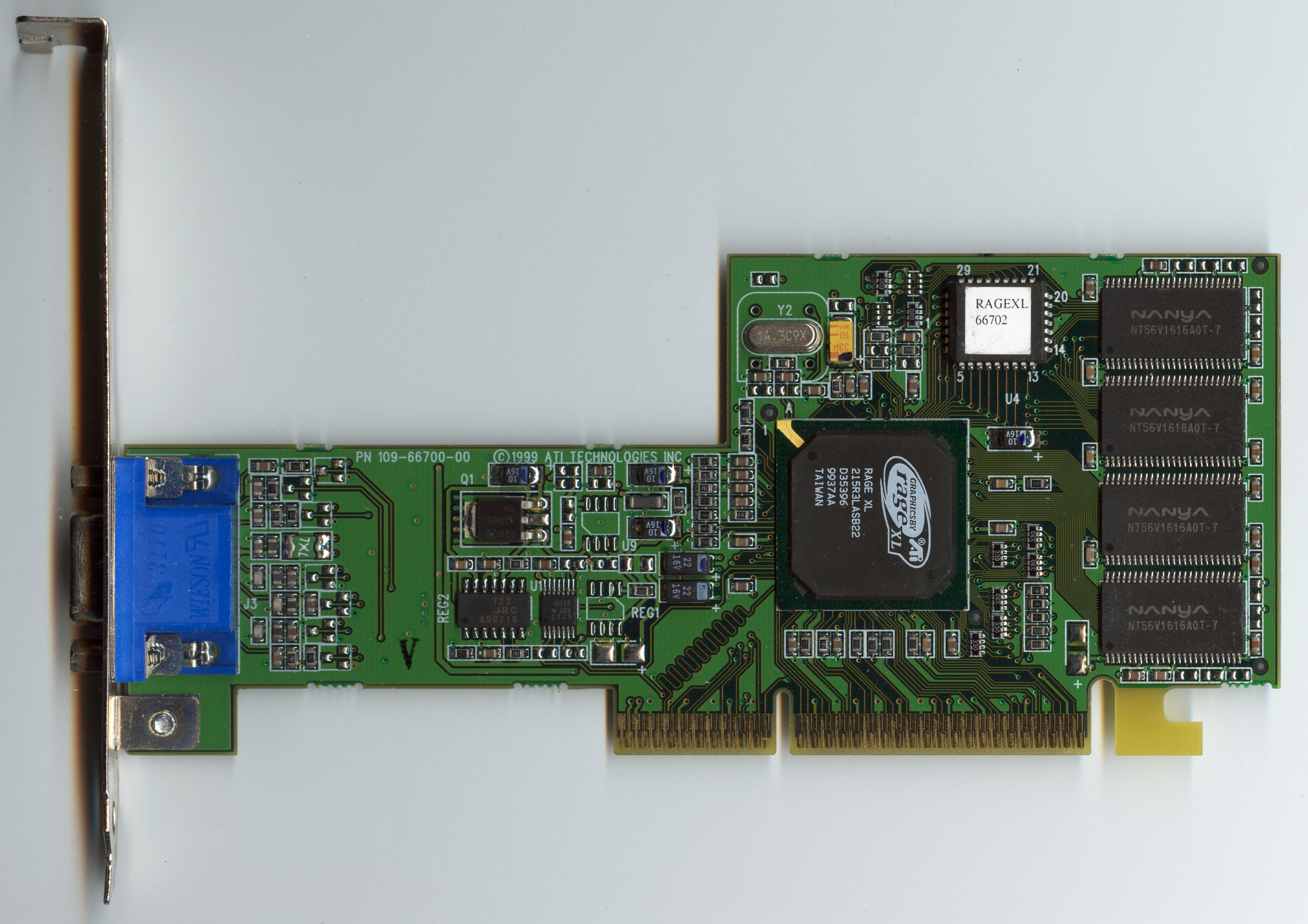

ATi Rage XL (front side)

ATi Rage XL (front side)

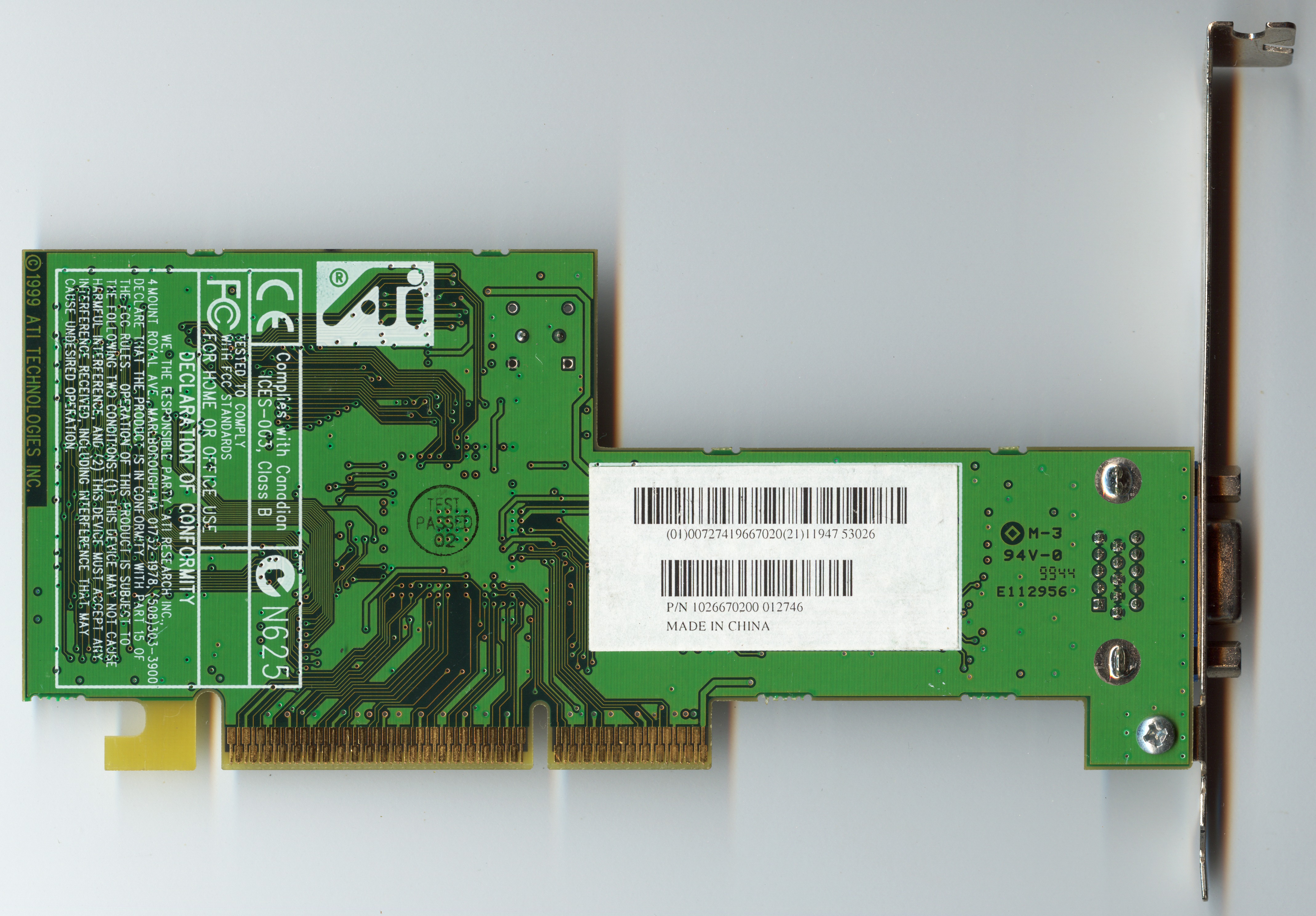

ATi Rage XL (back side)

ATi Rage XL (back side)
