ATi Rage II

Published: (last update )

GPU
GPU type Rage II
Manufacturing process500 nm
Transistors- million
Die size86 mm2
Density-
ROPs1
TMUs1
Pixel shaders-
Vertex shaders-
Unified shaders-
Clock60 MHz
Pixel fillrate60 MP/s
Texel fillrate60 MT/s
SP gigaflops-
DP gigaflops-
DirectX6
OpenGL1.0
OpenCL / Compute ver.-
Memory
Capacity8 MB
TypeSGRAM
Clock83 MHz
Bus width64 bit
Bandwith664 MB/s
Rated speed100 MHz
BrandSamsung
The card
ManufacturerATi
InterfacePCI
Interface bandwith133 MB/s
TDP-
Analog I/O ports1 × VGA, 1 × Composite out, 1 × S-Video out
Digital I/O ports-
Independent screens1
Manufacture date1st week of 1997
Release date1996

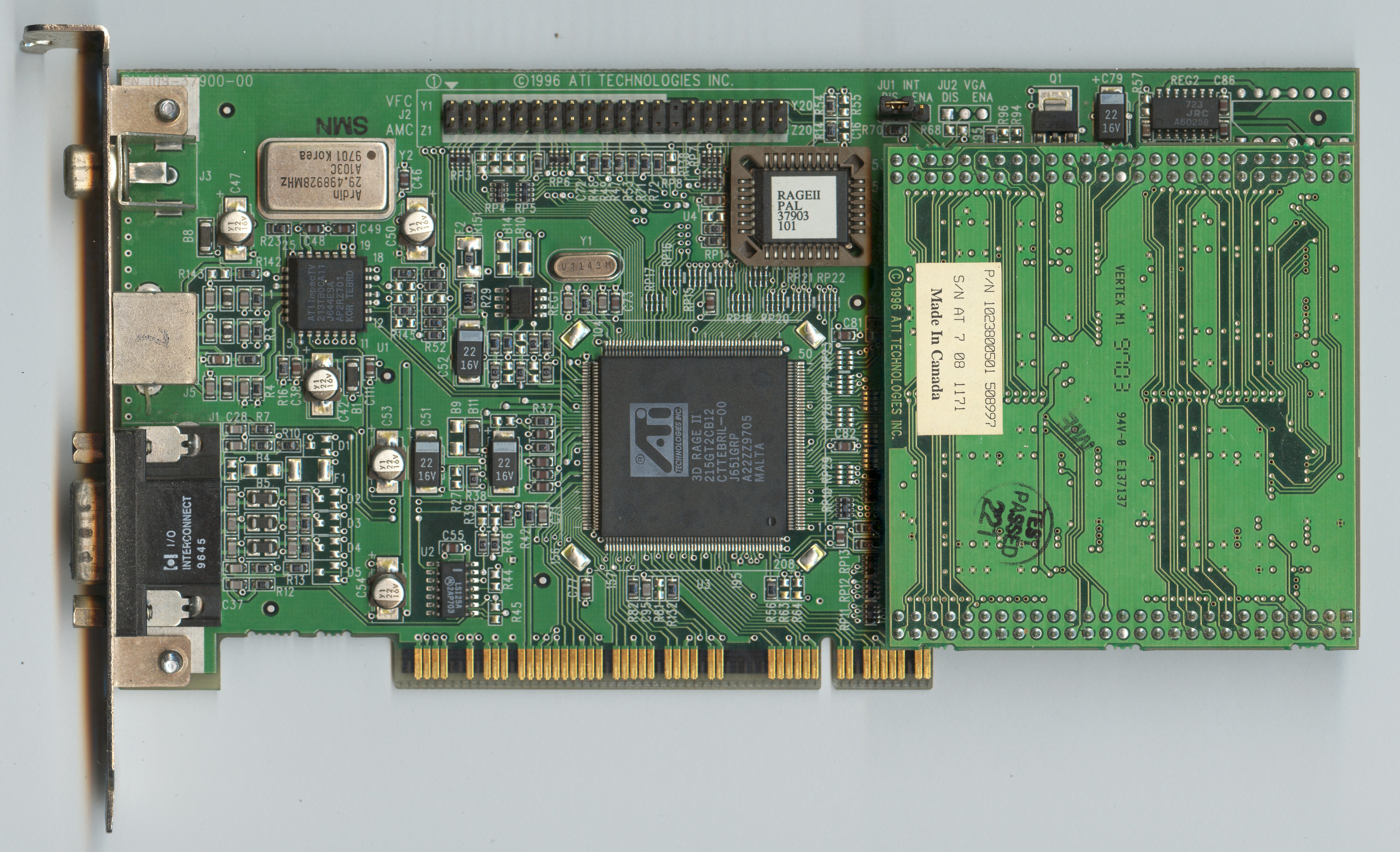

ATi Rage II (front side)

ATi Rage II (front side)

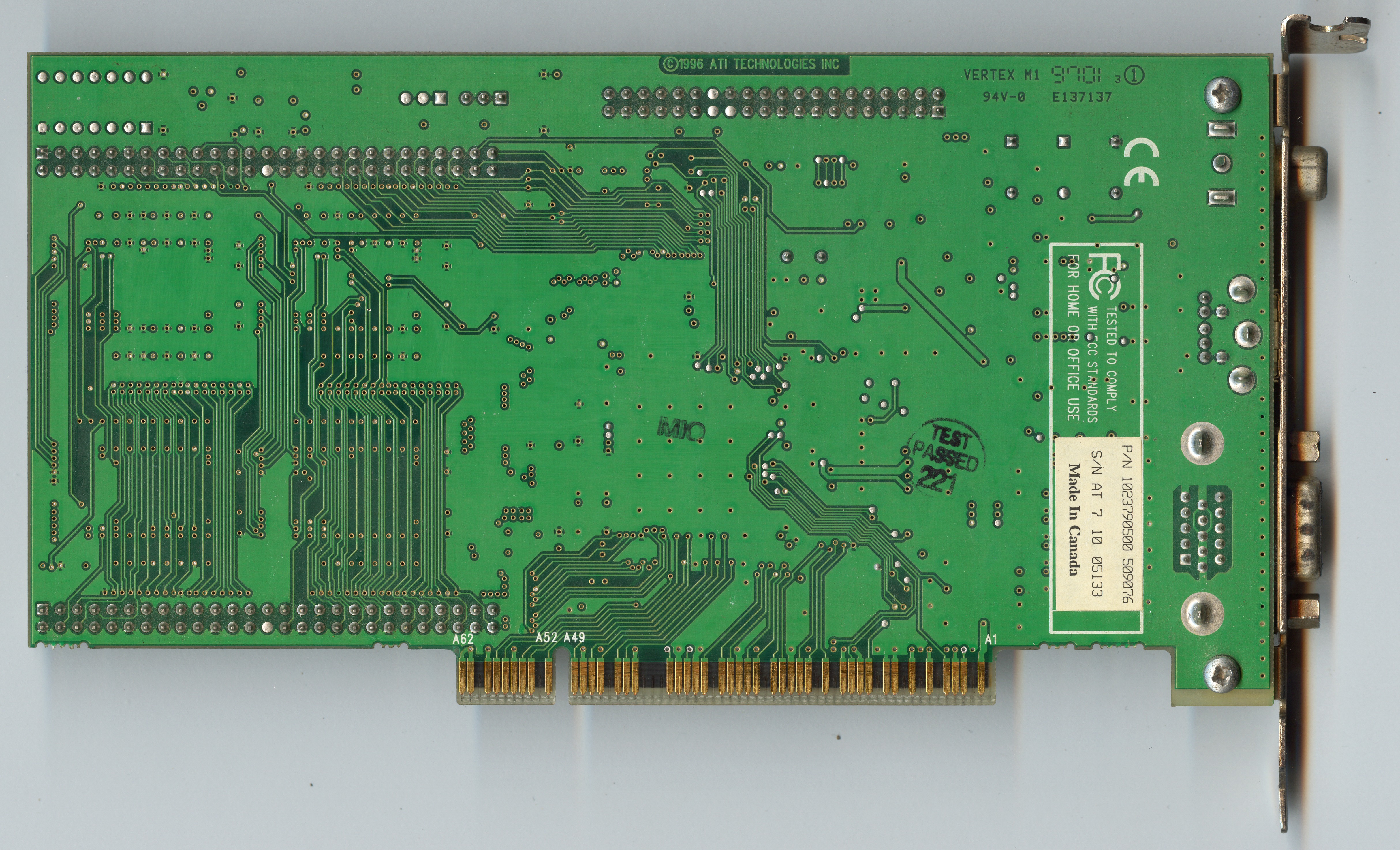

ATi Rage II (back side)

ATi Rage II (back side)
