ATi Rage LT PRO

Published: (last update )

GPU
GPU type Rage LT PRO
Manufacturing process350 nm
Transistors- million
Die size67 mm2
Density-
ROPs1
TMUs1
Pixel shaders-
Vertex shaders-
Unified shaders-
Clock75 MHz
Pixel fillrate75 MP/s
Texel fillrate75 MT/s
SP gigaflops-
DP gigaflops-
DirectX6
OpenGL1.1
OpenCL / Compute ver.-
Memory
Capacity4 MB
TypeSGRAM
Clock75 MHz
Bus width64 bit
Bandwith600 MB/s
Rated speed100 MHz
BrandSamsung
The card
ManufacturerATi
InterfaceAGP 2x
Interface bandwith533 MB/s
TDP-
Analog I/O ports1 × VGA, 1 × S-Video out
Digital I/O ports1 × DFP
Independent screens1
Manufacture date3rd week of 1999
Release date1996

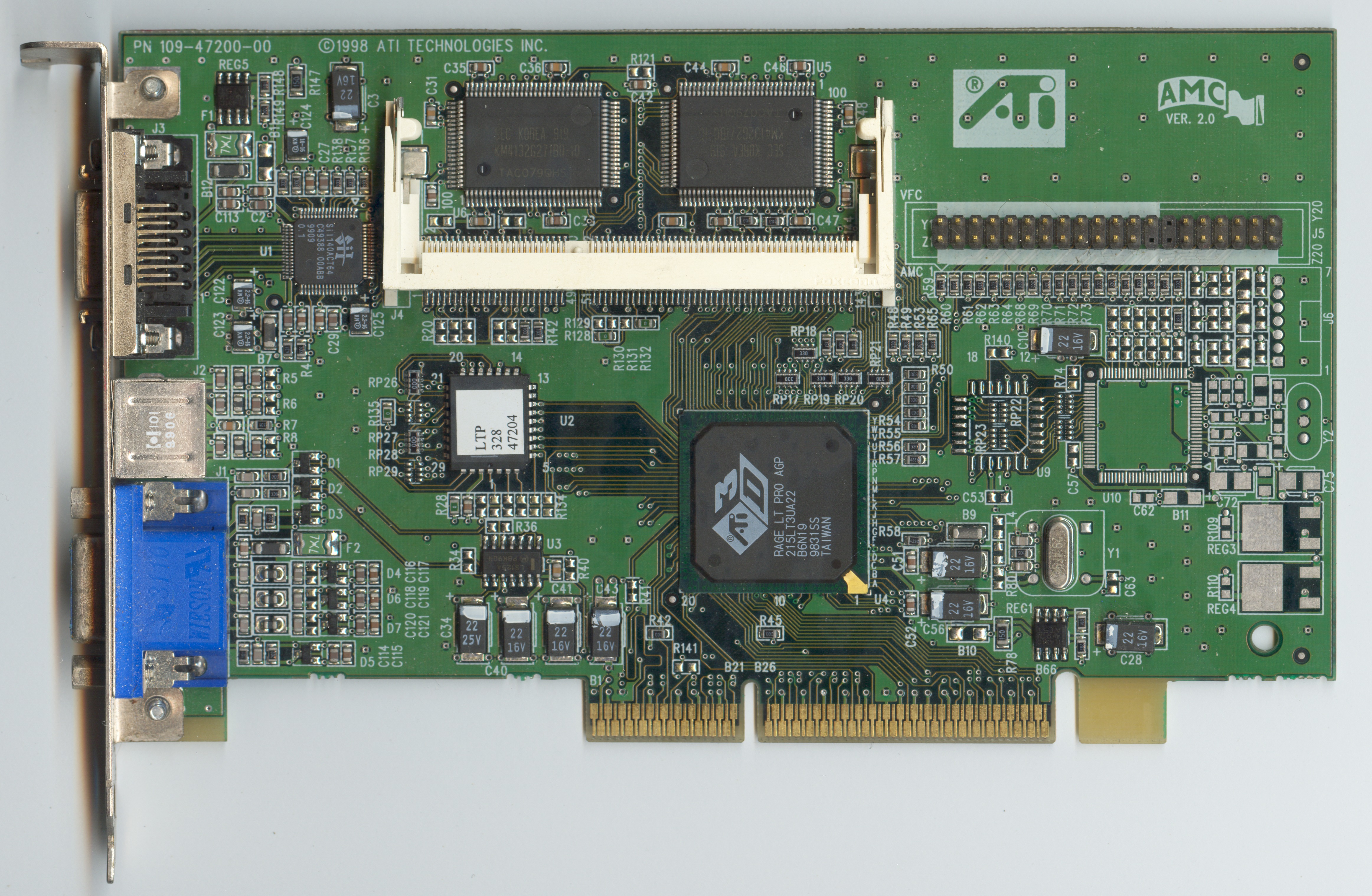

ATi Rage LT PRO (front side)

ATi Rage LT PRO (front side)

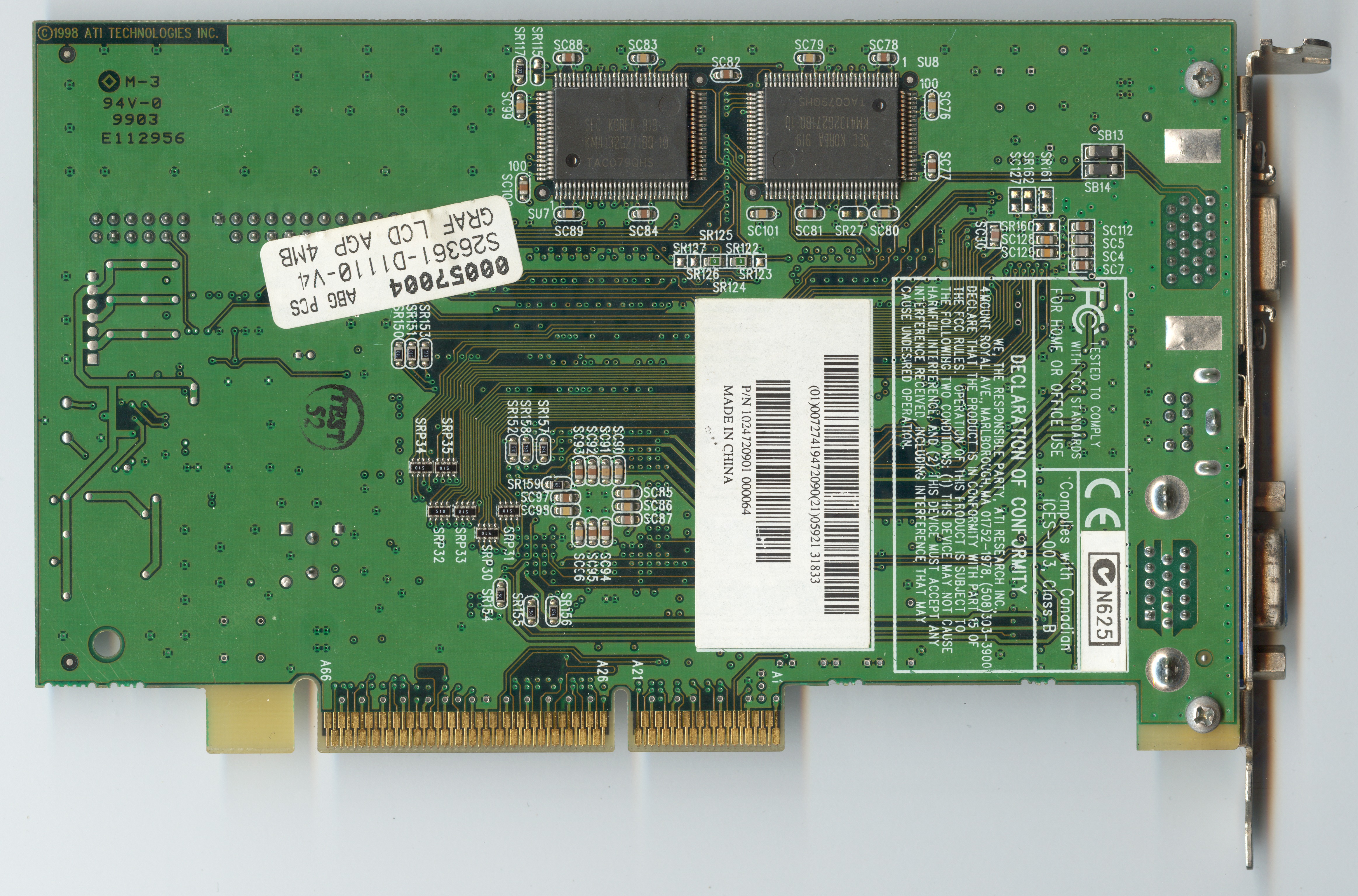

ATi Rage LT PRO (back side)

ATi Rage LT PRO (back side)
