Quantum3D Obsidian2 X-24

Published: (last update )

Note: Most likely defective secondary chipset on daughterboard. Works fine when it is removed.

GPU
GPU type 2 × SSTV2
Manufacturing process350 nm
Transistors8 million
Die size- mm2
Density-
ROPs2
TMUs4
Pixel shaders-
Vertex shaders-
Unified shaders-
Clock90 MHz
Pixel fillrate180 MP/s
Texel fillrate360 MT/s
SP gigaflops-
DP gigaflops-
DirectX6
OpenGL1.1
OpenCL / Compute ver.-
Memory
Capacity24 MB
TypeEDO
Clock90 MHz
Bus width384 bit
Bandwith4 320 MB/s
Rated speed100 MHz
BrandSillicon Magic
The card
ManufacturerQuantum3D
InterfacePCI
Interface bandwith133 MB/s
TDP-
Analog I/O ports1 × VGA, 1 × Composite out, 1 × S-Video out
Digital I/O ports-
Independent screens1
Manufacture date28th week of 1998
Release date1998

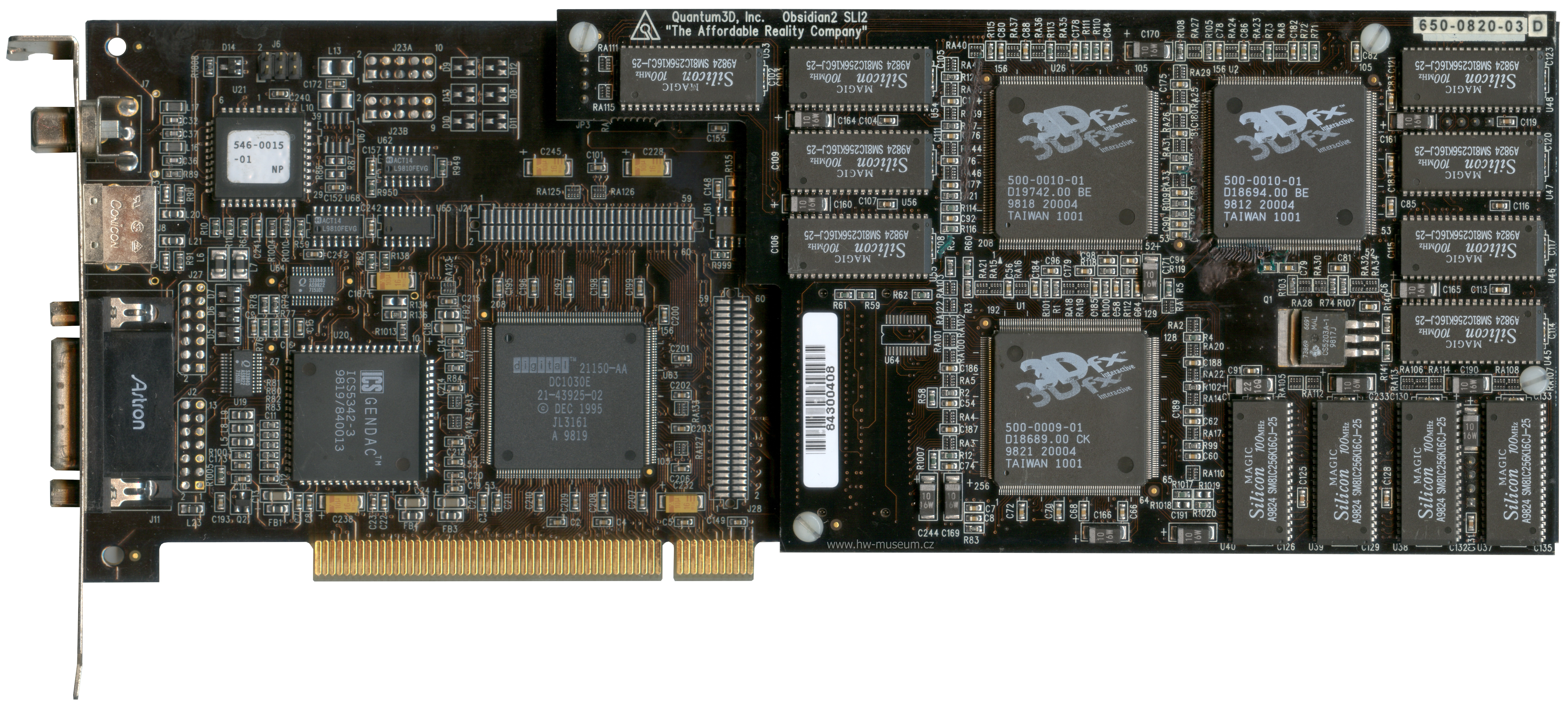

Quantum3D Obsidian2 X-24 (front side)

Quantum3D Obsidian2 X-24 (front side)

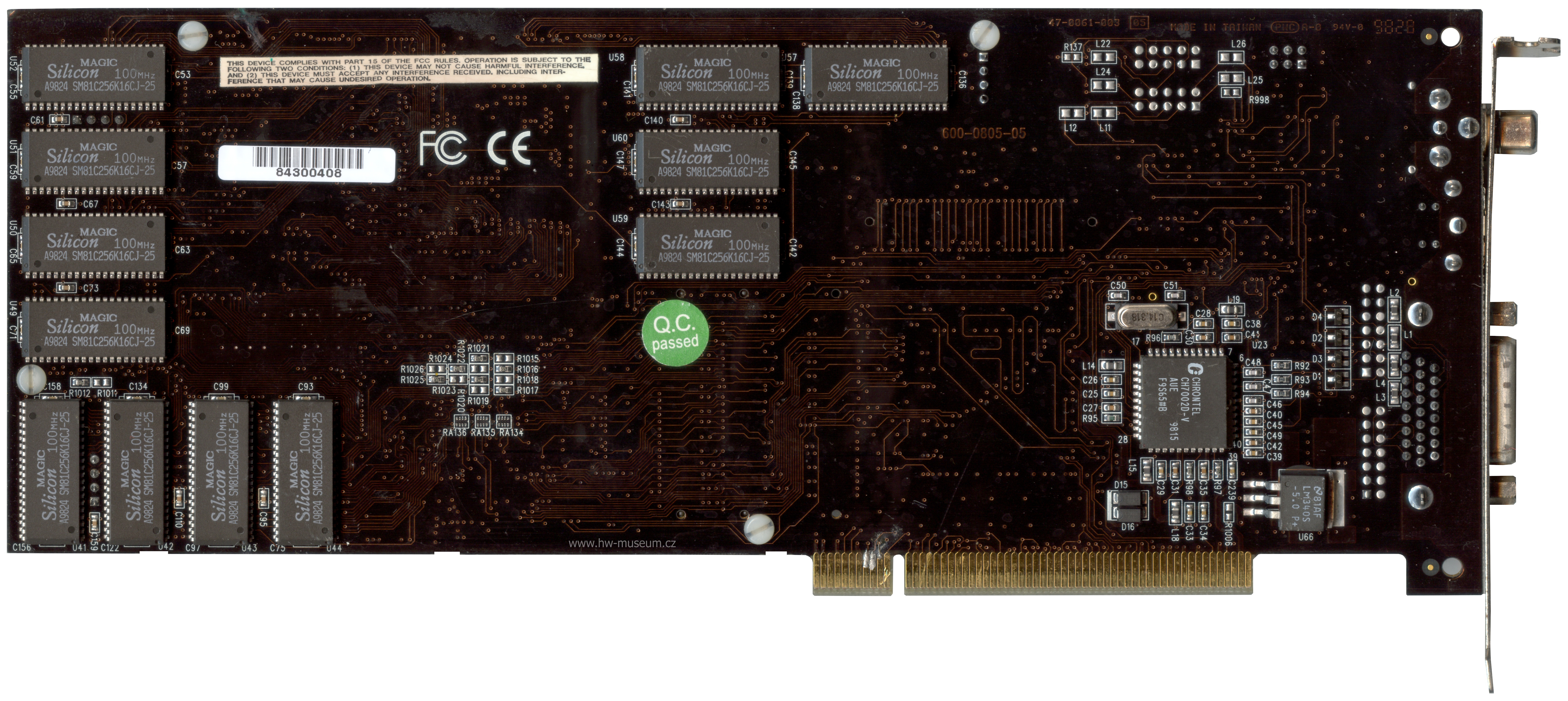

Quantum3D Obsidian2 X-24 (back side)

Quantum3D Obsidian2 X-24 (back side)

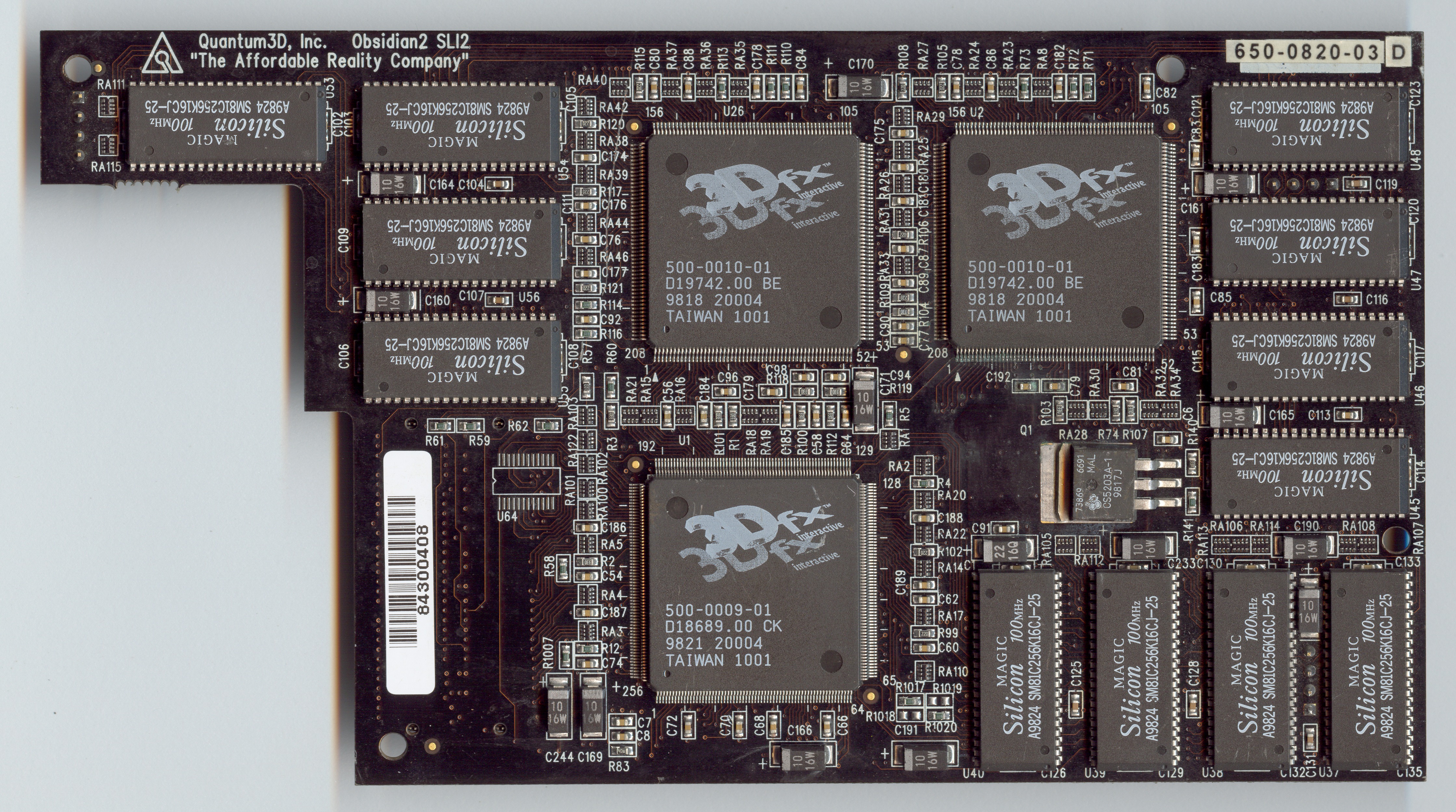

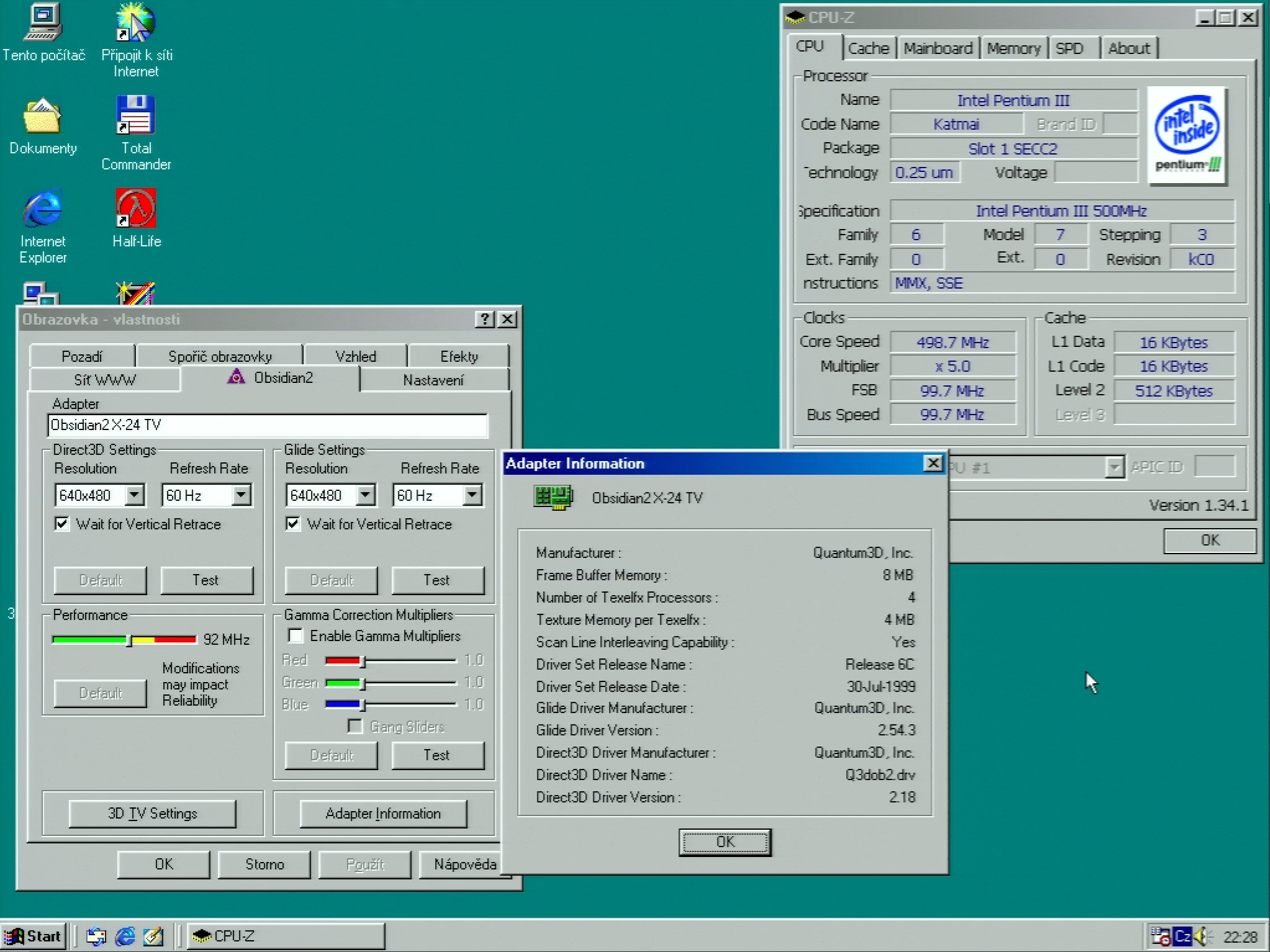

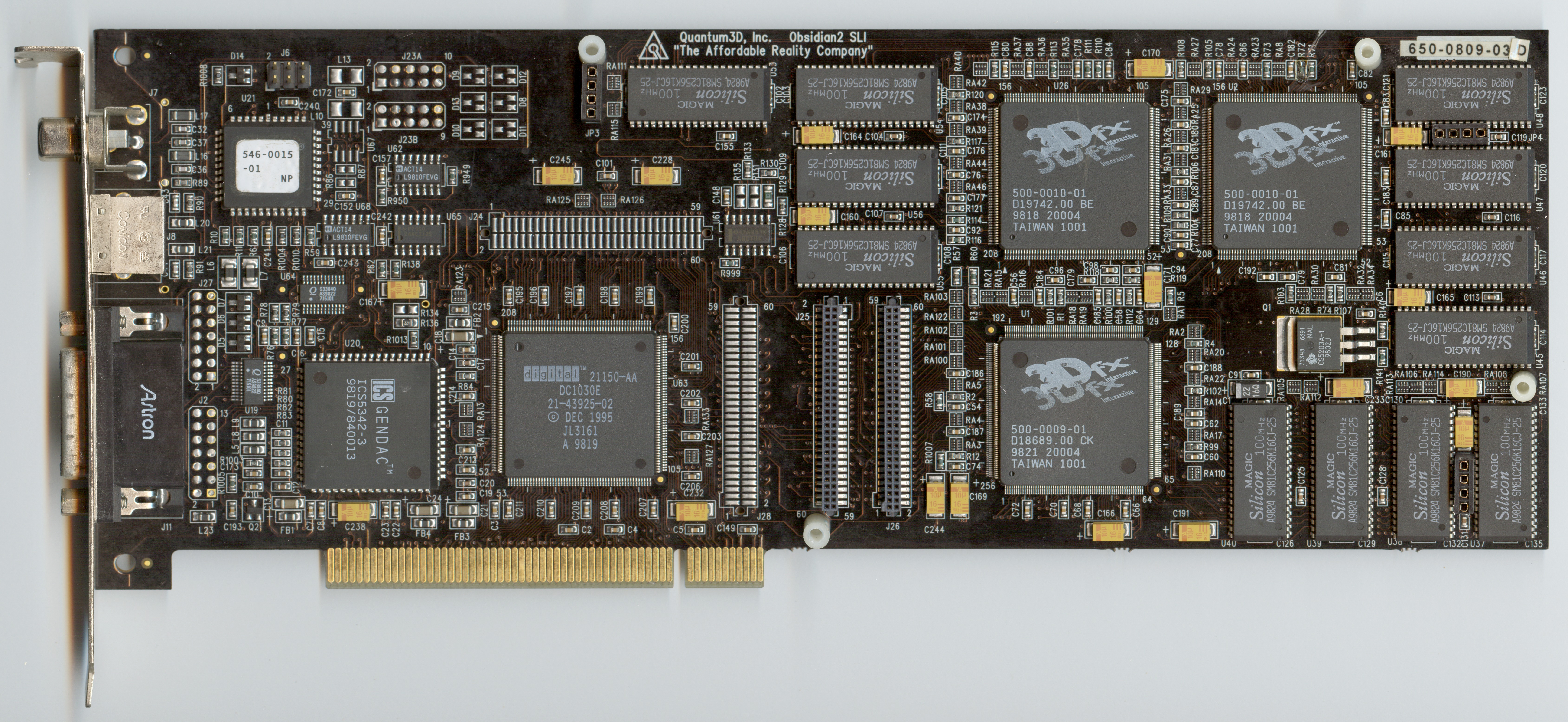

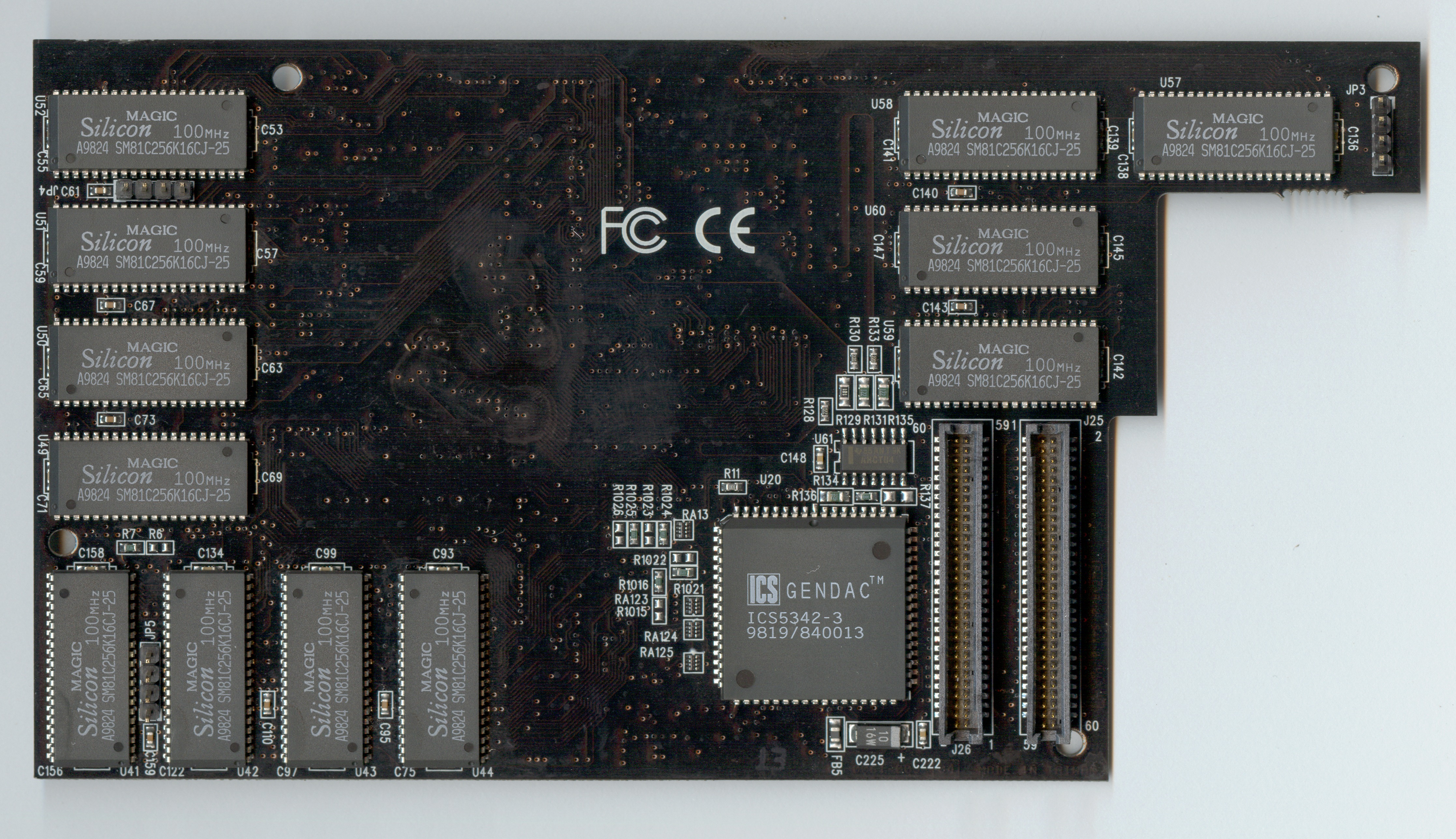

Quantum3D Obsidian2 X-24 gallery
Quantum3D Obsidian2 X-24 gallery
Quantum3D Obsidian2 X-24 gallery
Quantum3D Obsidian2 X-24 gallery
Quantum3D Obsidian2 X-24 gallery
Quantum3D Obsidian2 X-24 gallery
