Gainward Dragon 3000

Published: (last update )

GPU
GPU type SSTV2
Manufacturing process350 nm
Transistors4 million
Die size119 mm2
Density0.034 M / mm2
ROPs1
TMUs2
Pixel shaders-
Vertex shaders-
Unified shaders-
Clock90 MHz
Pixel fillrate90 MP/s
Texel fillrate180 MT/s
SP gigaflops-
DP gigaflops-
DirectX6
OpenGL1.1
OpenCL / Compute ver.-
Memory
Capacity12 MB
TypeEDO
Clock90 MHz
Bus width192 bit
Bandwith2 160 MB/s
Rated speed100 MHz
BrandOKI
The card
ManufacturerGainward
InterfacePCI
Interface bandwith133 MB/s
TDP-
Analog I/O ports1 × VGA
Digital I/O ports-
Independent screens1
Manufacture date51st week of 1998
Release date1997

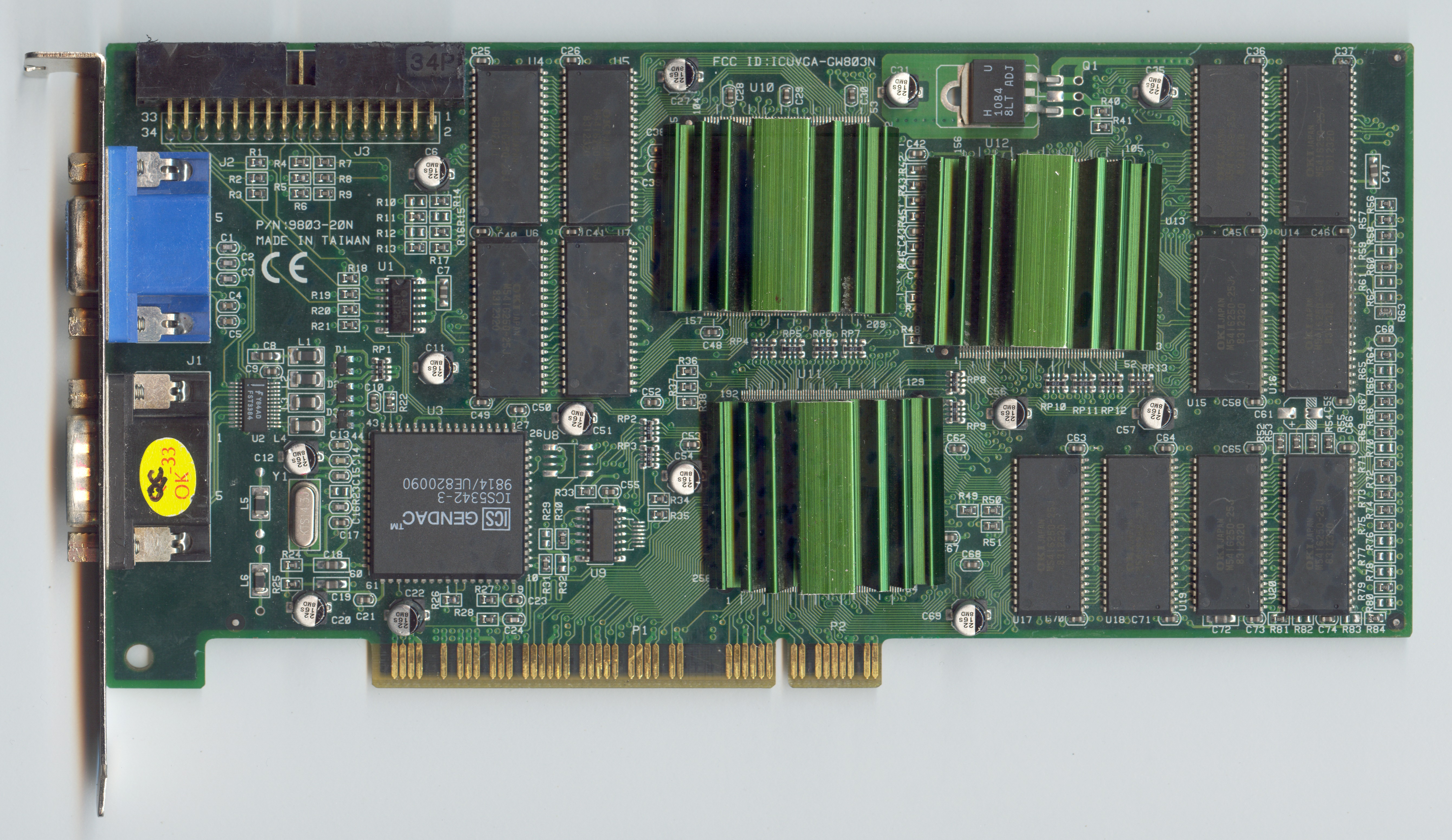

Gainward Dragon 3000 (front side)

Gainward Dragon 3000 (front side)

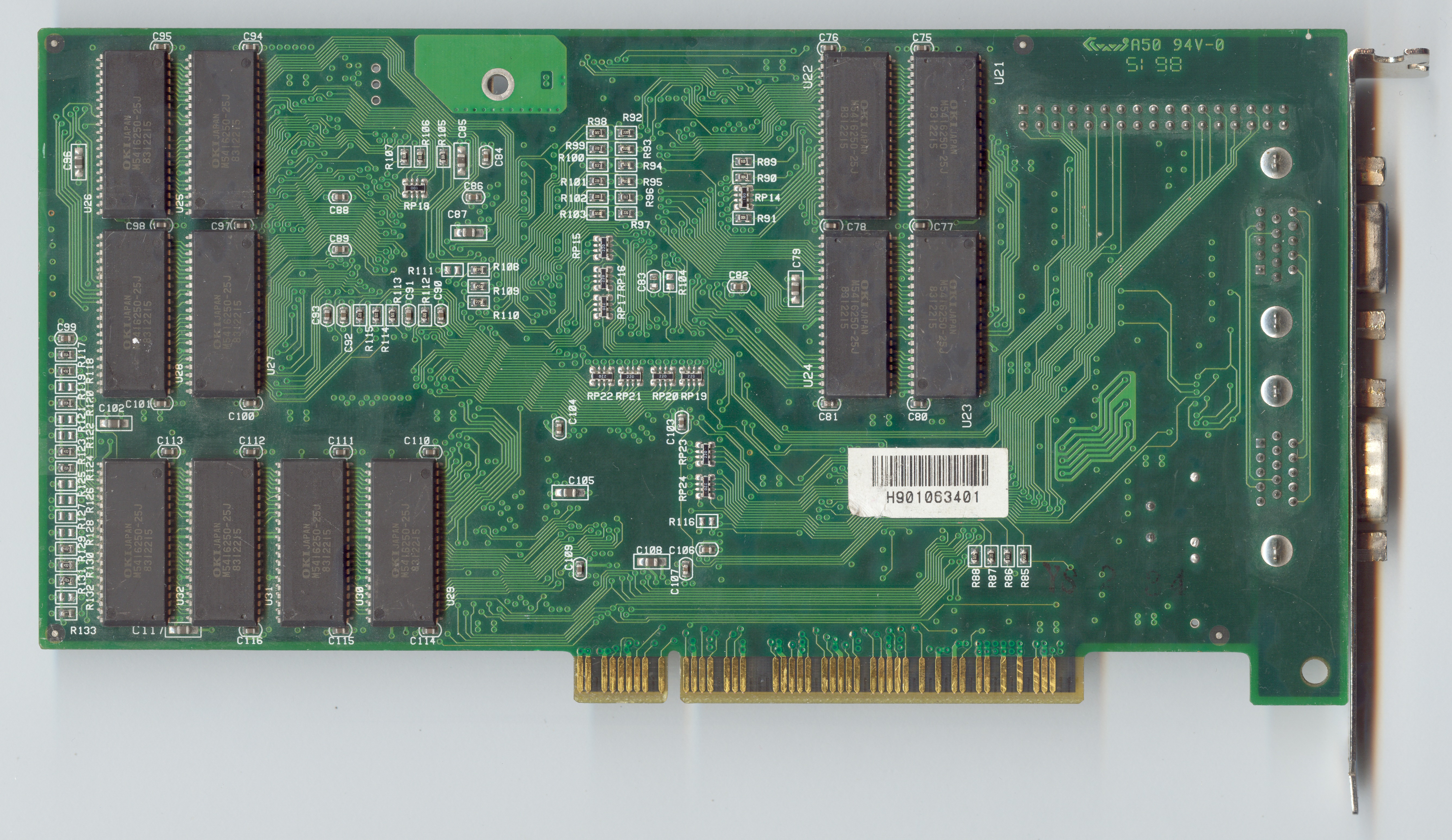

Gainward Dragon 3000 (back side)

Gainward Dragon 3000 (back side)
