Techworks Power 3D II

Published: (last update )

GPU
GPU type SSTV2
Manufacturing process350 nm
Transistors4 million
Die size119 mm2
Density0.034 M / mm2
ROPs1
TMUs2
Pixel shaders-
Vertex shaders-
Unified shaders-
Clock90 MHz
Pixel fillrate90 MP/s
Texel fillrate180 MT/s
SP gigaflops-
DP gigaflops-
DirectX6
OpenGL1.1
OpenCL / Compute ver.-
Memory
Capacity12 MB
TypeEDO
Clock90 MHz
Bus width192 bit
Bandwith2 160 MB/s
Rated speed100 MHz
BrandVanguard
The card
ManufacturerTechworks
InterfacePCI
Interface bandwith133 MB/s
TDP-
Analog I/O ports1 × VGA
Digital I/O ports-
Independent screens1
Manufacture date31st week of 1998
Release date1997

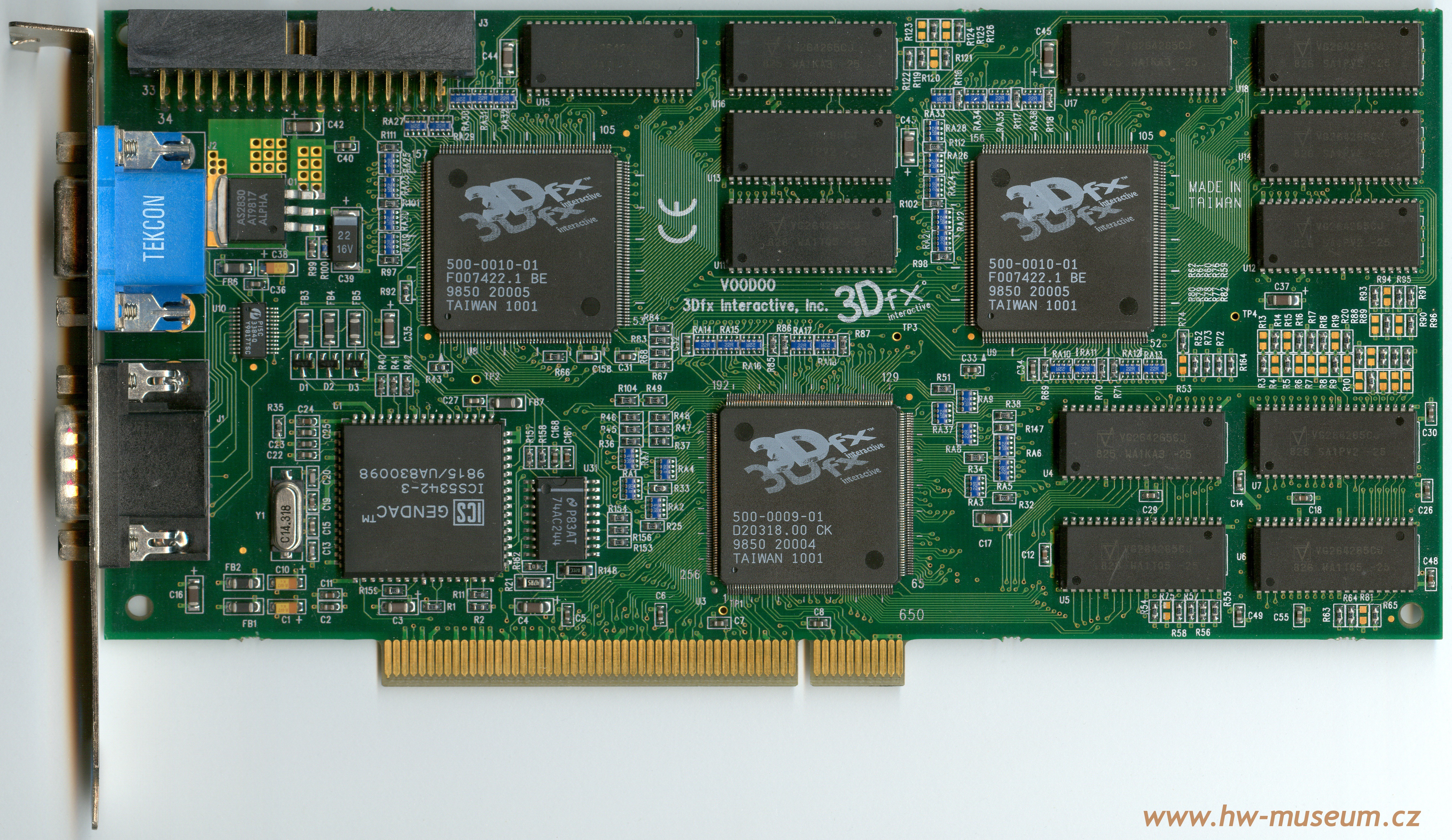

Techworks Power 3D II (front side)

Techworks Power 3D II (front side)

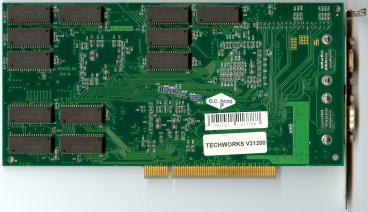

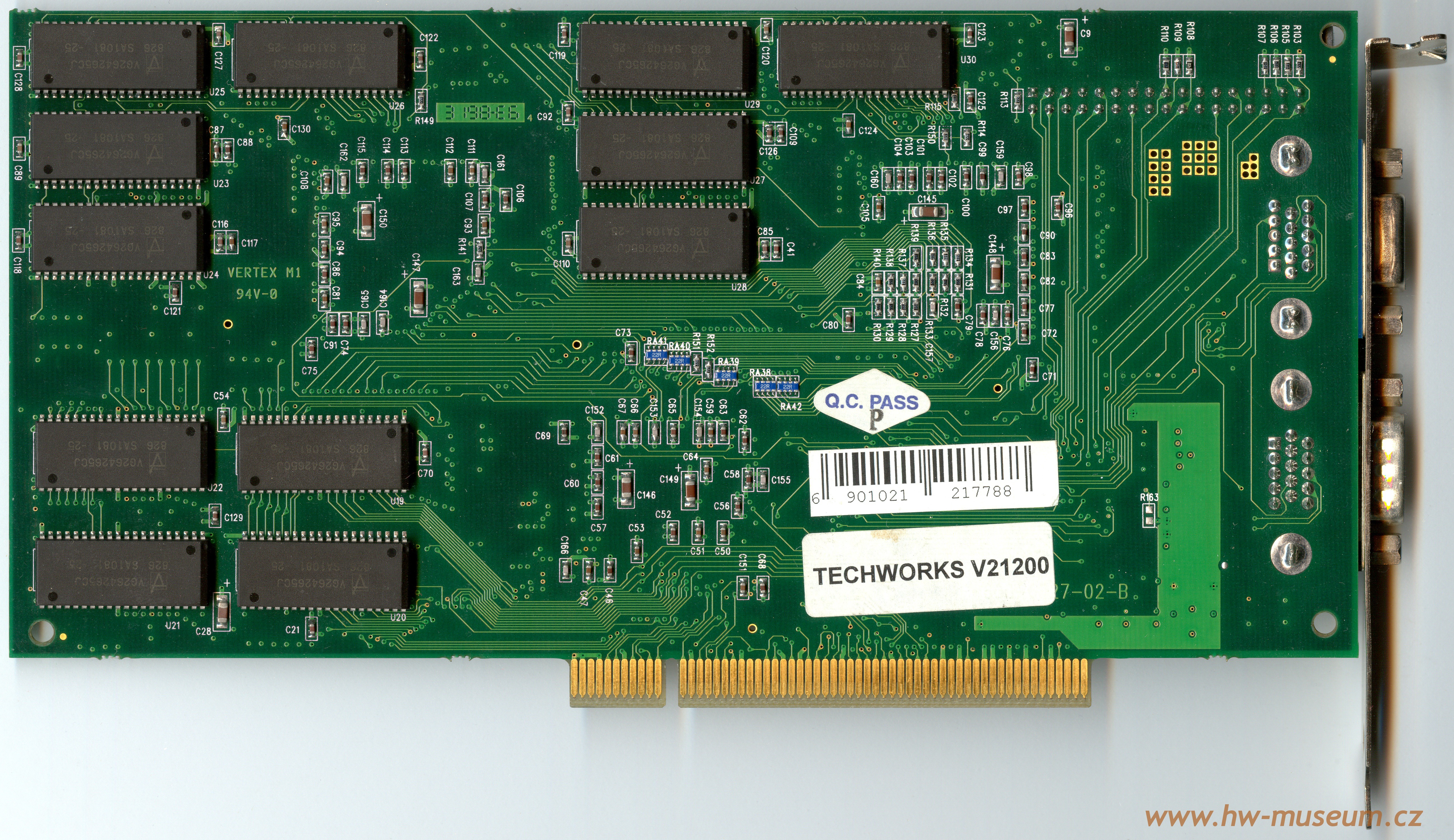

Techworks Power 3D II (back side)

Techworks Power 3D II (back side)
