Gainward Dragon 1000

Published: (last update )

GPU
GPU type SST1
Manufacturing process500 nm
Transistors1 milion
Die size135 mm2
ROPs1
TMUs1
Pixel shaders-
Vertex shaders-
Unified shaders-
Clock50 MHz
Pixel fillrate50 MP/s
Texel fillrate50 MT/s
SP gigaflops-
DP gigaflops-
DirectX5
OpenGL1.1
OpenCL / Compute ver.-
Memory
Capacity4 MB
TypeEDO
Clock50 MHz
Bus width128 bit
Bandwith800 MB/s
Rated speed50 MHz
BrandMosel
The card
ManufacturerGainward
InterfacePCI
Interface bandwith133 MB/s
TDP-
Analog I/O ports1 × VGA
Digital I/O ports-
Independent screens1
Rev3597
Release date1996

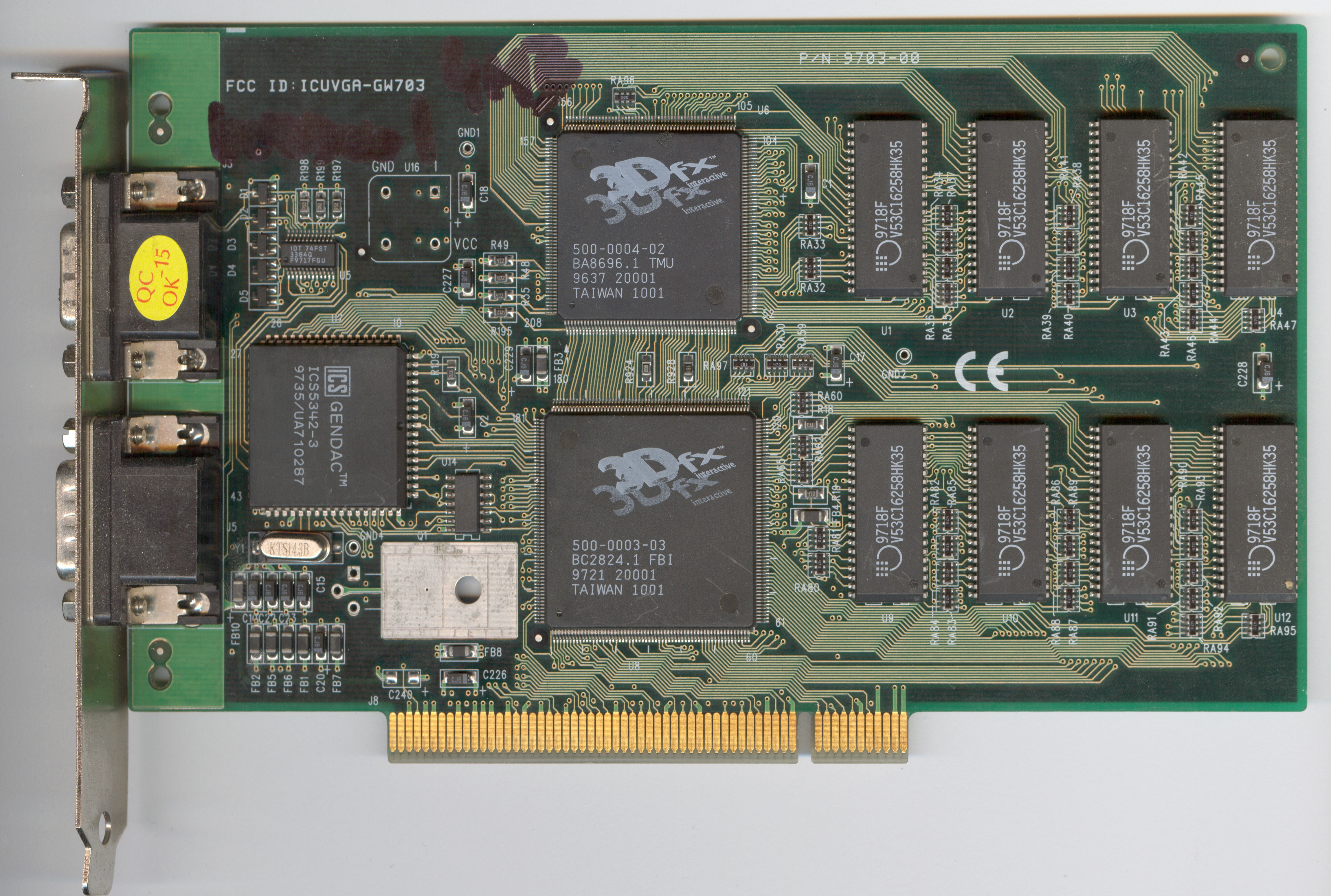

Gainward Dragon 1000 (front side)

Gainward Dragon 1000 (front side)

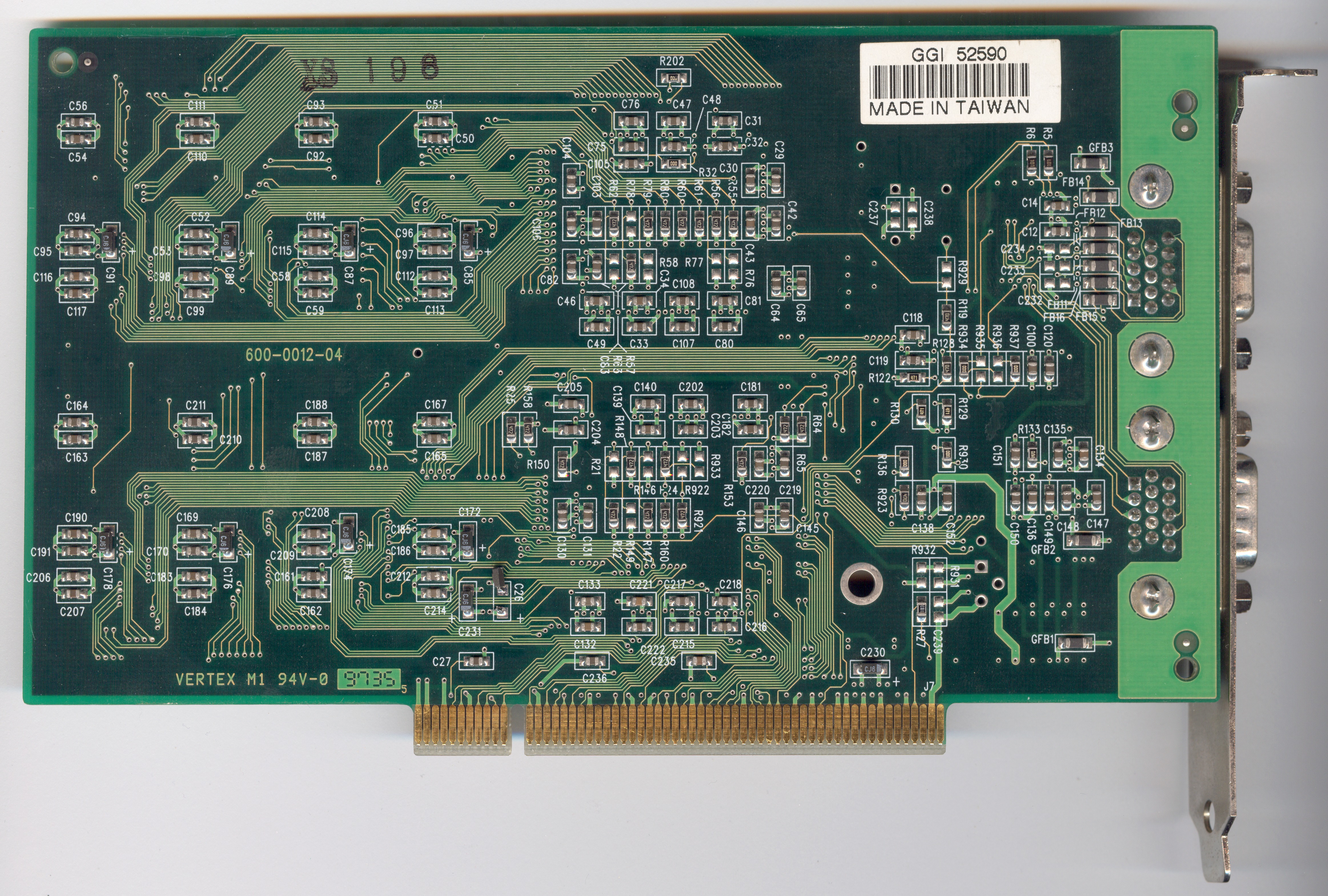

Gainward Dragon 1000 (back side)

Gainward Dragon 1000 (back side)
