Quantum3D Obsidian2 200SBi

Published: (last update )

GPU
GPU type 2 × SSTV2
Manufacturing process350 nm
Transistors8 milion
Die size- mm2
ROPs2
TMUs4
Pixel shaders-
Vertex shaders-
Unified shaders-
Clock90 MHz
Pixel fillrate180 MP/s
Texel fillrate360 MT/s
SP gigaflops-
DP gigaflops-
DirectX6
OpenGL1.1
OpenCL / Compute ver.-
Memory
Capacity24 MB
TypeEDO
Clock90 MHz
Bus width384 bit
Bandwith4320 MB/s
Rated speed100 MHz
BrandSillicon Magic
The card
ManufacturerQuantum3D
InterfacePCI
Interface bandwith133 MB/s
TDP-
Analog I/O ports1 × VGA, 1 × Composite out, 1 × S-Video out
Digital I/O ports-
Independent screens1
Rev1099
Release date1998

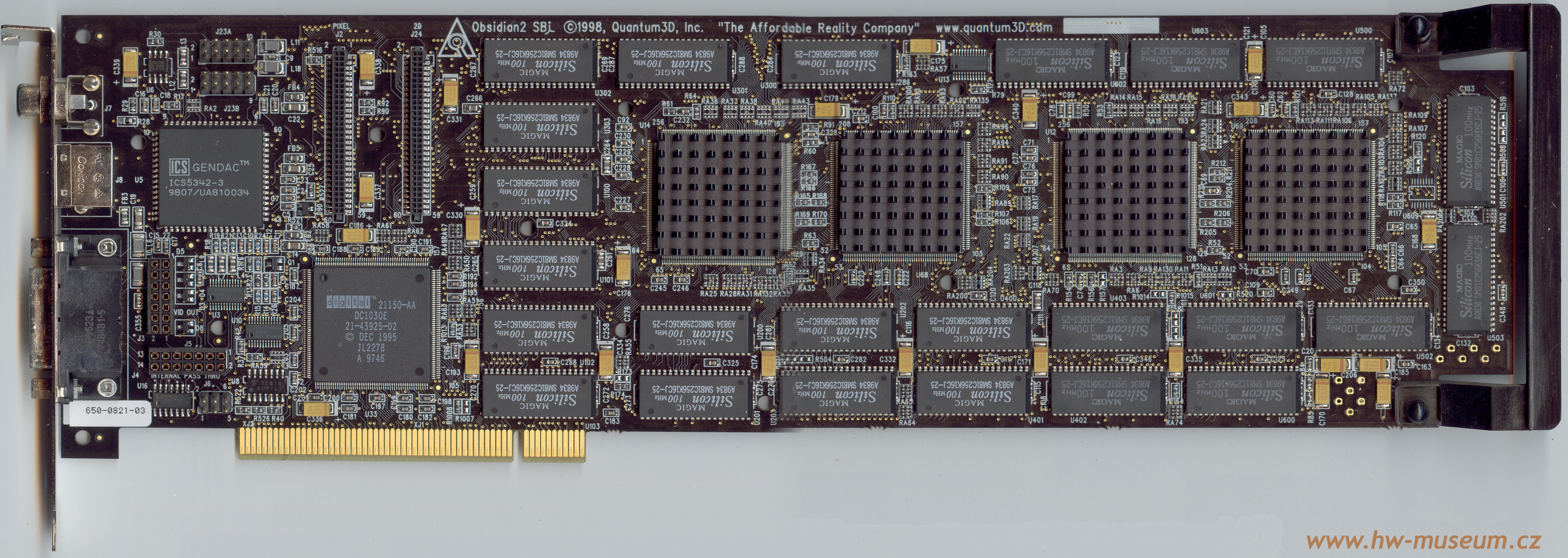

Quantum3D Obsidian2 200SBi (front side)

Quantum3D Obsidian2 200SBi (front side)

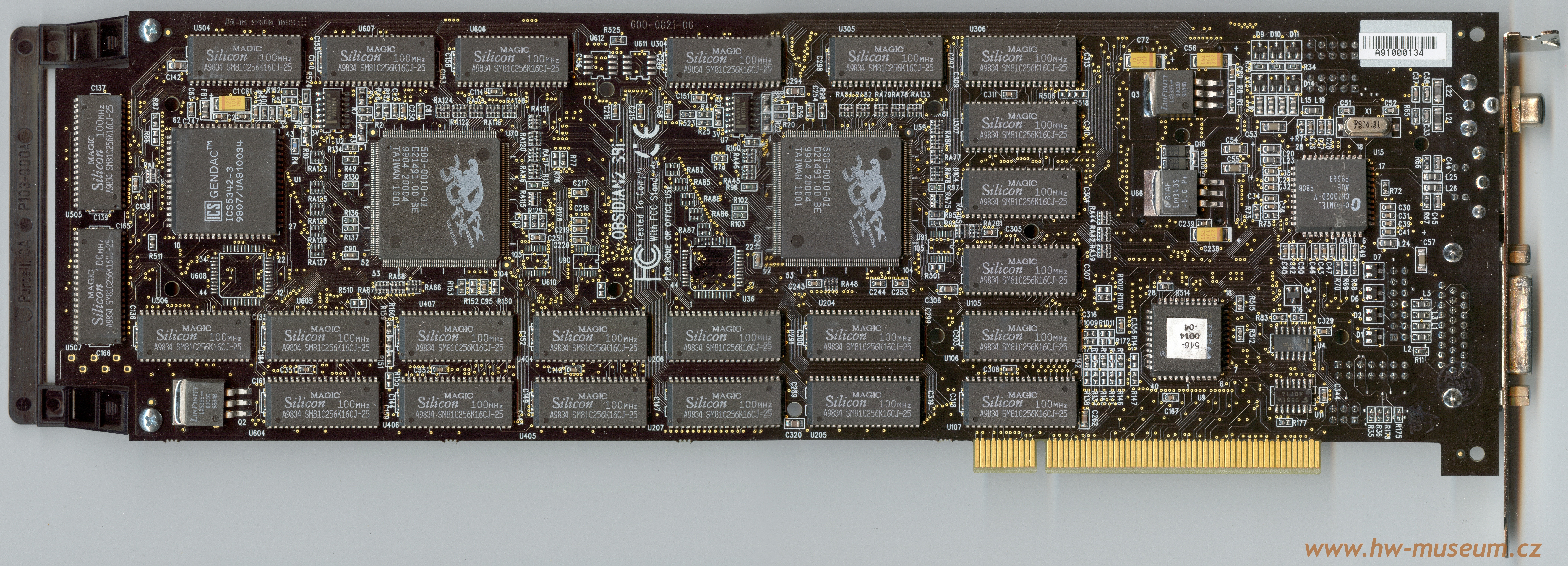

Quantum3D Obsidian2 200SBi (back side)

Quantum3D Obsidian2 200SBi (back side)

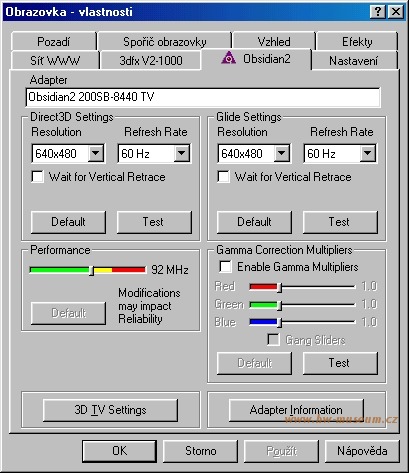

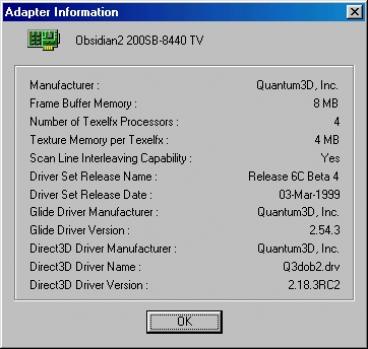

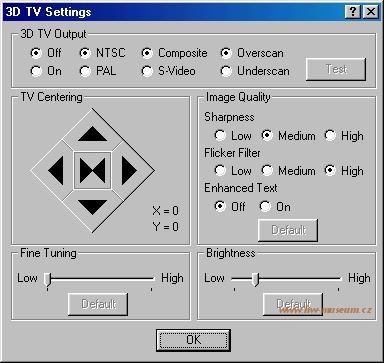

Quantum3D Obsidian2 200SBi gallery
Quantum3D Obsidian2 200SBi gallery
Quantum3D Obsidian2 200SBi gallery
Quantum3D Obsidian2 200SBi gallery
Quantum3D Obsidian2 200SBi gallery
Quantum3D Obsidian2 200SBi gallery
