3dfx Voodoo4 4500 PCI (5.5ns SDRAM)

Published: (last update )

GPU
GPU type VSA-100
Manufacturing process250 nm
Transistors14 million
Die size112 mm2
Density0.12 M / mm2
ROPs2
TMUs2
Pixel shaders-
Vertex shaders-
Unified shaders-
Clock166 MHz
Pixel fillrate332 MP/s
Texel fillrate332 MT/s
SP gigaflops-
DP gigaflops-
DirectX7
OpenGL1.1
OpenCL / Compute ver.-
Memory
Capacity32 MB
TypeSDRAM
Clock166 MHz
Bus width128 bit
Bandwith2 656 MB/s
Rated speed183 MHz
BrandSamsung
The card
Manufacturer3dfx
InterfacePCI
Interface bandwith133 MB/s
TDP15 W
Analog I/O ports1 × VGA
Digital I/O ports-
Independent screens1
Manufacture date37th week of 2000
Release date2000

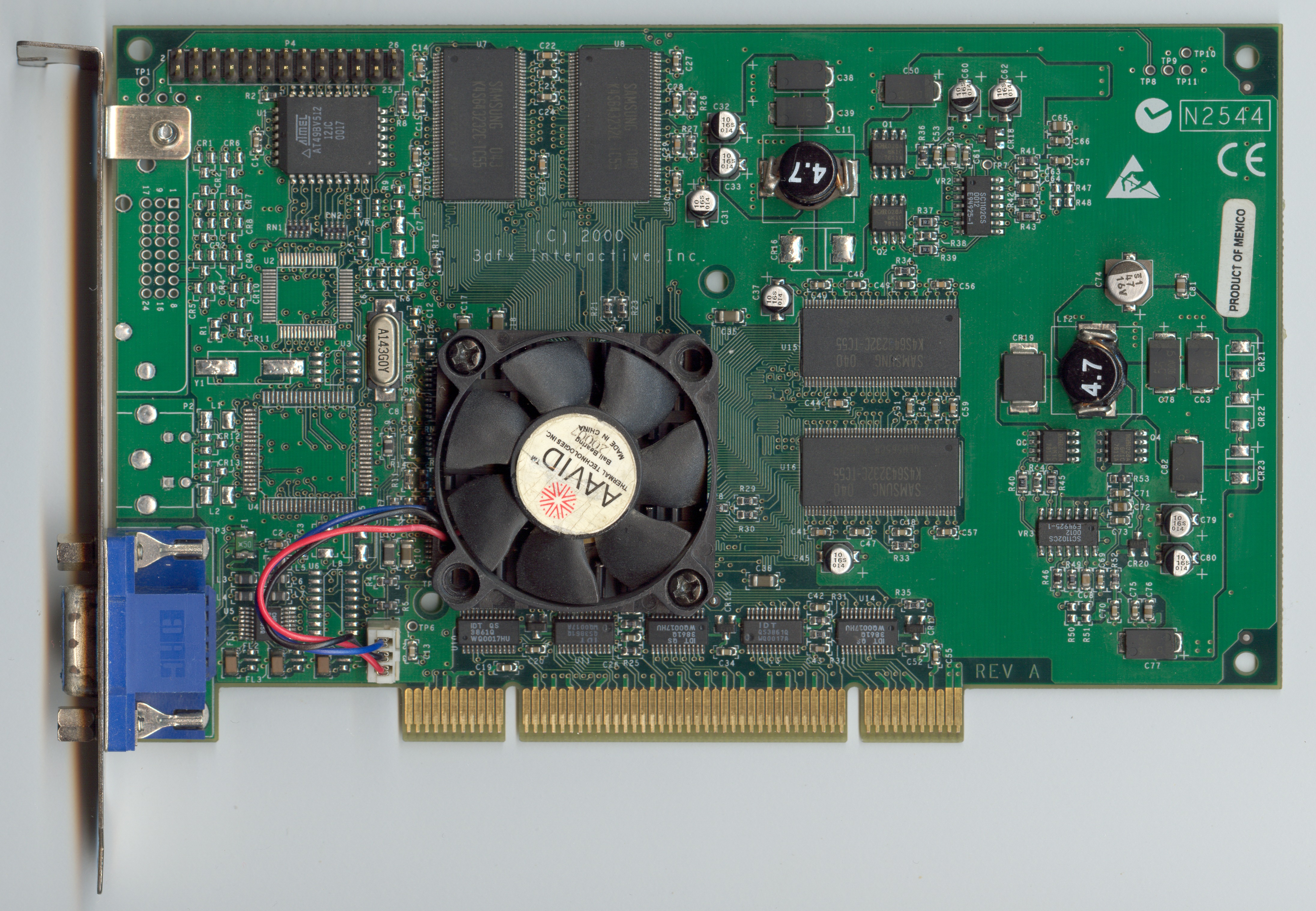

3dfx Voodoo4 4500 PCI (5.5ns SDRAM) (front side)

3dfx Voodoo4 4500 PCI (5.5ns SDRAM) (front side)

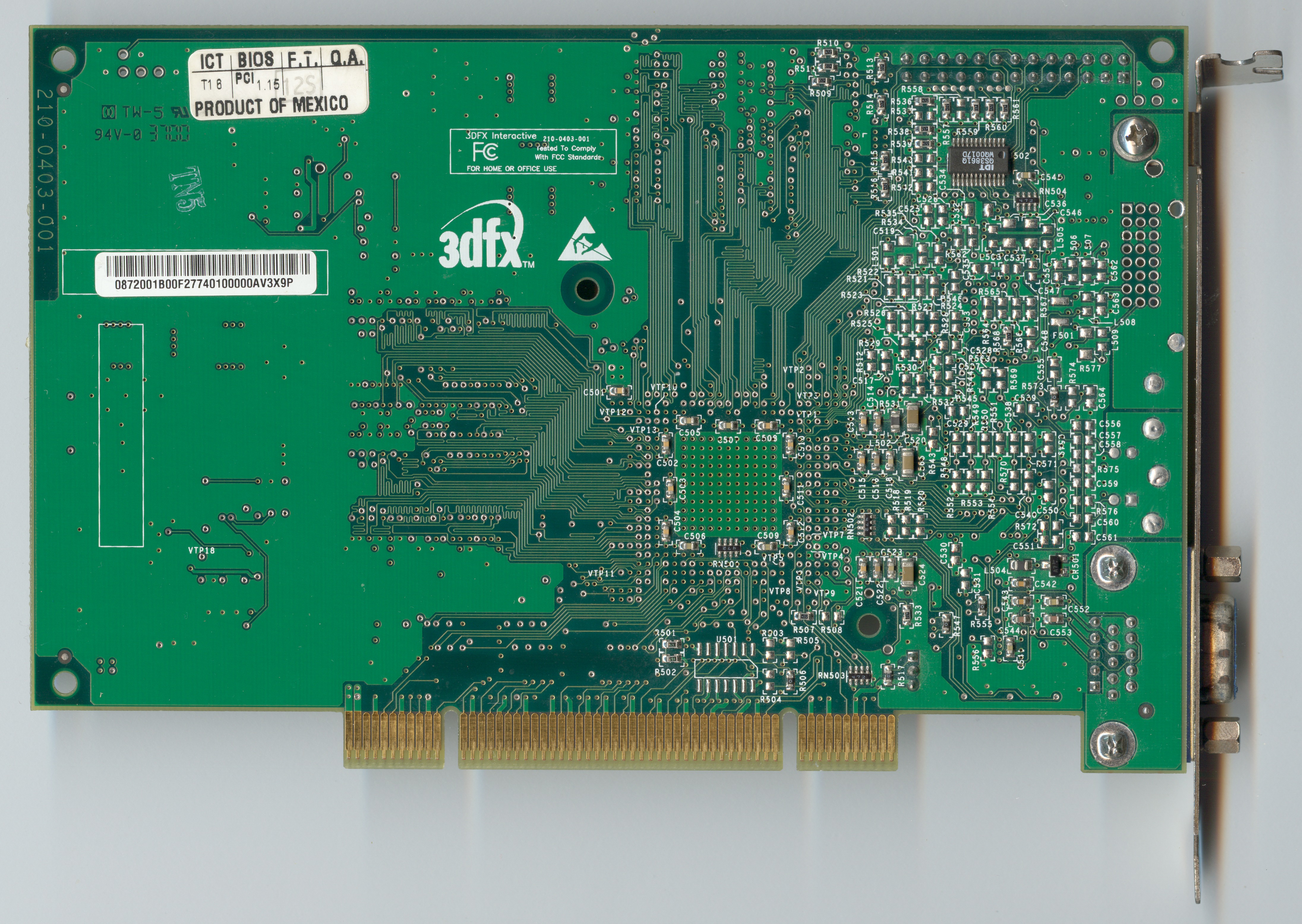

3dfx Voodoo4 4500 PCI (5.5ns SDRAM) (back side)

3dfx Voodoo4 4500 PCI (5.5ns SDRAM) (back side)
