3dfx Voodoo4 4800 AGP

Published: (last update )

Note: This is modded Voodoo4 4500. I added 32MB of memory and DVI output with all necessary components. DVI works perfectly with resolution up to 1600×1200.

GPU
GPU type VSA-100
Manufacturing process250 nm
Transistors14 million
Die size112 mm2
ROPs2
TMUs2
Pixel shaders-
Vertex shaders-
Unified shaders-
Clock166 MHz
Pixel fillrate332 MP/s
Texel fillrate332 MT/s
SP gigaflops-
DP gigaflops-
DirectX7
OpenGL1.1
OpenCL / Compute ver.-
Memory
Capacity64 MB
TypeSDRAM
Clock166 MHz
Bus width128 bit
Bandwith2656 MB/s
Rated speed166 MHz
BrandHyundai + Samsung
The card
Manufacturer3dfx
InterfaceAGP 4x
Interface bandwith1066 MB/s
TDP15 W
Analog I/O ports1 × VGA
Digital I/O ports1 × DVI-D
Independent screens1
Manufacture date37th week of 2000
Release date2000

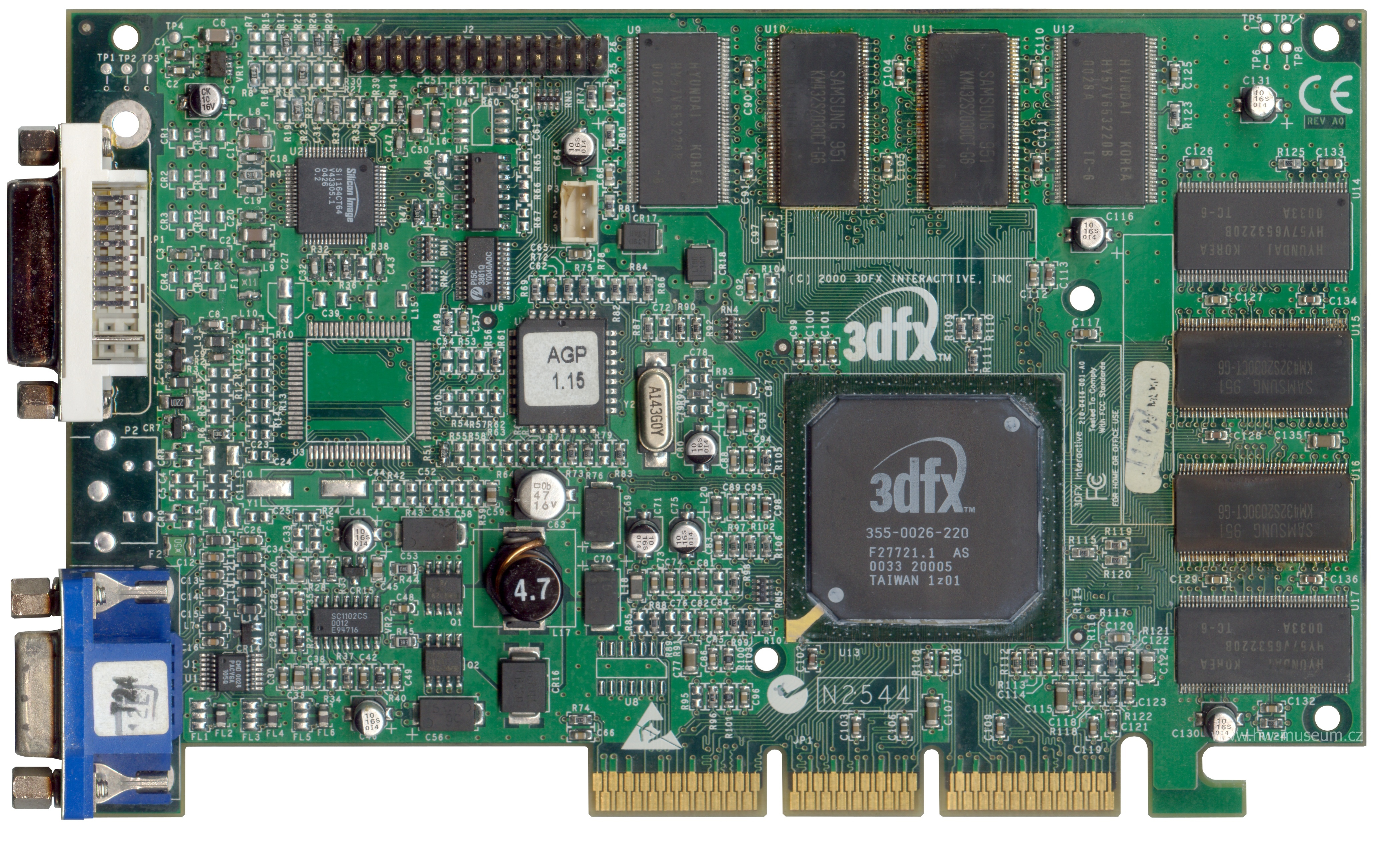

3dfx Voodoo4 4800 AGP (front side)

3dfx Voodoo4 4800 AGP (front side)

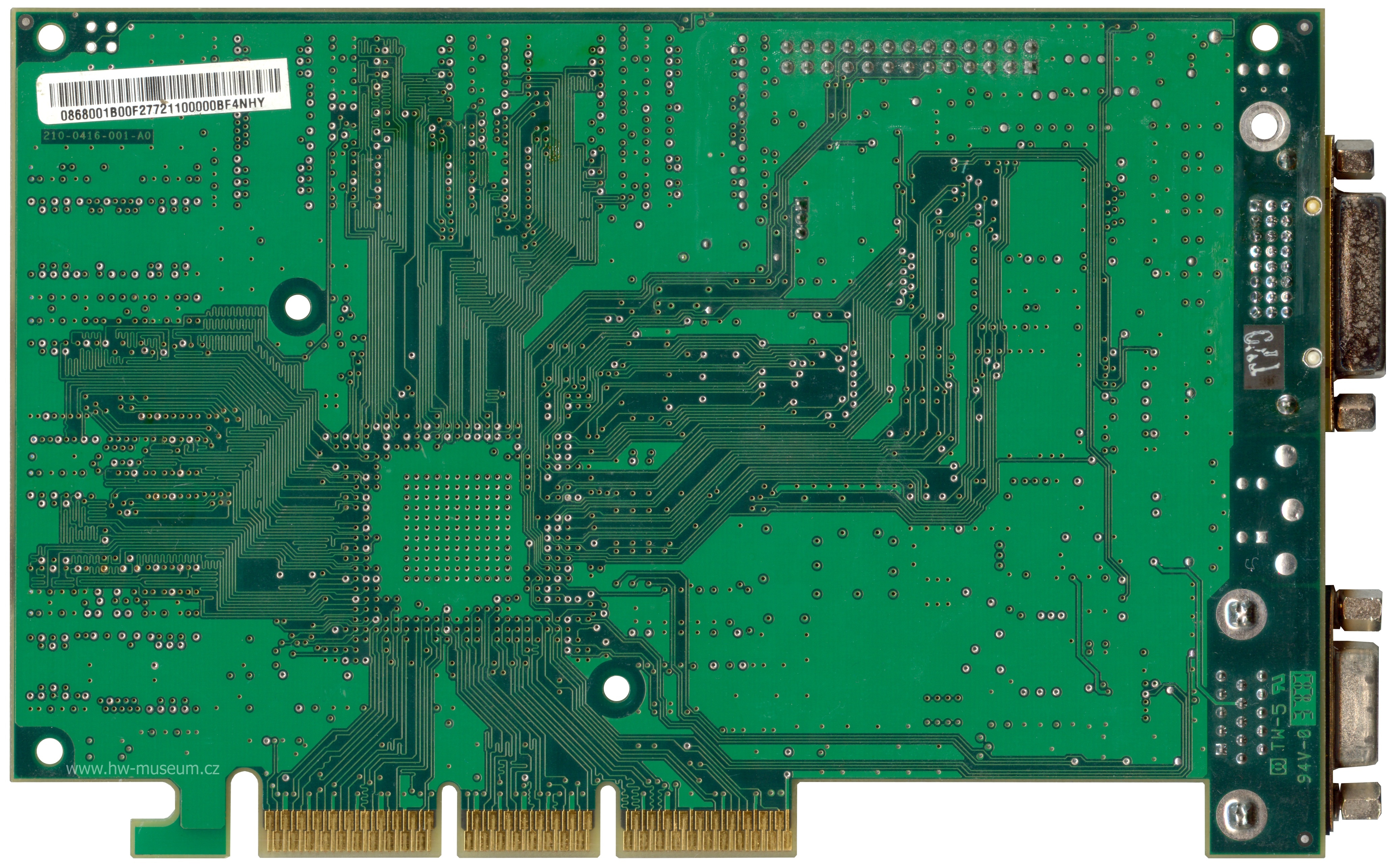

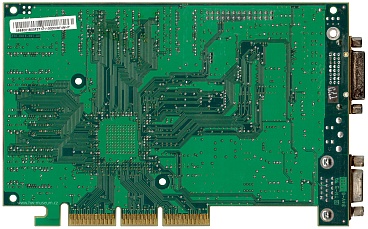

3dfx Voodoo4 4800 AGP (back side)

3dfx Voodoo4 4800 AGP (back side)

3dfx Voodoo4 4800 AGP gallery
3dfx Voodoo4 4800 AGP gallery
3dfx Voodoo4 4800 AGP gallery
3dfx Voodoo4 4800 AGP gallery
