PowerColor EvilKing IV L

Published: (last update )

GPU
GPU type VSA-100
Manufacturing process250 nm
Transistors14 million
Die size112 mm2
Density0.12 M / mm2
ROPs2
TMUs2
Pixel shaders-
Vertex shaders-
Unified shaders-
Clock166 MHz
Pixel fillrate332 MP/s
Texel fillrate332 MT/s
SP gigaflops-
DP gigaflops-
DirectX7
OpenGL1.1
OpenCL / Compute ver.-
Memory
Capacity32 MB
TypeSDRAM
Clock166 MHz
Bus width128 bit
Bandwith2 656 MB/s
Rated speed166 MHz
BrandSamsung
The card
ManufacturerPowerColor
InterfaceAGP 2x
Interface bandwith533 MB/s
TDP15 W
Analog I/O ports1 × VGA
Digital I/O ports-
Independent screens1
Manufacture date-
Release date2000
PowerColor EvilKing IV L (front side)

PowerColor EvilKing IV L (front side)

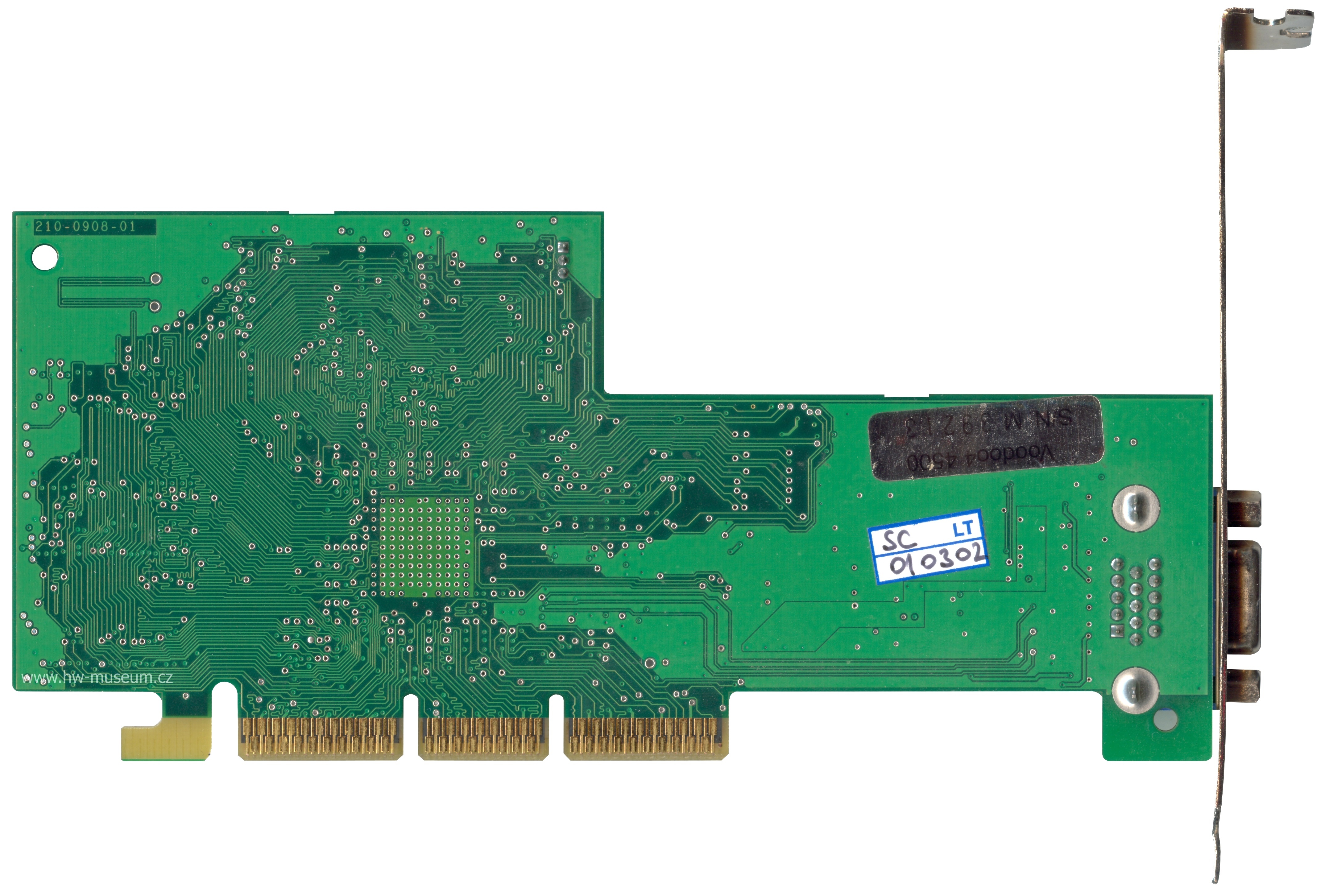

PowerColor EvilKing IV L (back side)

PowerColor EvilKing IV L (back side)
