Foxconn GeForce 8800 GTX OC

Published: (last update )

Note: Shaders not overclocked (1350 MHz)

GPU
GPU type G80
Manufacturing process90 nm
Transistors681 million
Die size484 mm2
Density1.41 M / mm2
ROPs24
TMUs32
Pixel shaders-
Vertex shaders-
Unified shaders128
Clock630 MHz
Pixel fillrate15 120 MP/s
Texel fillrate20 160 MT/s
SP gigaflops518
DP gigaflops-
DirectX10
OpenGL3.3
OpenCL / Compute ver.1.1 / 1.0
Memory
Capacity768 MB
TypeGDDR3
Clock2 000 MHz
Bus width384 bit
Bandwith96 000 MB/s
Rated speed2 000 MHz
BrandHynix
The card
ManufacturerFoxconn
InterfacePCI-E x16
Interface bandwith4 096 MB/s
TDP155 W
Analog I/O ports1 × S-Video out, 2 × DVI-I
Digital I/O ports2 × DVI-I
Independent screens2
Manufacture date19th week of 2007
Release date2007

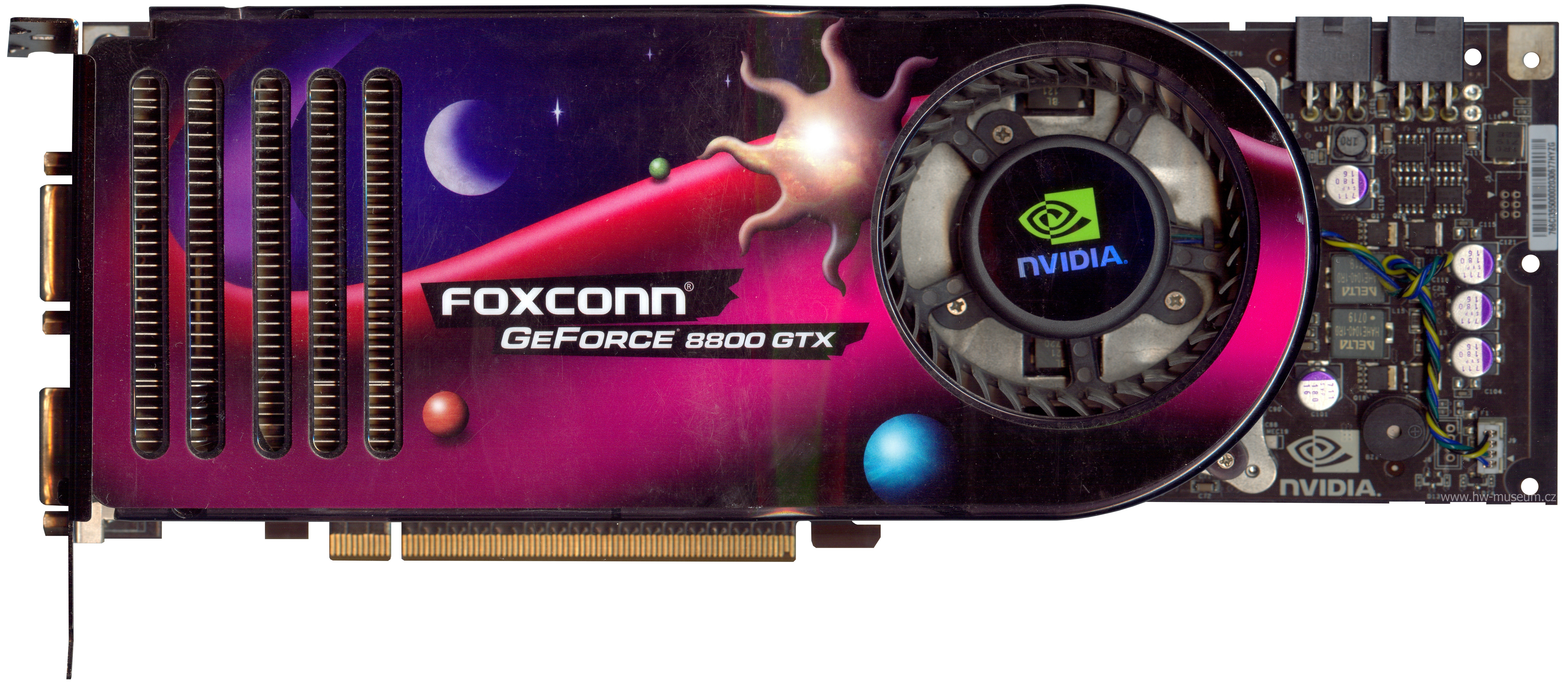

Foxconn GeForce 8800 GTX OC (front side)

Foxconn GeForce 8800 GTX OC (front side)

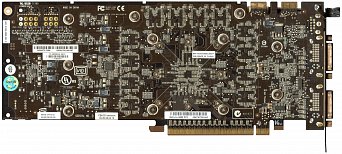

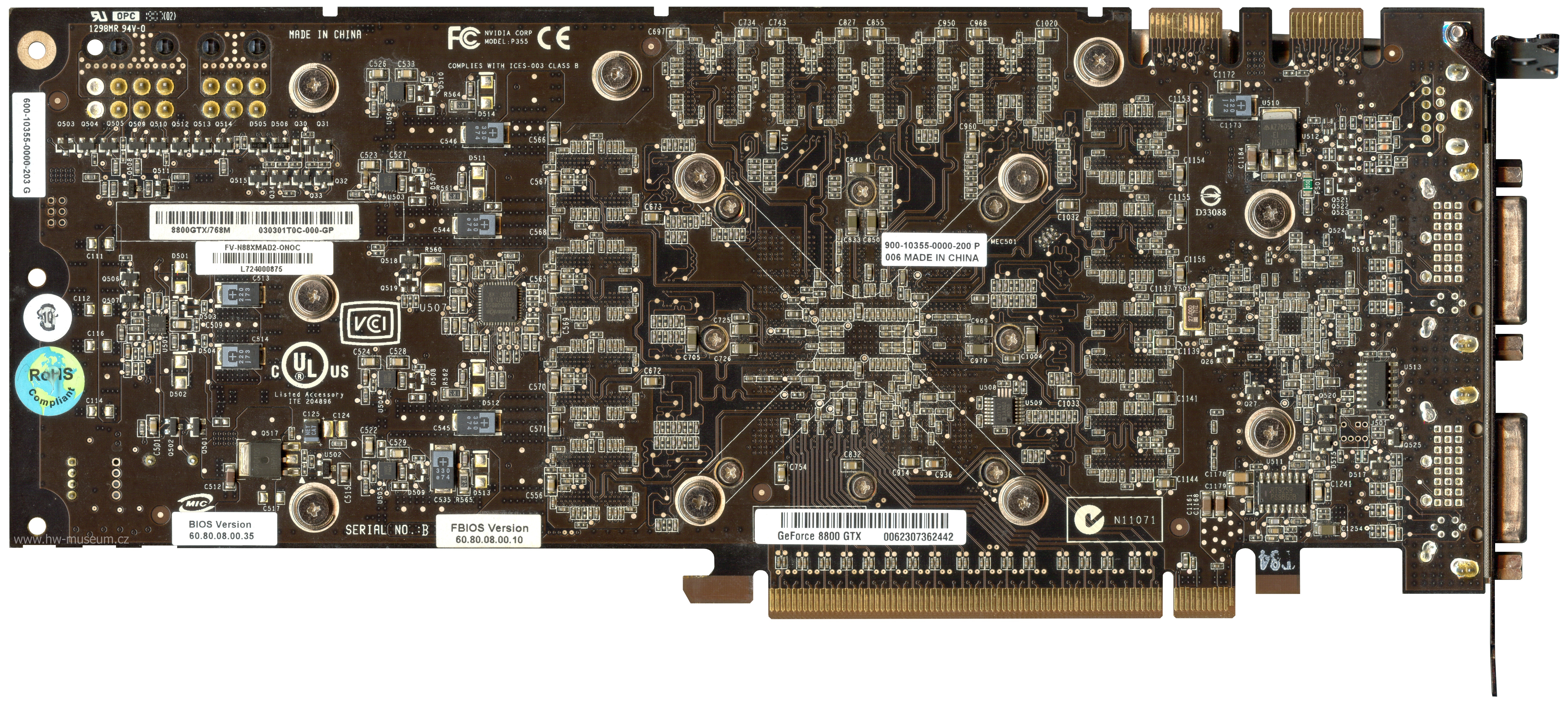

Foxconn GeForce 8800 GTX OC (back side)

Foxconn GeForce 8800 GTX OC (back side)

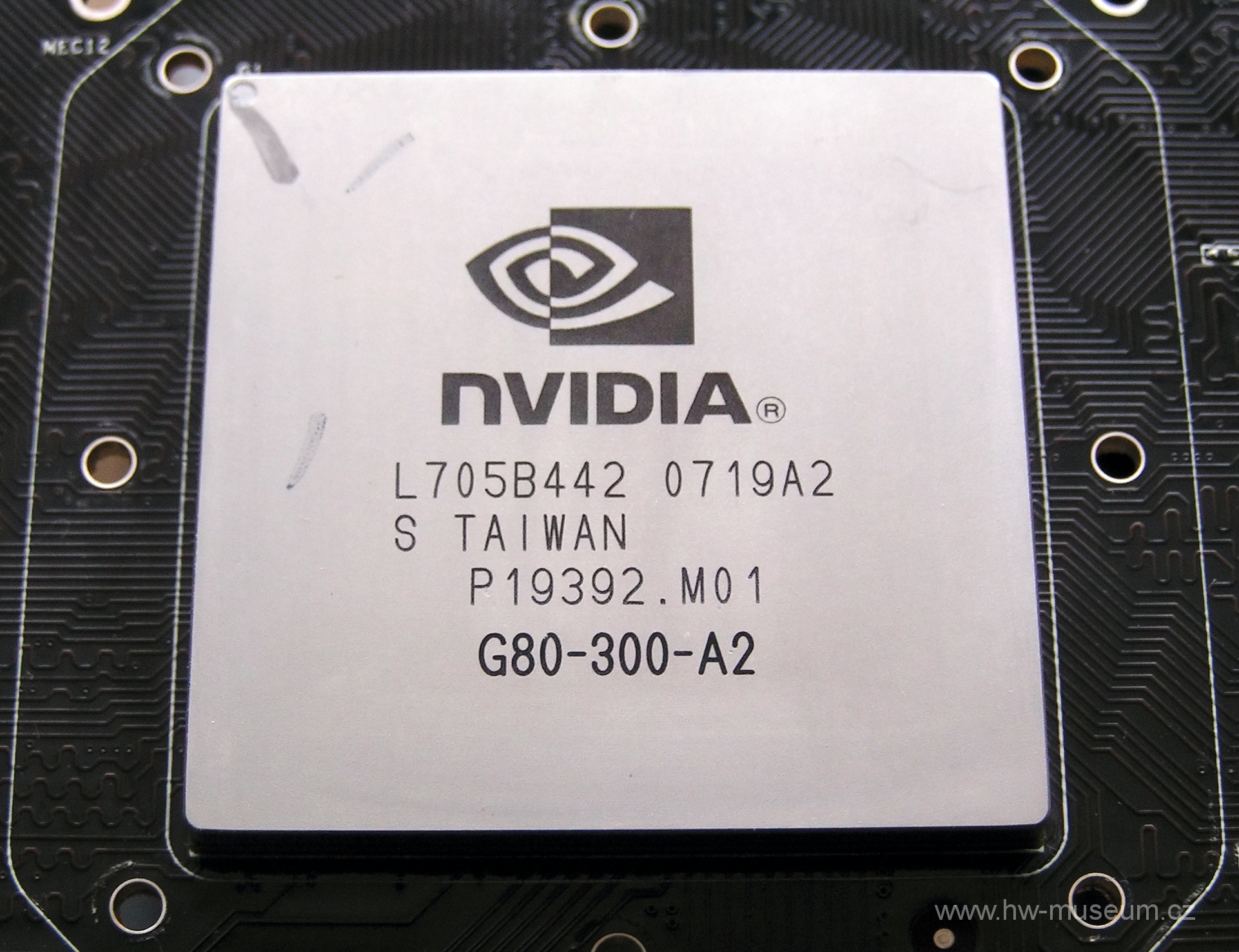

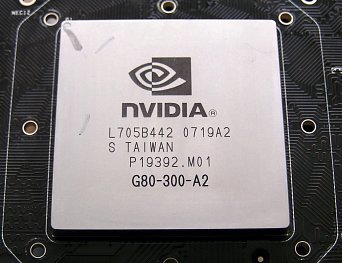

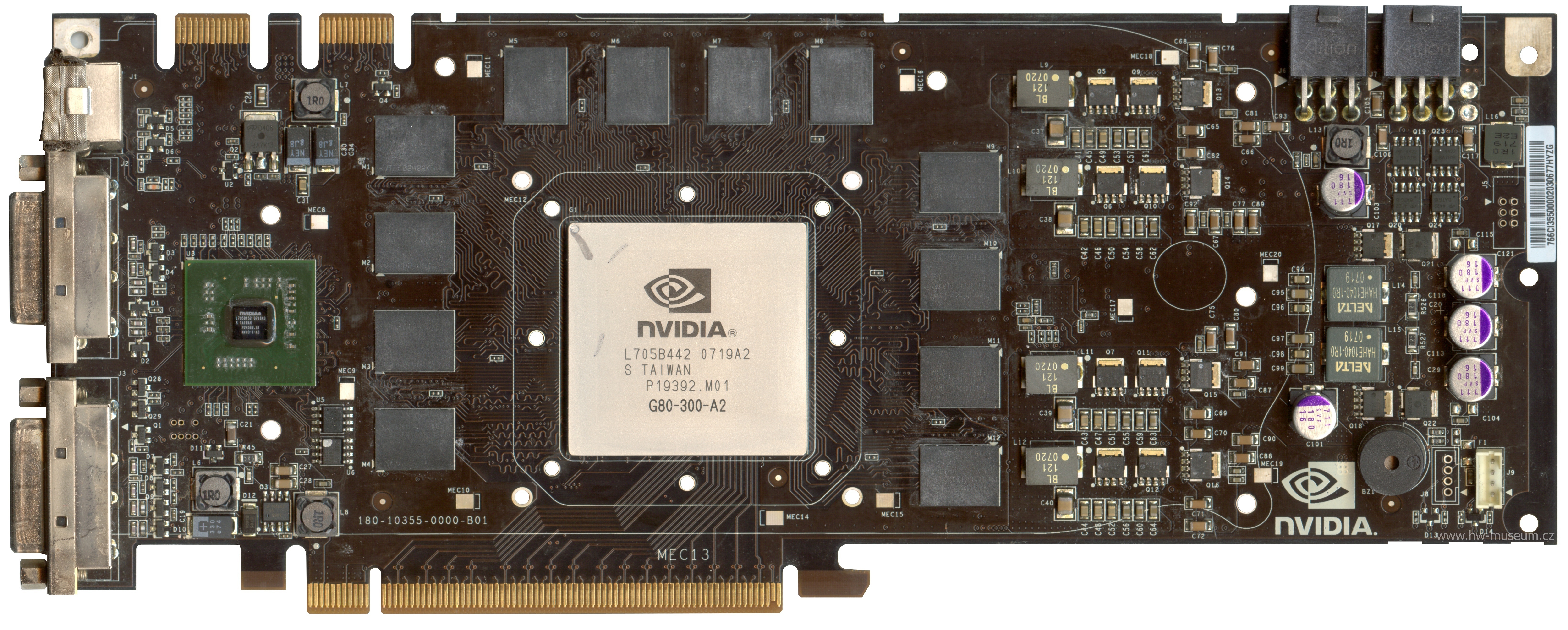

Foxconn GeForce 8800 GTX OC gallery
Foxconn GeForce 8800 GTX OC gallery
Foxconn GeForce 8800 GTX OC gallery
Foxconn GeForce 8800 GTX OC gallery
